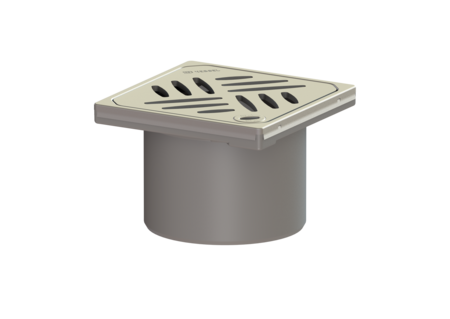

Upper section
Sys100, Kessel des cover, 304SST, L15
KESSEL Upper section, height 90 mm, length 132 mm, width 132 mm, type of cover Design cover, locking Lock & Lift, frame material Stainless steel 14301, design cover Kessel
- Different covers selectable
- Stainless steel covers
| Item no. | 27201 |
|---|---|
| GTIN | 4026092028735 |
| Price group | 10 |
Upper section Sys100, Kessel des cover, 304SST, L15
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics purchasable by service partner: No Dimensions Net weight: 0,48 kg Gross weight: 0,52 kg Height: 90 mm Packaging dimension: length: 132 mm Packaging dimension: width: 132 mm Packaging dimension: height: 90 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Cover locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating colour: Kessel Rim length: 132 mm Rim material: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
