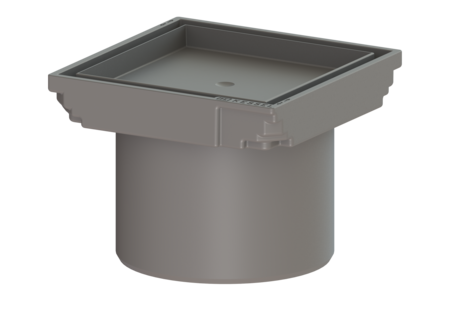

Upper section, recessed, 110x110mm
KESSEL Upper section, height 100 mm, length 132 mm, width 132 mm, type of cover tileable cover plate, locking, frame material ABS, design cover
| Item no. | 27210 |
|---|---|
| GTIN | 4026092029084 |
| Price group | 10 |
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,2 kg Gross weight: 0,23 kg Height: 100 mm Packaging dimension: length: 110 mm Packaging dimension: width: 110 mm Packaging dimension: height: 100 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Height of cover: 25 mm Frame material: ABS Load class: K 3 (EN 1253-1) Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data | |
| Approval |
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
