Gutter drain

DN 100, Vertical outlet

PDF product data sheet

The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening.

  • The variable solution for connecting to the sewer
Item no. 67940
GTIN 4026092001783
Price group 10

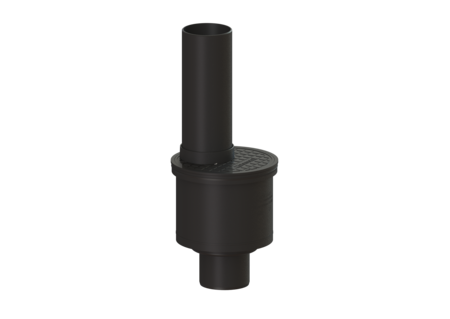

    Gutter drain DN 100, Vertical outlet
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm backwater: 4,5 Outlet: vertical General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: vertical Dimensions Net weight: 2 kg Gross weight: 2,27 kg Diameter: 235 mm Width: 235 mm Height: 580 mm Length: 235 mm Packaging dimension: width: 240 mm Packaging dimension: height: 405 mm Packaging dimension: length: 330 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer System: vertical Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes Odour trap: no
      Title Item no.
      Title Item no.
      Title Item no.
    Upper section 40-150mm 67400 Show
    Extension section System 200, Polymer 67500 Show
    Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    Sludge bucket System 200, PE-HD 67300 Show
    Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    Wall mounting Polymer, for gutter drains 67800 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • System (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): no
    • Contents of sludge trap (schlammeimer): yes
