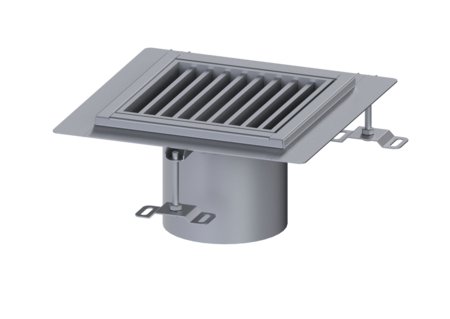

Ferrofix upper section
Gl. flange H:15mm, 300x300mm,insert,M125
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards).
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55137 |
|---|---|
| GTIN | 4026092107621 |
| Price group | 70 |

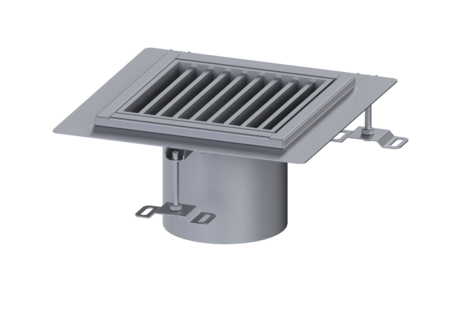

Ferrofix upper section Gl. flange H:15mm, 300x300mm,insert,M125
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 185 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Width: 300 mm Height: 200 mm Length: 300 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Height of cover: 15 mm Cover locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Backflow protection: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Backflow protection: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Ladder grating
- Length (laenge): 300 mm
- Width (breite): 300 mm
- Load class (belastungsklasse): L 15 / M 125 (EN 1253-1)
