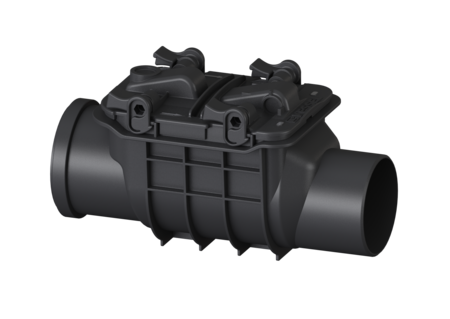

Backwater valve Staufix Basic
OD 100, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure.
- Simple conversion possible using conversion kits
- Fast and toolless maintenance and cleaning
- Ideal for modernisation, can also be installed in existing pipes later
| Item no. | 76100 |
|---|---|
| GTIN | 4026092011300 |
| Price group | 10 |
Backwater valve Staufix Basic OD 100, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 100 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 1,2 kg Gross weight: 1,2 kg Vertical drop between inlet and outlet: 9 mm Width: 155 mm Height: 170 mm Length: 355 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Packaging dimension: length: 210 mm Coverage features Adjustment range: screwed
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Backwater protection (rueckstauschutz): Type 0
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
- (notverschluss):
