A solution for every situation
According to DIN 1986-100: “Lifting stations must be installed downstream of separator systems. If this is not possible in exceptional cases, pumping devices should be used that do not adversely affect the separation process, e.g. peristaltic or Progressiv Cavity Pumps.” KESSEL offers special lifting stations designed specifically for this application.

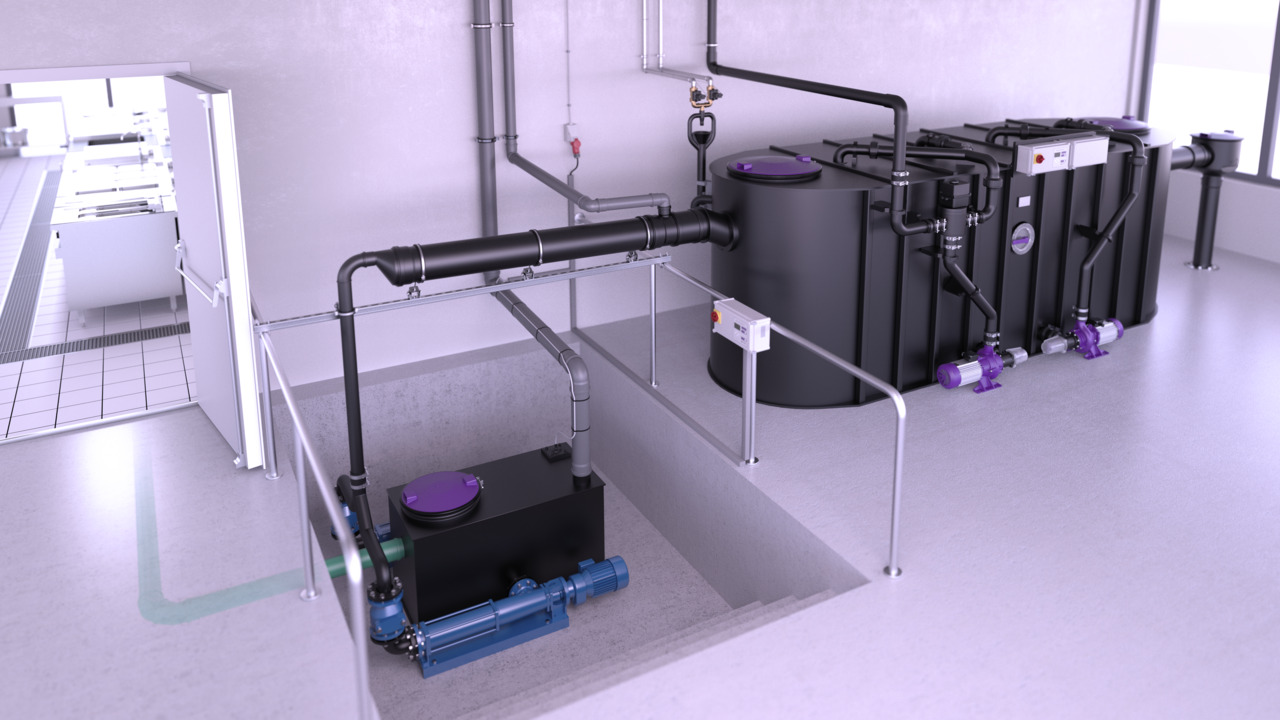

These gently convey grease wastewater. This prevents the formation of stable emulsions and does not hinder the separation process in the downstream grease separator. KESSEL special lifting stations can be used in suction or pressure mode. In combination with customisable collection tanks, this results in a wide variety of application possibilities. This opens up new design options for the specialist planner. Depending on requirements, single (Mono) or double (Duo) lifting stations can be installed, as shown in the product examples below.

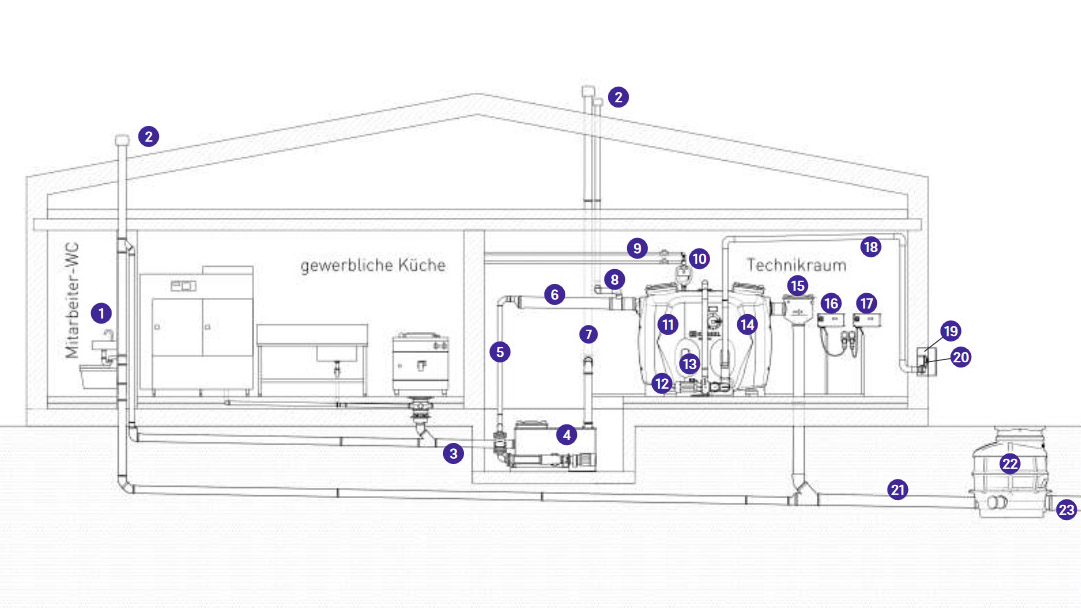

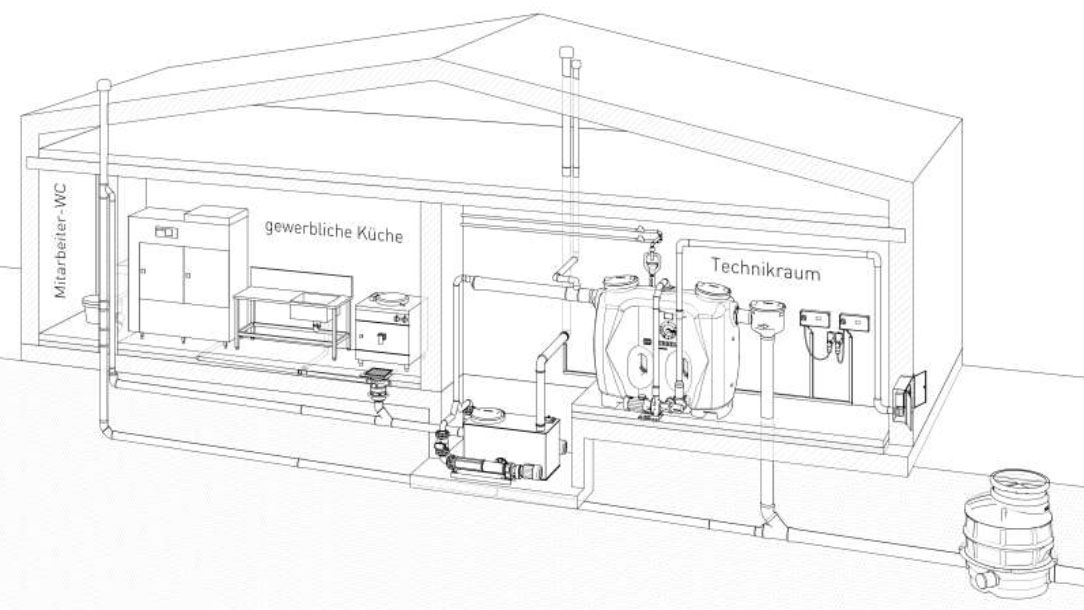

- Other drainage outlets above the backwater level
- Ventilation pipe above the roof
- Collector pipe from the kitchen
- Progressiv Cavity Pump
- Pressure pipe with subsequent expansion
- Settling section min. 10 x DN
- Separate main vent for the Progressiv Cavity Pump
- Ventilation pipe for the grease separator
- Fresh water supply for hot and cold water with shut-off valve
- Refill inlet with system separation
- Grease separator, free-standing, e.g. EasyClean free Auto Mix NS 7
- Automatic drain pump
- Automatic cleaning with Shredder-Mix-System
- Integrated grease layer measurement
- sampling system
- Control unit for grease separator
- Control unit for the screw pump18 Drainage pipe permanently installed and laid in a continuously rising configuration
- Flush-mounted access panel for connection to the emptying vehicle with integrated Storz-B coupling
- Remote control unit for controlling the cleaning and emptying of the grease separator
- main drainage pipe
- Transfer shaft
- Connection to the sewer
