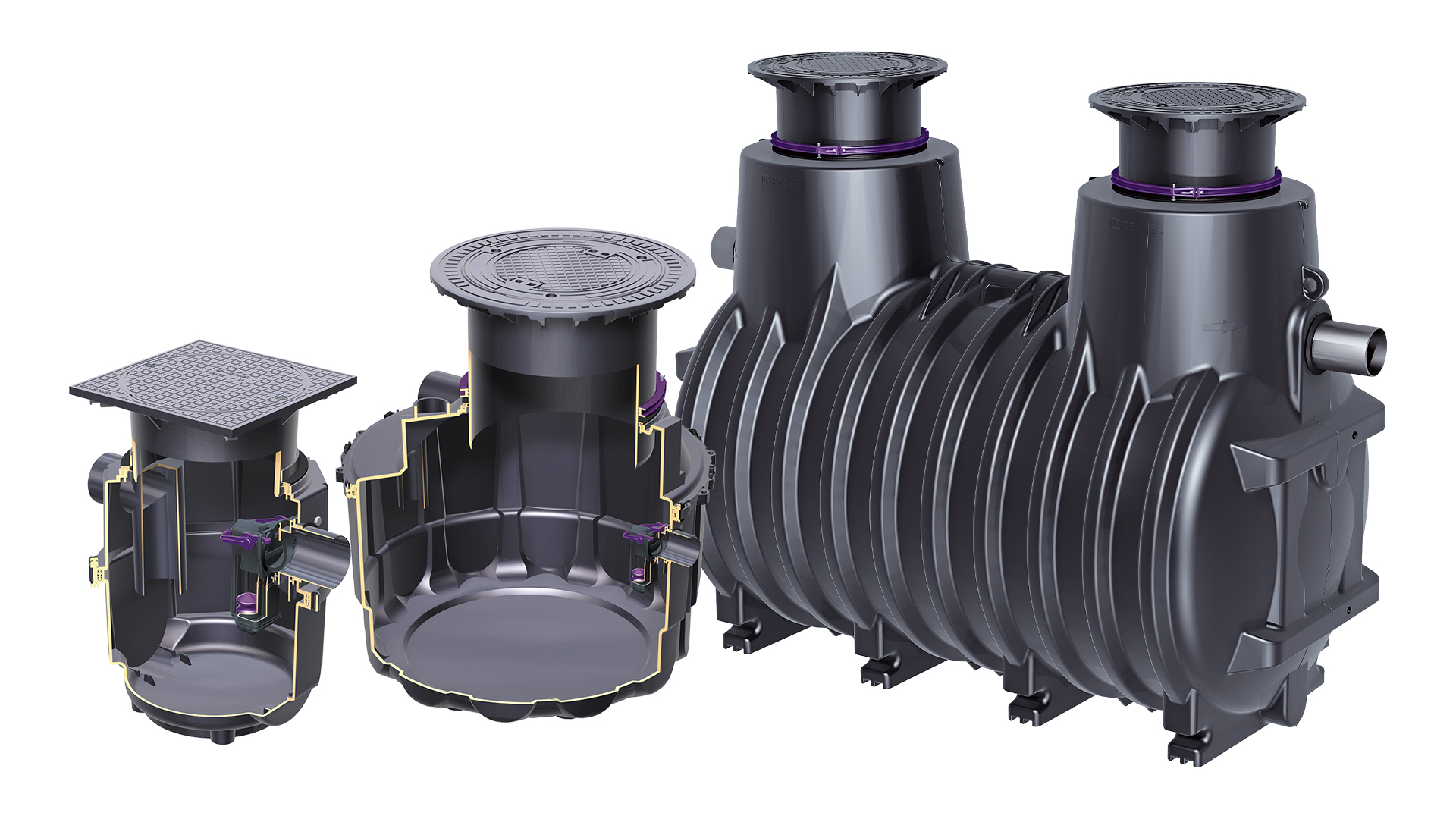

Planning a KESSEL EasyOil light liquid separator

The light liquid separators from KESSEL’s EasyOil range are used wherever it is necessary to prevent fuels and lubricants from entering the drainage system. The most suitable model and version must be determined by calculation based on the specific application. Find out here how best to proceed.

Please note that these planning tips are for information purposes only. To actually design an EasyOil light liquid separator, please use the KESSEL design sheet.

To the design sheet

Step 1: Determine the basic data

Start by gathering some basic information about the site. This will serve as the starting point for the rest of the planning.

Step 2: Calculate rainwater and wastewater drainage

Calculate the maximum rainwater and wastewater discharge in litres per second using the formulas below. If rainwater and wastewater are never discharged at the same time, only the higher of the two discharge rates applies.

Step 3: Identify influencing factors

When designing a light liquid separator, in addition to the maximum rainwater and wastewater flow rate, you must also take into account the so-called influencing factors. These are determined by the density of the light liquids fed into the separator, the biodiesel content and the type of wastewater.

Step 4: Determine the nominal size and storage capacity

Once you have the figures for the maximum rainwater and wastewater discharge, as well as the influencing factors, you can calculate the required nominal size of the light liquid separator using the following formula:

NS = (Qr + fx × Qs) × fd × ff

Additionally, determine the required volume of the light liquid storage tank in litres, as specified by the relevant authority. When doing so, also take into account the quantities of light liquid that may be generated in the event of operational disruptions.

Step 5: Calculate the sludge volume

Now calculate the required sludge trap volume in litres. To do this, use the formula below that applies to your specific application. Then compare the result with the minimum volumes listed below – the higher value is the required sludge trap volume.

Sample calculation for a light liquid separator

Property: independent petrol station in Cologne 

Operating information

S-I-P components​

Rainwater and waste water not at the same time

Washbasin

  • 3 x outlet valve DN 25​
  • 2 x outlet valve DN 15
  • 2 x high-pressure unit
  • Engine wash; oil with a density of 0.92 g/cm³
  • B10 biodiesel​

Precipitation area

  • 100 m²
  • r(5;2) = 245 l/s x ha
  • B10 biodiesel​

Rainwater runoff Qr

Local rainfall *
l/(s x ha)

Rainwater runoff l/s
for 100 m²

Rainwater runoff l/s
for 300 m²

Rainwater runoff l/s
for 500 m²

Rainwater runoff l/s
for 800 m²

150

1.5

4.5

7.5

12.0

200

2.0

6.0

10.0

16.0

300

3.0

9.0

15.0

24.0

* Check with the relevant authority if necessary; however, it must not fall below 150 l/(s x ha).



Local rainfall = ................................................. l/(s x ha)


Rainwater collection area 1 = ............................................................ m²
Rainwater collection area 2 = ............................................................ m²
Rainwater catchment area 3 = ............................................................
m²_______________________________________________________________________________________________
Total = ............................................................ m²



Calculation of rainwater runoff Qr:
100 m² x 245 l/s x ha : 10,000 = 2.45 l/s

Outlet valves

nominal sizeValve discharge rate Qva in l/s
1st valve2nd valve3rd valve4th valve5th valve and each subsequent valve
DN 150.50.50.350.250.1
DN 20110.70.50.2
DN 251.71.71.20.850.3

Calculation of valve wastewater discharge Qs:
1.7 + 1.7 + 1.2 + 0.25 + 0.1 = 4.95 l/s

Wastewater discharge Qs

→Qs 1: Drain valves/tap points

Outlet valves to which high-pressure equipment in accordance with Qs 3 is connected are not taken into
account here..................... No. DN 15 (R 1/2) at 0.5 l/s = ................................. l/s
.................... No. DN 20 (R 3/4) at 1.0 l/s = ................................. l/s
.................... No. of DN 25 (R 1) at 1.7 l/s = .................................
l/s_______________________________________________________________________________________
Total Qs1: .............................. l/s



→Qs2: Automatic vehicle washing systems / washes
...................... units at 2 l/s Total Qs 2: .............................. l/s



→Qs3: High-pressure cleaning equipment (HP equipment)
– Single unit: 2
l/s – Multiple units: 1st unit 2 l/s, each additional unit 1
l/s – Single unit in conjunction with an automatic car wash: 1 l/s
...................... units Total Qs 3: ............................ l/s



Unless the competent authority requires or accepts a different calculation, the nominal size of the waste water discharge Qs must be doubled: 2 Qs = .............................. l/s



Total QS = QS1 + QS2 + QS3 = QS …………………………… l/s

Minimum difficulty factors fx

Intended use

fx

a) for treating waste water (commercial effluent) from industrial processes, vehicle washing facilities, the cleaning of oil-contaminated parts or from other sources, e.g. petrol station filling points;

2

b) for treating oil-contaminated rainwater (rainwater runoff) from impervious surfaces, e.g. car parks, roads, maintenance depots;

irrelevant, as Qs = 0 (rainwater only)

c) to retain uncontrolled spills of light liquids in order to protect the surrounding areas.

1



Calculation of the difficulty factor:
fx = 2

Density factor fd

Density of the light liquid
g/cm²

Density factor in accordance with DIN 1999, Part 2

B

Density factor according to

K

DIN 1999, Part 6

B K

up to 0.85

1

1

1 - 1

up to 0.90

2

1.5

1 - 1

to 0.95

3

2

1 - 1

B = petrol separator; K = coalescence separator



Determination of the density factor:
fd = 2

Density values for blends of FAME and diesel fuel

FAME content
cFAME in % (v/v)

Diesel content
cD in % (v/v)

Nominal density at 15°C
g/cm³

5

95

0.830

10

90

0.835

40

60

0.850

100

0

0.883



Determination of the FAME factor:
ff = 1.25

Rainwater

Value

Unit

Area120m²
Rainwater yield285l/s x ha
Runoff coefficient1-
 Qr3.42



Wastewater

n

Qs


Drain valve DN 2511.7
Outlet valve DN 2021.7(1.0 + 0.7)
HD unit34.0(2 + 1 + 1)
 Qs7.4



Selected

fx

fd

ff

fs


 2.01.01200







NS Calculation: dirt factor only

(fx × Qs) × fd14.8







NS Calculation for rainwater only

Qr x fd x ff3.42







NS combined

 18.22

NS elected

 20







Calculate sludge trap

NS x fs / (fd x ff)4,000 20 x 200 / (1 x 1)







Selected sludge trap

 5,000
