Backwater protection for waste water

inside the building

Backwater protection inside buildings with a gradient towards the sewer

Schematic diagram of a building with a backwater valve and a drainage pipe leading to the mains.

Solution 1:

with a backwater valve

A backwater valve protects the vulnerable area against backwater and, during normal operation, drains water via the natural gradient.

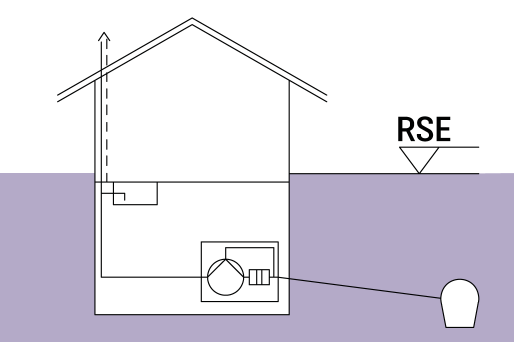

Schematic diagram of a building with a backflow pump or hybrid lifting station and a drainage pipe leading to the mains drainage system.

Solution 2:

with a backwater pumping station or a hybrid lifting station

A backflow pump or hybrid lifting station with a bypass protects the vulnerable area against backwater and drains the area during normal operation without the pump running.

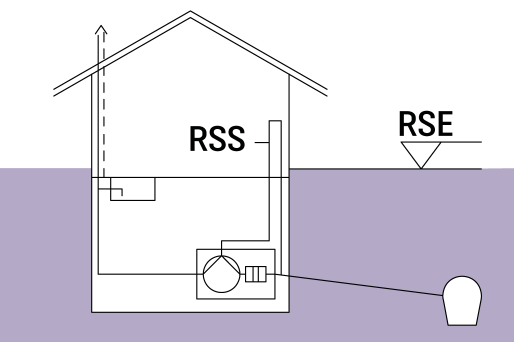

Schematic diagram of a building with a backflow prevention pump and a sewer pipe leading to the mains drainage system.

Solution 3:

with a backwater lifting station

A backwater lifting station or hybrid lifting station protects the vulnerable area against backwater and performs drainage during normal operation without the need for pumping. In the event of backwater, drainage takes place via the backwater loop to the sewer.

RSE = backwater level, RSS = backwater loop

Backwater protection inside buildings without a gradient towards the sewer

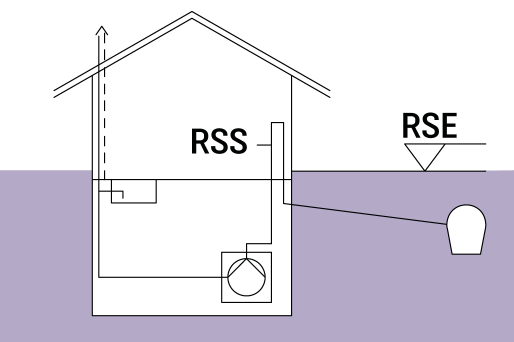

Schematic diagram of a building with a lifting station and a pressure pipe around the sewer.

Solution 4:

using a lifting station

Wastewater disposal via a lifting station with a pressure pipe through the backwater loop, even in the event of backwater from the sewer.

RSE = backwater level, RSS = backwater loop
