Lifting station Minilift S

KTP 300-S1, Floor slab, black

The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site.

  • Space-saving installation in the floor slab with integrated drainage function
  • System ready to plug in
  • Easy tool-free maintenance
Item no. 280570S
GTIN 4026092082553
Price group 20

Lifting station Minilift S KTP 300-S1, Floor slab, black

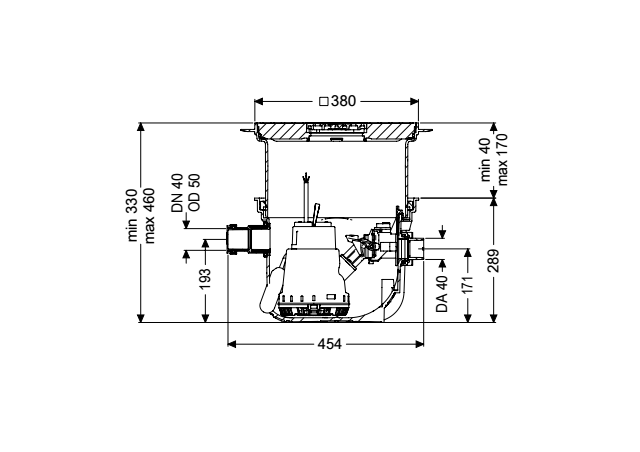

The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Rim width: Float switch Backwater protection: integrated General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 10,97 kg Gross weight: 12,1 kg Installation depth: 330 - 460 mm Width: 380 mm Length: 460 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Packaging dimension: length: 445 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 60 mm Inlet nominal size (DN): 50 Pumping volume: 7 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Cover locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump control: KTP 300 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Length of mains cable for pump: 5 m Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
  Title Item no.
Basic alarm unit with electronic probe 20222 Show
Basic alarm unit with optical probe 20223 Show
Adapter DN 50/70 27126 Show
Adapter DN 100/70 27602 Show
Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
Adapter for pressure connection PE DA40 28086 Show
Inlet socket DN 50, with seal, Threaded ring 39005 Show
Inlet socket DN 70, with seal, Threaded ring 39007 Show
Odour trap Multistop, System 125 48500 Show
Odour trap Megastop 48550 Show
Hole saw for DN 50/70/100 500101 Show
Odour trap for The Ultraflat 79 680696 Show
Drain body for cover plate for odour trap 50 mm, black 680795 Show
Drain body for cover plate for Multistop, black 680796 Show
Drain body for cover plate for odour trap 50 mm, grey 680797 Show
Drain body for cover plate for Multistop, grey 680798 Show
Potential-free contact Extension set for control units Basic 80074 Show
Cover, watertight, black 830050 Show
Cover, watertight, tile-over 830052 Show
Extension section deeper installation, with flange 830070 Show
Seal for pipe penetration, DN 50 850114 Show
Seal for channel passage 75 mm 850116 Show
  Title Item no.
Impeller replacement set KTP 300 28039 Show
Replacement pump for Minilift 28836 Show
Inlet socket DN 50, with seal, Threaded ring 39005 Show
Slotted cover 138x138 mm, Polymer 60101S Show
KESSEL locking and removal key 67007 Show
Intake cage with push-fit fastener, for KTP 300 680013 Show
Seal O-ring for pressure pipe connection 680014 Show
One-handed closure for backflow preventer 680018 Show
Seal for pressure pipe connection 680067 Show
Pressure pipe connection with seal and screws 680758 Show
Pressure pipe connection KTP 300 680759 Show
Pump connection Minilift, Aqualift S 680760 Show
Flap housing Mono, with pump connector 680761 Show
Turn fastener for pump connection lock 680762 Show
Seal for cover plate, System 330 mm 686114 Show
Seal Lip seal, System 330 mm 686115 Show
KESSEL cover plate, black slotted cover 830053 Show
Upper section, height up to 170mm 830061 Show
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate with slotted cover
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Pump control (pumpe): KTP 300
  • (ausfuehrung):
