Lifting station Aqualift S 200

Duo, GTF 600, Free-standing set-up

PDF product data sheet

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site. - With odour-tight cover and quick-release closure for easy maintenance - Tank made of PE, resistant to aggressive wastewater - Including backflow preventer for the pressure pipe - Including socket DN 100 and DN 150 for inlet and sampling - Integrated sampling possibility - Pumps with multi-vane impeller for maximum operating reliability - Including control unit for recording level and alarm detection

  • 1. With odour-tight cover and quick-release closure for easy maintenance
  • 2. Tank made of PE, resistant to aggressive wastewater
  • 3. Including backflow preventer for the pressure pipe
Item no. 28517
GTIN 4026092092934
Price group 20
Back to table of variants

Lifting station Aqualift S 200 Duo, GTF 600, Free-standing set-up

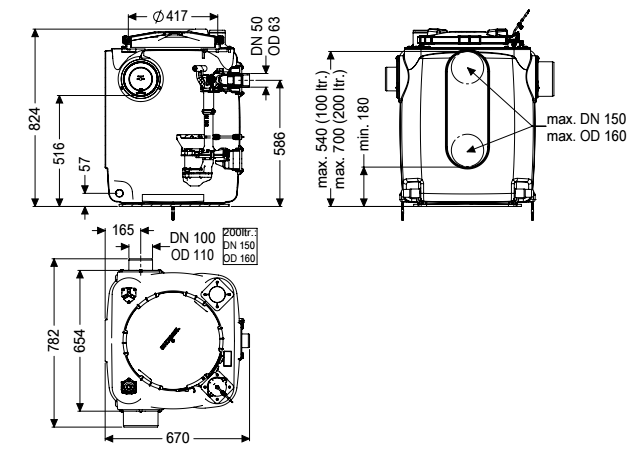

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site. - With odour-tight cover and quick-release closure for easy maintenance - Tank made of PE, resistant to aggressive wastewater - Including backflow preventer for the pressure pipe - Including socket DN 100 and DN 150 for inlet and sampling - Integrated sampling possibility - Pumps with multi-vane impeller for maximum operating reliability - Including control unit for recording level and alarm detection Type of wastewater: wastewater without sewage Installation situation: free-standing set-up Version: Type of system: Twin pump station Pump control: Control unit Backflow preventer: integrated Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) General characteristics: Colour: black Standard: EN 12050-2 Dimensions: Length: 670 mm Width: 655 mm Height: 815 mm Tank: Inlet nominal size (DN): 100 Tank volume: 220 l Pumping volume: 100 l Pressure pipe connection (DN): 50 mm Pressure pipe connection (OD): 63 mm Coverage features: Type of cover: Cover Cover material: Polymer Colour of cover: violet Tightness: odour-tight Locking: Quick-release closure Free passage: 30 mm Pumping device: Pump: GTF 600 Number of pumps: 2 Max. pumping capacity: 12 m3/h Max. pumping height: 8 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 0.65 kW Power P2: 0.4 kW Speed: 2,750 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 6 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 2.9 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Insulation class: F Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Motor protection switch: yes Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Alarm sensor: Immersion pipe
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162
Retrofit kit Alarm float switch 28016
Hole saw for DN 100/125/150 500100
Hole saw for DN 50/70/100 500101
Potential-free contact Additional circuit board for control units. 80072
10 m probe cable extension set 80889
Cable prolongation set for pump 10 m 80891
Seal for pipe penetration, DN 50 850114
Seal for channel passage 75 mm 850116
Seal for channel passage 110 mm 850117
Seal for pipe penetration, DN 125 850118
Seal for pipe penetration, DN 150 850119
  Title Item no.
Control unit Aqualift Comfort 230 V Duo 28746
One-handed closure for backflow preventer 680018
Battery 9 V block 680034
Seal for pressure pipe connection 680067
Cover with seal 680076
Seal for upper section, from 07/2014 680150
Cover d: 420 mm, up to 03/2004 680326
Pump connection with seal and flap 680475
Pump connection Minilift, Aqualift S 680760
Turn fastener for pump connection lock 680762
Flap housing Duo, with pump connector 680781
Impeller GTF 600, free passage 30 mm 680887
Spiral housing GTF 600, free passage 30 mm 680888
Bracket for pressure pipe, Duo 680972
Pump hanger GTF 600, Duo 680973
Clamp fastener for cover 450 mm 680975
Replacement pump GTF 600 without float switch, 5 m 680977
Dummy cover for Aqualift S 100/200 lifting station 680980
Cable gland for Aqualift S 100/200 680981
Connection adapter for Aqualift S 100/200 locking device 680985
Inlet socket DN 100 for Aqualift S 100/200 680986
Inlet socket DN 150 for Aqualift S 100/200 680987
Immersion pipe for Aqualift S 200 lifting station 680989
Sound absorption mat for Aqualift S 200 lifting station 680991
Pressure pipe DN 32 for Aqualift S 200 GTF 600 680992
Venting socket DN 70 for Aqualift S 200 680994
Connector for Aqualift S 200 immersion pipe 680995
Hose connection set for immersion pipes, Length 5 m 680996
  • Wastewater quantity (ATTR-310): Medium
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Free passage (ATTR-180): 30  MMT
  • TÜV test mark (ATTR-376): ID 1111241937
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 800  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): GTF 600
  • Number of pumps (ATTR-181): 2
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 0.7  KWT
  • Power P2 (ATTR-F5): 0.4  KWT
  • Speed (ATTR-F2): 2,750  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 2.9  AMP
  • Max. pumping capacity (ATTR-F7): 12  MQH
  • Max. pumping height (ATTR-F8): 8  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 6  KGM
  • Insulation class (ATTR-193): F
  • Type of system (ATTR-2): Twin pump station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Control unit
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • USB interface (ATTR-S9): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): optional
  • Length of mains cable for control unit (ATTR-S12): 1.4  MTR
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): Immersion pipe
  • Type of level measurement (ATTR-7A): pneumatic
  • Motor protection switch (ATTR-172): yes
  • - (ATTR-S21):
  • - (ATTR-S22):
  • - (ATTR-S23):
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 50  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 63  MMT
  • Tank volume (ATTR-B9): 220  LTR
  • Pumping volume (ATTR-B10): 100  LTR
  • Type of cover (ATTR-A21): Cover
  • Colour of cover (ATTR-A2A): violet
  • Tightness (ATTR-A2C): odour-tight
  • Locking (ATTR-A2D): Quick-release closure
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A6A): 670  MMT
  • Width (ATTR-A6B): 655  MMT
  • Height (ATTR-A6C): 815  MMT
  • Volume (ATTR-320): 0.8  MTQ
  • Packaging dimension: length (ATTR-325): 900  MMT
  • Packaging dimension: width (ATTR-326): 900  MMT
  • Packaging dimension: height (ATTR-327): 939  MMT
  • Dimensions (ATTR-323): 900X900X939MM
  • Number of packages (ATTR-321): 1
  • Installation situation (ATTR-1): free-standing set-up
  • Declaration of Performance (DOP) (ATTR-292): 009-210
  • Declaration of conformity (ATTR-303): 009-210-D
  • Colour (ATTR-102): black
  • Standard (ATTR-9): EN 12050-2
  • CE marking (ATTR-A5B): yes
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift S
