Lifting station Minilift S

KTP 300-S1, resist., Free-standing

PDF product data sheet

The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (ABS) is equipped with a backflow preventer and an activated carbon filter.

  • Space-saving installation in the floor slab
  • Easy maintenance
  • Convenient installation
Item no. 28560C
GTIN 4026092093627
Discount group 5

Lifting station Minilift S KTP 300-S1, resist., Free-standing

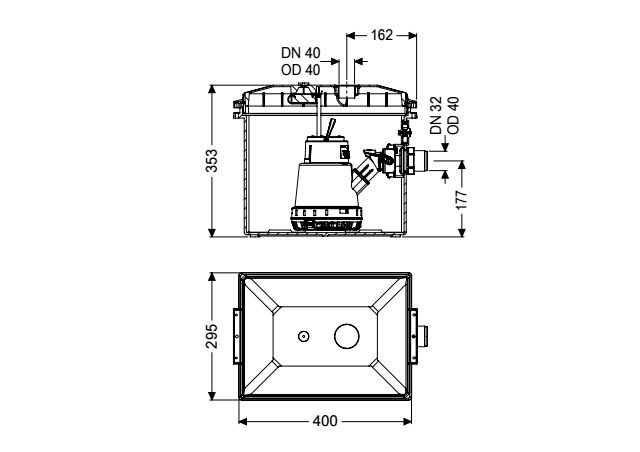

The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (ABS) is equipped with a backflow preventer and an activated carbon filter. Version: Type of system: Single station Pump control: Float switch Backflow preventer: integrated Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Delivery state: plug-in ready Installation situation: free-standing set-up Type of wastewater: wastewater without sewage General characteristics: Colour: white Standard: EN 12050-2 Dimensions: Length: 426 mm Width: 297 mm Height: 340 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 40 mm Inlet nominal size (OD): 50 mm Inlet max. scoring (DN): 50 mm Distance from centre of outlet pipe to tank bottom: 175 mm Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Pumping volume: 7 l Coverage features: Type of cover: Cover Colour of cover: white Length: 426 mm Width: 297 mm Free passage: 10 mm Pumping device: Number of pumps: 1 Max. pumping capacity: 8 m3/h Max. pumping height: 6 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 0.34 kW Power P2: 0.21 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 4 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 1.9 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated null: 75 mm null: 190 mm Insulation class: F Control: Motor protection switch: yes Type of level measurement: mechanical Level measurement instrument: Float switch

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Basic warning device with electronic probe 20222
Basic warning device with optical probe 20223
Adapter for pressure connection PE DA40 28086
Hole saw for DN 50/70/100 500101
Potential-free contact Extension set for control units Basic 80074
  Title Item no.
Non-return flap valve for KTP 300 27207
Active charcoal filter 27208
Mono pump closure valve set 28031
Minilift cover replacement set 28036
Impeller replacement set KTP 300 28039
Intake filter 680013
Roll-Ring 680014
Connection for Minilift 680017
Plug 680018
Cover - seal 680019
Rubber nipple DN 40x40 black 680020
Cable seal 680021
Replacement pump KTP 300 res., Minilift S, free-standing set-up 680954
  • Installation situation (ATTR-1): free-standing set-up
  • TÜV test mark (ATTR-376): ID 1111241937
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 600  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4):
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 0.3  KWT
  • Power P2 (ATTR-F5): 0.2  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 1.9  AMP
  • Max. pumping capacity (ATTR-F7): 8  MQH
  • Max. pumping height (ATTR-F8): 6  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 4  KGM
  • Insulation class (ATTR-193): F
  • - (ATTR-372): 75  MMT
  • - (ATTR-373): 190  MMT
  • Net weight (ATTR-A3A): 8.2  KGM
  • Gross weight (ATTR-A3B): 8.9  KGM
  • Pressure pipe connection (ATTR-B7): horizontal
  • Type of system (ATTR-2): Single station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Float switch
  • Resistant (ATTR-338): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
  • Length (ATTR-A6A): 426  MMT
  • Width (ATTR-A6B): 297  MMT
  • Height (ATTR-A6C): 340  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 445  MMT
  • Packaging dimension: width (ATTR-326): 355  MMT
  • Packaging dimension: height (ATTR-327): 305  MMT
  • Dimensions (ATTR-323): 445X355X305MM
  • Number of packages (ATTR-321): 0
  • Number of inlets (ATTR-B1B): 1  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 40  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 50  MMT
  • Inlet max. scoring (DN) (ATTR-B1E): 50  MMT
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 175  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 32  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 40  MMT
  • Pumping volume (ATTR-B10): 7  LTR
  • Type of cover (ATTR-A21): Cover
  • Colour of cover (ATTR-A2A): white
  • Length (ATTR-A2M): 426  MMT
  • Width (ATTR-A2N): 297  MMT
  • Type of level measurement (ATTR-7A): mechanical
  • Level measurement instrument (ATTR-7B): Float switch
  • Motor protection switch (ATTR-172): yes
  • Declaration of Performance (DOP) (ATTR-292): 009-005
  • Wastewater quantity (ATTR-310): Low
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Colour (ATTR-102): white
  • Standard (ATTR-9): EN 12050-2
  • CE marking (ATTR-A5B): yes
  • External monitoring (ATTR-A8): LGA
  • Free passage (ATTR-180): 10  MMT
  • Delivery state (ATTR-189): plug-in ready
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Minilift
  • Product name (M-ATTR-005): Minilift S
  • Start-up current (ATTR-285): 3.8  AMP
