Shower chan. Linearis Infinity 60

L: 1600 mm, DN 40, Polished SST

PDF product data sheet

The shower channel Linearis Infinity with a length of 1600 mm and a surface of Stainless steel cover

Item no. 45101.16
GTIN 4026092094037
Discount group 1

Shower chan. Linearis Infinity 60 L: 1600 mm, DN 40, Polished SST

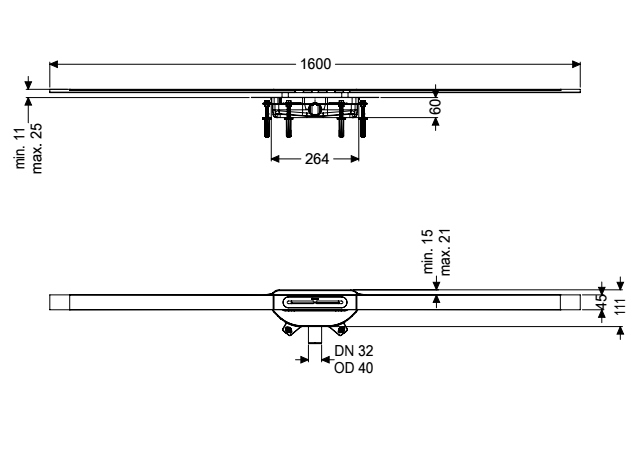

The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be individually shortened and can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. The channel contains a clip-on flange with factory-mounted waterproofing membrane to EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to level out construction tolerance. Including odour trap with 24 mm water seal. Open seepage water openings, without flooding of the waterproofing level in the event of backwater. Version: Type of waterproofing layer: Factory-fitted sealing collar (WaD) according to DIN 18534 Seepage opening: open Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 24 mm General characteristics: Nominal size (DN): 40 Dimensions: Length: 264 mm Width: 111 mm Min. design height: 60 mm Tank: Outlet nominal size (DN): 40 Outlet nominal size (OD): 40 Drain body: Material of drain body: PP Socket version: lateral Coverage features: Type of cover: Stainless steel cover Cover material: 316 stainless steel Min. flooring height: 11 mm Max. flooring height: 25 mm Load class: K 3 (EN 1253-1) Length: 1,600 mm Width: 45 mm Surface: polished Locking: placed Shape of upper section: square Discharge rate (l/s) with 10 mm backwater: 0.4 l/s Discharge rate (l/s) with 20 mm backwater: 0.5 l/s

Video

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Odour trap Megastop for Linearis Infinity shower channel 45100
Connecting piece, 90 degree for Linearis Infinity, Polished SST 45101.01
Connecting piece, 45 degree for Linearis Infinity, Polished SST 45101.02
Connecting piece, 30 degree for Linearis Infinity, Polished SST 45101.03
Hair filter for Linearis Infinity shower channel 45102
Connector straight, for Linearis Infinity shower channel 45103
  Title Item no.
Sound and settlement absorber Hole diameter 14 mm 680882
Odour trap for Linearis Infinity shower chan. 24 mm 680941
Insert grating for Linearis Infinity, Polished SST 680943
Removal aid for Linearis Infinity odour trap 680948
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 0.4  LTS
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 0.5  LTS
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Linear drain
  • Grating/channel shape (ATTR-261): rectangular
  • Type of drainage (ATTR-263): open channel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Shower channel
  • Product family (M-ATTR-004): Shower channel Linearis Infinity
  • Product name (M-ATTR-005): Linearis Infinity
  • Advantages text (M-ATTR-007): The slim accessible solution for new and renovated bathrooms with factory-mounted waterproofing membrane
  • Country of origin (ATTR-322): DE
  • Sealing water height (ATTR-128): 24  MMT
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • Type of waterproofing layer (ATTR-170): Factory-fitted sealing collar (WaD) according to DIN 18534
  • Odour trap (ATTR-115):
  • Seepage opening (ATTR-243): open
  • Socket version (ATTR-233): lateral
  • Length (ATTR-A6A): 264  MMT
  • Width (ATTR-A6B): 111  MMT
  • Min. design height (ATTR-229): 60  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 1,612  MMT
  • Packaging dimension: width (ATTR-326): 256  MMT
  • Packaging dimension: height (ATTR-327): 110  MMT
  • Dimensions (ATTR-323): 1612X256X110MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Stainless steel cover
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): placed
  • Cover material (ATTR-A2E): 316 stainless steel
  • Surface (ATTR-A2F): polished
  • Max. flooring height (ATTR-A2L): 25  MMT
  • Length (ATTR-A2M): 1,600  MMT
  • Width (ATTR-A2N): 45  MMT
  • Min. flooring height (ATTR-A2O): 11  MMT
  • Material of drain body (ATTR-232): PP
  • Outlet nominal size (DN) (ATTR-B15CA): 40
  • Outlet nominal size (OD) (ATTR-B15CB): 40
  • Net weight (ATTR-A3A): 4.1  KGM
  • Gross weight (ATTR-A3B): 4.1  KGM
  • Wastewater quantity (ATTR-310): Low
  • Overall height (ATTR-313): min. 63 mm
  • Nominal size (DN) (ATTR-118): 40
  • Tested sound insulation as per test report (ATTR-252):
