Ecoguss project drain glu. flange

DN 100, vert., Variofix, Slotted cover

PDF product data sheet

The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary.

  • High-tech Ecoguss composite material
  • Ecoguss, highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48611.51
GTIN 4026092032718
Discount group 1

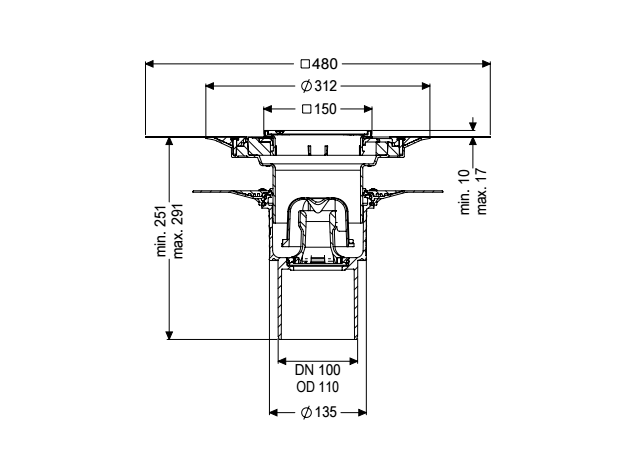

Ecoguss project drain glu. flange DN 100, vert., Variofix, Slotted cover
The Ecoguss project drain is used for point drainage and is equipped with a glued flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Standard: EN 1253-1 Dimensions: Length: 348 mm Width: 348 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Ecoguss Socket version: vertical Vertical adjustment: vertically adjustable upper section Upper section: adjustable in three dimensions Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Colour of cover: silver Min. flooring height: 10 mm Max. flooring height: 17 mm Load class: K 3 (EN 1253-1) Length: 138 mm Width: 138 mm Surface: polished Locking: screwed Grating: Rim length: 150 mm Rim width: 150 mm Rim material: 304 stainless steel Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 10 mm backwater: 1 l/s Discharge rate (l/s) with 20 mm backwater: 2.2 l/s Fire protection: Highest fire protection standards are reached using the optionally available Fire-Kit and Quick-Fit: with a fire resistance class of R 30 - R 120 (general technical approval no. Z-19.17-1719, general design approval Z-19.53-2414)

Video

  Title Item no.
  Title Item no.
  Title Item no.
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099
Fire protection insert Fire-Kit 100, for DN 100 48100
Extension section H: 140 mm, with glued flange 48403
Extension section H: 147 mm, with pressure sealing flange 48404
Extension section H: 120 mm, with glued flange 48900
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
Quick-Fit pipe penetration seal for core drillholes, with fire protection 48990
  Title Item no.
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Glued flange with mating flange, ABS, System 125 48410
Ecoguss drain body glued flange, DN 100, Vertical outlet 48611
Waterproofing membrane for joint sealing, liquid 48651
Variofix upper section Slotted cover, 304 SST, K 3 48963
Slotted cover solid, screwed 680241
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Adhesive flange (suitable for moisture barriers)
  • Waterproofing layer on the upper section (ATTR-251): Enclosed sealing collar to be glued (bd) according to DIN 18534
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): 304 stainless steel
  • Rim length (ATTR-111B): 150  MMT
  • Rim width (ATTR-111C): 150  MMT
  • Outer diameter (OD) (ATTR-147): 110
  • Net weight (ATTR-A3A): 3.9  KGM
  • Gross weight (ATTR-A3B): 4.9  KGM
  • Standard (ATTR-9): EN 1253-1
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 2.2  LTS
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Fire protection (ATTR-319): Highest fire protection standards are reached using the optionally available Fire-Kit and Quick-Fit: with a fire resistance class of R 30 - R 120 (general technical approval no. Z-19.17-1719, general design approval Z-19.53-2414)
  • Upper section (ATTR-337): adjustable in three dimensions
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1  LTS
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Socket version (ATTR-233): vertical
  • Type of cover (ATTR-A21): Slotted cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): polished
  • Max. flooring height (ATTR-A2L): 17  MMT
  • Length (ATTR-A2M): 138  MMT
  • Width (ATTR-A2N): 138  MMT
  • Diameter (ATTR-A107): 348  MMT
  • Min. flooring height (ATTR-A2O): 10  MMT
  • Length (ATTR-A6A): 348  MMT
  • Width (ATTR-A6B): 348  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 586  MMT
  • Packaging dimension: width (ATTR-326): 386  MMT
  • Packaging dimension: height (ATTR-327): 400  MMT
  • Dimensions (ATTR-323): 586X386X400MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Ecoguss
  • Sealing water height (ATTR-128): 50  MMT
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • NDOP (ATTR-304): 009-055
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Project drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
