Backwater valve StaufixControl

DN 100, Floor slab, tileable, Type 2

PDF product data sheet

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains.

  • optical and acoustic warning message if backwater occurs
  • Wireless backwater signal (EnOcean) can be integrated in the control system
  • Flexible installation, various covers available for floor slab installation
Item no. 770100.10X
GTIN 4026092076668
Discount group 1

Backwater valve StaufixControl DN 100, Floor slab, tileable, Type 2

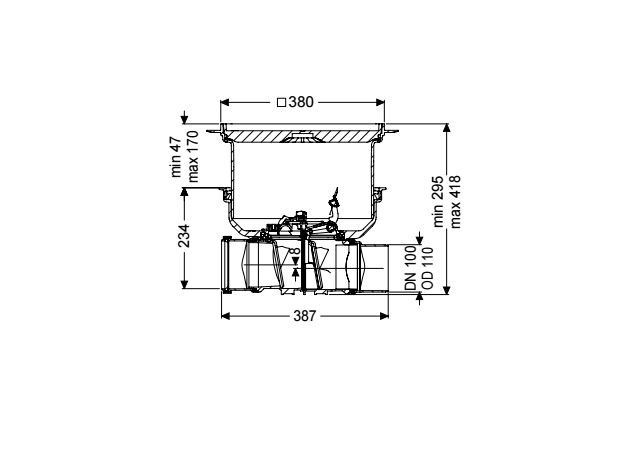

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains. Version: Stainless steel flap as rat protection: no Type of waterproofing layer: Waterproofing layer Emergency closure: yes Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: floor slab installation Type of wastewater: wastewater without sewage Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Colour: black Standard: EN 13564 Dimensions: Length: 444 mm Width: 444 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 287 - 410 mm Groundwater resistant from lower edge of base section: 3.000 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: tileable cover plate Cover material: Polymer Max. flooring height: 16 mm Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Tightness: surface water resistant Locking: Lock & Lift Vertical drop between inlet and outlet: 8 mm Control: Type of level measurement: pneumatic Level measurement instrument: Pressure switch

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator for optical/acoustic. signal in the event of backwater 72222
Radio receiver as switched socket 72223
Extension section deeper installation, with flange 830070
Extension section deeper installation, Flange/mating flange 830073
Extension section Floor slab, for waterproof concrete 830075
  Title Item no.
Test hose for control unit 680668
Staufix cover seal 686112
Staufix sealing gasket cover plate 686114
Staufix lip seal 686115
Staufix test funnel with seal 70214
Polymer backwater flap Ø 100/110 70231
Flap housing with gasket Ø 100/110 70241
StaufixContr. lockable cover DN 90-100 72224
Cover, watertight, black 830050
Spigot DN 100 830100
Socket DN 100 830101
  • Backwater protection (ATTR-151): Type 2
  • Installation situation (ATTR-1): floor slab installation
  • Country of origin (ATTR-322): DE
  • Nominal size (DN) (ATTR-118): 100
  • Outer diameter (OD) (ATTR-147): 110
  • Installation depth (ATTR-B2_VB): 287  MMT
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Connection to the BCS, BAC (ATTR-257): yes
  • Length (ATTR-A6A): 444  MMT
  • Width (ATTR-A6B): 444  MMT
  • Cutout dimension, length (ATTR-160): 750  MMT
  • Cutout dimension, width (ATTR-161): 750  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 586  MMT
  • Packaging dimension: width (ATTR-326): 486  MMT
  • Packaging dimension: height (ATTR-327): 496  MMT
  • Dimensions (ATTR-323): 586X486X496MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): tileable cover plate
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Tightness (ATTR-A2C): surface water resistant
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Max. flooring height (ATTR-A2L): 16  MMT
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Emergency closure (ATTR-153): yes
  • Stainless steel flap as rat protection (ATTR-155): no
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Pressure switch
  • Net weight (ATTR-A3A): 6.1  KGM
  • Gross weight (ATTR-A3B): 8.6  KGM
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3  MMT
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Number of mechanical backwater flaps (ATTR-154): 2
  • External monitoring (ATTR-A8): LGA
  • Declaration of Performance (DOP) (ATTR-292): 009-051
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Colour (ATTR-102): black
  • Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
  • Vertical drop between inlet and outlet (ATTR-176): 8  MMT
  • Declaration of conformity (ATTR-303): 009-583
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): StaufixControl
