Backwater valve StaufixControl

DN 200, Floor slab, black, Type 2 R

PDF product data sheet

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains.

  • optical and acoustic warning message if backwater occurs
  • Wireless backwater signal (EnOcean) can be integrated in the control system
  • Flexible installation, various covers available for floor slab installation
Item no. 770200.10SR
GTIN 4026092076835
Discount group 1

Backwater valve StaufixControl DN 200, Floor slab, black, Type 2 R

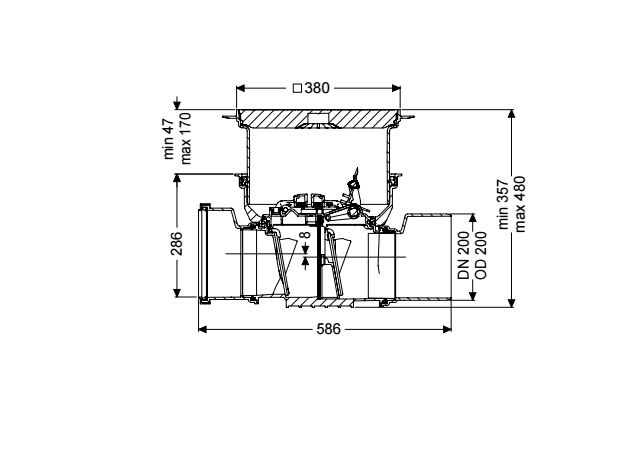

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains. Version: Stainless steel flap as rat protection: yes Type of waterproofing layer: Waterproofing layer Emergency closure: yes Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: floor slab installation Type of wastewater: wastewater without sewage Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Standard: EN 13564 Dimensions: Length: 586 mm Width: 444 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 341 - 464 mm Groundwater resistant from lower edge of base section: 3.000 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Cover plate Cover material: Polymer Colour of cover: black Load class: L 15 (EN 1253-1) Length: 366 mm Width: 366 mm Tightness: surface water resistant Locking: Lock & Lift Vertical drop between inlet and outlet: 8 mm Control: Type of level measurement: pneumatic Level measurement instrument: Pressure switch

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator for optical/acoustic. signal in the event of backwater 72222
Radio receiver as switched socket 72223
Extension section deeper installation, with flange 830070
Extension section deeper installation, Flange/mating flange 830073
Extension section Floor slab, for waterproof concrete 830075
  Title Item no.
Test hose for control unit 680668
Staufix cover seal 686113
Staufix sealing gasket cover plate 686114
Staufix lip seal 686115
Staufix test funnel with seal 70214
Polymer backwater flap Ø 125/160 70232
Backwater fl, DN125/150, Staufix/Control 70234
Flap housing with gasket Ø 125/160 70242
StaufixContr. lockable cover DN125-200 72225
Cover, watertight, tile-over 830052
Staufix Premium Spigot DN 200 83084
Staufix Premium Socket DN 200 83088
  • Backwater protection (ATTR-151): Type 2
  • Installation situation (ATTR-1): floor slab installation
  • Country of origin (ATTR-322): DE
  • Nominal size (DN) (ATTR-118): 200
  • Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
  • Outer diameter (OD) (ATTR-147): 200
  • Installation depth (ATTR-B2_VB): 341  MMT
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Connection to the BCS, BAC (ATTR-257): yes
  • Length (ATTR-A6A): 586  MMT
  • Width (ATTR-A6B): 444  MMT
  • Cutout dimension, length (ATTR-160): 750  MMT
  • Cutout dimension, width (ATTR-161): 750  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 586  MMT
  • Packaging dimension: width (ATTR-326): 486  MMT
  • Packaging dimension: height (ATTR-327): 496  MMT
  • Dimensions (ATTR-323): 586X486X496MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Cover plate
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Tightness (ATTR-A2C): surface water resistant
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Emergency closure (ATTR-153): yes
  • Stainless steel flap as rat protection (ATTR-155): yes
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Pressure switch
  • Net weight (ATTR-A3A): 9  KGM
  • Gross weight (ATTR-A3B): 11.6  KGM
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3  MMT
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Number of mechanical backwater flaps (ATTR-154): 2
  • External monitoring (ATTR-A8): LGA
  • Declaration of Performance (DOP) (ATTR-292): 009-051
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Colour (ATTR-102): black
  • Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
  • Vertical drop between inlet and outlet (ATTR-176): 8  MMT
  • Declaration of conformity (ATTR-303): 009-583
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): StaufixControl
