Backwater valve StaufixControl

DN 200, exposed, Type 2 R

PDF product data sheet

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains.

  • optical and acoustic warning message if backwater occurs
  • Wireless backwater signal (EnOcean) can be integrated in the control system
  • Flexible installation, various covers available for floor slab installation
Item no. 770200R
GTIN 4026092076866
Discount group 1

Backwater valve StaufixControl DN 200, exposed, Type 2 R

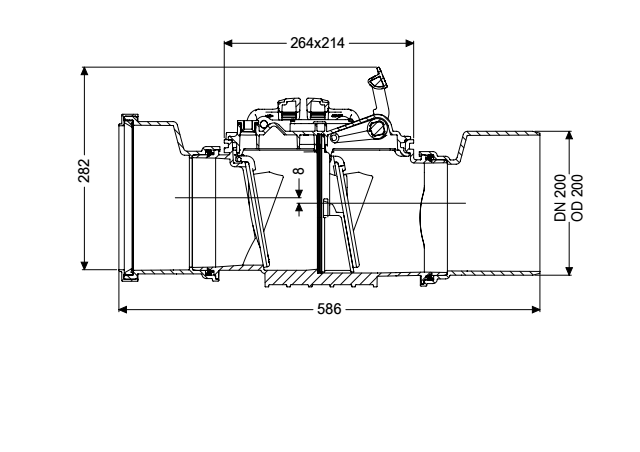

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. The battery-operated warning unit in the lockable cover generates an optical and acoustic warning if backwater occurs. Optionally, the warning message can control a remote signal generator in the living area via the EnOcean protocol or automatically disconnect a switched socket from the mains. Version: Stainless steel flap as rat protection: yes Emergency closure: yes Delivery state: installation-ready Installation situation: exposed drainage pipe Type of wastewater: wastewater without sewage Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Standard: EN 13564 Dimensions: Length: 586 mm Width: 233 mm Height: 306 mm Coverage features: Type of cover: Lockable cover Vertical drop between inlet and outlet: 8 mm Control: Type of level measurement: pneumatic Level measurement instrument: Pressure switch Cover locking: One-handed closure

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator for optical/acoustic. signal in the event of backwater 72222
Radio receiver as switched socket 72223
  Title Item no.
Test hose for control unit 680668
Staufix cover seal 686113
Staufix test funnel with seal 70214
Polymer backwater flap Ø 125/160 70232
Backwater fl, DN125/150, Staufix/Control 70234
Flap housing with gasket Ø 125/160 70242
StaufixContr. lockable cover DN125-200 72225
Staufix Premium Spigot DN 200 83084
Staufix Premium Socket DN 200 83088
  • Backwater protection (ATTR-151): Type 2
  • Installation situation (ATTR-1): exposed drainage pipe
  • Country of origin (ATTR-322): DE
  • Cover locking (ATTR-117): One-handed closure
  • Nominal size (DN) (ATTR-118): 200
  • Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
  • Outer diameter (OD) (ATTR-147): 200
  • Delivery state (ATTR-189): installation-ready
  • Connection to the BCS, BAC (ATTR-257): yes
  • Length (ATTR-A6A): 586  MMT
  • Width (ATTR-A6B): 233  MMT
  • Height (ATTR-A6C): 306  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 524  MMT
  • Packaging dimension: width (ATTR-326): 222  MMT
  • Packaging dimension: height (ATTR-327): 265  MMT
  • Dimensions (ATTR-323): 524X222X265MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Lockable cover
  • Emergency closure (ATTR-153): yes
  • Stainless steel flap as rat protection (ATTR-155): yes
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Pressure switch
  • Net weight (ATTR-A3A): 3.9  KGM
  • Gross weight (ATTR-A3B): 6.5  KGM
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Number of mechanical backwater flaps (ATTR-154): 2
  • External monitoring (ATTR-A8): LGA
  • Declaration of Performance (DOP) (ATTR-292): 009-051
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Colour (ATTR-102): black
  • Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
  • Vertical drop between inlet and outlet (ATTR-176): 8  MMT
  • Declaration of conformity (ATTR-303): 009-583
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): StaufixControl
