Yard drain

System 400, DN 100, D, 580-710 mm

PDF product data sheet

The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment.

  • Different load classes available
  • Height-adjustable complete system
  • Easy underground installation
Item no. 851101D
GTIN 4026092004302
Price group 10

Yard drain System 400, DN 100, D, 580-710 mm

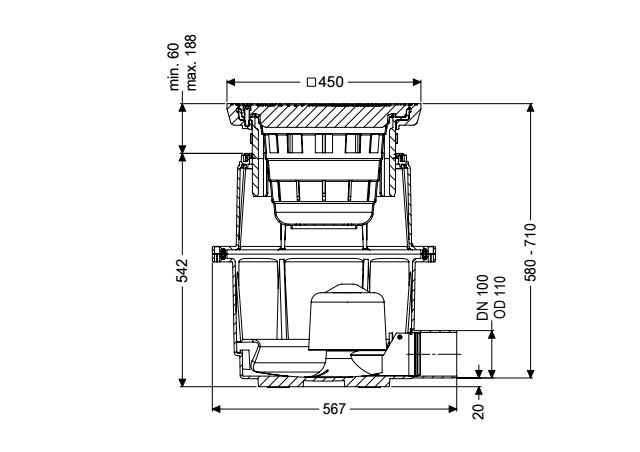

The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Version: System: 400 Odour trap: included Heating: without Waterproofing layer on the upper section: Connection flange General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Colour: black Standard: EN 752 Dimensions: Length: 563 mm Width: 500 mm Height: 580 mm Cutout dimension, length: 585 mm Cutout dimension, width: 535 mm Min. insertion depth: 55 mm Tank: Installation depth: 580 - 710 mm Groundwater resistant from lower edge of base section: 500 mm Drain body: Material of drain body: Polymer Socket version: lateral Vertical adjustment: vertically adjustable upper section Vertical adjustment: 55 - 180 mm Adjustment range: 55 - 185 mm Coverage features: Type of cover: Round slotted cover Cover material: Grey iron Load class: D 400 (EN 124) Length: 450 mm Width: 450 mm Sludge bucket: yes Grating: Rim length: 450 mm Rim width: 450 mm Shape of upper section: square Discharge rate (l/s) with 20 mm backwater: 4.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Seal d: 230 mm 27140
Slotted cover round, d: 395 mm, Grey iron 850137
  • Nominal size (DN) (ATTR-118): 100
  • Outer diameter (OD) (ATTR-147): 110
  • Waterproofing layer on the upper section (ATTR-251): Connection flange
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • - (ATTR-370):
  • Vertical adjustment (ATTR-226_VB): 55  MMT
  • Rim length (ATTR-111B): 450  MMT
  • Rim width (ATTR-111C): 450  MMT
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 4.5  LTS
  • Installation depth (ATTR-B2_VB): 580  MMT
  • Adjustment range (ATTR-108_VB): 55 - 185  MMT
  • Length (ATTR-A6A): 563  MMT
  • Width (ATTR-A6B): 500  MMT
  • Height (ATTR-A6C): 580  MMT
  • Cutout dimension, length (ATTR-160): 585  MMT
  • Cutout dimension, width (ATTR-161): 535  MMT
  • Number of packages (ATTR-321): 0
  • Min. insertion depth (ATTR-328): 55  MMT
  • Type of cover (ATTR-A21): Round slotted cover
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Cover material (ATTR-A2E): Grey iron
  • Sludge bucket (ATTR-A2K): yes
  • Length (ATTR-A2M): 450  MMT
  • Width (ATTR-A2N): 450  MMT
  • Odour trap (ATTR-115): included
  • Heating (ATTR-224): without
  • System (ATTR-244): 400
  • Socket version (ATTR-233): lateral
  • Material of drain body (ATTR-232): Polymer
  • Net weight (ATTR-A3A): 25.5  KGM
  • Gross weight (ATTR-A3B): 25.5  KGM
  • Groundwater resistant from lower edge of base section (ATTR-B12): 500  MMT
  • Wastewater quantity (ATTR-310): High
  • Standard (ATTR-9): EN 752
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): round
  • Type of drainage (ATTR-263): open channel
  • Colour (ATTR-102): black
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Yard drain
  • Product family (M-ATTR-004): Yard drains
