Lifting station Aqualift F

The classic version for domestic wastewater.

The Aqualift F is the classic solution for disposing of domestic wastewater. The lifting station transports black water in addition to grey water. Depending on the version, the Aqualift F has one or two automatic pumps that switch on as soon as a certain water level has been reached in the tank and transports the wastewater through the pressure pipe into the sewer.

The Mono system is equipped with one pump and the Duo system has two pumps that operate alternately. Duo systems are used where no operational interruptions can occur due to the failure of a pump. Both system types are available with and without a shut-off valve and with pumps of different performance classes.

Advantages  Article overview

Power and control unit

The Aqualift F is available as a Mono or Duo system. Both systems have powerful pumps in the versions S1 and/or S3 with a wide range of applications from an input power of 1,400 W to 3,000 W, a sensor control and plug-in ready control units with the self-diagnosis system SDS

Pressure sensor

The Aqualift F has an immersion pipe for safe pneumatic level measurement. An optionally available alarm sensor guarantees additional safety.

Aqualift F lifting station


Single station

  Pump controlType of wastewaterImpeller typeShut-off valve Item no.
28644 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 28644
Show

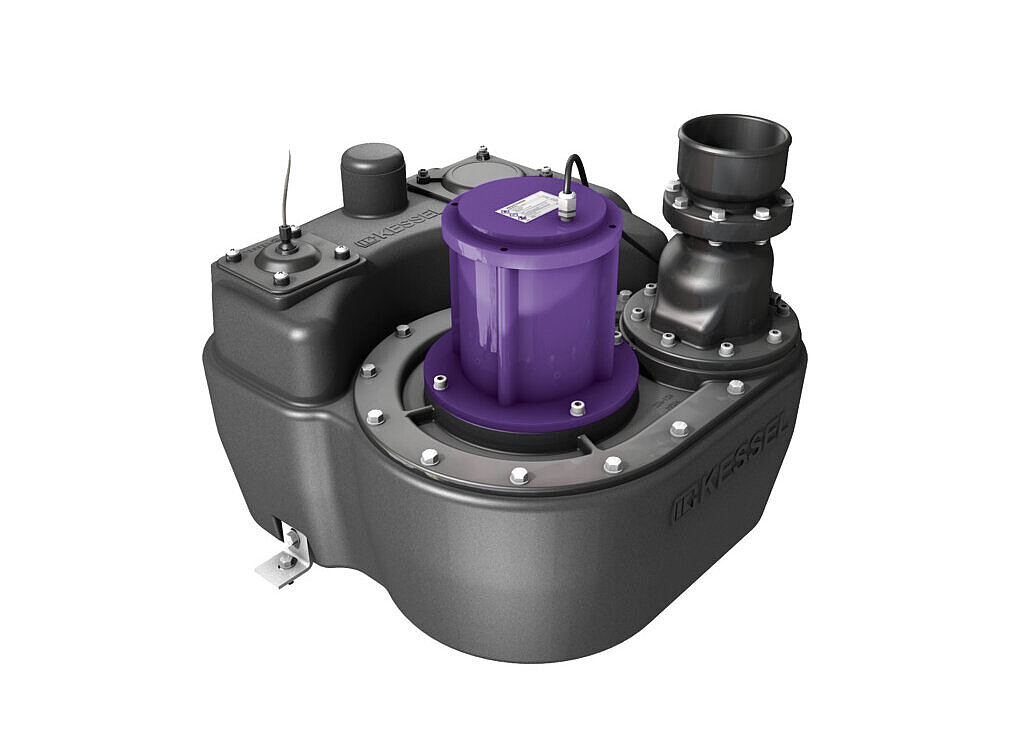

28645 SPF 1500 with sewage Multi-vane impeller without shut-off valve 28645
Show
28647 SPF 3000 with sewage Multi-vane impeller without shut-off valve 28647
Show
28649 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 28649
Show

  Pump controlType of wastewaterImpeller typeShut-off valve Item no.
28646-C SPF 1400 with sewage Multi-vane impeller without shut-off valve 28646-C
Show
28648-C SPF 1400 with sewage Multi-vane impeller Shut-off valve made of polymer 28648-C
Show
28751 SPF 1500 with sewage Multi-vane impeller without shut-off valve 28751
Show
28752 SPF 3000 with sewage Multi-vane impeller without shut-off valve 28752
Show
28753 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 28753
Show
28754 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 28754
Show

Twin pump station

  Pump controlType of wastewaterImpeller typeShut-off valve Item no.
11600 SPF 1500 with sewage Multi-vane impeller without shut-off valve 11600
Show
11601 SPF 3000 with sewage Multi-vane impeller without shut-off valve 11601
Show
11602 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 11602
Show
11603 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 11603
Show
28631 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 28631
Show
28634 SPF 3000 with sewage Multi-vane impeller without shut-off valve 28634
Show
28652 SPF 1500 with sewage Multi-vane impeller without shut-off valve 28652
Show

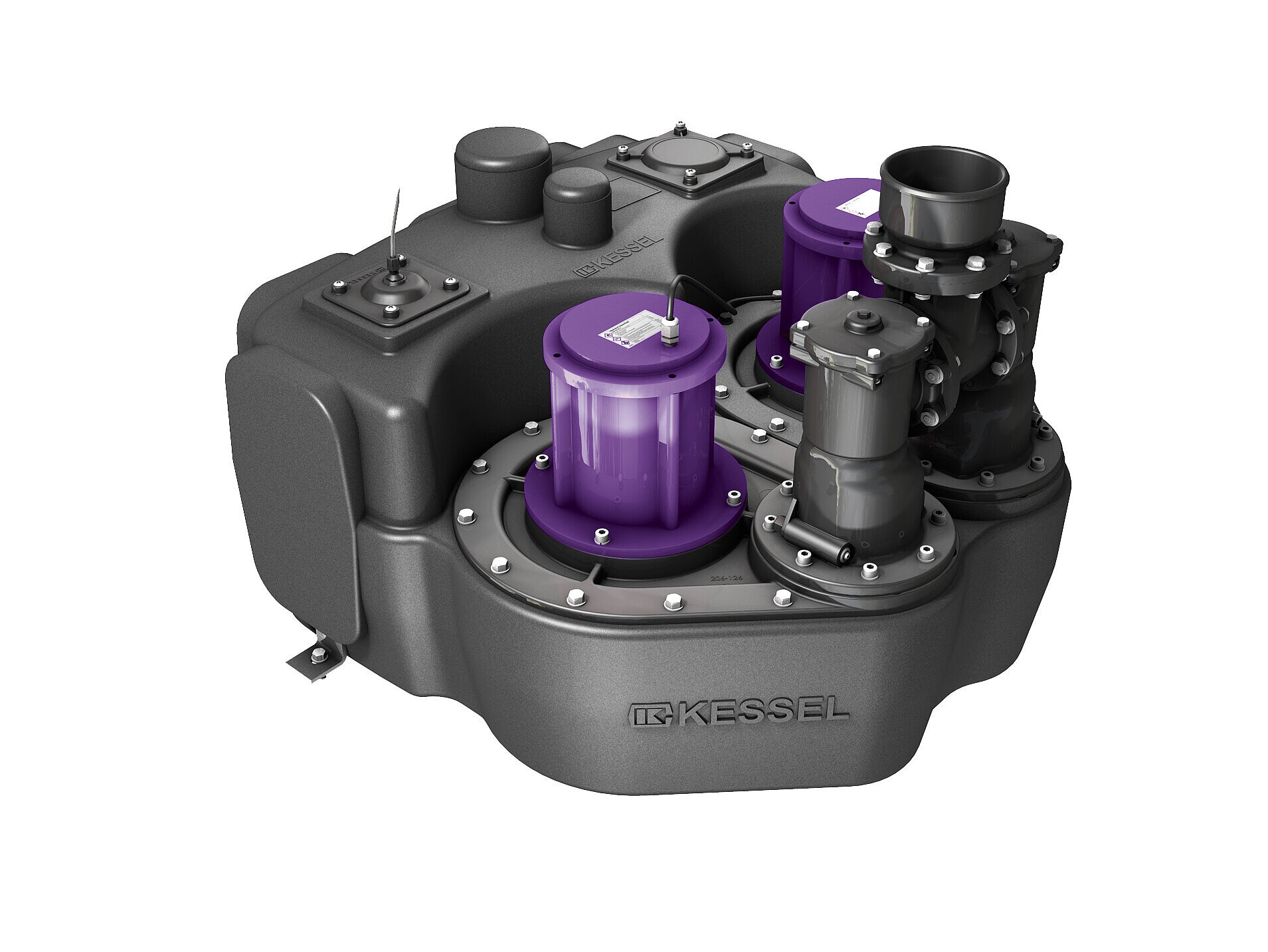

28659 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 28659
Show

  Pump controlType of wastewaterImpeller typeShut-off valve Item no.
11604 SPF 1500 with sewage Multi-vane impeller without shut-off valve 11604
Show
11605 SPF 1400 with sewage Multi-vane impeller without shut-off valve 11605
Show
11606 SPF 3000 with sewage Multi-vane impeller without shut-off valve 11606
Show
11607 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 11607
Show
11608 SPF 1400 with sewage Multi-vane impeller Shut-off valve made of polymer 11608
Show
11609 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 11609
Show
28628-C SPF 1400 with sewage Multi-vane impeller without shut-off valve 28628-C
Show
28629-C SPF 1400 with sewage Multi-vane impeller Shut-off valve made of polymer 28629-C
Show
28764 SPF 1500 with sewage Multi-vane impeller without shut-off valve 28764
Show
28765 SPF 3000 with sewage Multi-vane impeller without shut-off valve 28765
Show
28766 SPF 1500 with sewage Multi-vane impeller Shut-off valve made of polymer 28766
Show
28767 SPF 3000 with sewage Multi-vane impeller Shut-off valve made of polymer 28767
Show

Not found the right product?

In addition to our standard lifting stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.

Individual solutions
