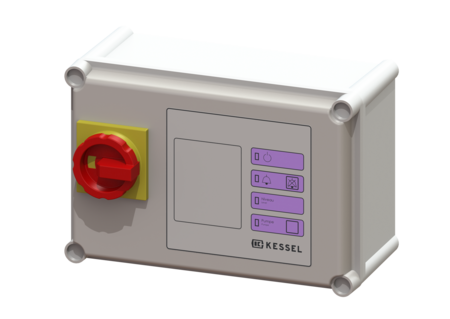

Comfort control unit
400V, Aqualift Mono, 6.3-10.0 A
KESSEL Comfort control unit, 6,3 - 10 A, potential-free contact yes, Single unit
- Self-diagnosis system (SDS)
- Potential-free contact for faults/warnings
- Reminder for when maintenance is due
| Item no. | 28781 |
|---|---|
| GTIN | 4026092058732 |
| Price group | 20 |
Comfort control unit 400V, Aqualift Mono, 6.3-10.0 A
Komfort control unit for lifting stations or pumping stations. Suitable for 400 V single stations. Optional connection option for float switches, conductivity probes and level probe on the terminal strip. User-friendly menu navigation in multi-line display. Menu navigation in six languages. Simple selection of the system to be connected with preset, system-specific operating parameters. Display of the current measured values. Simple adjustment of the function-related parameters, with integrated operating hour counter. With self-diagnosis system (SDS) for monitoring pump, sensors and battery back-up. Improper installation or operating faults trigger an optical and acoustic alarm signal. Forwarding of a collective fault and alarm signals via optional potential-free contact or integrated serial interface for GSM modem. Variant Series: ab 03/2010 Type of system: Single unit General characteristics Colour: grey System type: Mono Dimensions Net weight: 3,17 kg Gross weight: 3,83 kg Packaging dimension: length: 330 mm Packaging dimension: width: 250 mm Packaging dimension: height: 210 mm Control Control unit: Comfort Motor protection switch: yes Protection class control unit: IP 54 Operating voltage: 400 V Potential-free contact: yes GSM interface: yes USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6,3 - 10 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| Test Reports and Certificates | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- (niveauerfassung_art):
- ATEX (atex): no
