Yard drains

The durable solution for outdoor use.

Our yard drains ensure the reliable drainage of areas of land outdoors such as driveways, yard areas and car parks.

We supply yard drains not only made of polymer but also made of our Ecoguss, our high-tech composite material, which combines the specific advantages of polymer and metal. They are available in different load classes and can be driven on by vehicles weighing up to 12.5 tonnes.

Advantages  Article overview

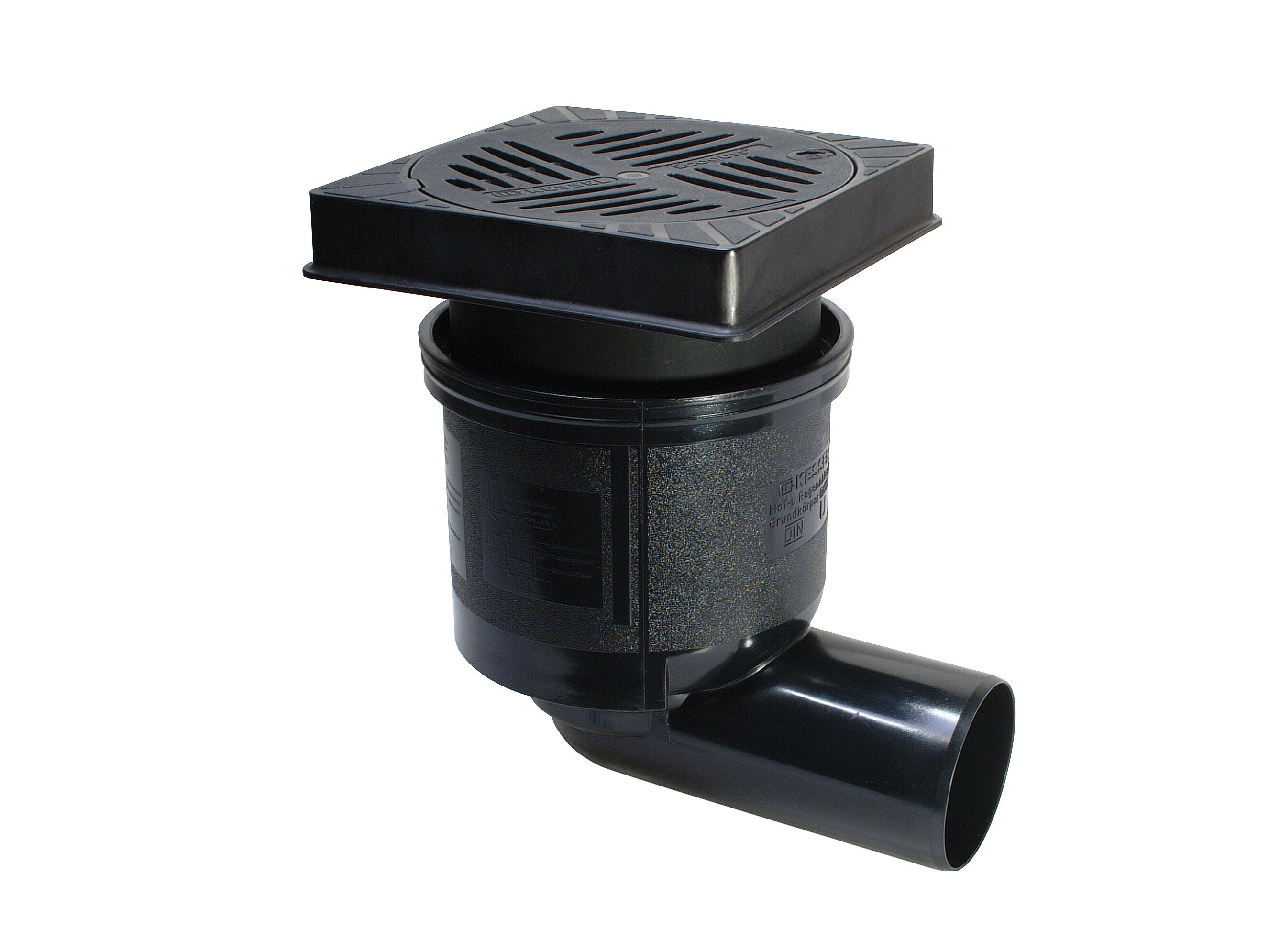

Ecoguss System 200 yard drain with a horizontal outlet

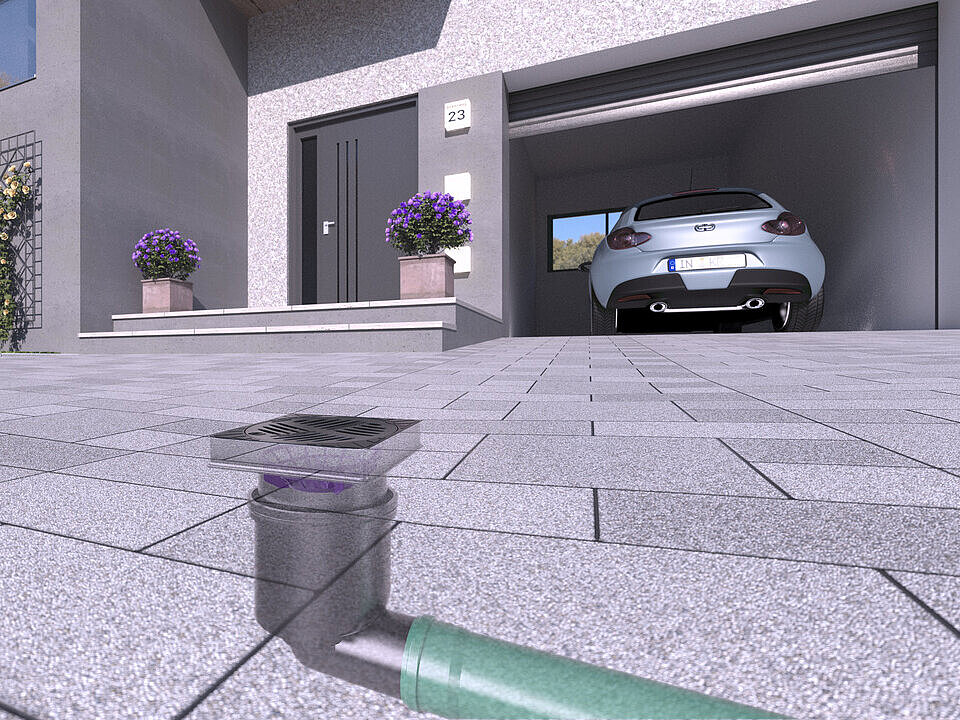

Installation diagram for the Ecoguss 200 yard drain with a horizontal outlet

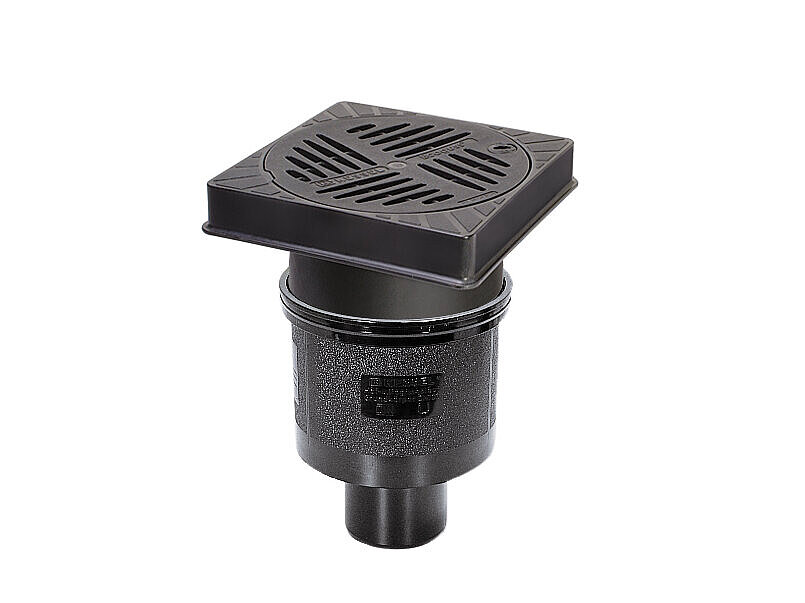

Ecoguss 200 yard drain with a vertical outlet

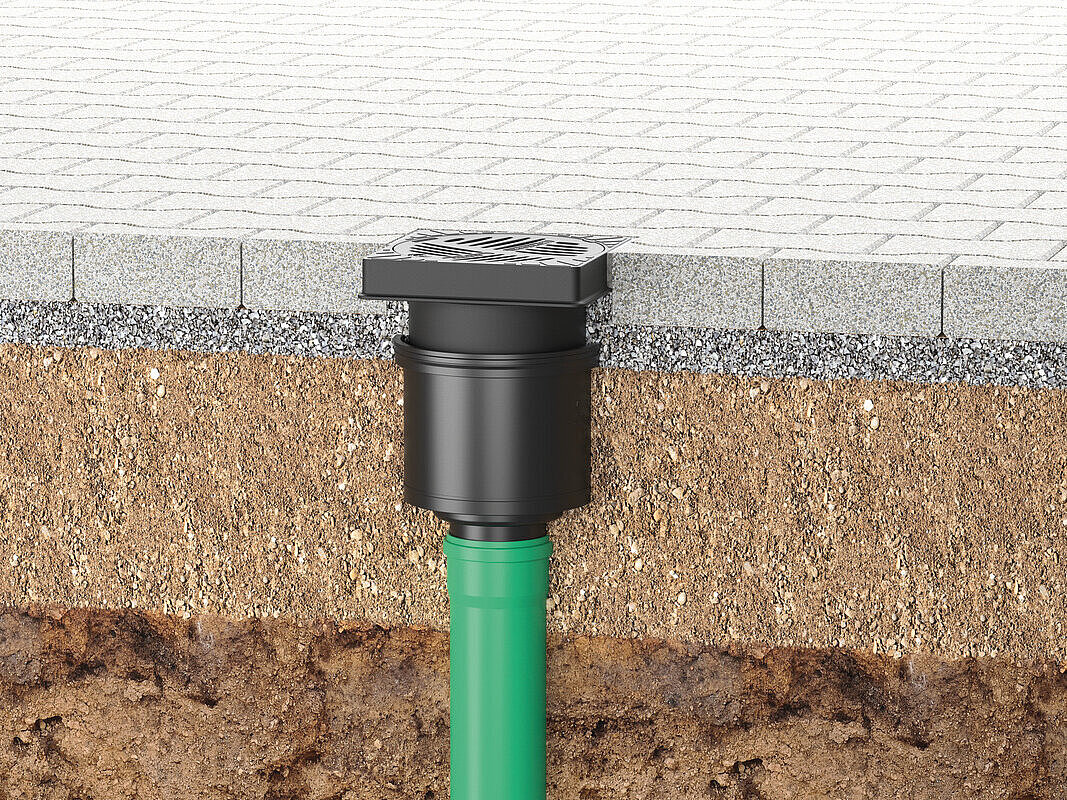

Installation diagram for the Ecoguss 200 yard drain with a vertical outlet

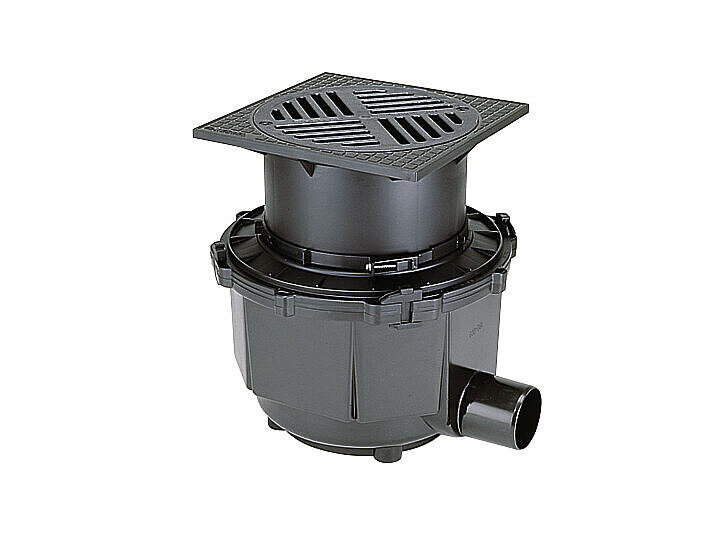

System 400 yard drain for higher load classes, horizontal outlet

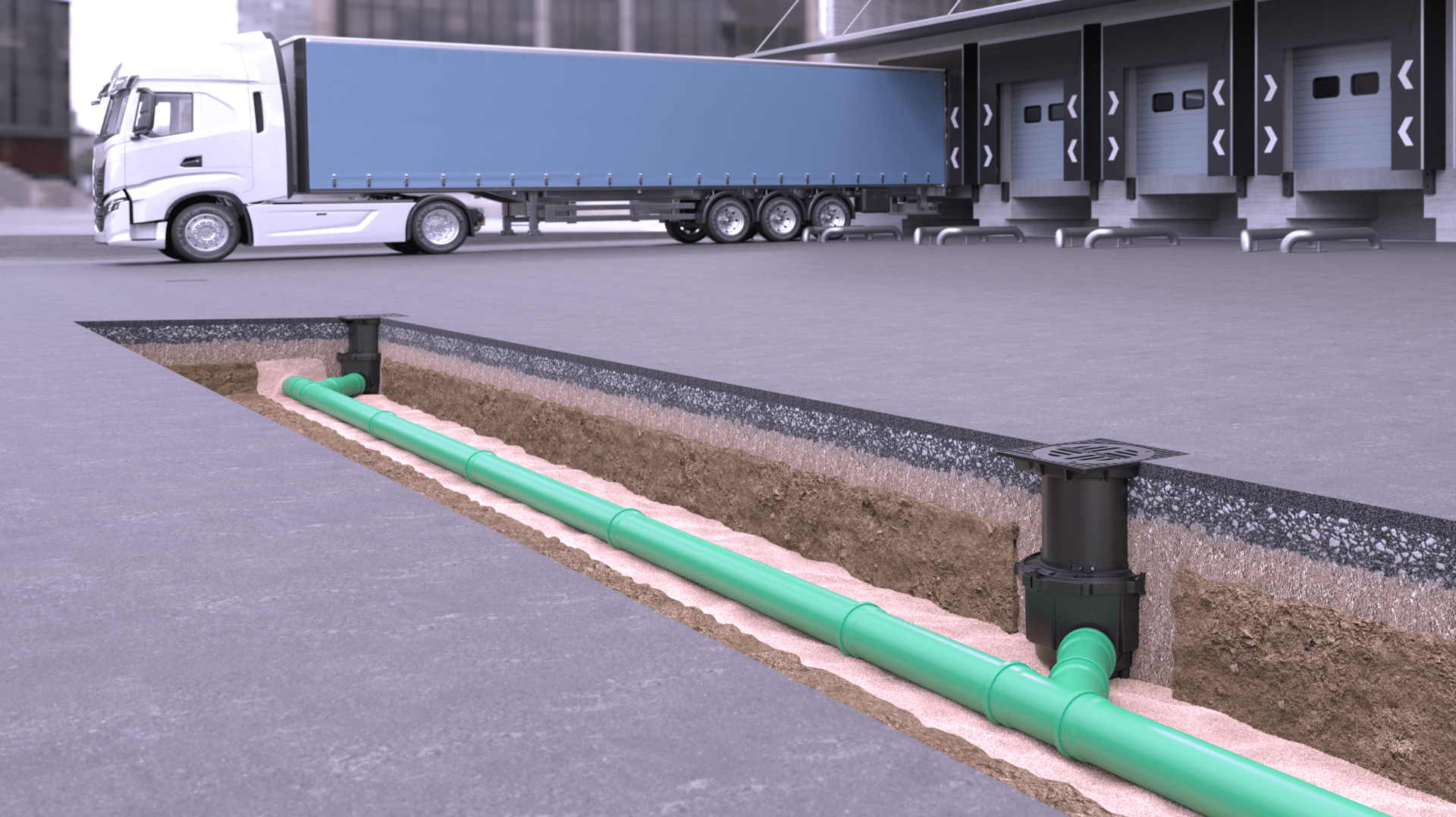

Installation diagram for the System 400 yard drain for higher load classes, horizontal outlet

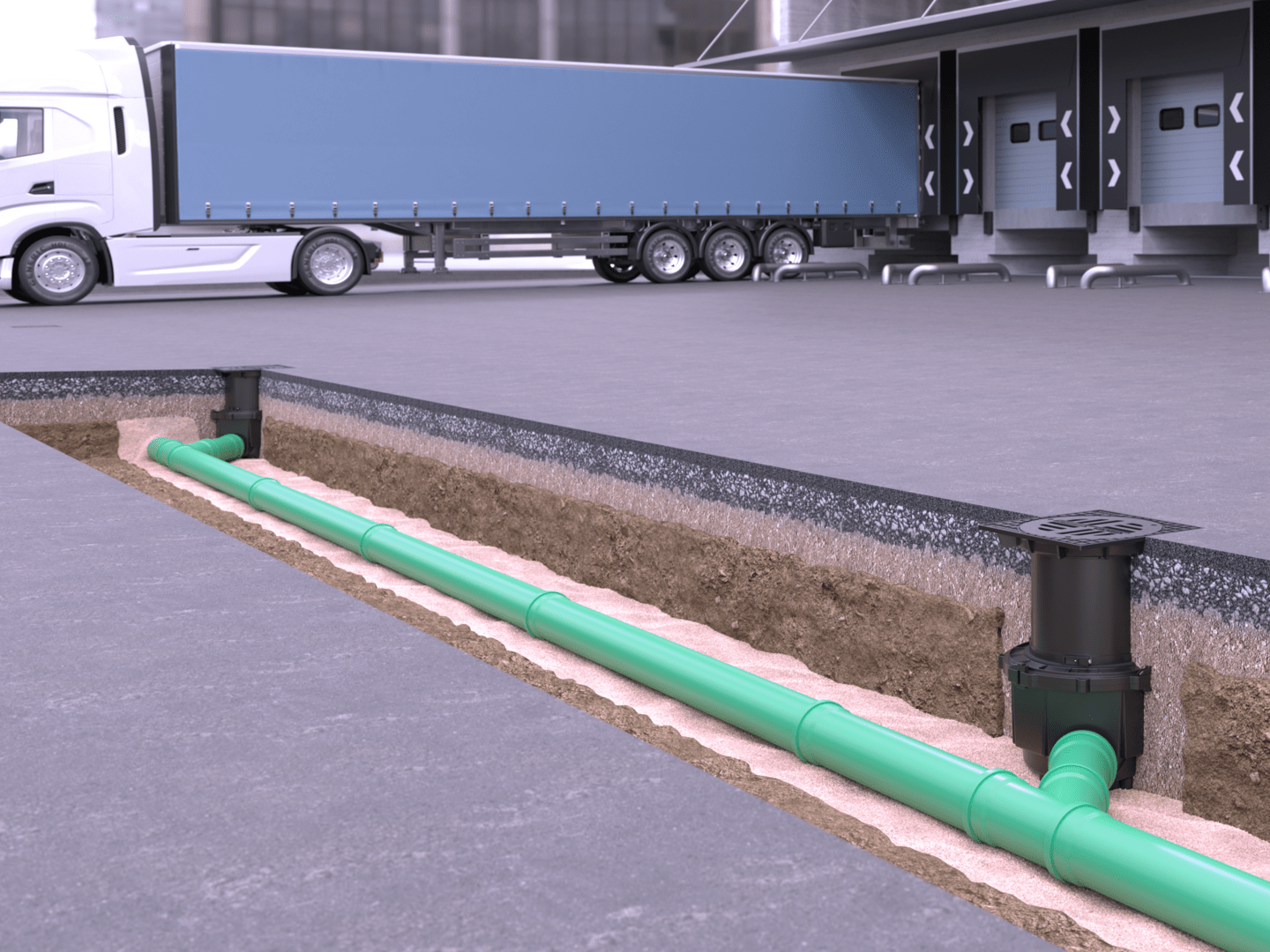

Installation diagram for the System 400 yard drain, breakproof and durable

Breakproof and durable

Our yard drains are absolutely breakproof and fulfil the load classes up to class D. They can therefore be loaded with up to 40 tonnes and can be easily driven on by cars or trucks.

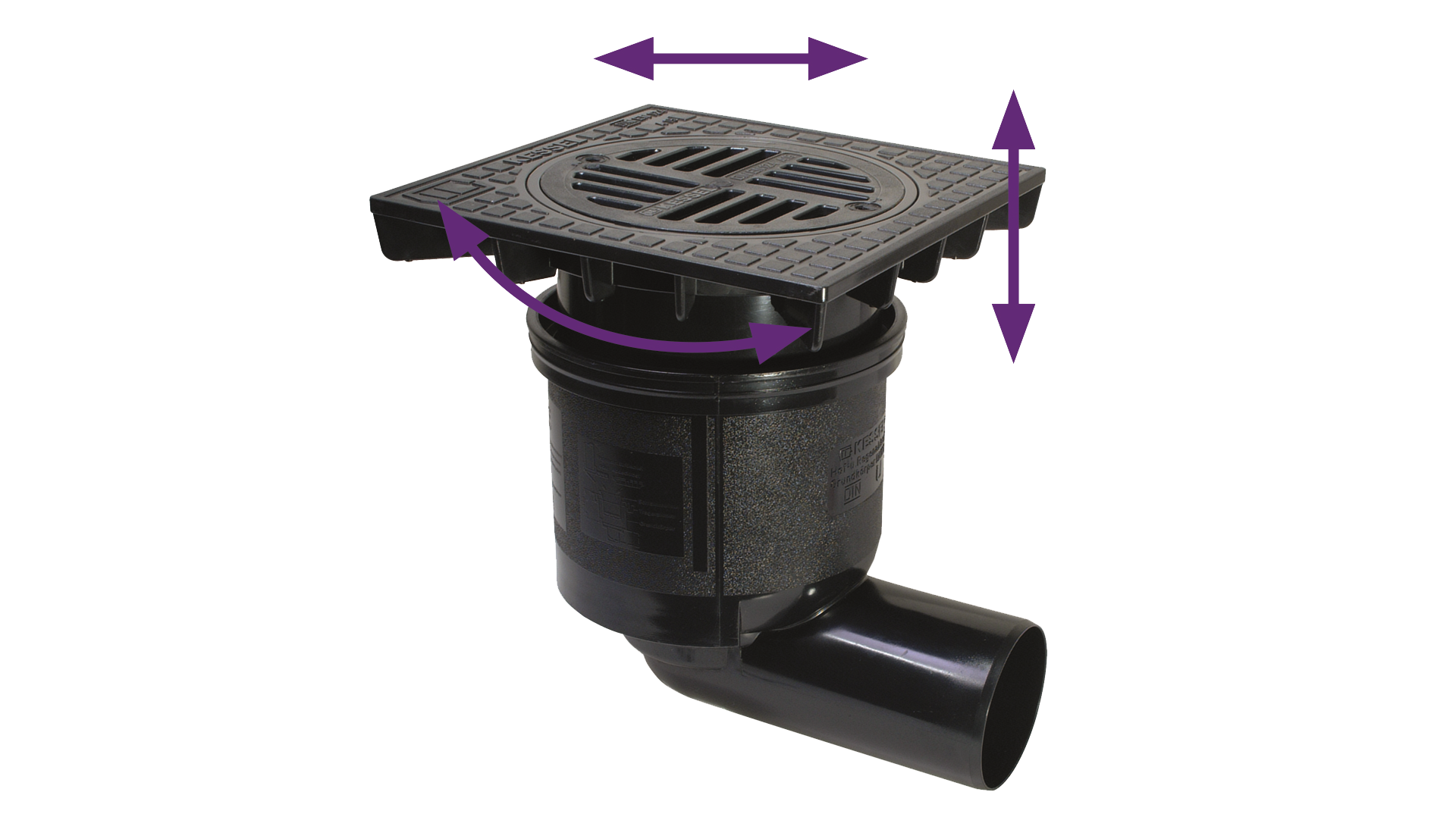

System 200 yard drain for variable installation

Flexible installation options

Thanks to their unique rotatable, tiltable and up to 110 mm height-adjustable telescopic upper sections, our yard drains can be adjusted exactly to the required ground level.

Yard drains

System: 100

Nominal size (DN) Socket version Cover material Shape of upper section Item no.
37287S 100 vertical Polymer square 37287S

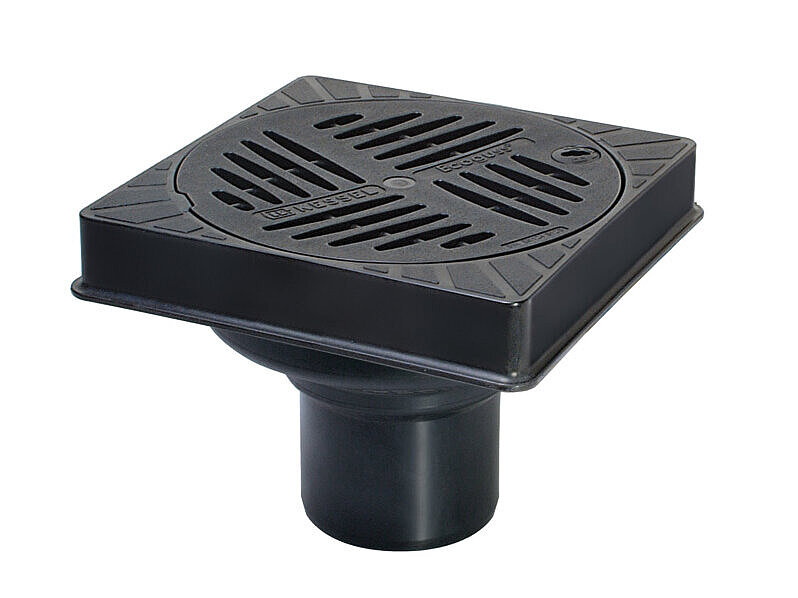

67110B 100 vertical Ecoguss square 67110B
67111B 100 vertical Ecoguss round 67111B

System: 200

Nominal size (DN) Socket version Cover material Shape of upper section Item no.
67000 100 lateral - - 67000
67020.30 100 lateral Polymer square 67020.30
67040 100 vertical - - 67040
67060.30 100 vertical Polymer square 67060.30
67922B 100 vertical Ecoguss square 67922B
67923B 100 lateral Ecoguss square 67923B
67986 - - Polymer - 67986

System: 400

Nominal size (DN) Socket version Cover material Shape of upper section Item no.
851100A 100 lateral Polymer square 851100A
851100B 100 lateral Grey iron square 851100B
851100D 100 lateral Grey iron square 851100D
851101A 100 lateral Polymer square 851101A
851101B 100 lateral Grey iron square 851101B
851101D 100 lateral Grey iron square 851101D
851102A 100 lateral Polymer square 851102A
851102B 100 lateral Grey iron square 851102B
851102D 100 lateral Grey iron square 851102D
851150A 150 lateral Polymer square 851150A
851150B 150 lateral Grey iron square 851150B
851150D 150 lateral Grey iron square 851150D
851151A 150 lateral Polymer square 851151A
851151B 150 lateral Grey iron square 851151B
851151D 150 lateral Grey iron square 851151D
851152A 150 lateral Polymer square 851152A
851152B 150 lateral Grey iron square 851152B
851152D 150 lateral Grey iron square 851152D

System: -

Nominal size (DN) Socket version Cover material Shape of upper section Item no.
67985 - - Ecoguss - 67985
850008 - optional - - 850008
850009 100 lateral - - 850009
850010 150 lateral - - 850010
850120 - - - - 850120
850121 - - - - 850121
Point drains, linear drains and wall drains

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.
