Lifting station Aqualift F Compact

The compact version for complete basement drainage.

One for all: the Aqualift F Compact takes over the complete basement drainage. The lifting station conveys the wastewater, even black water, safely and completely automatically via the backwater level to the higher level sewage channel – even after a pipe burst or flooding – thanks to the integrated drainage function. The compact dimensions allow for an easy floor slab or exposed installation of the Aqualift F Compact. It is controlled by the Comfort control unit with the self-diagnosis system SDS that is supplied ready for connection.

The Aqualift F Compact is available in two versions, either for exposed or for floor slab installation – you can choose between a black cover or tileable cover for the latter. In addition, each device is available as a Mono or Duo lifting station.

Advantages  Article overview

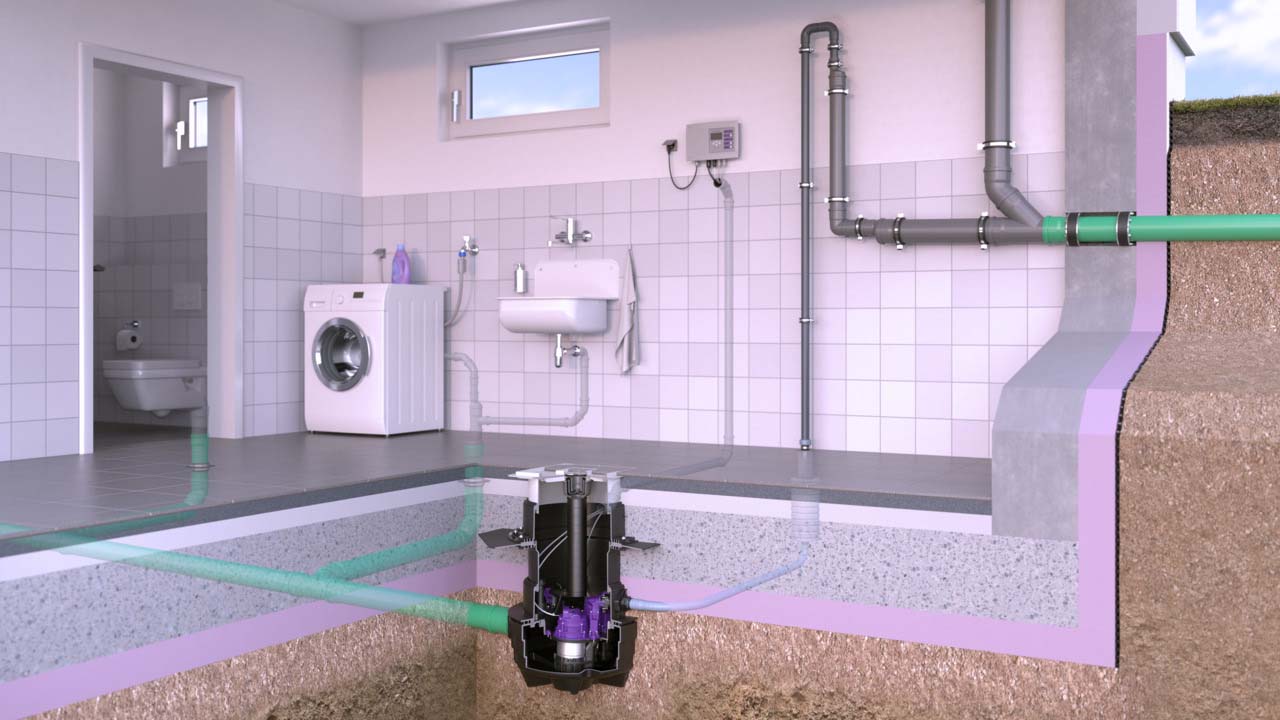

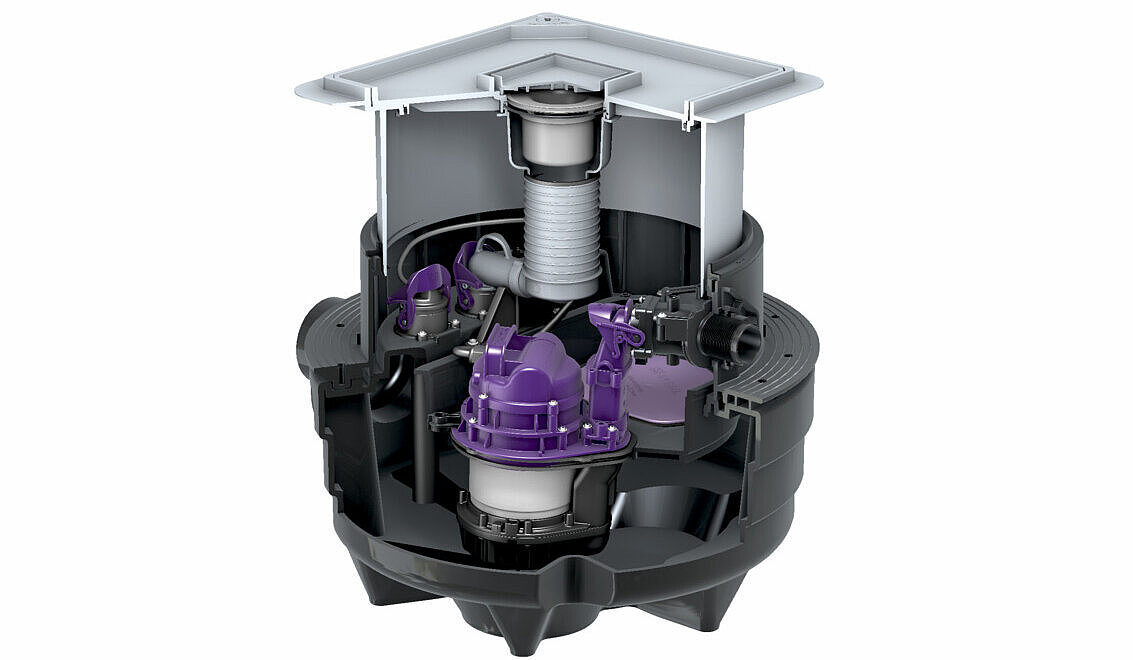

Floor slab installation

The Aqualift F Compact is an almost invisible lifting station if it is installed in the floor slab. The integrated drain in the cover handles basement surface water. Even in the event of a pipe burst or flooding, the Minilift S continually pumps away the wastewater keeping the basement rooms dry.

Maximum safety

The intelligent control unit with integrated self-diagnosis system SDS and battery backup continuously checks all electrical components and keeps a readable, electronic operating log.

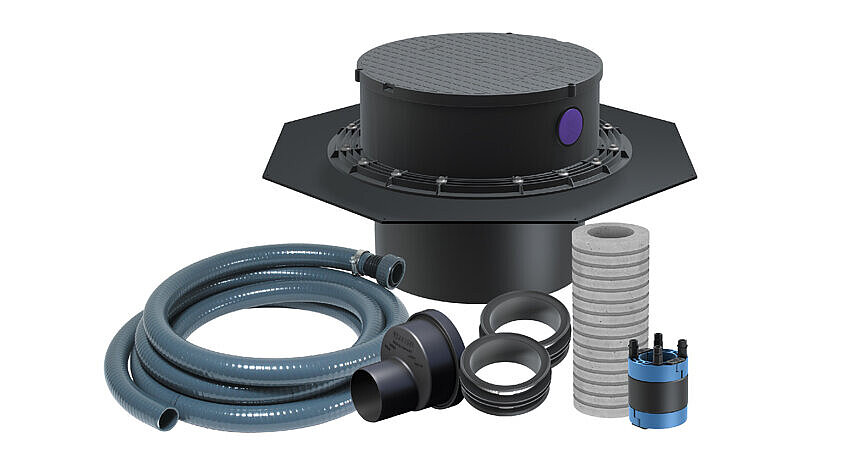

Installation in waterproof concrete

The KESSEL sealing set for installation in waterproof concrete ensures reliable protection against ground water. The extension section with a central flange and elastomeric waterproofing membrane enable implementation also in deeper installation situations.

Aqualift F Compact lifting station


Floor slab installation

  Pump controlType of wastewaterType of cover Item no.
28704S SPZ 1000 with sewage Cover plate with slotted cover 28704S
Show
28704SC SPZ 1000 resistant with sewage Cover plate 28704SC
Show
28704X SPZ 1000 with sewage tileable cover plate 28704X
Show
28704XC SPZ 1000 resistant with sewage tileable cover plate 28704XC
Show

  Pump controlInstallation depthType of wastewaterType of coverOdour trap Item no.
28701S SPZ 1000 490  mm with sewage Cover plate with slotted cover Multistop 28701S
Show
28701SC SPZ 1000 resistant 490  mm with sewage Cover plate Multistop 28701SC
Show
28701X SPZ 1000 490  mm with sewage tileable cover plate Multistop 28701X
Show
28701XC SPZ 1000 resistant 490  mm with sewage tileable cover plate Multistop 28701XC
Show

Free-standing set-up

  Pump controlInstallation depthType of wastewater Item no.
28718 SPZ 1000 with sewage 28718
Show
28718C SPZ 1000 resistant with sewage 28718C
Show

  Pump controlInstallation depthType of wastewater Item no.
28717 SPZ 1000 with sewage 28717
Show
28717C SPZ 1000 resistant with sewage 28717C
Show

Shell and Technology Kits

  Pump controlType of cover Item no.
28700S-RBK Cover plate with slotted cover 28700S-RBK
Show
28700X-RBK tileable cover plate 28700X-RBK
Show

  Control unitNumber of pumps Item no.
28701-TK Comfort 1 28701-TK
Show
28701C-TK Comfort 1 28701C-TK
Show
28704-TK Comfort 2 28704-TK
Show
28704C-TK Comfort 2 28704C-TK
Show

Not found the right product?

In addition to our standard lifting stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.

Individual solutions
