Gutter drains

The practical solution at the end of the pipe.

Our practical gutter drains made of polymer are connected directly to the downpipe of the gutter and pass the rainwater through underground wastewater pipes and into the sewer system, the stormwater collection tank or soakaways.

Advantages  Article overview

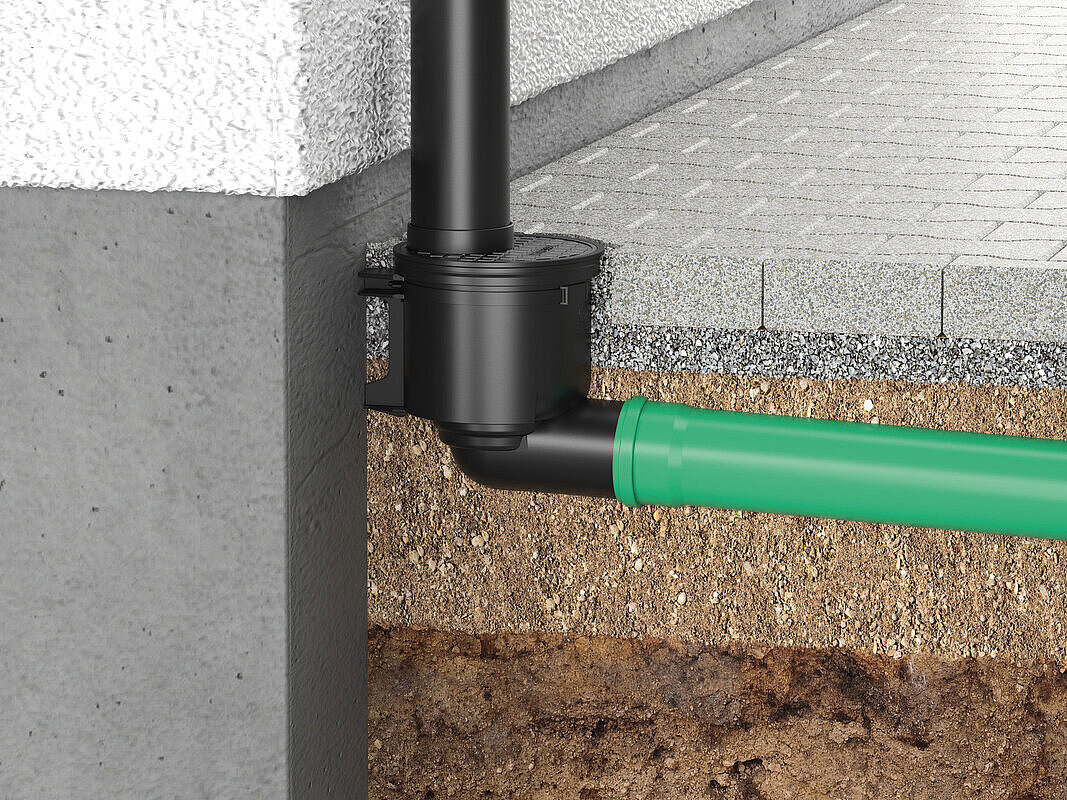

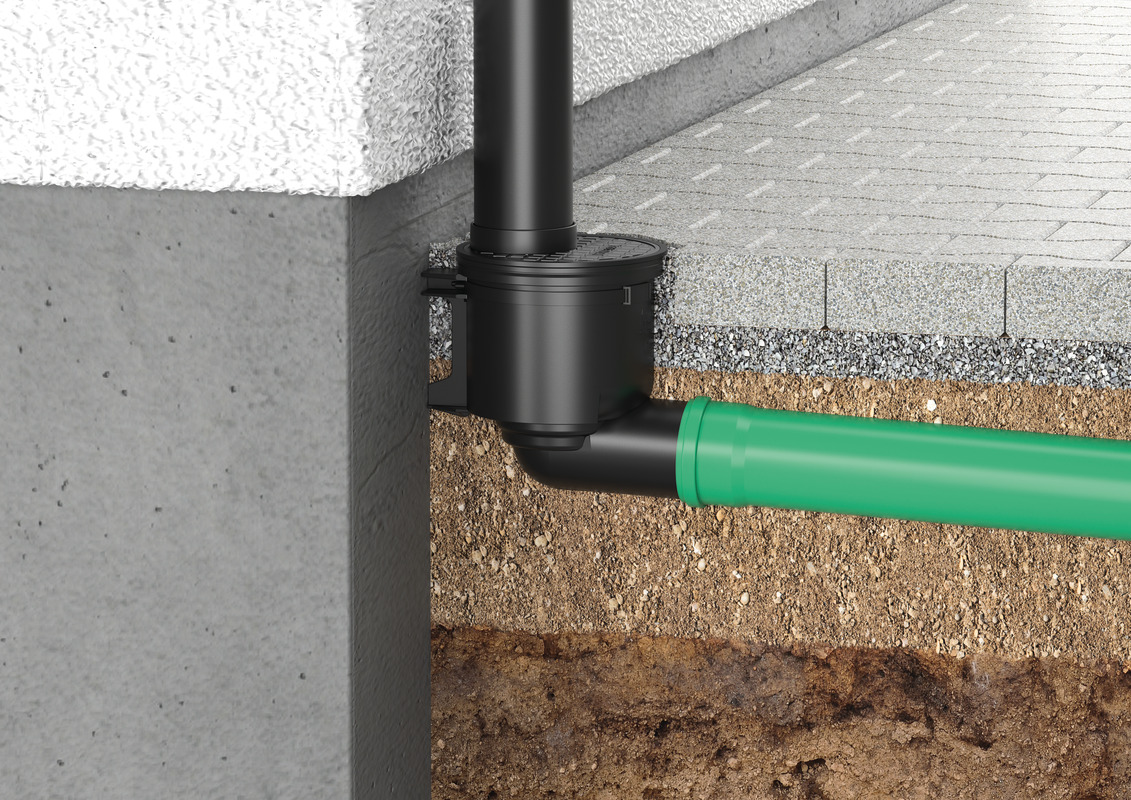

Installation diagram for the gutter drain with a horizontal outlet

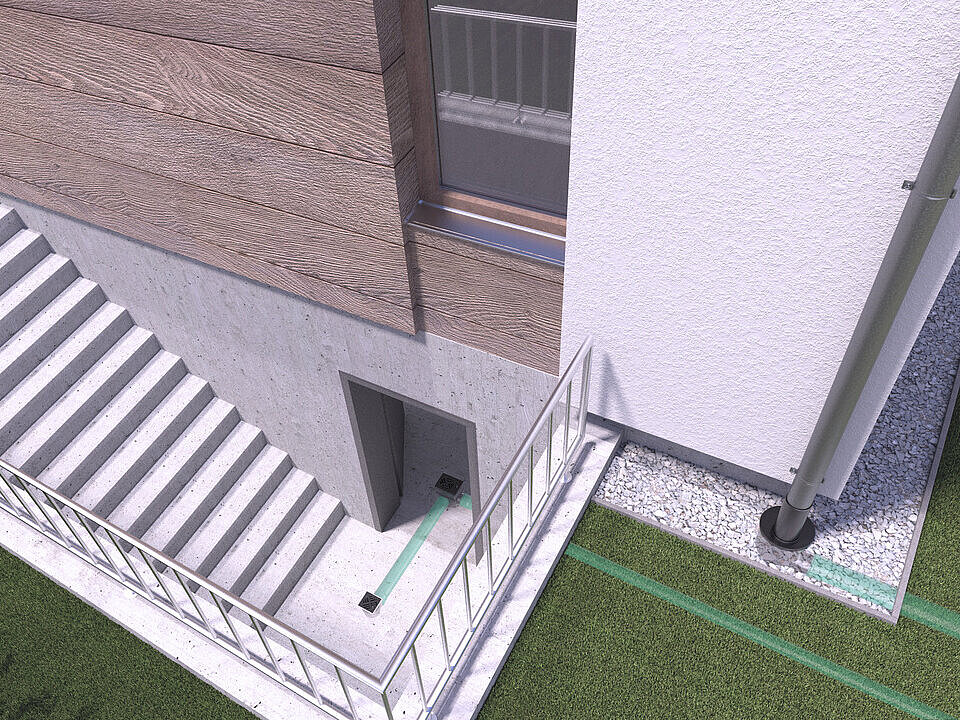

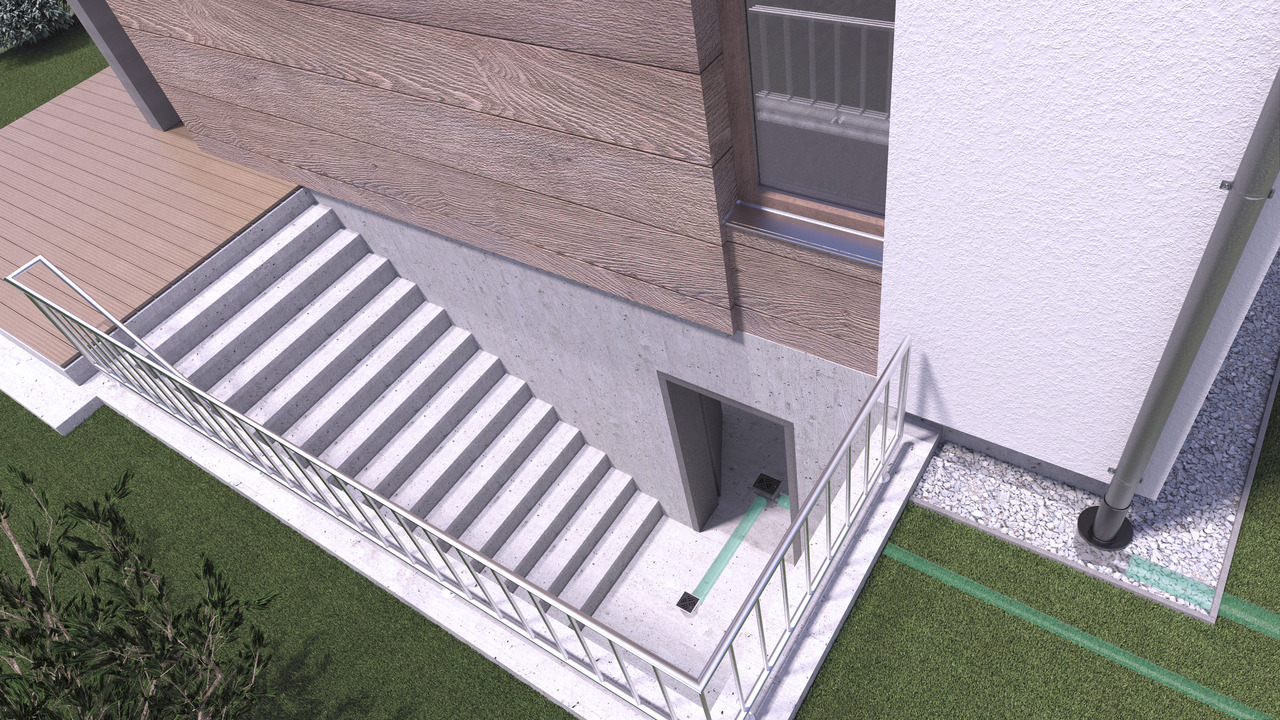

Installation diagram for the gutter drain in residential buildings

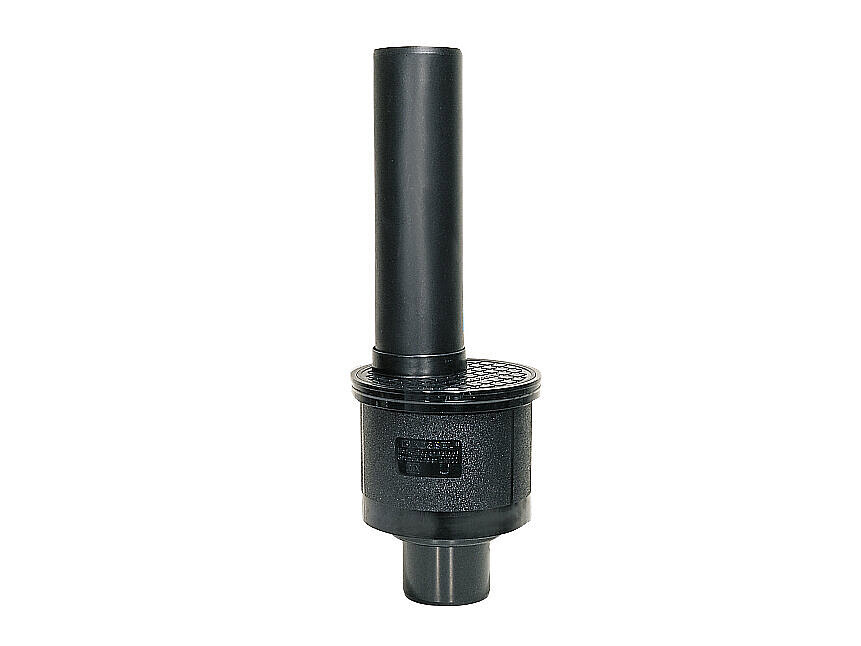

Gutter drain with a vertical outlet

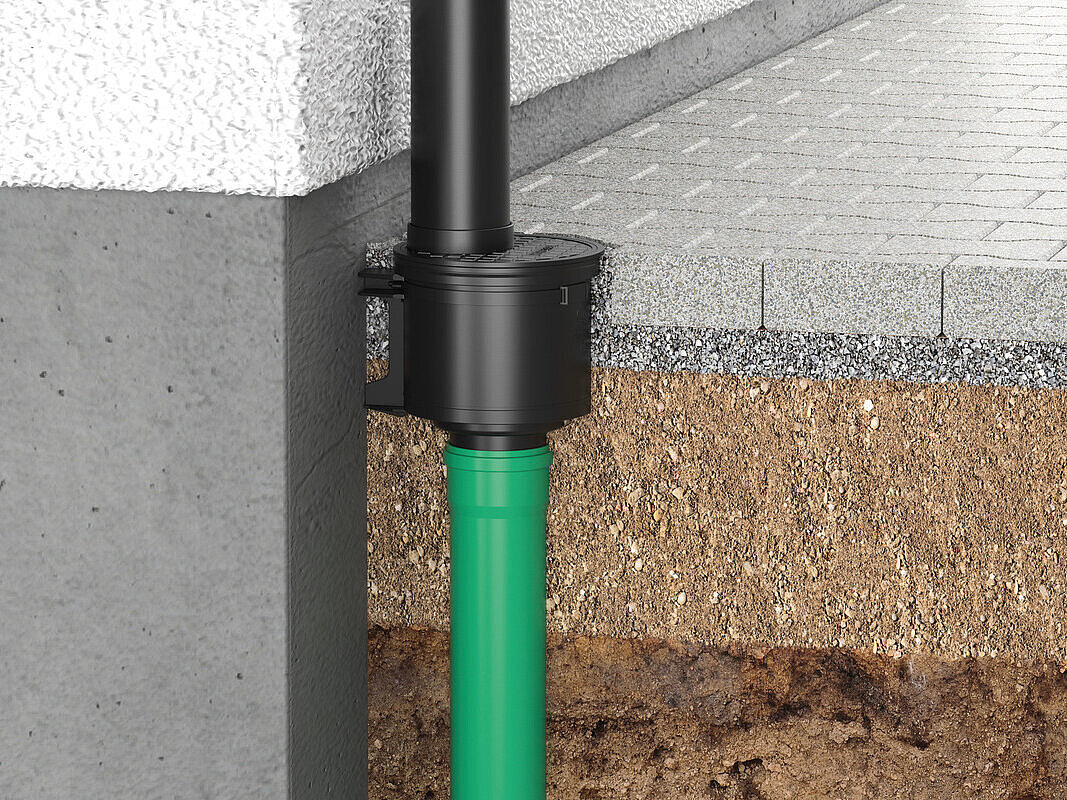

Installation diagram for the gutter drain with a vertical outlet

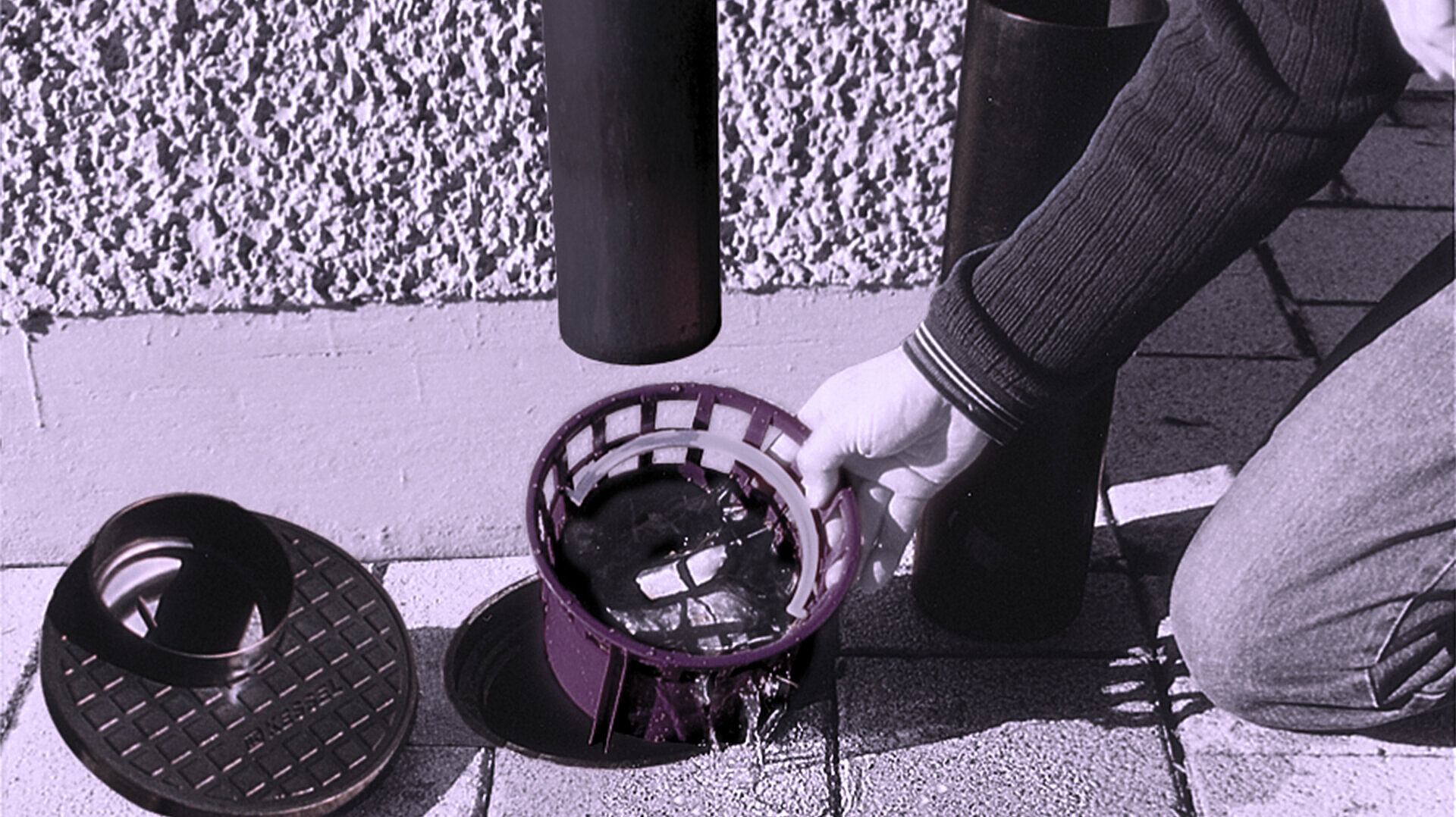

Removable sludge bucket for easy cleaning

Removable sludge bucket

Our gutter drains are equipped with a sludge bucket as protection against blockages caused by solids such as leaves or branches. The trap basket can be easily accessed through the removable drain cover and is therefore easy to clean.

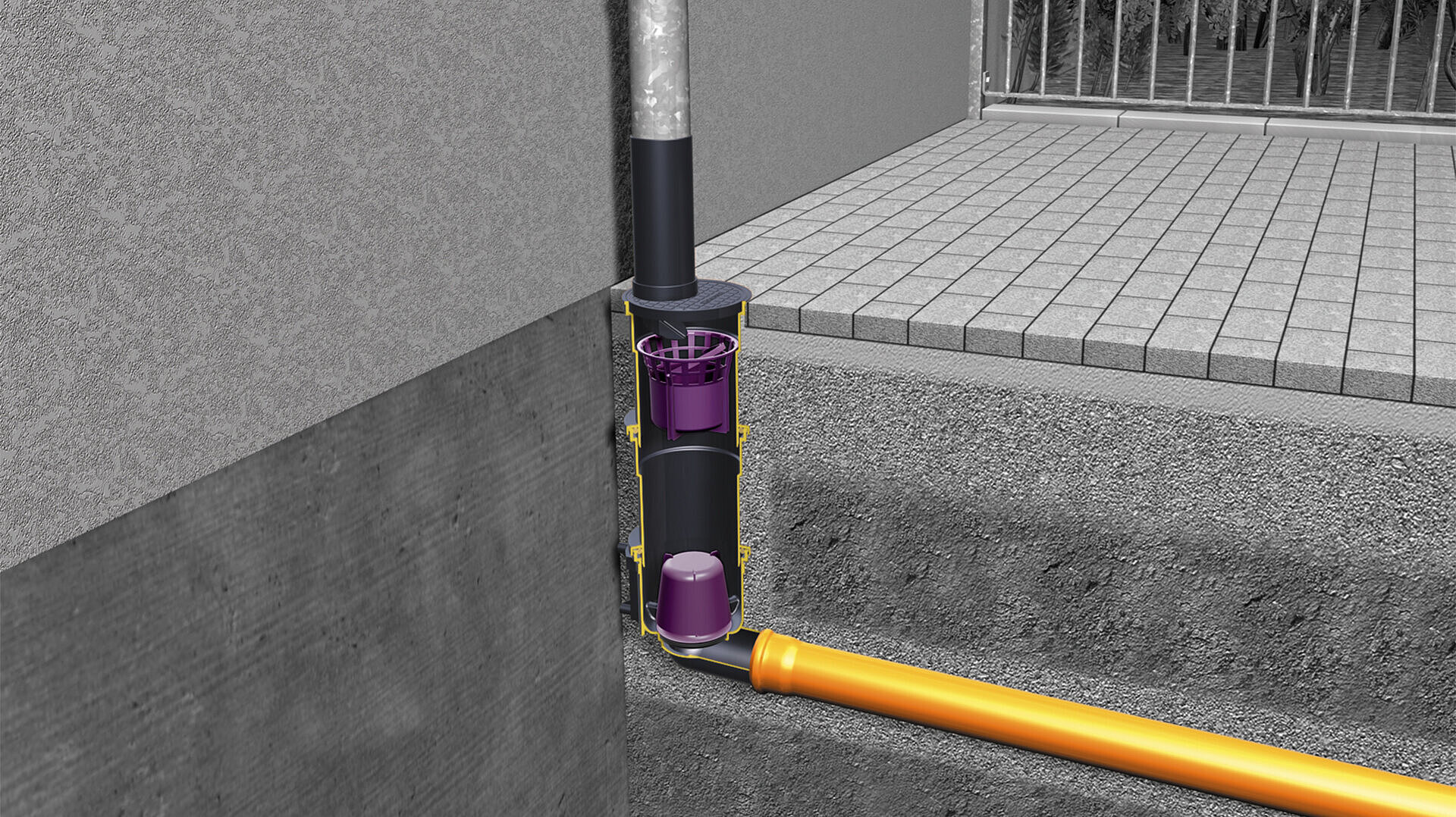

Gutter drain with an odour trap

Odour trap

We also supply gutter drains with a removable bell-shaped odour trap for frost-free depths from 545 mm to protect against unpleasant odours from the sewer system.

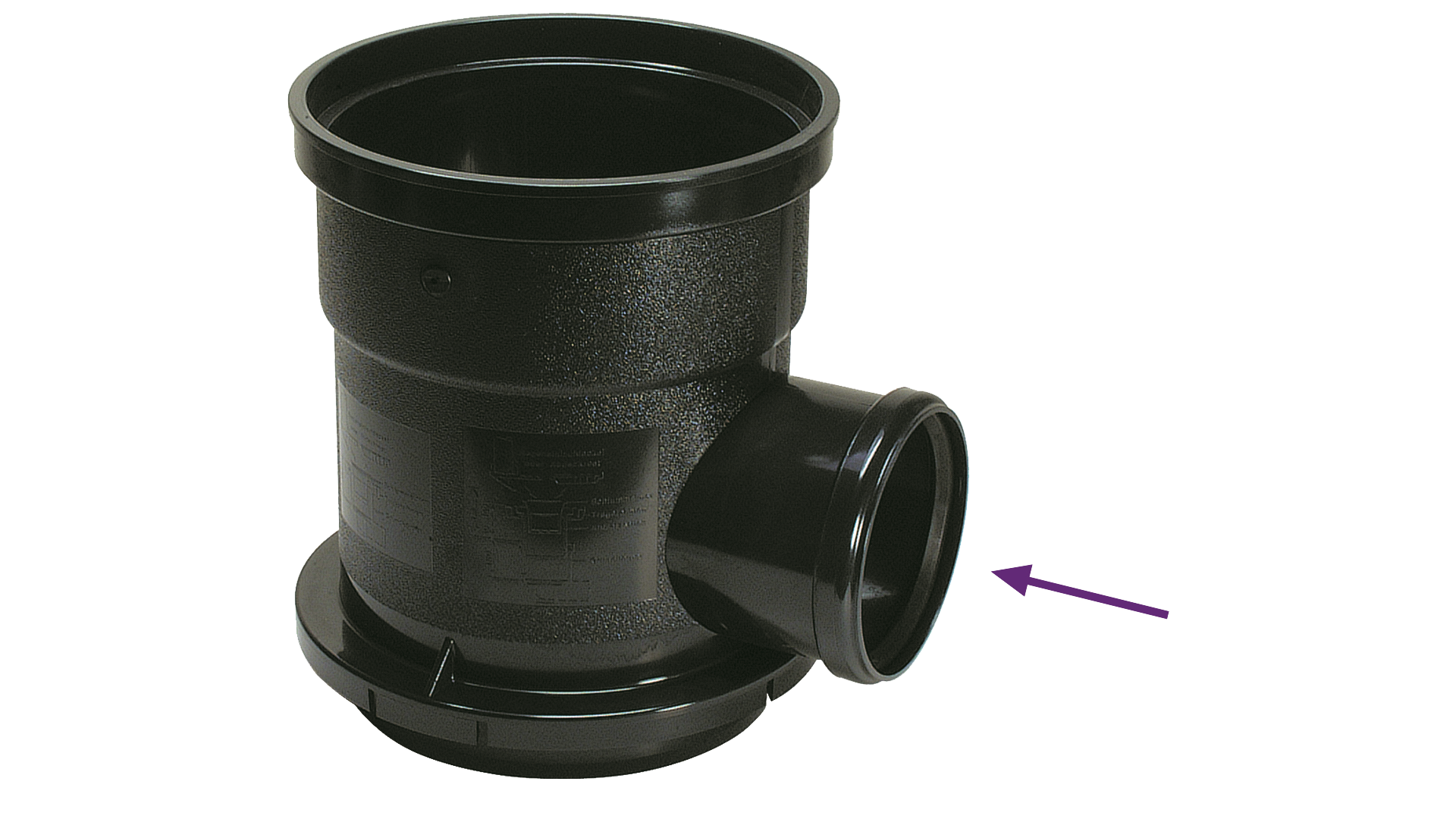

Variable connection options

Optional extension sections can be used to attach additional horizontal inlets to the gutter drains.

With SmartSelect, you'll always make the right choice.

Make it easier to decide on the right product! Use our handy SmartSelect planning tool, answer step-by-step questions about the location, floor structure, etc., and find the perfect product.

Try it now

Drain body, yard/gutter drain

System 200

  Nominal size (DN) Odour trap Length Width Socket version Item no.
67000 67000 100 no 328  mm 235  mm lateral 67000
Show
67040 67040 100 no 235  mm 235  mm vertical 67040
Show

System 400

  Nominal size (DN) Outlet nominal size (DN) Socket version Item no.
850008 850008 - optional 850008
Show
850009 850009 100 100 lateral 850009
Show
850010 850010 150 150 lateral 850010
Show

Gutter drain

System 200

  Type of cover Nominal size (DN) Odour trap Socket version Contents of sludge trap Item no.
67940 67940 Rain drain cover 100 no vertical yes 67940
Show
67945 67945 Rain drain cover 100 no lateral yes 67945
Show
67960 67960 Rain drain cover 100 included vertical yes 67960
Show
67970 67970 Rain drain cover 100 included lateral yes 67970
Show
67997 67997 Rain drain cover 100 no vertical yes 67997
Show

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Customised solutions
