Basement drain with a light liquid trap

The specialist for the basement heating room.

Light liquid trap with a backwater valve

Perfect for the basement heating room: Surface water passes through a polymer slotted cover and into the light liquid trap, from where it is discharged into the sewer. If a light liquid, for example, heating oil gets into the drain, a floater reliably ensures that contaminated wastewater is not transported into the sewer and cannot cause serious pollution in the sewer and connected wastewater treatment plants.

Available in two versions, with and without an integrated backwater valve.

Advantage Article overview

Light liquid trap without a backwater valve

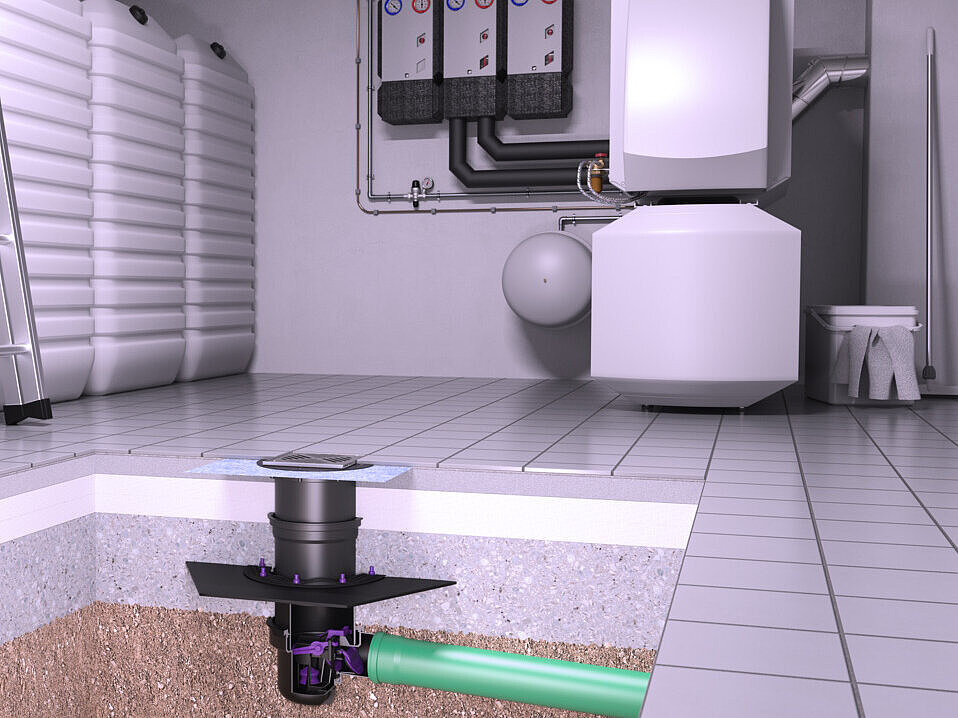

Installation diagram for the light liquid trap in the heating room

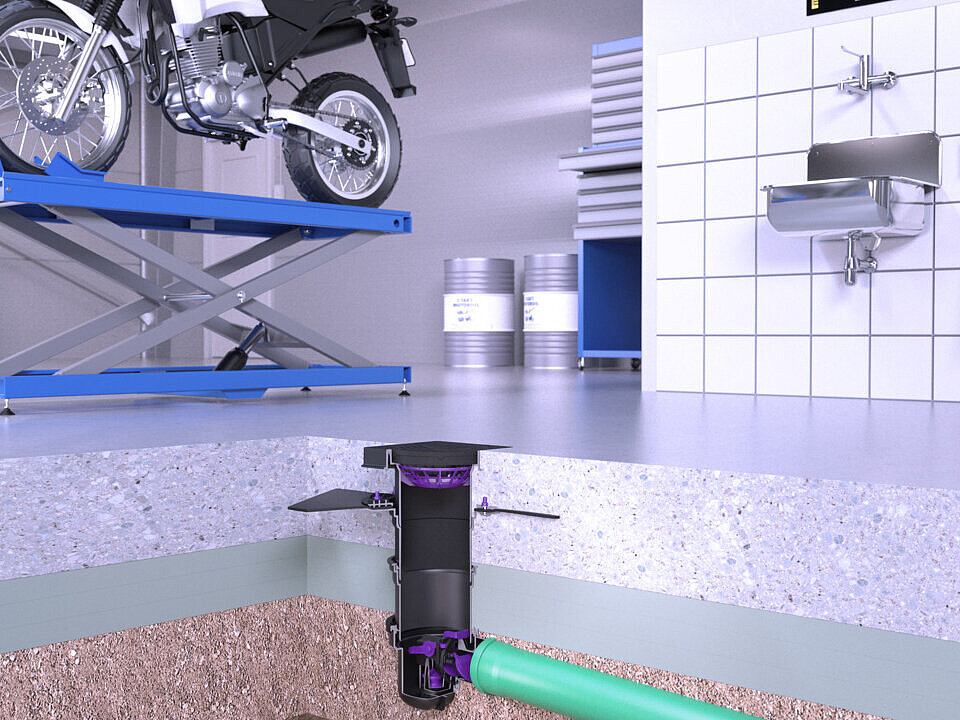

Installation diagram for the light liquid trap in a small workshop

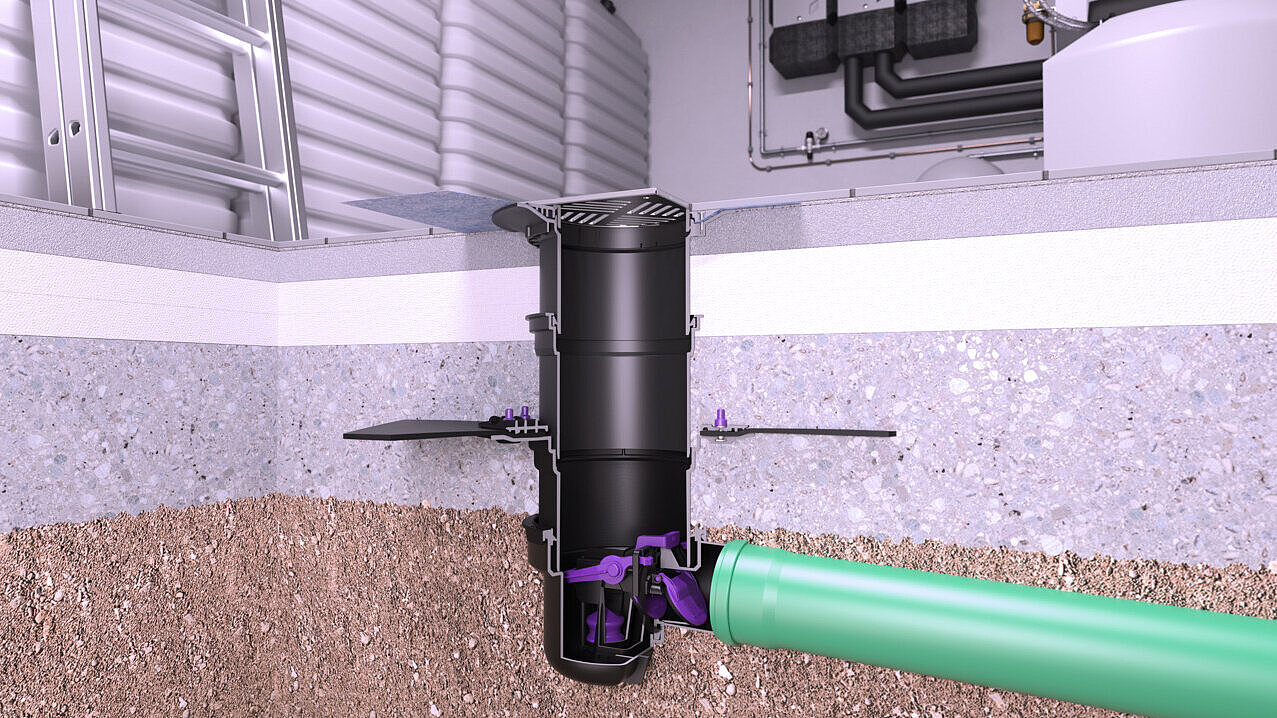

How it works

The basement drain not only prevents wastewater contaminated with light liquids from getting into the sewer, but also prevents wastewater pushed back from the sewer (backwater) from getting into the basement. To this end, it is equipped with an optional Type 5 backwater valve.

With SmartSelect, you'll always make the right choice.

Make it easier to decide on the right product! Use our handy SmartSelect planning tool, answer step-by-step questions about the location, floor structure, etc., and find the perfect product.

Try it now

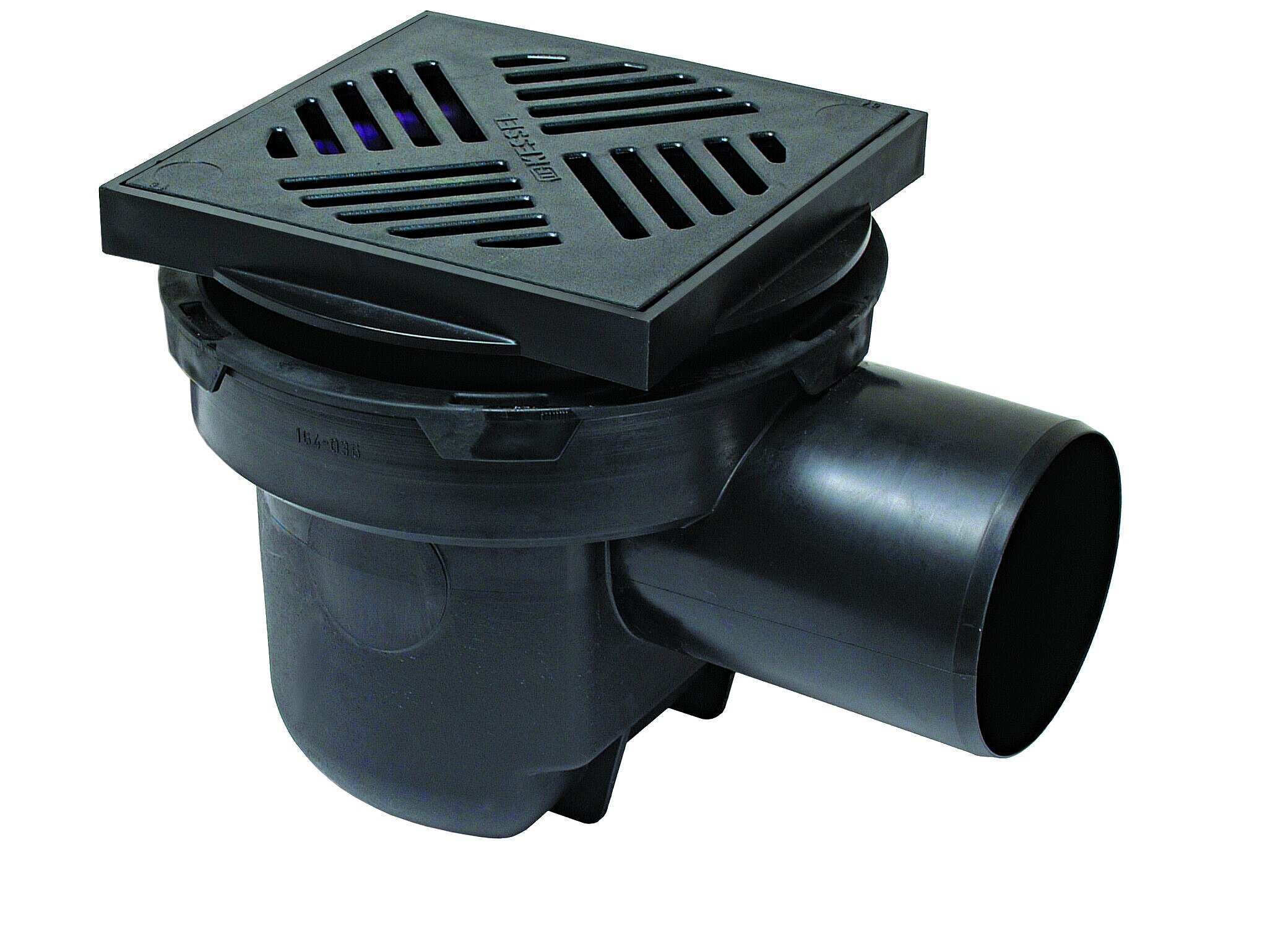

Light liquid trap

With backwater valve

	Load class	Nominal size (DN)	Odour trap	Cover material	Item no.
52101	K 3 (EN 1253-1)	100	included	Polymer	52101	Show
52102		100	included		52102	Show

Without backwater valve

	Load class	Nominal size (DN)	Cover material	Item no.
51101	K 3 (EN 1253-1)	100	Polymer	51101	Show
51102		100		51102	Show
