Whether in a new building or during renovations – it is possible to use a collecting tank already available on site, for example a tank made of concrete. The Retrofit pump installation kits, each with two removable pumps, are the ideal solution that can be retrofitted for stationary use. Suitable for wastewater with or without sewage, equipped with various impellers, such as a multi-vane vortex impeller, channel-type impeller or macerator and available with different pump capacities ranging from 0.6 kW to 3.7 kW: Due to this large variety of models, there is a suitable version for every requirement profile. A resistant version that is resistant to hot water and brine is available on request.

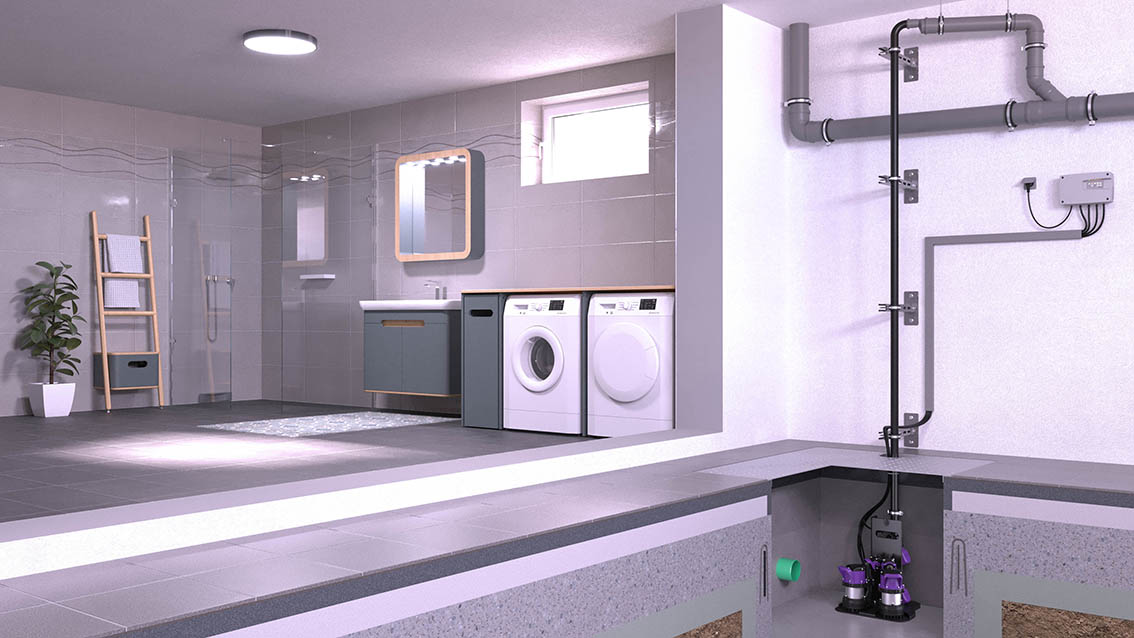

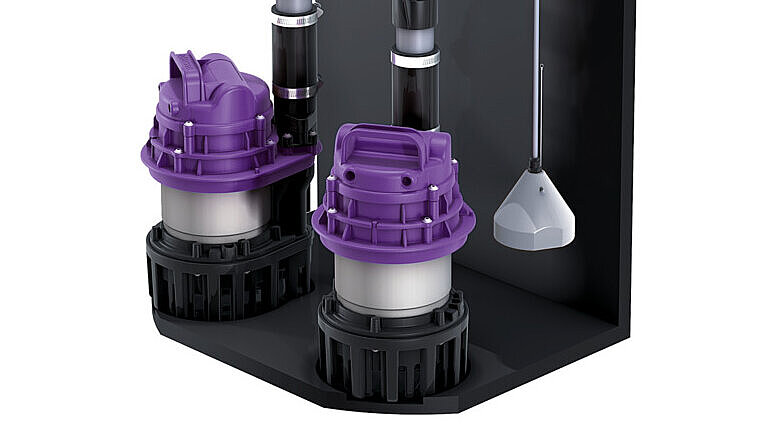

Retrofit S in a pump sump in the basement of a single-family home.

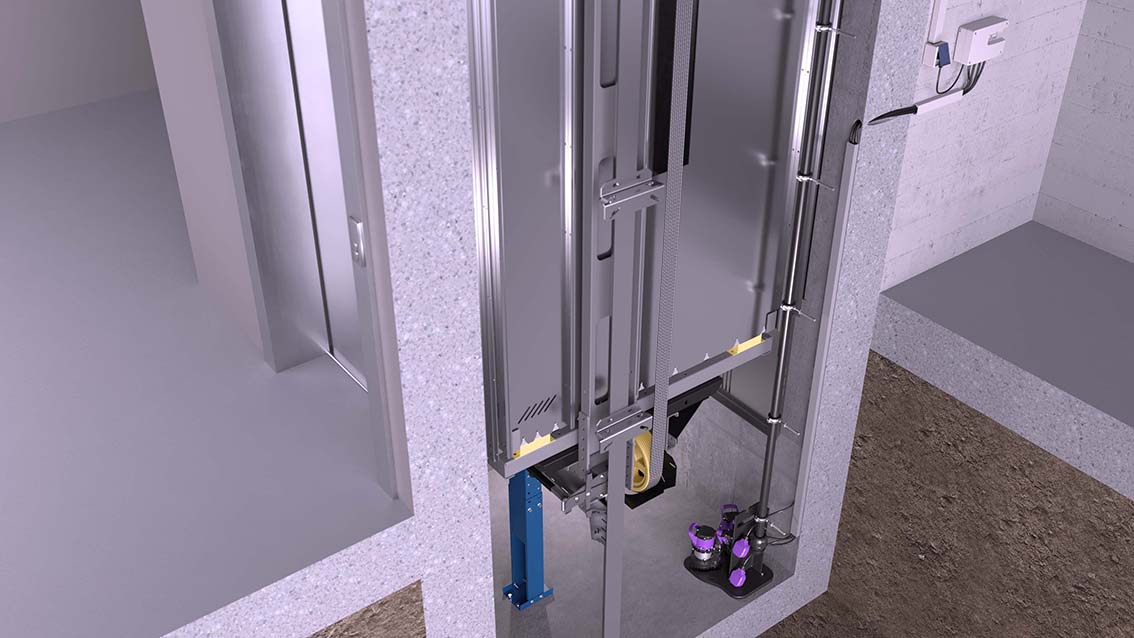

Retrofit S for the drainage of a lift shaft.

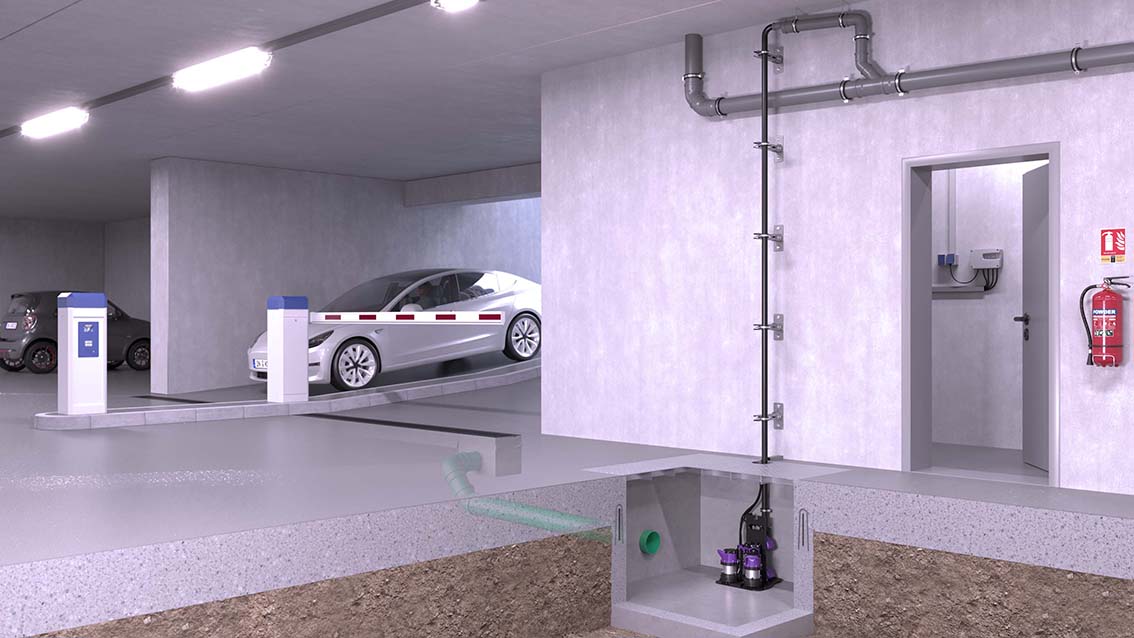

Retrofit S in a collection chamber for wastewater in an underground car park or multi-storey car park.
Possible applications
The Retrofit S pump installation kit is a versatile solution for various drainage requirements. It is used in particular for drainage in underground car parks, lift shafts and basements.
Article overview

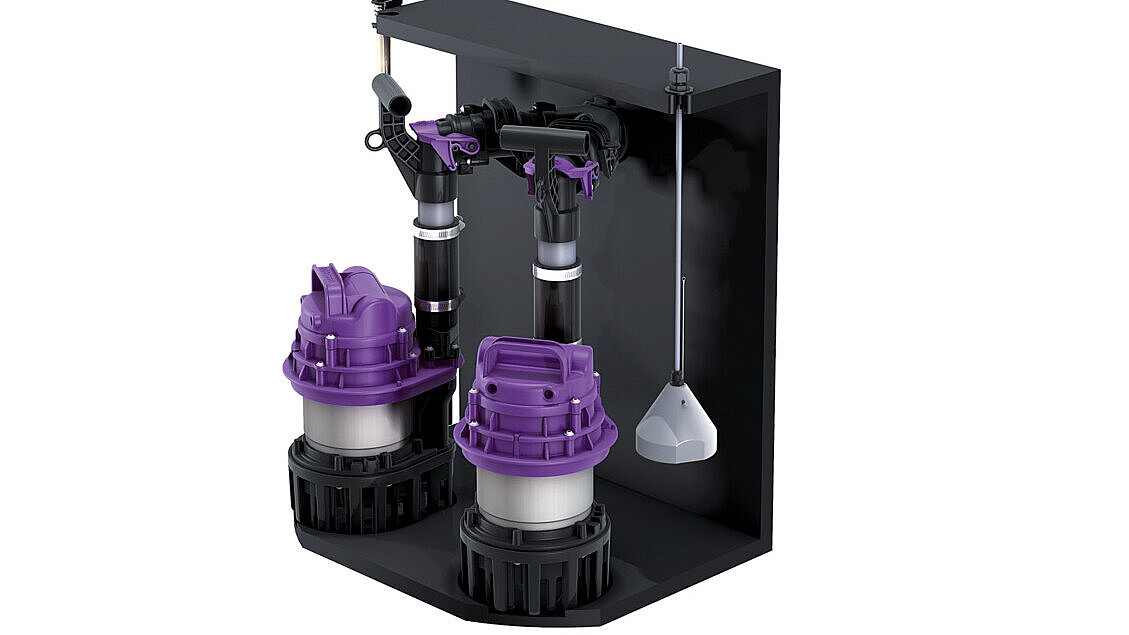

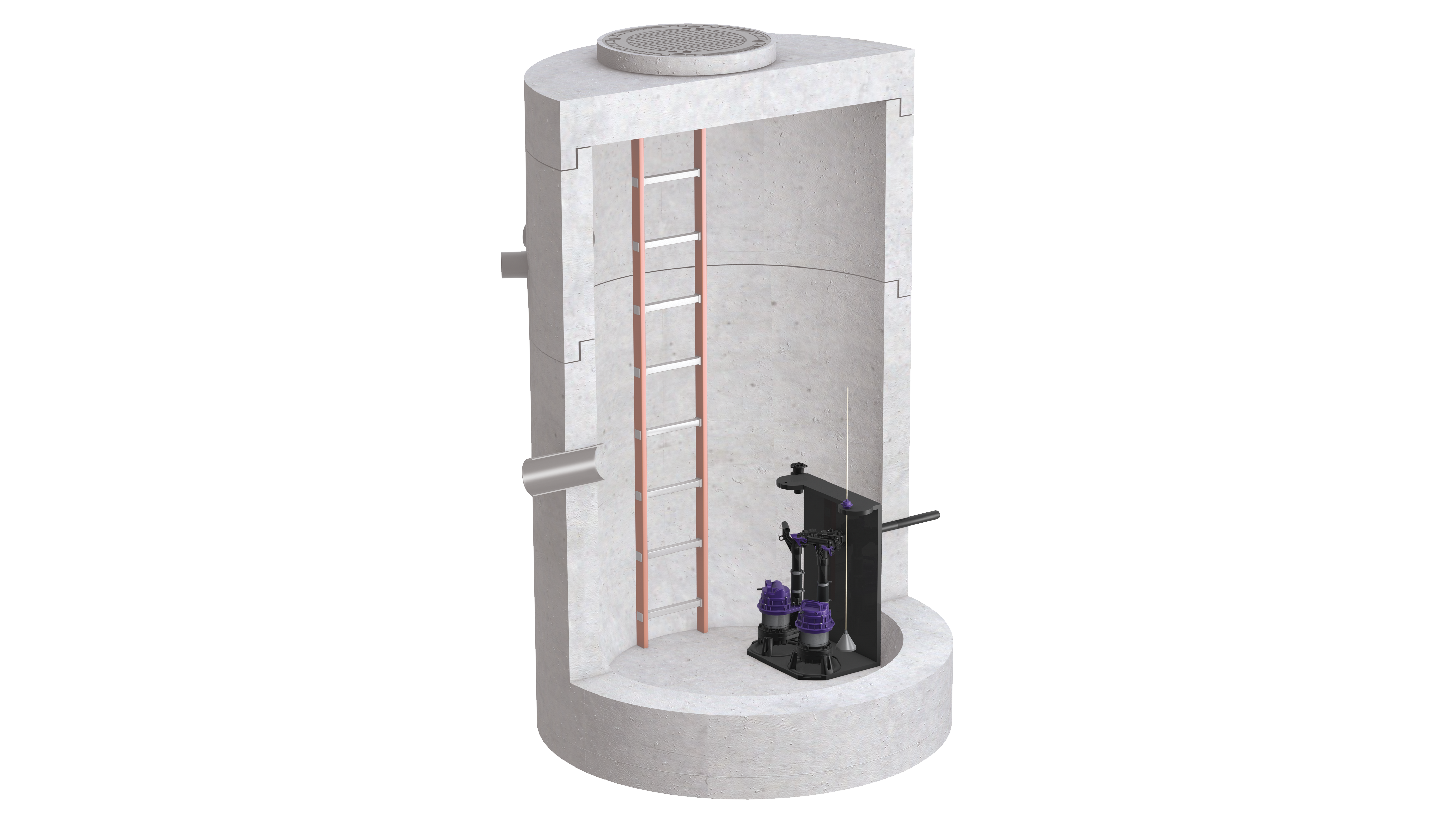

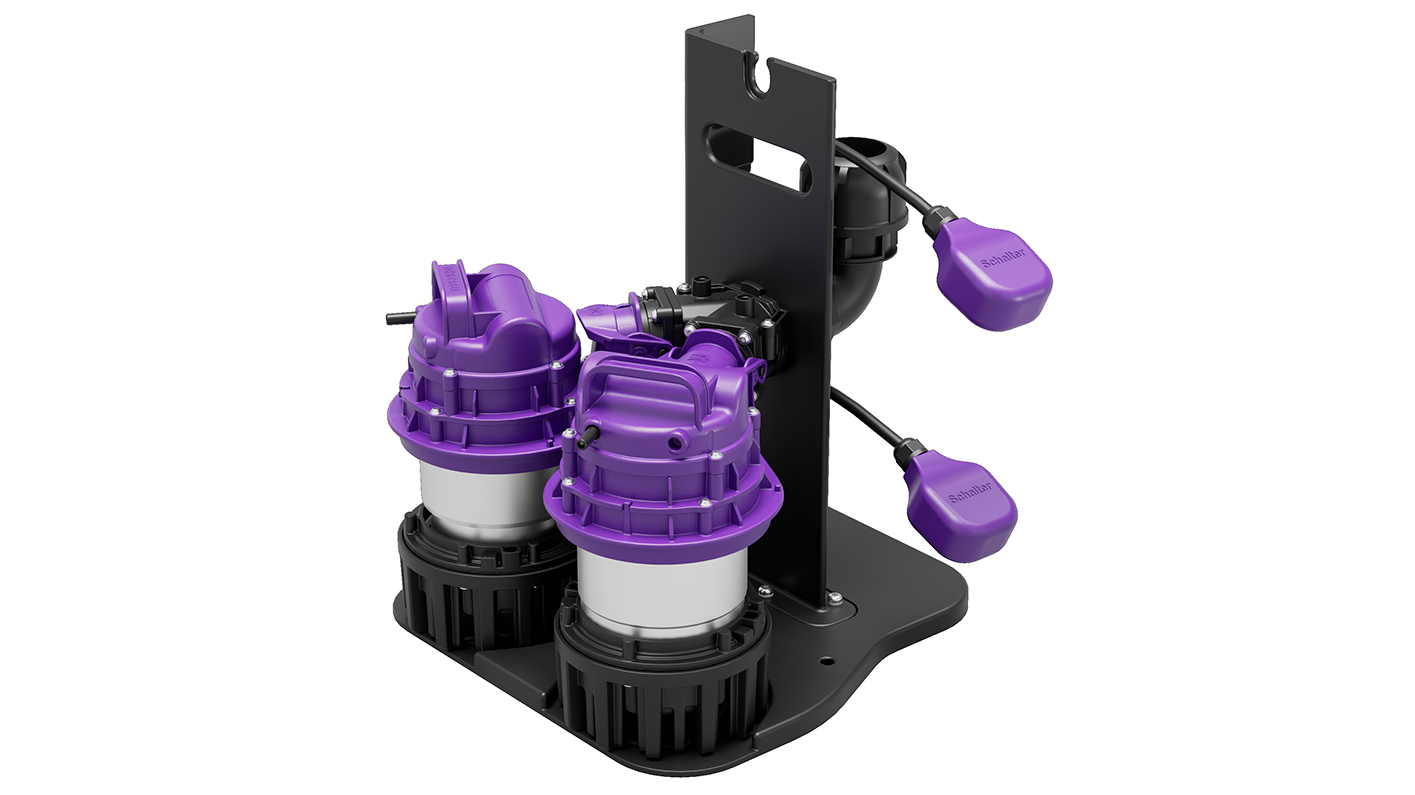

Pump installation kit Retrofit S
Twin pump station
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
8744000
|
GTF 600-S1 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744000 | Show |
8744001
|
GTF 600 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744001 | Show |
8744002
|
GTF 1000-S1 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744002 | Show |
8744003
|
GTF 1000 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744003 | Show |
8744050
|

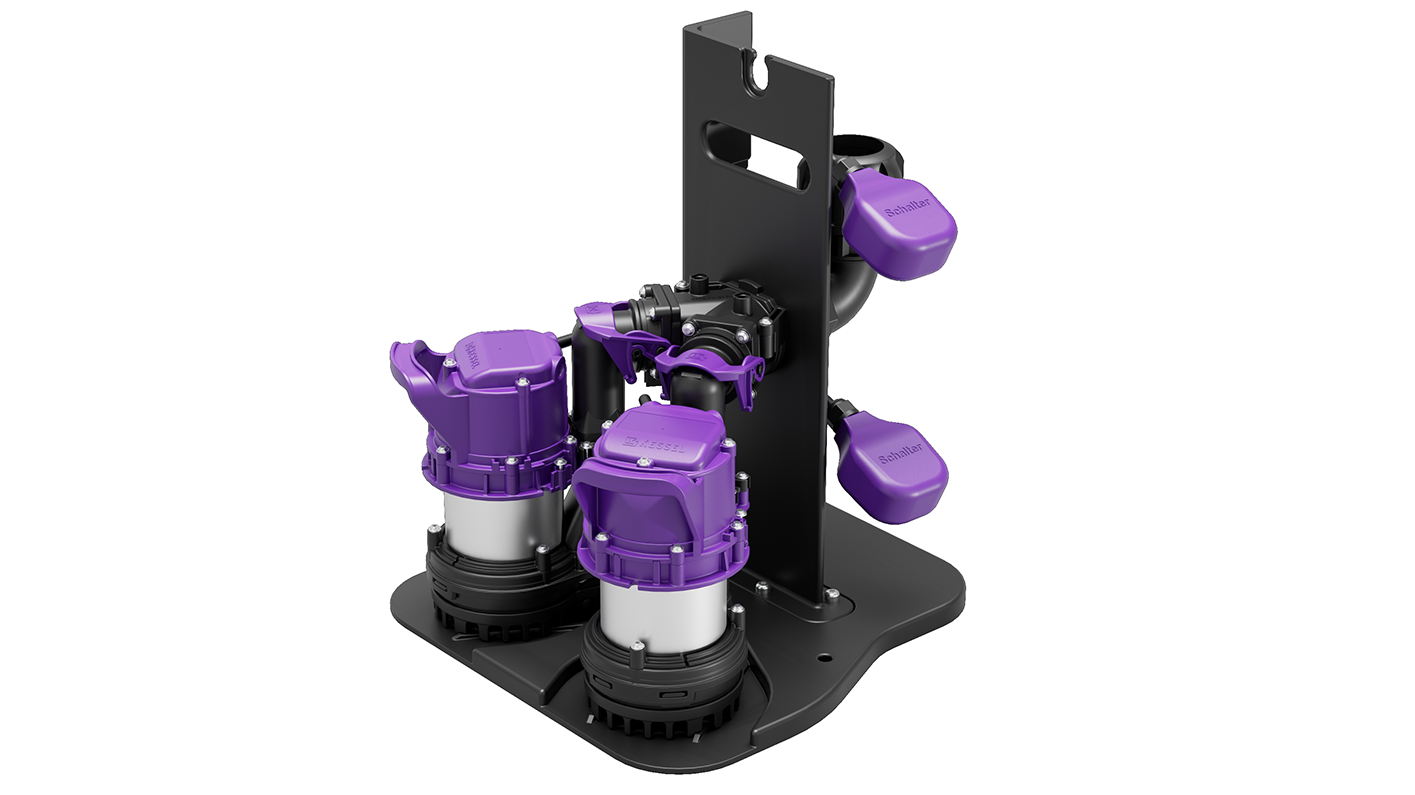

GTF 500 | without sewage | Multi-vane impeller | Connect Duo | Float switch | 8744050 | Show |
8744051
|
GTF 1000 | without sewage | Multi-vane impeller | Connect Duo | Float switch | 8744051 | Show |
Pump installation kit Retrofit M
Twin pump station
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
8744004
|
GTF 1200 | without sewage | Multi-vane impeller | Comfort | optical probe | 8744004 | Show |
8744005
|
GTF 1200 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744005 | Show |
8744006
|
GTF 1250 | without sewage | Multi-vane impeller | Comfort | optical probe | 8744006 | Show |
8744007
|
GTF 1250 | without sewage | Multi-vane impeller | Comfort | Float switch | 8744007 | Show |

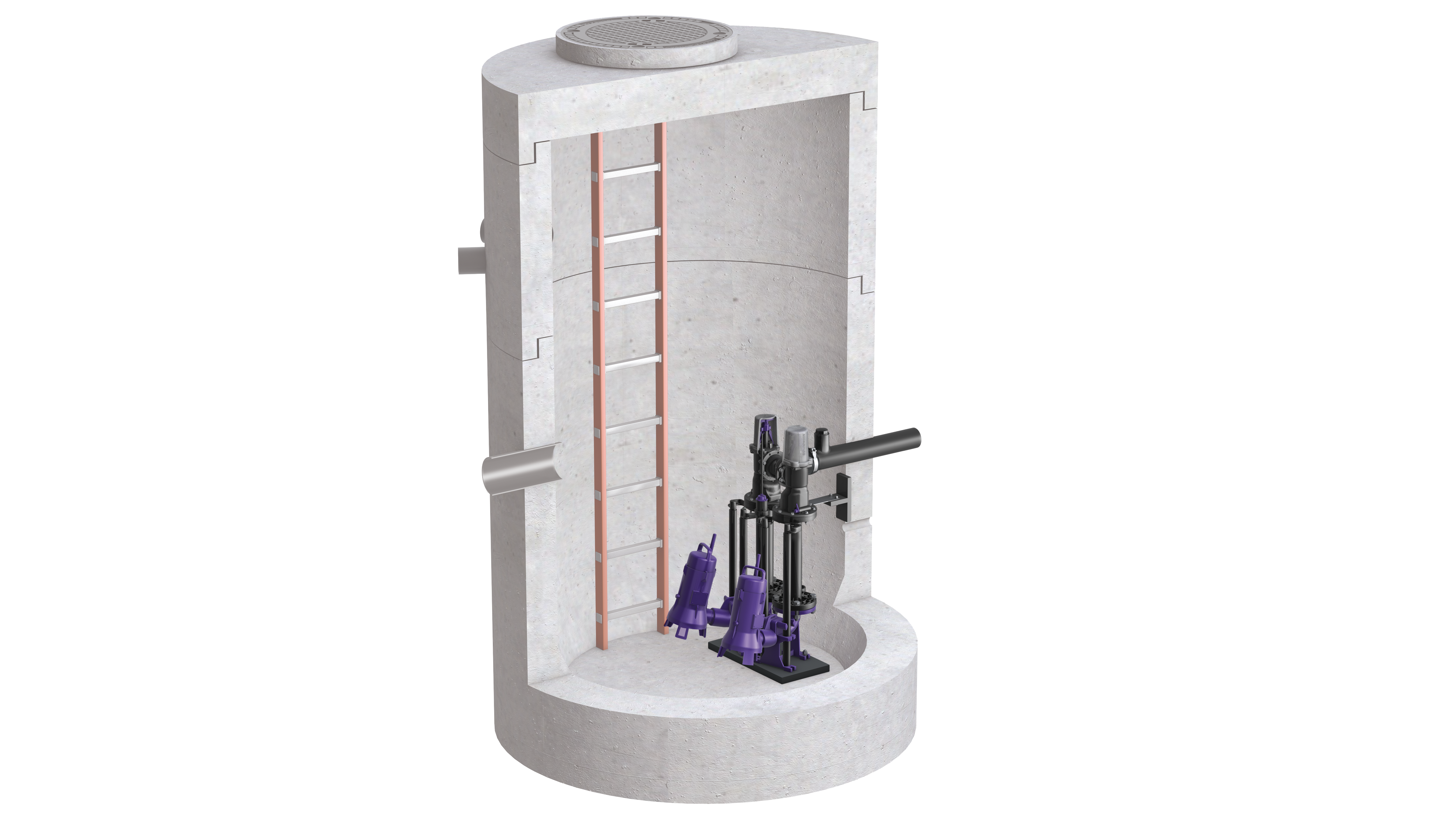

Pump installation kit Retrofit L
Single station
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
| STZ1300-M | STZ 1300 | with sewage | Macerator | Comfort | Level sensor | STZ1300-M | Show |
| STZ2500-M | STZ 2500 | with sewage | Macerator | Comfort | Level sensor | STZ2500-M | Show |
| STZ3700-M | STZ 3700 | with sewage | Macerator | Comfort | Level sensor | STZ3700-M | Show |
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
| GTF1400-M | GTF 1400 | with sewage | Multi-vane impeller | Comfort | optical probe | GTF1400-M | Show |
| GTF1600-M | GTF 1600 | for wastewater with and without sewage | Multi-vane impeller | Comfort | Level sensor | GTF1600-M | Show |
| GTF2600-M | GTF 2600 | for wastewater with and without sewage | Multi-vane impeller | Comfort | Level sensor | GTF2600-M | Show |
| GTF4000-M | GTF 4000 | for wastewater with and without sewage | Multi-vane impeller | Comfort | Level sensor | GTF4000-M | Show |
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
| GTK1300-M | GTK 1300 | for wastewater with and without sewage | Single-vane impeller | Comfort | Level sensor | GTK1300-M | Show |
| GTK2600-M | GTK 2600 | for wastewater with and without sewage | Single-vane impeller | Comfort | Level sensor | GTK2600-M | Show |
| GTK3700-M | GTK 3700 | for wastewater with and without sewage | Single-vane impeller | Comfort | Level sensor | GTK3700-M | Show |

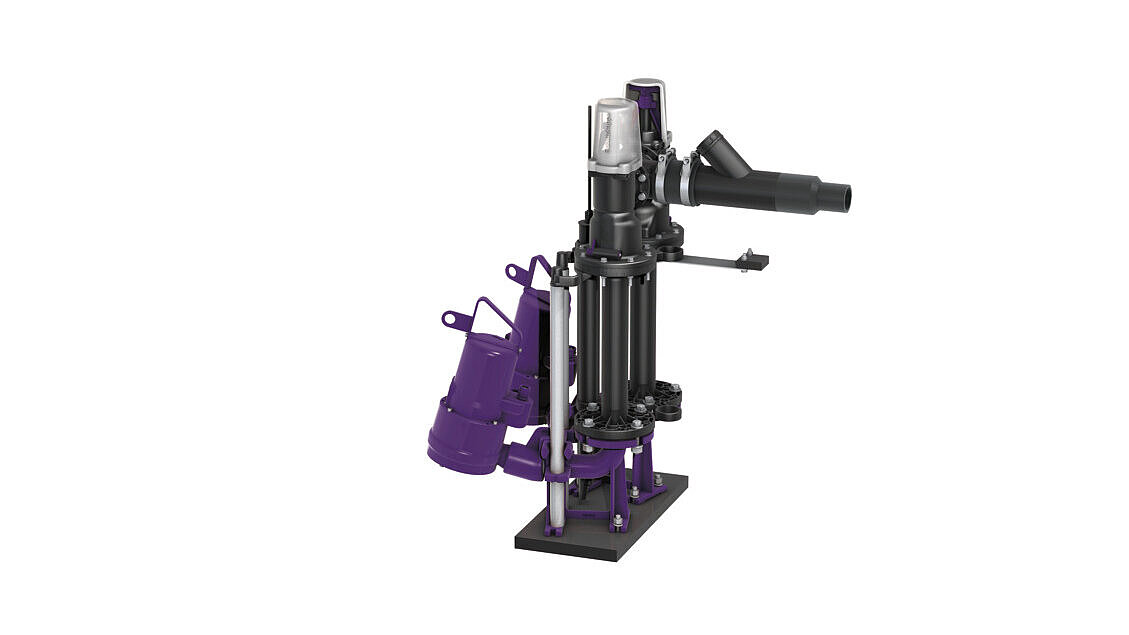

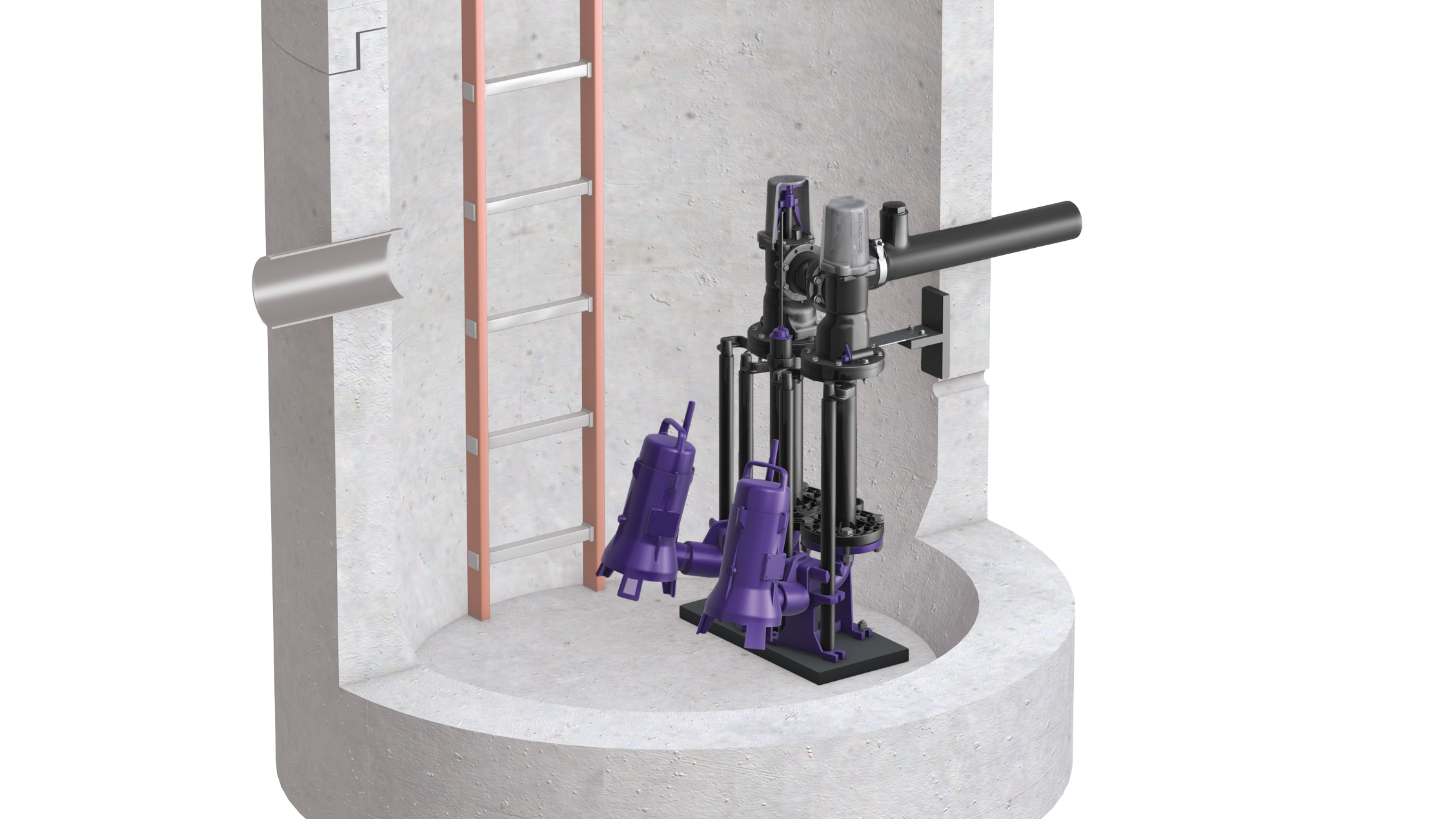

Twin pump station
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
8744010
|
STZ 1300 | for wastewater with and without sewage | Macerator | Comfort | Level sensor | 8744010 | Show |
8744012
|
STZ 2500 | for wastewater with and without sewage | Macerator | Comfort | Level sensor | 8744012 | Show |
8744014
|
STZ 3700 | for wastewater with and without sewage | Macerator | Comfort | Level sensor | 8744014 | Show |
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
8744020
|
GTF 1400 | for wastewater with and without sewage | Multi-vane impeller | Comfort | Level sensor | 8744020 | Show |
8744022
|
GTF 1600 | for wastewater with and without sewage | Multi-vane impeller | Connect Pro | yes | 8744022 | Show |
8744024
|
GTF 2600 | for wastewater with and without sewage | Multi-vane impeller | Connect Pro | yes | 8744024 | Show |
8744026
|
GTF 4000 | for wastewater with and without sewage | Multi-vane impeller | Connect Pro | yes | 8744026 | Show |
| Pump | Type of wastewater | Impeller type | Control unit | Alarm sensor | Item no. | ||
|---|---|---|---|---|---|---|---|
8744030
|
GTK 1300 | for wastewater with and without sewage | Single-vane impeller | Connect Pro | yes | 8744030 | Show |
8744032
|
GTK 2600 | for wastewater with and without sewage | Single-vane impeller | Connect Pro | yes | 8744032 | Show |
8744034
|
GTK 3700 | for wastewater with and without sewage | Single-vane impeller | Connect Pro | yes | 8744034 | Show |
