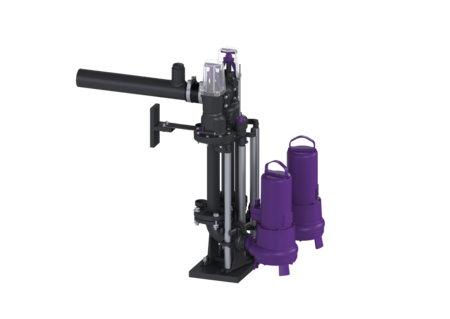

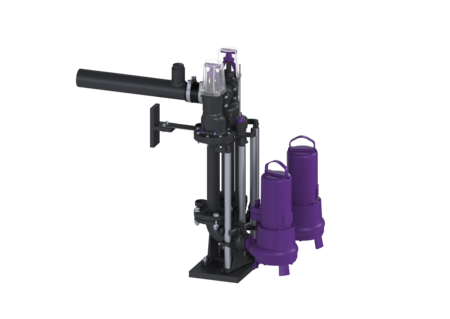

Pump installation kit Retrofit L

Duo, GTK 3700, Level sensor

8744034
8744034
8744034
PDF product data sheet

KESSEL Pump installation kit Retrofit L Duo, wastewater for wastewater with and without sewage, installation in on-site collecting tank, with 2 submersible GTK 3700 pumps, alarm generator with yes, 400 V, delivery rate 82 m³/h

    Item no. 8744034
    GTIN 4026092103579
    Price group 60

      Pump installation kit Retrofit L Duo, GTK 3700, Level sensor
      The pump installation kit for installation in existing collection tanks for wastewater with and without sewage is equipped with two floodable pumps, two backwater preventers and two shut-off valves. The metal sliding rods are used to mount and secure the pumps. Control is by means of pressure control via a user-friendly control unit. Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: installation in on-site collecting tank System type: Duo Dimensions Net weight: 155,6 kg Gross weight: 155,6 kg Packaging dimension: length: 1090 mm Packaging dimension: width: 615 mm Packaging dimension: height: 1062 mm Minimum diameter on site chamber: 1000 mm Minimum higth depth pump sump: 800 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Pumping device Pump: GTK 3700 Number of pumps: 2 Operating voltage: 400 V Mains frequency: 50 Hz Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 82 m³/h Max. pumping height: 23,5 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Type of fuse required (pump): 3 x C 32 A Length of mains cable for pump: 10 m Rated current: 6,5 A Control Control unit: Connect Pro Operating voltage: 400 V Mains frequency: 50/60 Hz Rated current (max.): 9 A Output power (max.): 6,2 kW Performance Active mode: 3,0 W Protection class control unit: IP 54 Motor protection: yes (electronically) Type of fuse required (control unit): C 16 A / C 20 A Self-diagnosis system (SDS): yes Main switch: yes Battery buffering: yes Multi-line display: yes Second Screen: yes (Wi-Fi) Log book function: yes Modbus (GLT or gateway): yes (RTU) Potential-free contact: yes (2) Alarm sensor: yes Ext. audible alarm: yes Level measurement instrument: Level sensor Type of level measurement: hydrostatic SonicControl Option: yes Filling Option: yes USB interface: no
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Connect Pro
      • Alarm sensor (alarmgeber): yes
      • Pump (pumpe): GTK 3700
      • Type of wastewater (abwasserart_de): for wastewater with and without sewage
      • Impeller type (laufrad_typ): Single-vane impeller
