Controlfix clean out

The indispensable solution for fast access.

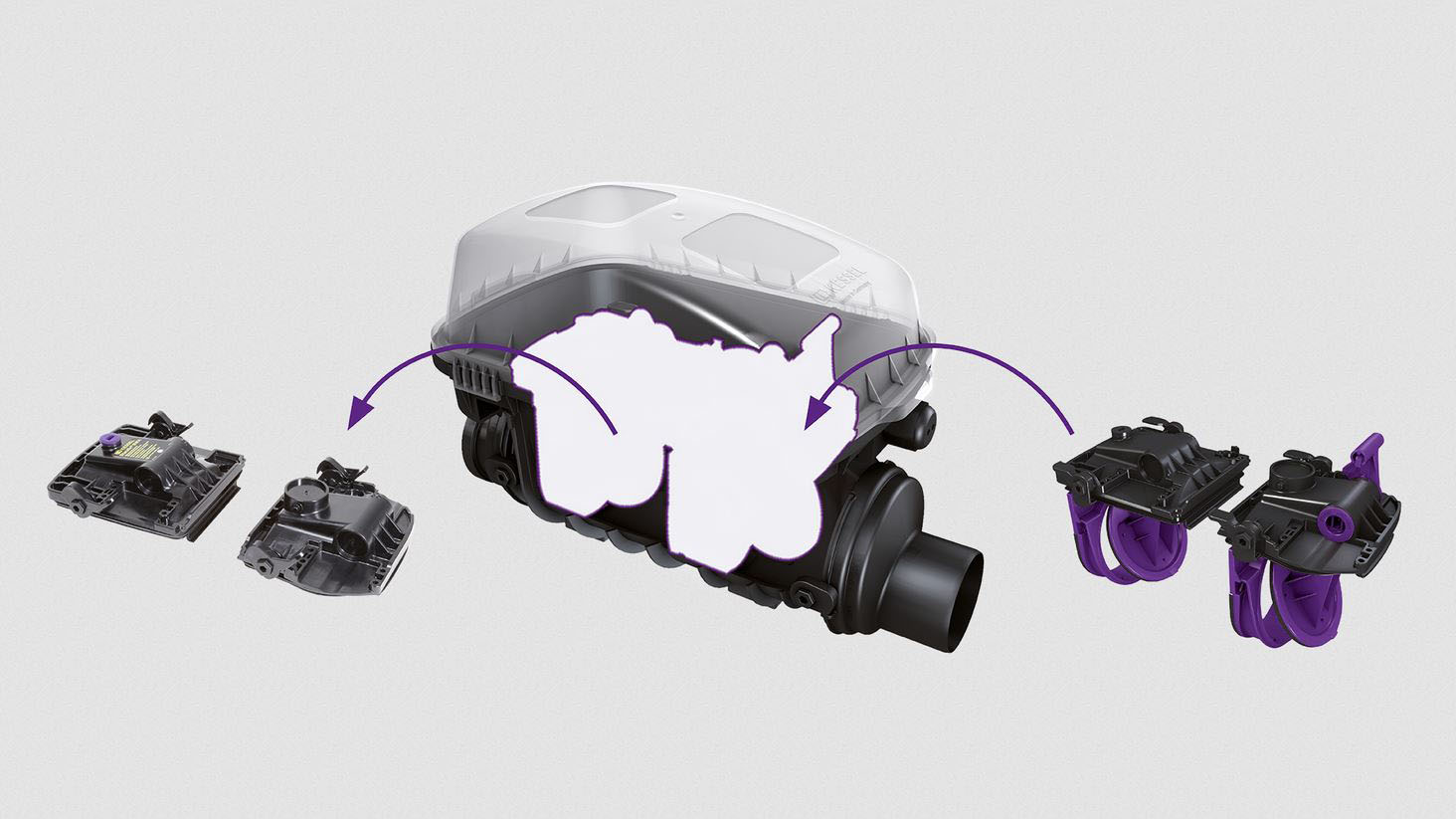

In order to avoid having to open the entire wastewater pipe in the event of a blocked drainage pipe, the Controlfix clean out / cleaning piece is indispensable. It is installed in the drainage pipe at regular intervals. Equipped with quick-release closures made from polymer, the Controlfix can be quickly opened and easily cleaned. It can also be converted into a fully functional backwater valve, even when installed.

Advantages  Article overview

Installation kit for the floor slab

The backwater valve is available for floor slab installation and can also be installed in waterproof concrete by using an extension piece with central flange and an elastomer waterproofing membrane. The integrated drainage function ensures that any surface water that arises, for example due to a pipe break, will be pumped into the sewer despite there being backwater.

Retrofittable

The standard option is to install the Staufix SWA, Staufix FKA backwater valves and the Pumpfix F backwater pumping station – and this can even be done subsequently many years later.

Controlfix clean out

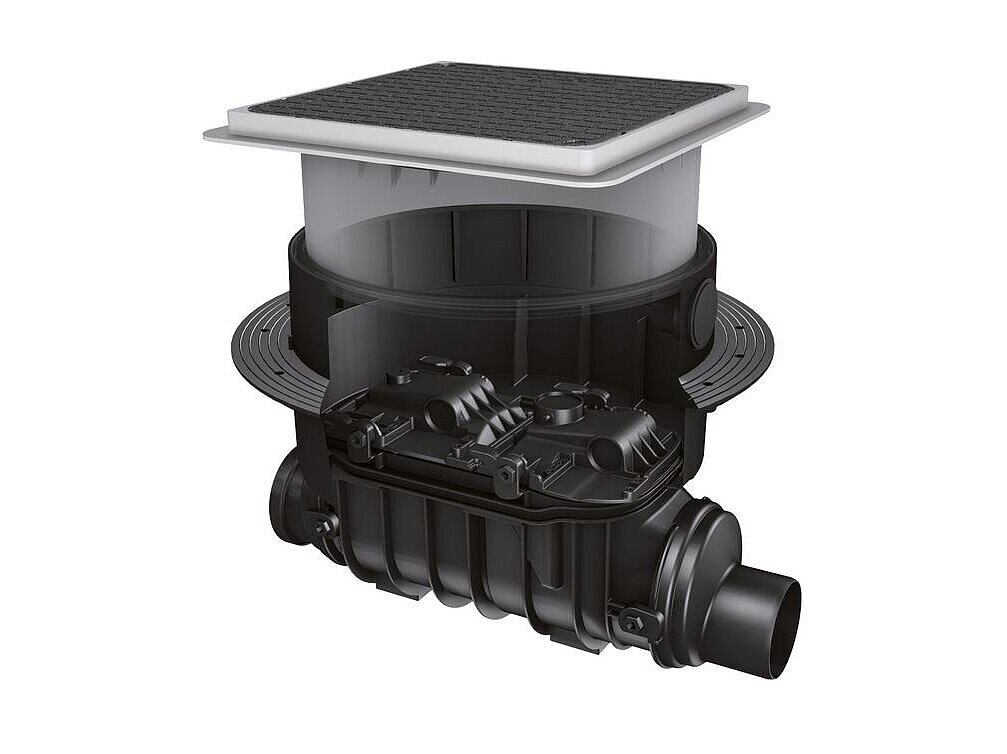

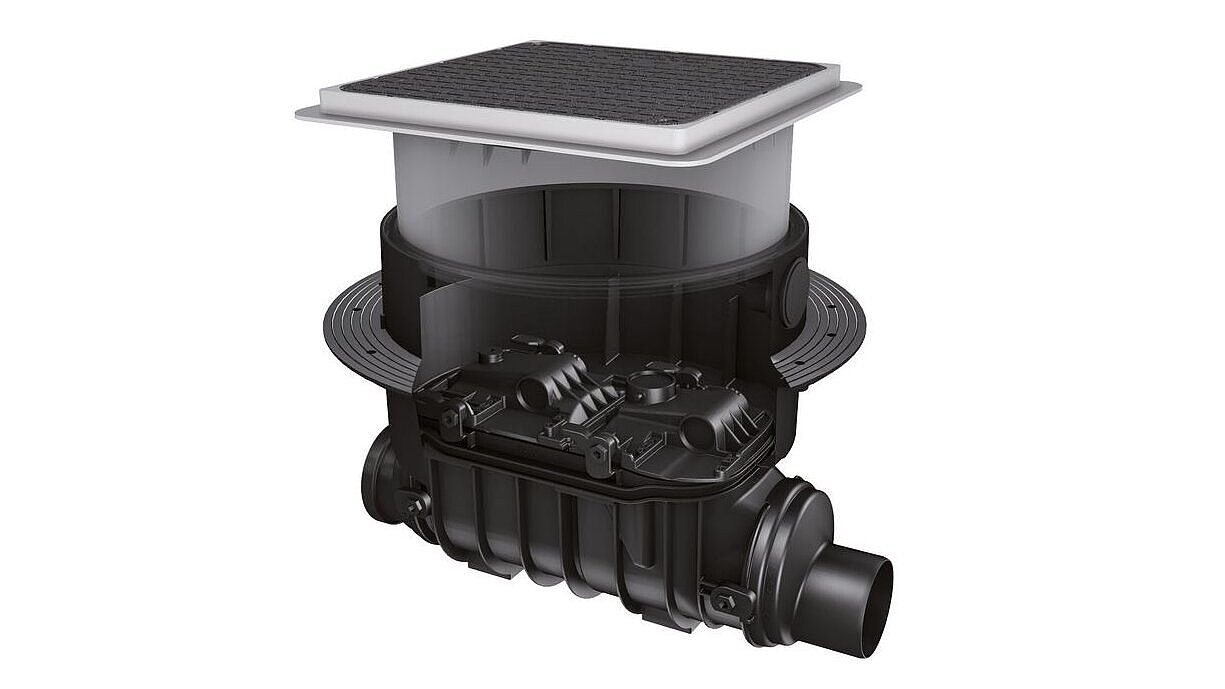

Floor slab installation

  Type of coverNominal size (DN)LengthWidthBackwater protection Item no.
80100S Cover plate 100 486  mm 590  mm 80100S
Show
80125S Cover plate 125 486  mm 590  mm 80125S
Show
80150S Cover plate 150 486  mm 590  mm 80150S
Show
80200S Cover plate 200 486  mm 590  mm 80200S
Show

  Type of coverNominal size (DN)LengthWidthBackwater protection Item no.
80100X tileable cover plate 100 486  mm 590  mm 80100X
Show
80125X tileable cover plate 125 486  mm 590  mm 80125X
Show
80150X tileable cover plate 150 486  mm 590  mm 80150X
Show
80200X tileable cover plate 200 486  mm 590  mm 80200X
Show

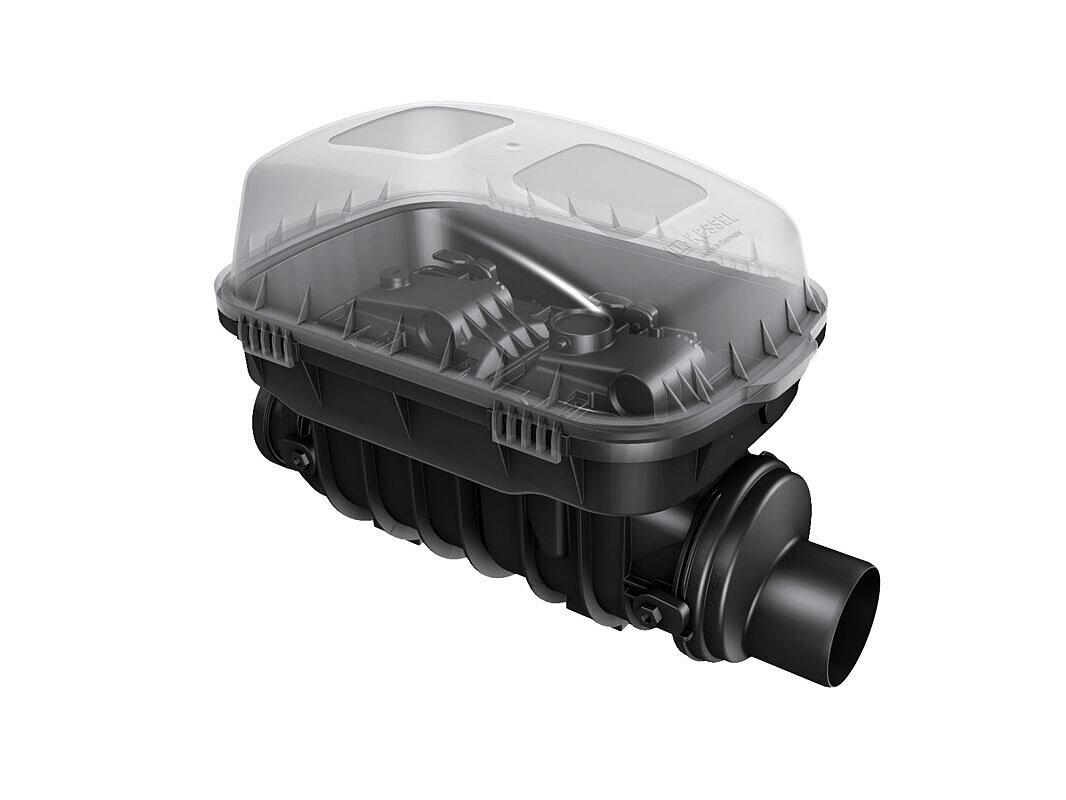

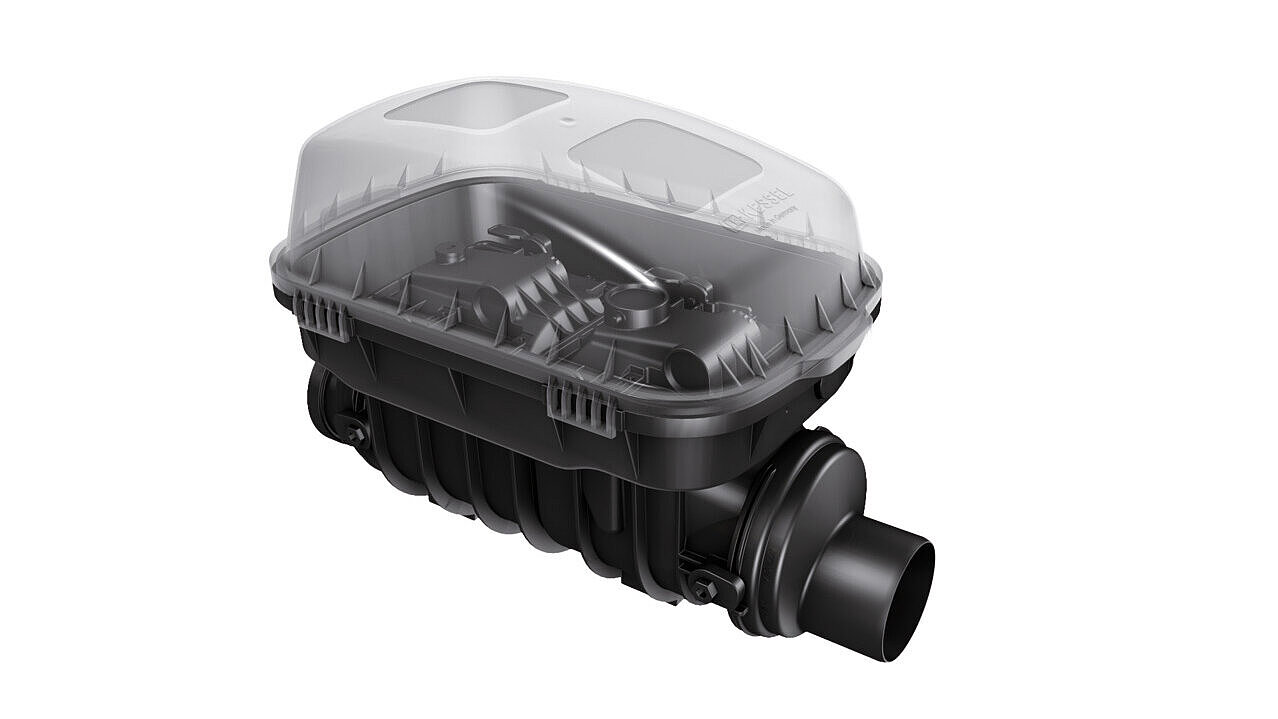

Installation in an exposed drainage pipe

  Nominal size (DN)LengthWidth Item no.
80000 486  mm 350  mm 80000
Show
80100 100 486  mm 350  mm 80100
Show
80125 125 486  mm 350  mm 80125
Show
80150 150 486  mm 350  mm 80150
Show
80200 200 486  mm 350  mm 80200
Show

Not found the right product?

In addition to our standardbackwater valves, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request..

Individual solutions
