Aquapump Medium pumping station

The compact solution for domestic use.

The Aquapump Medium pumping station is the first choice when it comes to the disposal of wastewater below the backwater level in single households.

The internal diameter of the installation chamber is 600 mm and offers enough space for different versions: It is available as a Mono or Duo system with pumps in different performance classes for both faecal-free and faecal water. In addition, you can choose between level detection with a float switch or innovative pressure sensor. There are versions for installation depths of up to 1,800 mm, which are groundwater-resistant up to a depth of 2,500 mm depending on the model.

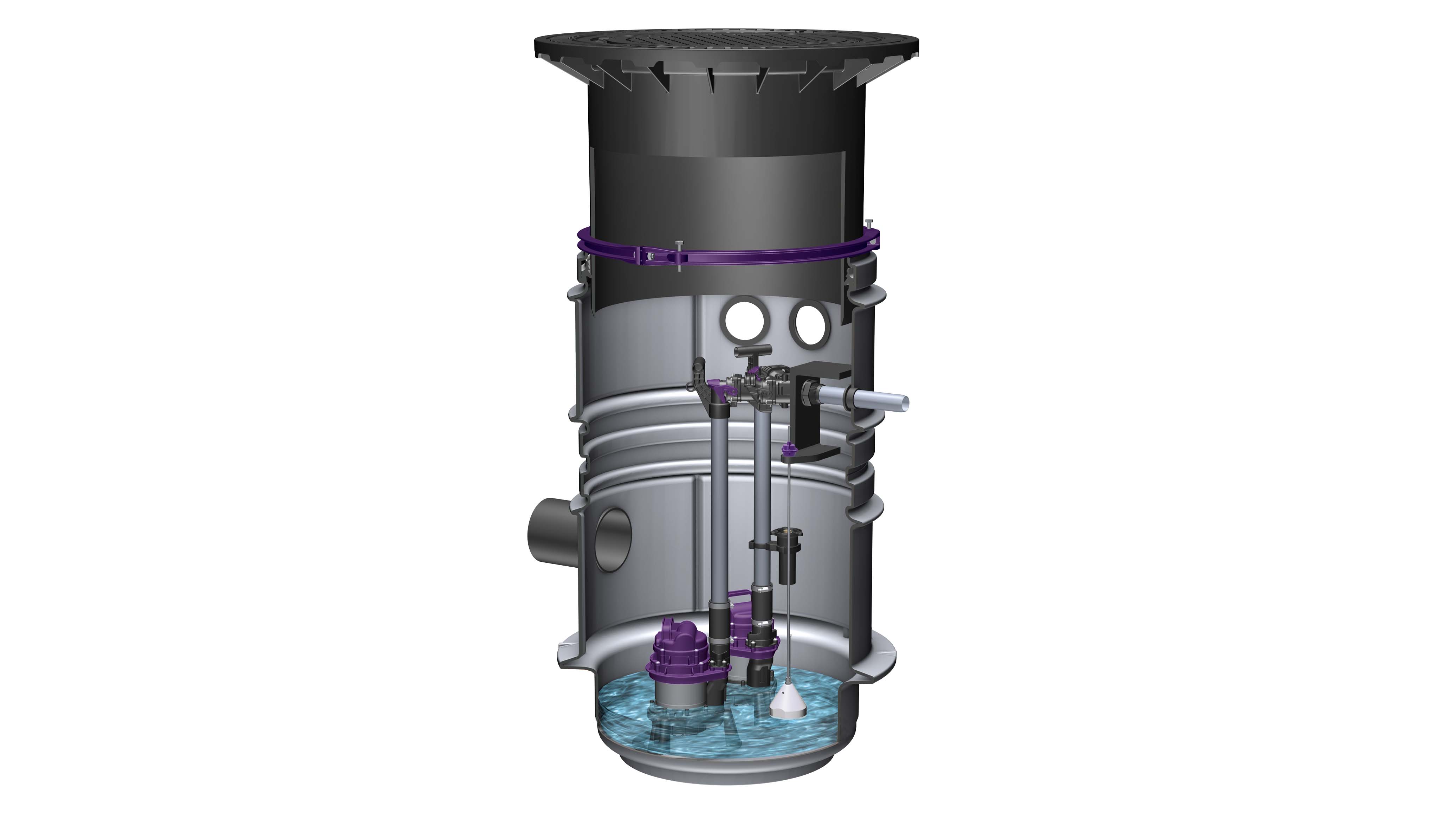

Aquapump Medium Duo pumping station

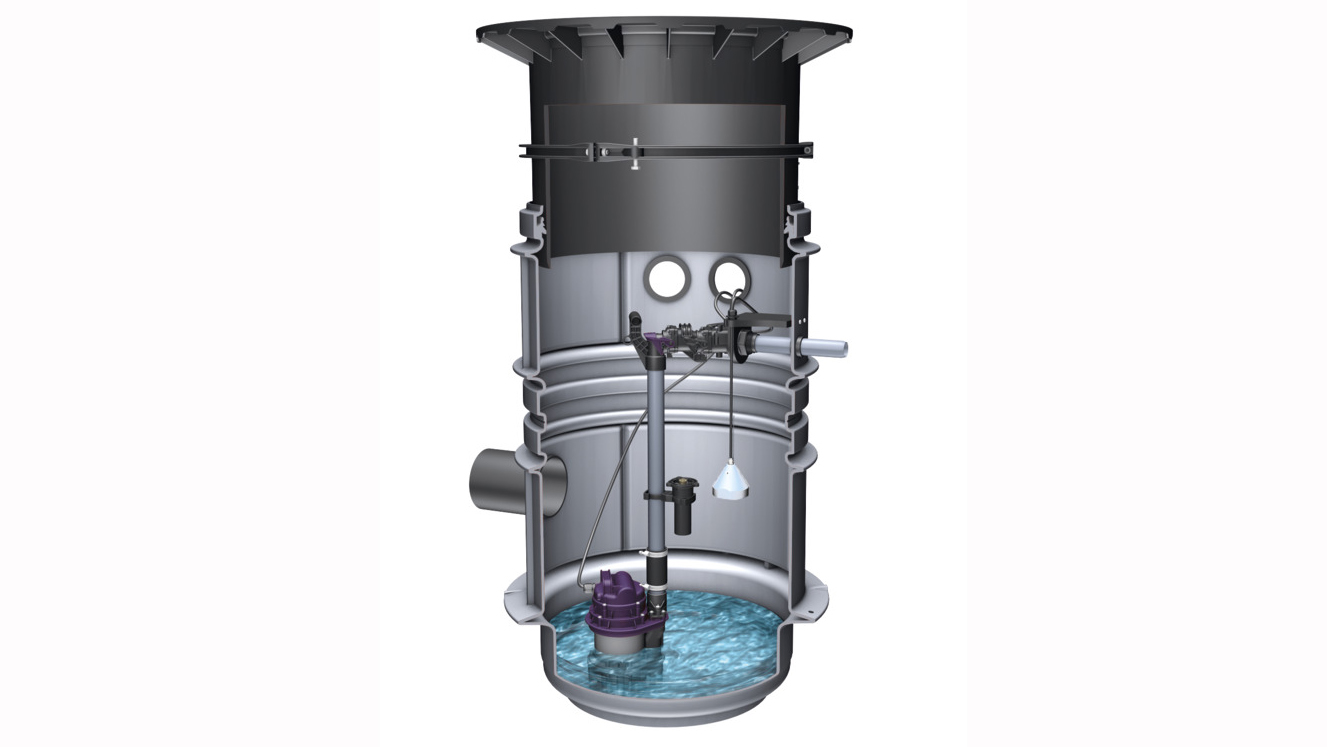

Pumping station Aquapump Medium Mono

Whether a washing machine, shower or washbasin: The Aquapump Medium effortlessly disposes of faecal-free wastewater.

Is there a toilet below the backwater level? The Aquapump Medium also disposes of faecal wastewater – up to an installation depth of 1.80 metres.

Application possibilities

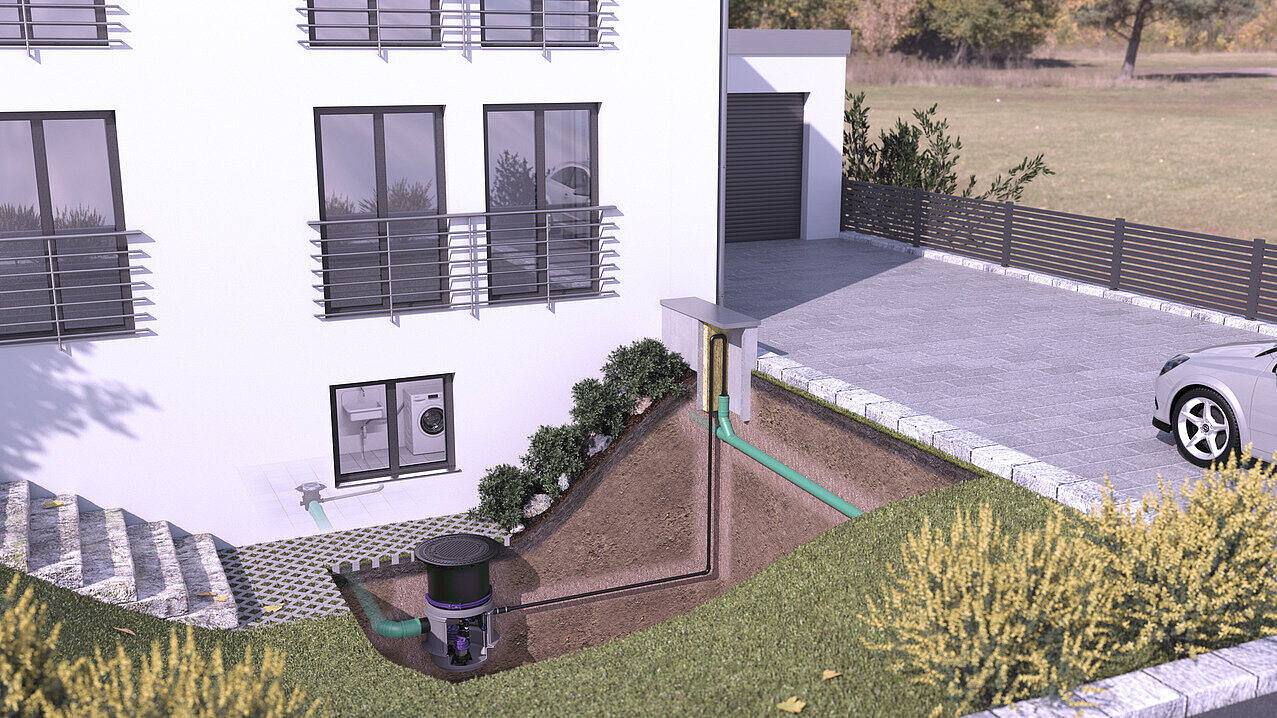

The Aquapump Medium pumping station is designed for installation in detached houses. It can be used for both faecal-free and faecal wastewater. Whether this is done as a Mono or Duo system depends entirely on the respective installation situation. These exemplary illustrations show what these can look like:

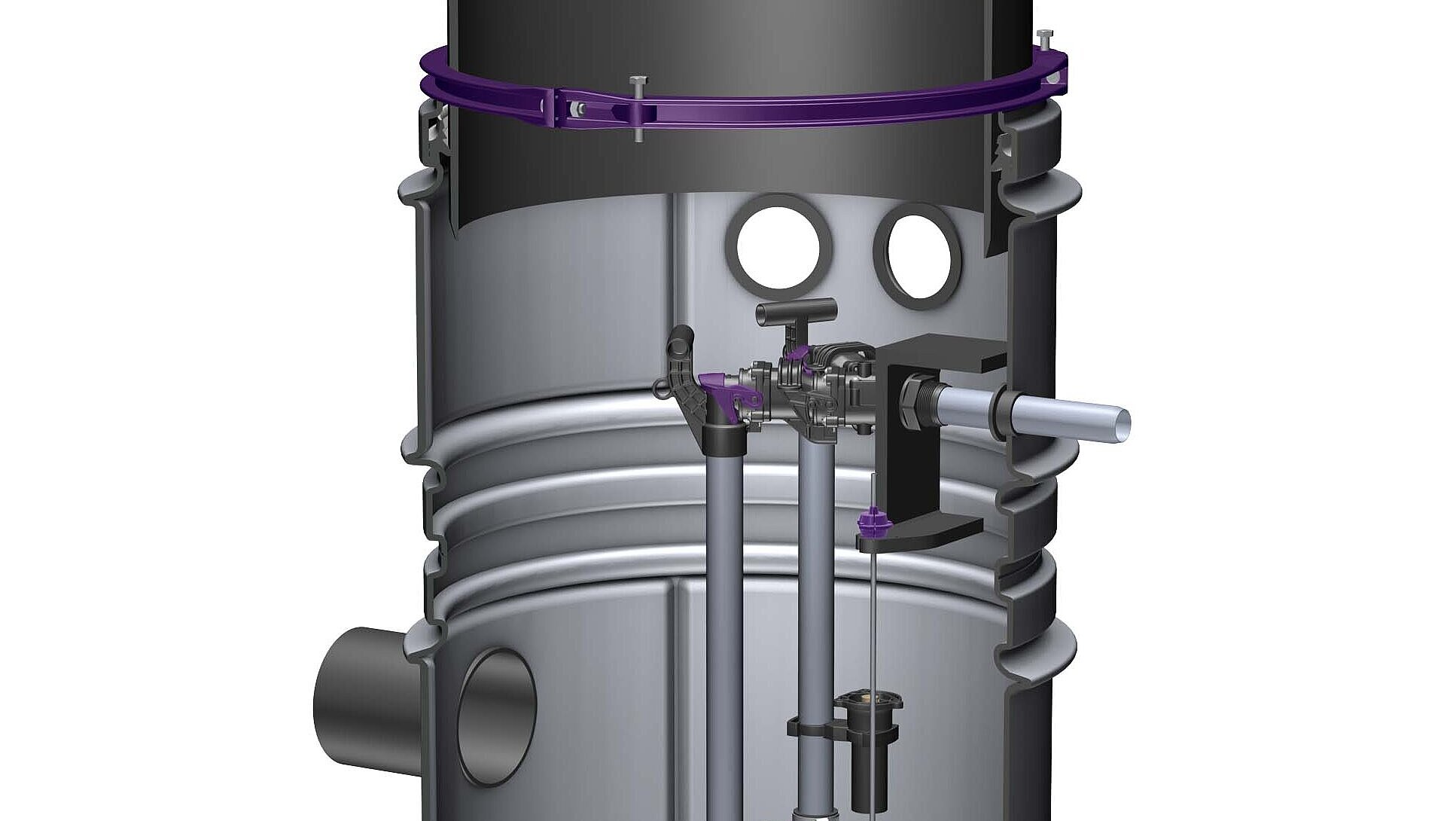

Aquapump Medium pumping station

Convenient installation

The low weight of the chamber components, high degree of pre-fabrication and the fixed connecting pieces for the inlet and pressure pipe all contribute to a fast and easy installation.

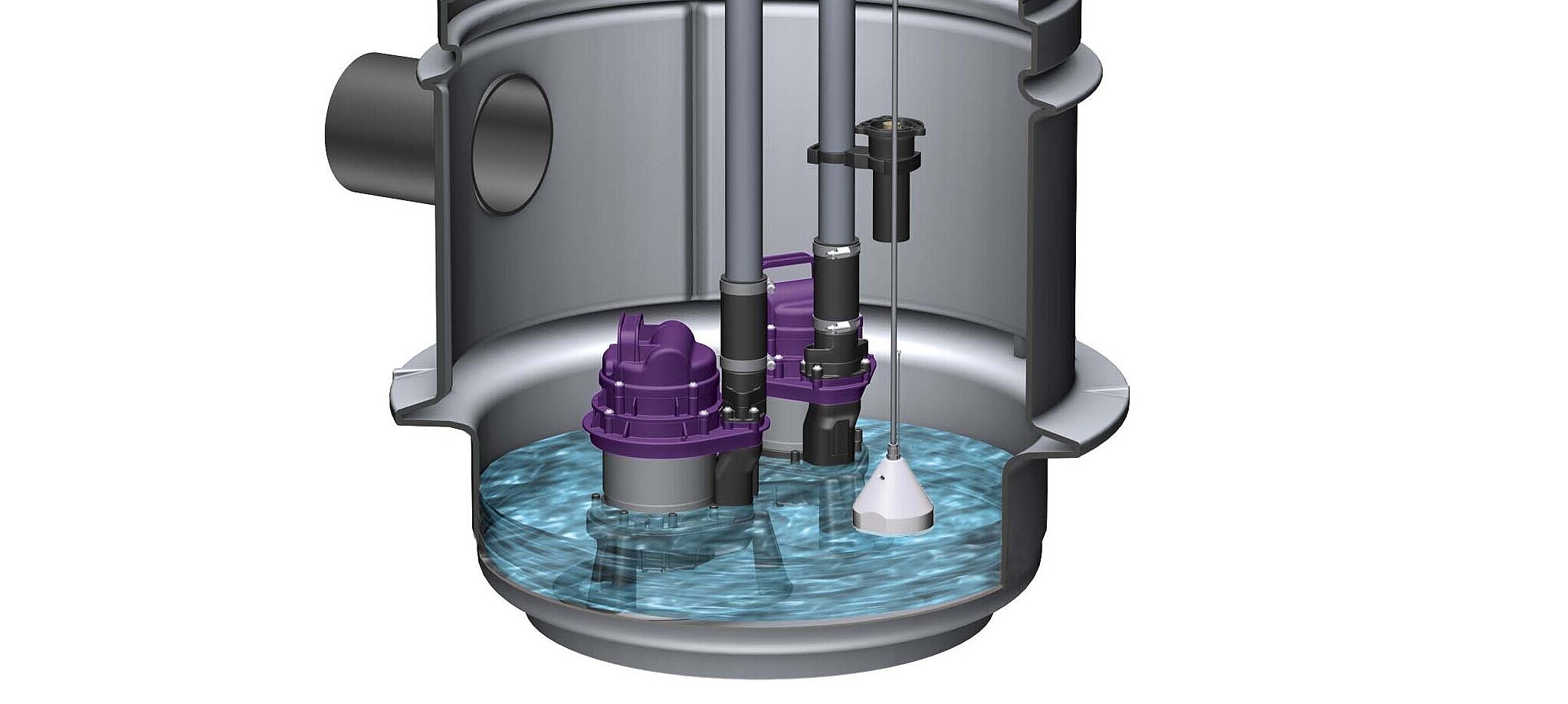

Aquapump Medium pumping station, pressure sensor and pumps

Maximum safety

The Aqualift Medium is available with a pressure sensor, which measures the level of the wastewater precisely and reliably: As soon as the maximum water level is reached, the pump conveys the water through a pressure pipe into the sewer. The control unit with the integrated SDS self-diagnosis system ensures additional safety.

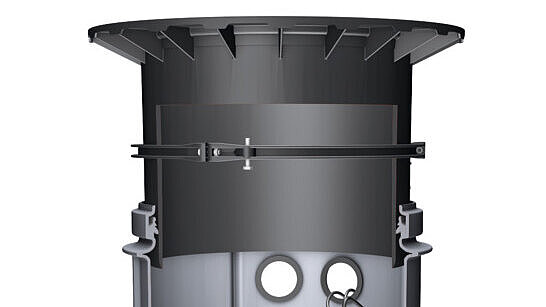

Aquapump Medium pumping station, variable upper section

Adjustable upper section

The height of the upper section can be adjusted by up to 500 mm. This makes it easy to adjust to the ground level.

Find the right pumping station with SmartSelect

Make it easier to choose the right product! Use our handy SmartSelect planning tool, answer step-by-step questions about the type of wastewater, delivery head, resistance, etc., and find the perfect product.



Go to SmartSelect

Article overview

Aquapump Medium pumping station (non-faecal)

Single station

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
825811B 825811B B 125 (EN 124) GTF 600 800  mm Multi-vane impeller Comfort 100 825811B
Show
825811D 825811D D 400 (EN 124) GTF 600 800  mm Multi-vane impeller Comfort 100 825811D
Show
825821B 825821B B 125 (EN 124) GTF 600 1,300  mm Multi-vane impeller Comfort 100 825821B
Show
825821D 825821D D 400 (EN 124) GTF 600 1,300  mm Multi-vane impeller Comfort 100 825821D
Show
825831B 825831B B 125 (EN 124) GTF 600 1,800  mm Multi-vane impeller Comfort 100 825831B
Show
825831D 825831D D 400 (EN 124) GTF 600 1,800  mm Multi-vane impeller Comfort 100 825831D
Show
827811B 827811B B 125 (EN 124) GTF 1200 800  mm Multi-vane impeller Comfort 150 827811B
Show
827811D 827811D D 400 (EN 124) GTF 1200 800  mm Multi-vane impeller Comfort 150 827811D
Show
827821B 827821B B 125 (EN 124) GTF 1200 1,300  mm Multi-vane impeller Comfort 150 827821B
Show
827821D 827821D D 400 (EN 124) GTF 1200 1,300  mm Multi-vane impeller Comfort 150 827821D
Show
827831B 827831B B 125 (EN 124) GTF 1200 1,800  mm Multi-vane impeller Comfort 150 827831B
Show
827831D 827831D D 400 (EN 124) GTF 1200 1,800  mm Multi-vane impeller Comfort 150 827831D
Show

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
825810B 825810B B 125 (EN 124) GTF 600 800  mm Multi-vane impeller 100 825810B
Show
825810D 825810D D 400 (EN 124) GTF 600 800  mm Multi-vane impeller 100 825810D
Show
825820B 825820B B 125 (EN 124) GTF 600 1,300  mm Multi-vane impeller 100 825820B
Show
825820D 825820D D 400 (EN 124) GTF 600 1,300  mm Multi-vane impeller 100 825820D
Show
825830B 825830B B 125 (EN 124) GTF 600 1,800  mm Multi-vane impeller 100 825830B
Show
825830D 825830D D 400 (EN 124) GTF 600 1,800  mm Multi-vane impeller 100 825830D
Show
827810B 827810B B 125 (EN 124) GTF 1200 800  mm Multi-vane impeller 150 827810B
Show
827810D 827810D D 400 (EN 124) GTF 1200 800  mm Multi-vane impeller 150 827810D
Show
827820B 827820B B 125 (EN 124) GTF 1200 1,300  mm Multi-vane impeller 150 827820B
Show
827820D 827820D D 400 (EN 124) GTF 1200 1,300  mm Multi-vane impeller 150 827820D
Show
827830B 827830B B 125 (EN 124) GTF 1200 1,800  mm Multi-vane impeller 150 827830B
Show
827830D 827830D D 400 (EN 124) GTF 1200 1,800  mm Multi-vane impeller 150 827830D
Show

Twin pump station

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
824811B 824811B B 125 (EN 124) GTF 600 800  mm Multi-vane impeller Comfort 100 824811B
Show
824811D 824811D D 400 (EN 124) GTF 600 800  mm Multi-vane impeller Comfort 100 824811D
Show
824821B 824821B B 125 (EN 124) GTF 600 1,300  mm Multi-vane impeller Comfort 100 824821B
Show
824821D 824821D D 400 (EN 124) GTF 600 1,300  mm Multi-vane impeller Comfort 100 824821D
Show
824831B 824831B B 125 (EN 124) GTF 600 1,800  mm Multi-vane impeller Comfort 100 824831B
Show
824831D 824831D D 400 (EN 124) GTF 600 1,800  mm Multi-vane impeller Comfort 100 824831D
Show
826811B 826811B B 125 (EN 124) GTF 1200 800  mm Multi-vane impeller Comfort 150 826811B
Show
826811D 826811D D 400 (EN 124) GTF 1200 800  mm Multi-vane impeller Comfort 150 826811D
Show
826821B 826821B B 125 (EN 124) GTF 1200 1,300  mm Multi-vane impeller Comfort 150 826821B
Show
826821D 826821D D 400 (EN 124) GTF 1200 1,300  mm Multi-vane impeller Comfort 150 826821D
Show
826831B 826831B B 125 (EN 124) GTF 1200 1,800  mm Multi-vane impeller Comfort 150 826831B
Show
826831D 826831D D 400 (EN 124) GTF 1200 1,800  mm Multi-vane impeller Comfort 150 826831D
Show

Aquapump Medium pumping station (faecal)

Single station

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
827711A 827711A A 15 (EN 124) STZ 1000 800  mm Macerator Comfort 150 827711A
Show
827711B 827711B B 125 (EN 124) STZ 1000 800  mm Macerator Comfort 150 827711B
Show
827711D 827711D D 400 (EN 124) STZ 1000 800  mm Macerator Comfort 150 827711D
Show
827721A 827721A A 15 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 827721A
Show
827721B 827721B B 125 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 827721B
Show
827721D 827721D D 400 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 827721D
Show
827731A 827731A A 15 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 827731A
Show
827731B 827731B B 125 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 827731B
Show
827731D 827731D D 400 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 827731D
Show

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
827710A 827710A A 15 (EN 124) STZ 1000 800  mm Macerator 150 827710A
Show
827710B 827710B B 125 (EN 124) STZ 1000 800  mm Macerator 150 827710B
Show
827710D 827710D D 400 (EN 124) STZ 1000 800  mm Macerator 150 827710D
Show
827720A 827720A A 15 (EN 124) STZ 1000 1,300  mm Macerator 150 827720A
Show
827720B 827720B B 125 (EN 124) STZ 1000 1,300  mm Macerator 150 827720B
Show
827720D 827720D D 400 (EN 124) STZ 1000 1,300  mm Macerator 150 827720D
Show
827730A 827730A A 15 (EN 124) STZ 1000 1,800  mm Macerator 150 827730A
Show
827730B 827730B B 125 (EN 124) STZ 1000 1,800  mm Macerator 150 827730B
Show
827730D 827730D D 400 (EN 124) STZ 1000 1,800  mm Macerator 150 827730D
Show

Twin pump station

  Load class Pump Installation depth Impeller type Control unit Inlet nominal size (DN) Item no.
826711A 826711A A 15 (EN 124) STZ 1000 800  mm Macerator Comfort 150 826711A
Show
826711B 826711B B 125 (EN 124) STZ 1000 800  mm Macerator Comfort 150 826711B
Show
826711D 826711D D 400 (EN 124) STZ 1000 800  mm Macerator Comfort 150 826711D
Show
826721A 826721A A 15 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 826721A
Show
826721B 826721B B 125 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 826721B
Show
826721D 826721D D 400 (EN 124) STZ 1000 1,300  mm Macerator Comfort 150 826721D
Show
826731A 826731A A 15 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 826731A
Show
826731B 826731B B 125 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 826731B
Show
826731D 826731D D 400 (EN 124) STZ 1000 1,800  mm Macerator Comfort 150 826731D
Show
