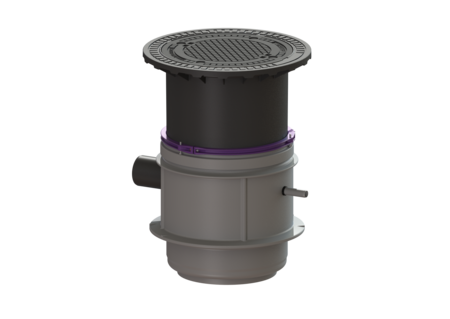

Pumping station Aquapump Medium
Tronic, STZ 1000, 800-1250 mm, D
The pumping station for faecal wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct.
- height-adjustable upper section
| Item no. | 827711D |
|---|---|
| GTIN | 4026092052112 |
| Price group | 60 |
Pumping station Aquapump Medium Tronic, STZ 1000, 800-1250 mm, D
The pumping station for faecal wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct. Type of wastewater: wastewater with and without sewage Installation situation: underground installation Version: Type of system: Single station Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Access steps: no Passage seal for ventilation pipe (DN): 100 mm Passage seal for conduit pipe (DN): 100 mm General characteristics: Standard: EN 12050-1 Dimensions: Length: 1,000 mm Width: 806 mm Diameter: 809 mm Clear width (LW): 600 Tank: Number of inlets: 1 ST Inlet nominal size (DN): 150 Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of outlet pipe to tank bottom: 482 mm Distance from centre of inlet pipe to tank bottom: 475 mm Connection conduit pipe (DN): 100 mm Pumping volume: 30 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 800 - 1,250 mm Venting connection (DN): 100 mm Groundwater resistant from lower edge of base section: 2,500 mm Clear width of tank (LW): 600 mm Chamber system: LW 600 Coverage features: Type of cover: Round cover plate Cover material: Grey iron with concrete filling Load class: D 400 (EN 124) Pumping device: Pump: STZ 1000 Number of pumps: 1 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 5.2 A Protection class (pump): IP 68 (3m) Protection class: I Insulation class: F Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: yes Motor protection switch: yes Protection class control unit: IP 54 Type of level measurement: pneumatic Level measurement instrument: Submersible pressure switch Alarm sensor: optical probe
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data |
- Standard (ATTR-9): EN 12050-1
- CE marking (ATTR-A5B):
yes
- Country of origin (ATTR-322): DE
- Area of application (ATTR-264): drainage
- Pump type (ATTR-265): submersible pump
- Pump shaft position (ATTR-266): vertical
- Pump design (ATTR-267): Dry rotor pump
- Pump hydraulics (ATTR-268): single stage
- Pump suction characteristic (ATTR-269): non-self-priming
- Pump drive (ATTR-270): E-motor for alternating current
- E-motor, type of startup (ATTR-271): direct
- Pump casing material (ATTR-272): Polymer
- Upper tolerance of the operating voltage (+) (ATTR-273): 10 PROZ
- Lower tolerance of the operating voltage (-) (ATTR-274): 10 PROZ
- Pump electrical connection (ATTR-277): 1/N/PE 230V
- Startup circuit for three-phase connection or three-phase current (ATTR-278):
- Motor pump shaft (ATTR-279): continuous
- Shaft seal (ATTR-280): RSSR
- Number of operating pumps (ATTR-281): 1
- Maximum operating pressure (Pmax) (ATTR-283): 1,000 HPA
- Minimum speed for speed adjustment (ATTR-284): no speed adjustment
- Start-up current (ATTR-285): 14.9 AMP
- Vertical installation (ATTR-286): yes
- Pump (ATTR-4): STZ 1000
- Number of pumps (ATTR-181): 1
- Impeller type (ATTR-8): Macerator
- Type of fuse required (electrical protection) (ATTR-N3): C 16 A
- Operating mode (ATTR-10): S3 - 50 %
- Power P1 (ATTR-F4): 1.2 KWT
- Power P2 (ATTR-F5): 0.7 KWT
- Speed (ATTR-F2): 2,800 UMIN
- Operating voltage (ATTR-131): 230 VLT
- Mains frequency (ATTR-N4): 50 HTZ
- Rated current (ATTR-N5): 5.2 AMP
- Max. pumping capacity (ATTR-F7): 11.5 MQH
- Max. pumping height (ATTR-F8): 10 MTR
- Max. temperature (permanent) of conveyed material (ATTR-132): 40 CEL
- Protection class (ATTR-133): I
- Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
- Protection class (pump) (ATTR-125): IP 68 (3m)
- Length of mains cable for pump (ATTR-11): 10 MTR
- Weight (ATTR-191): 10 KGM
- Insulation class (ATTR-193): F
- Net weight (ATTR-A3A): 127,000 KGM
- Length (ATTR-A6A): 1,000 MMT
- Width (ATTR-A6B): 806 MMT
- Diameter (ATTR-107): 809 MMT
- Clear width (LW) (ATTR-167): 600
- Volume (ATTR-320): 1.2 MTQ
- Packaging dimension: length (ATTR-325): 1,200 MMT
- Packaging dimension: width (ATTR-326): 800 MMT
- Packaging dimension: height (ATTR-327): 1,220 MMT
- Dimensions (ATTR-323): 1200X800X1220MM
- Number of packages (ATTR-321): 0
- Pressure pipe connection (ATTR-B7): horizontal
- Chamber system (ATTR-B8): LW 600
- Type of system (ATTR-2): Single station
- Installation (ATTR-164): Wet installation
- Backflow preventer (ATTR-165): integrated
- Pump control (ATTR-134): Control unit
- Access steps (ATTR-182): no
- Passage seal for ventilation pipe (DN) (ATTR-183): 100 MMT
- Passage seal for conduit pipe (DN) (ATTR-184): 100 MMT
- Clear width of tank (LW) (ATTR-B14): 600 MMT
- Number of inlets (ATTR-B1B): 1 PCE
- Inlet nominal size (DN) (ATTR-B1CA): 150 MMT
- Distance from centre of inlet pipe to tank bottom (ATTR-B6): 475 MMT
- Distance pipe bottom inlet to tank bottom (ATTR-B1D): 400 MMT
- Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 482 MMT
- Installation depth (ATTR-B2_VB): 800 MMT
- Connection conduit pipe (DN) (ATTR-B3): 100 MMT
- Venting connection (DN) (ATTR-B4): 100 MMT
- Pressure pipe connection (DN) (ATTR-B17): 32 MMT
- Pressure pipe connection (OD) (ATTR-B18): 40 MMT
- Pumping volume (ATTR-B10): 30 LTR
- Groundwater resistant from lower edge of base section (ATTR-B12): 2,500 MMT
- Control unit (ATTR-S2):
Comfort
- Self-diagnosis system (SDS) (ATTR-S5): yes
- Battery buffering (ATTR-S6): yes
- Multi-line display (ATTR-S7): yes
- Log book function (ATTR-S8): yes
- USB interface (ATTR-S9): yes
- GSM interface (ATTR-S10): yes
- Potential-free contact (ATTR-S11): yes
- Operating voltage (ATTR-S13): 230 VLT
- Mains frequency (ATTR-S14): 50 HTZ
- Protection class control unit (ATTR-S4): IP 54
- Alarm sensor (ATTR-S1): optical probe
- Type of level measurement (ATTR-7A): pneumatic
- Level measurement instrument (ATTR-7B): Submersible pressure switch
- Motor protection switch (ATTR-172): yes
- - (ATTR-S21):
- - (ATTR-S22):
- - (ATTR-S23):
- Type of cover (ATTR-A21): Round cover plate
- Load class (ATTR-A2B): D 400 (EN 124)
- Gross weight (ATTR-A3B): 139 KGM
- Installation situation (ATTR-1):
underground installation
- Type of wastewater (ATTR-6):
wastewater with and without sewage
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Lifting stations
- Product type (M-ATTR-003): Pumping station
- Product family (M-ATTR-004): Aqualift
- Product name (M-ATTR-005): Aqualift F
- - (ATTR-370):
- Cover material (ATTR-A2E): Grey iron with concrete filling
