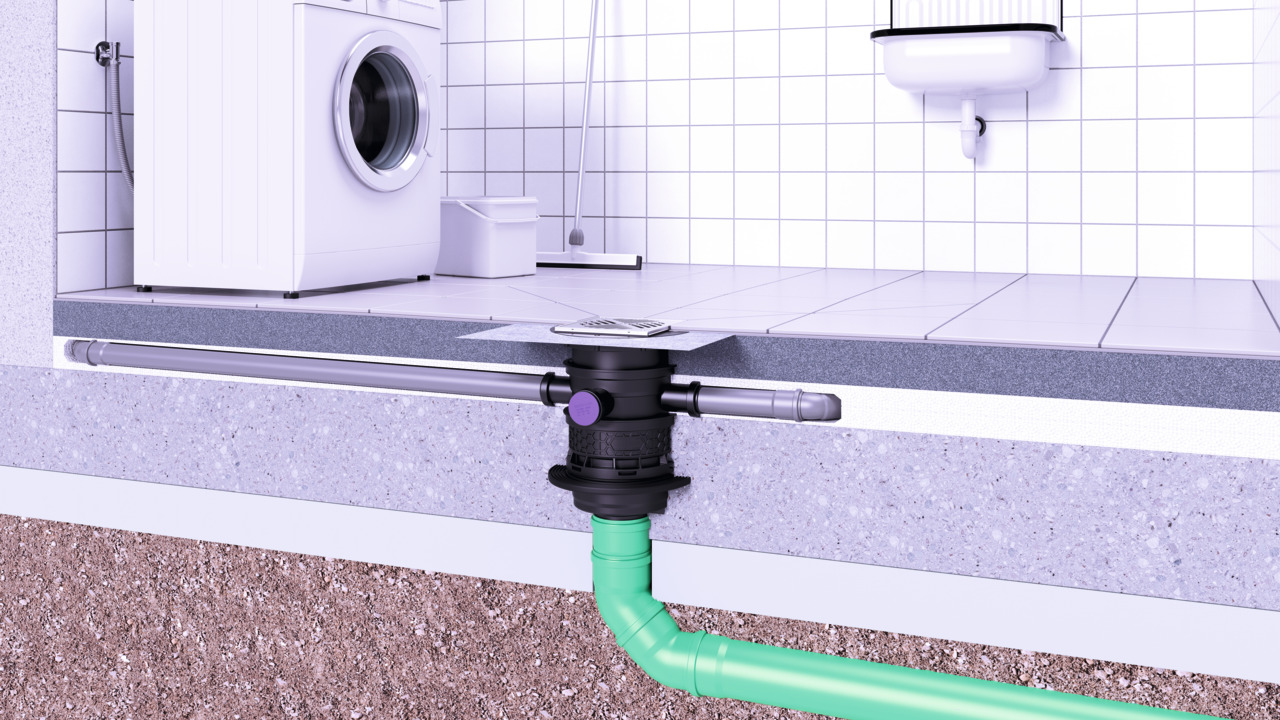

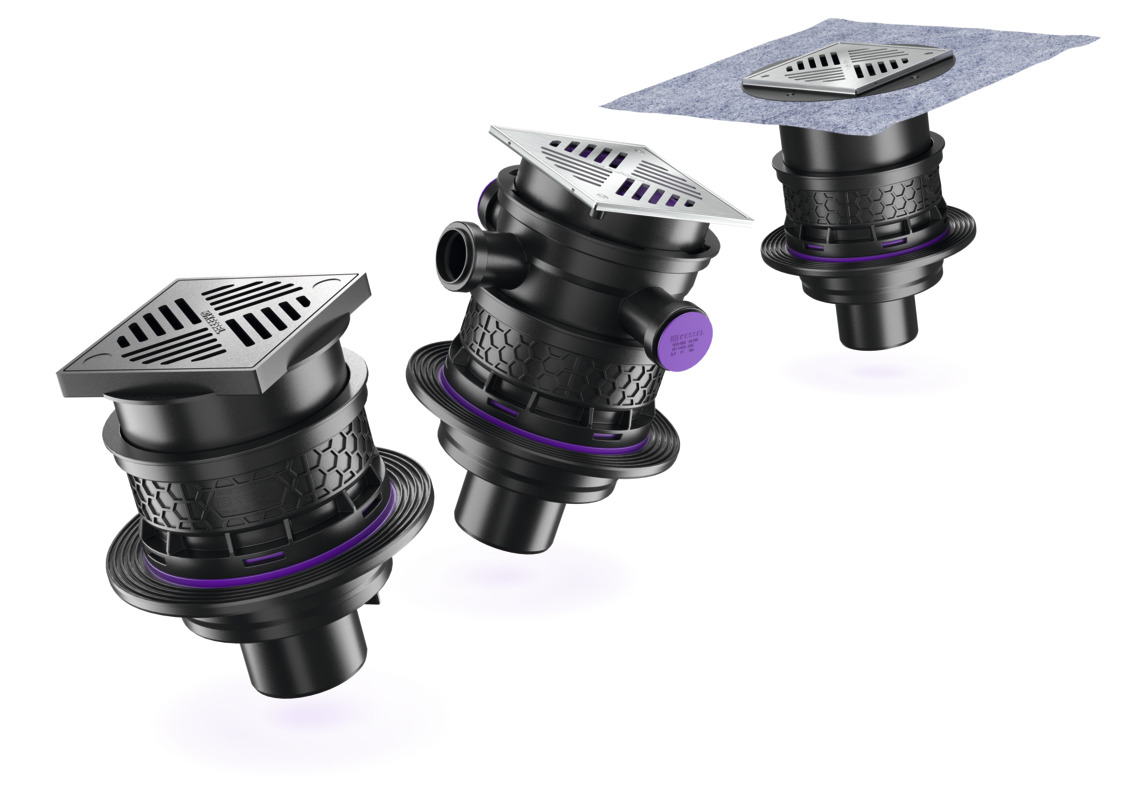

Even more versatile than our previous one, even more advantageous than all other basement drains with a backwater valve. The vertical connection to the main drainage pipe and the installation of the inlets above the floor slab require only a single penetration of the floor structure. When routing the supply lines above the floor slab, the top edge is always identical to the top edge of the floor slab. This means that the waterproof flange, which is mounted without any tools, is always positioned correctly in the middle. The backwater unit is easily accessible for disassembly and maintenance. This and the vertical pipe routing provide free access for drain cleaning.
The installation procedure allows for a clear separation of the trades between the building shell and the interior finishes. This means security in the event of a warranty claim.

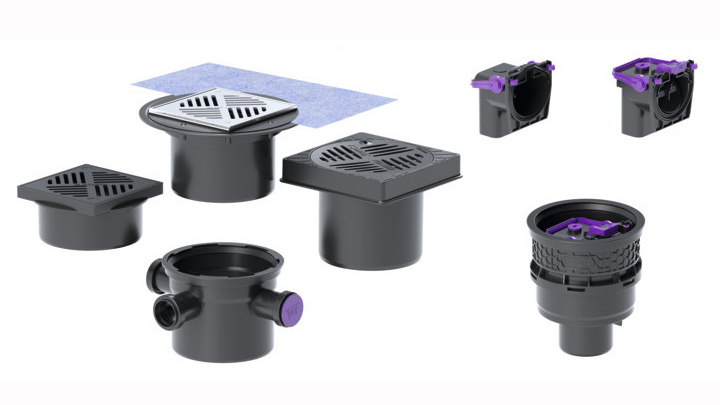

Drain body
Simply thought out

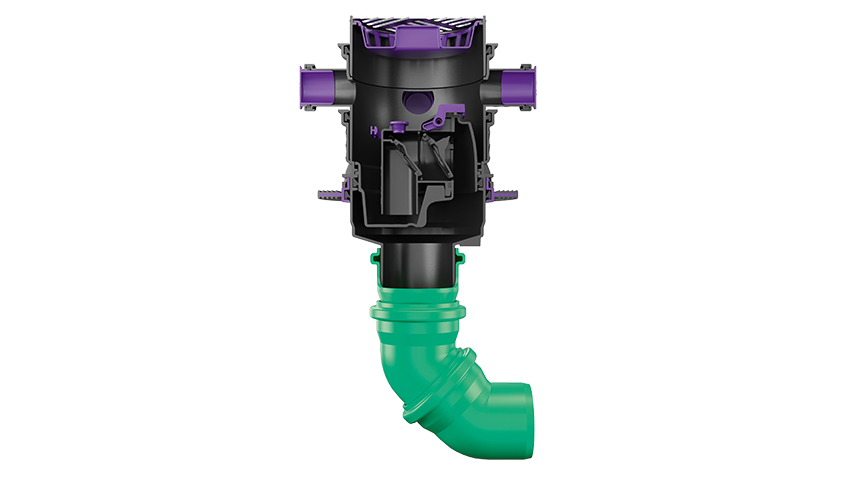

The drain body of the Universale Plus basement drain has a vertical outlet and an integrated backwater valve. The advantage of this new design: Both the backwater unit and the inlet to the main drainage pipe are no longer installed deep under the floor slab and so remain easily and completely accessible. In combination with a clear pipe cross-section, maintenance and cleaning work on the main drainage pipe are made considerably easier.

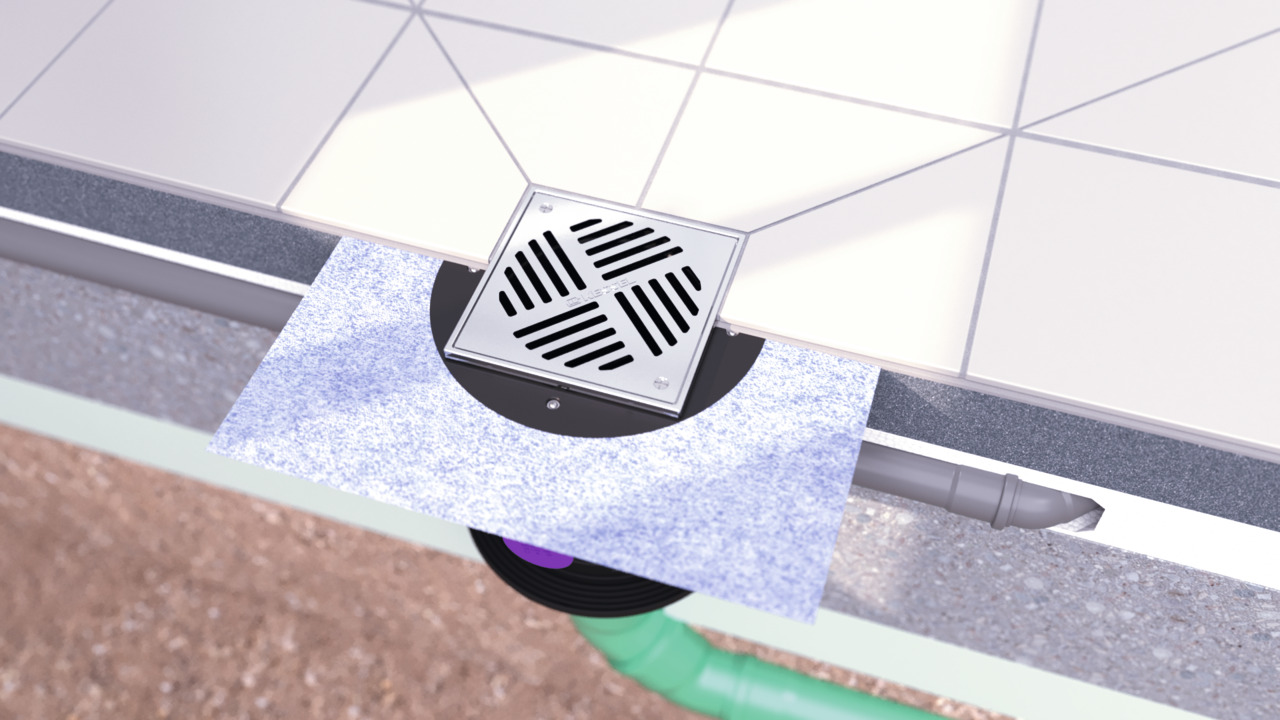

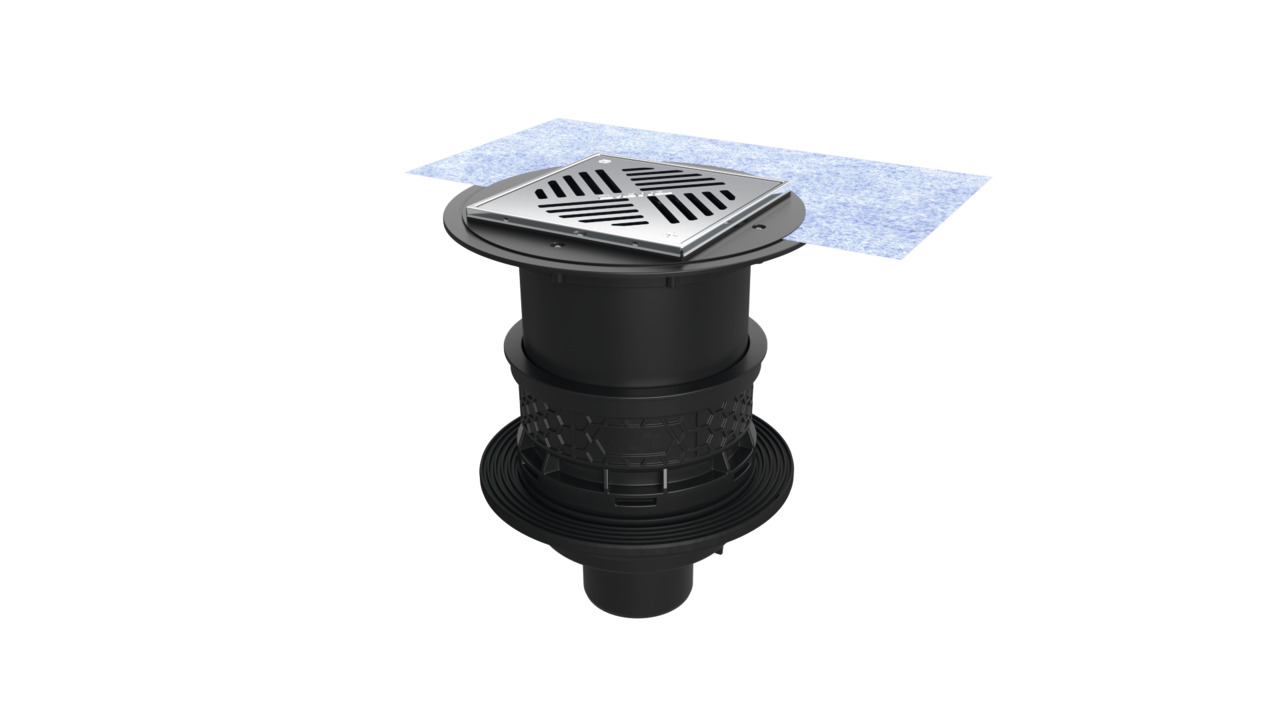

The Universale Plus is to be installed in waterproof concrete? No problem. A waterproof sealing flange is installed in the factory or is available as an optional accessory in the modular system. Particularly practical: It can be clicked in without tools and is therefore always positioned correctly.
Extension section
Simply practical

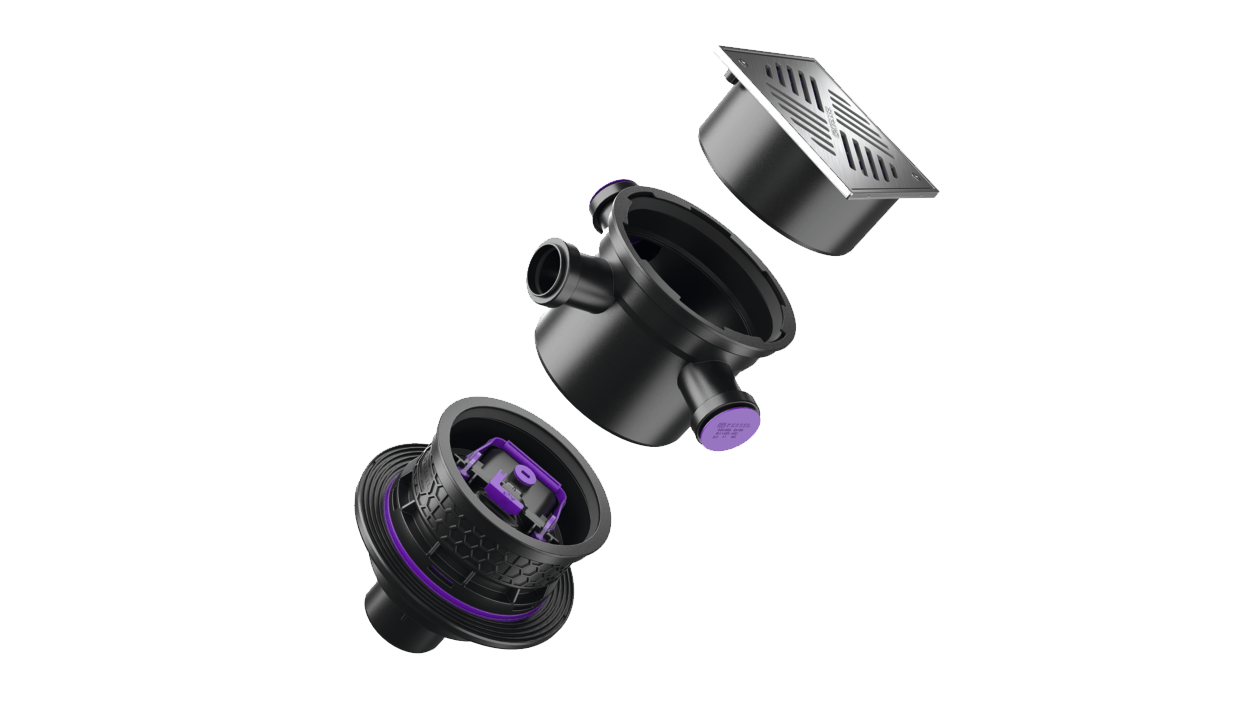

Another new feature of the Universale Plus is its innovative extension section, in which three inlets are integrated. Using this method, for the first time, the inlets are above the floor slab. Thus two advantages go hand-in-hand: On the one hand, the floor slab now only has to be penetrated once – on the other hand, clear separation of the building shell and interior finishing trades is possible.
Upper section
Simply flexible
Attractive stainless steel look, tried and tested polymer or durable Ecoguss: The variety of the upper sections is as different as the possible uses of the Universale Plus. Regardless of the material, all versions have one thing in common: All are rotatable, tiltable and can be adjusted vertically – always suitable for the individual installation situation.
Universal
Socket version: lateral |
||||||
| Nominal size (DN) | Cover material | Waterproof flange | Colour of cover | Item no. | ||
|---|---|---|---|---|---|---|
27600
|
100 | - | - | - | 27600 | |
27611
|
100 | Polymer | - | black | 27611 | |
27621
|
100 | 304 stainless steel | - | silver | 27621 | |
Socket version: vertical |
||||||
| Nominal size (DN) | Cover material | Waterproof flange | Colour of cover | Item no. | ||
27631
|
100 | Polymer | black | 27631 | ||
27641
|
100 | 304 stainless steel | silver | 27641 | ||
27650
|
100 | - | - | 27650 | ||
27651
|
100 | 304 stainless steel | silver | 27651 | ||
27660
|
100 | - | - | - | 27660 | |
27671
|
100 | 304 stainless steel | - | silver | 27671 | |
29102
|
100 | - | - | 29102 | ||
29103
|
100 | - | - | - | 29103 | |
29131
|
100 | Polymer | black | 29131 | ||
29141
|
100 | 304 stainless steel | silver | 29141 | ||
