Universal Plus basement drain

ver., SST, Odour trap, Waterpr.concrete

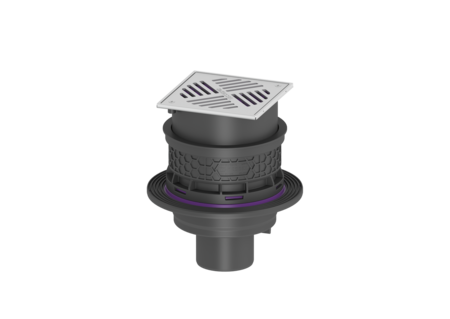

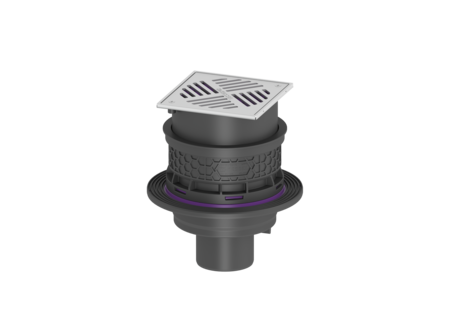

KESSEL Universal Plus basement drain, type of cover Slotted cover made of stainless steel, odour trap included, silver, Cover Stainless steel 14301, socket vertical, floor slab installation, installation depth 285 - 340 mm

  • Sustainable due to use of recycled material
  • Inlets above the floor slab, no penetration required
  • Vertical outlet for easy installation and easy access to the main drainage pipe
Item no. 29141
GTIN 4026092096901
Price group 10

    Universal Plus basement drain ver., SST, Odour trap, Waterpr.concrete
    The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable odour closure and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Contents of sludge trap: yes Waterproof flange: Pre-assembled at the factory Discharge rate (l/s) with 10 mm backwater: 1,6 Discharge rate (l/s) with 20 mm backwater: 2,3 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Dimensions Net weight: 3,63 kg Gross weight: 4,04 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Vertical installation: 23 - 80 Installation depth: 285 - 340 mm Vertical adjustment: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 344 mm Packaging dimension: width: 344 mm Packaging dimension: height: 353 mm Tank/drain body Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm System: vertical Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1) Contents of sludge trap: yes Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Anti-rat protection Insert made of stainless steel 27609 Show
    Extension section Pressure sealing flange, Mating flange 48958 Show
    Extension section System 200, H: 175 mm 48988 Show
      Title Item no.
    Sludge basket, polymer 27604 Show
    Odour trap for basement drain 29111 27605 Show
    Slotted cover 187 x 187 mm, SST, Class K 3 27643 Show
    Universal Plus basement drain ver., odour trap, Waterproof concrete 29102 Show
    Universal Plus basement drain vertical, with odour trap 29103 Show
    Upper section, stainl. steel grid/rim 48954 Show
    Seal for basement drain System 200, D: 175 mm 681036 Show
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Stainless steel 14301
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): without sewage
    • System (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • (rueckstauschutz):
    • (verriegelung):
    • Odour trap (geruchsverschluss): included
    • (wu-flansch):
