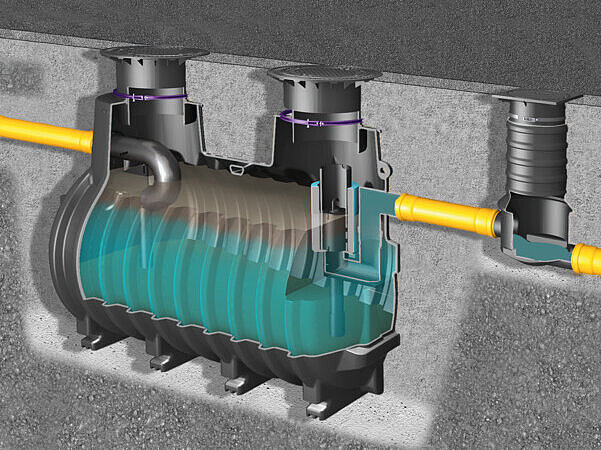

EasyOil ground coalescence separator

Class I

Effective against light liquids: EasyOil is used to protect water bodies and sewer systems against contamination from mineral oil – i.e. anywhere that light liquids are used, such as in petrol stations, car washes, vehicle repair garages and industry.

The EasyOil is available as a Class I coalescence separator in nominal sizes NS 3 to NS 20 for underground installation.

Advantages  Article overview

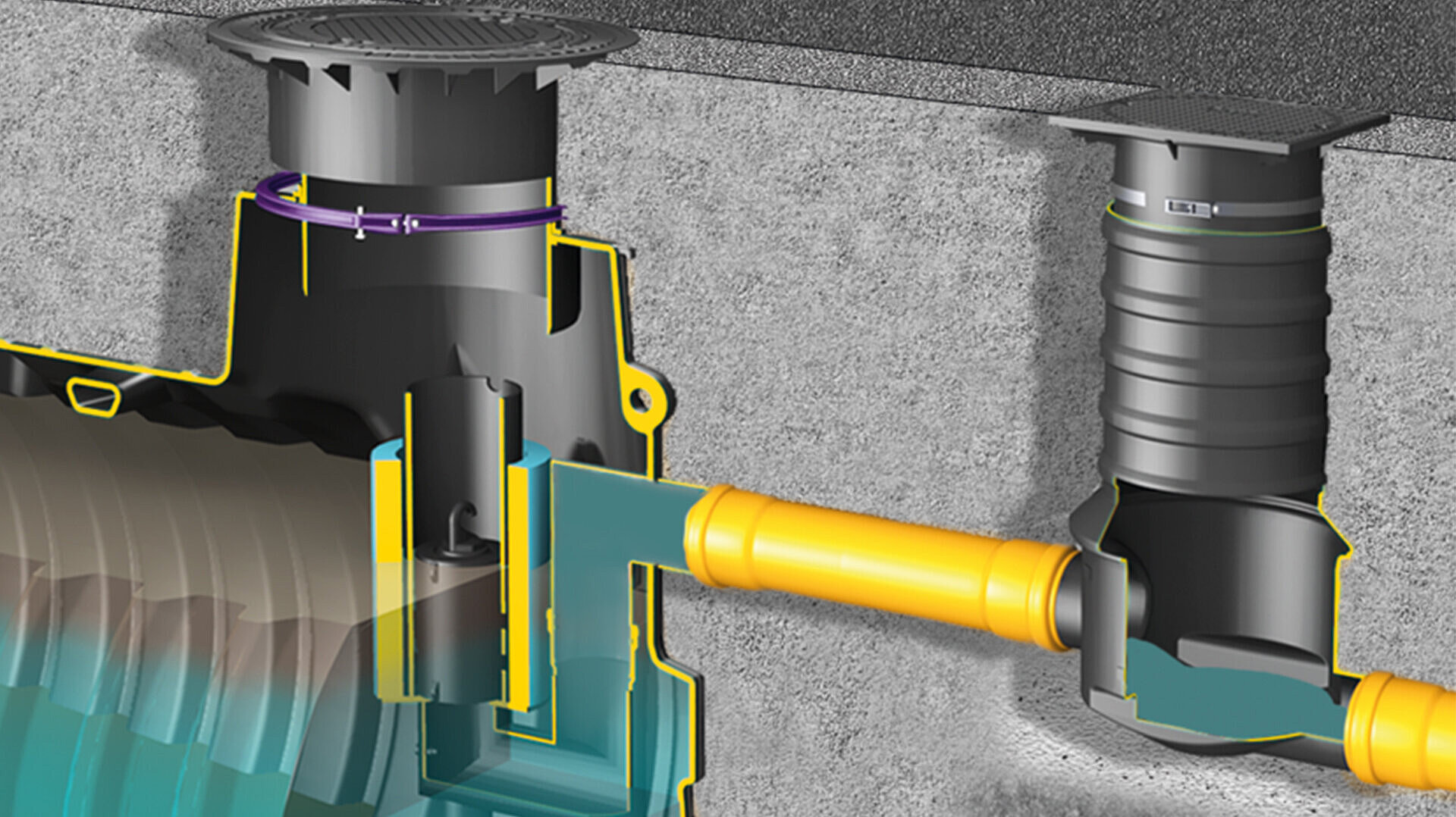

Emergency brake

The EasyOil  is equipped with a standard self-actuated closure lock / leak barrier. This emergency brake prevents the leakage of light liquids into the sewer pipe.

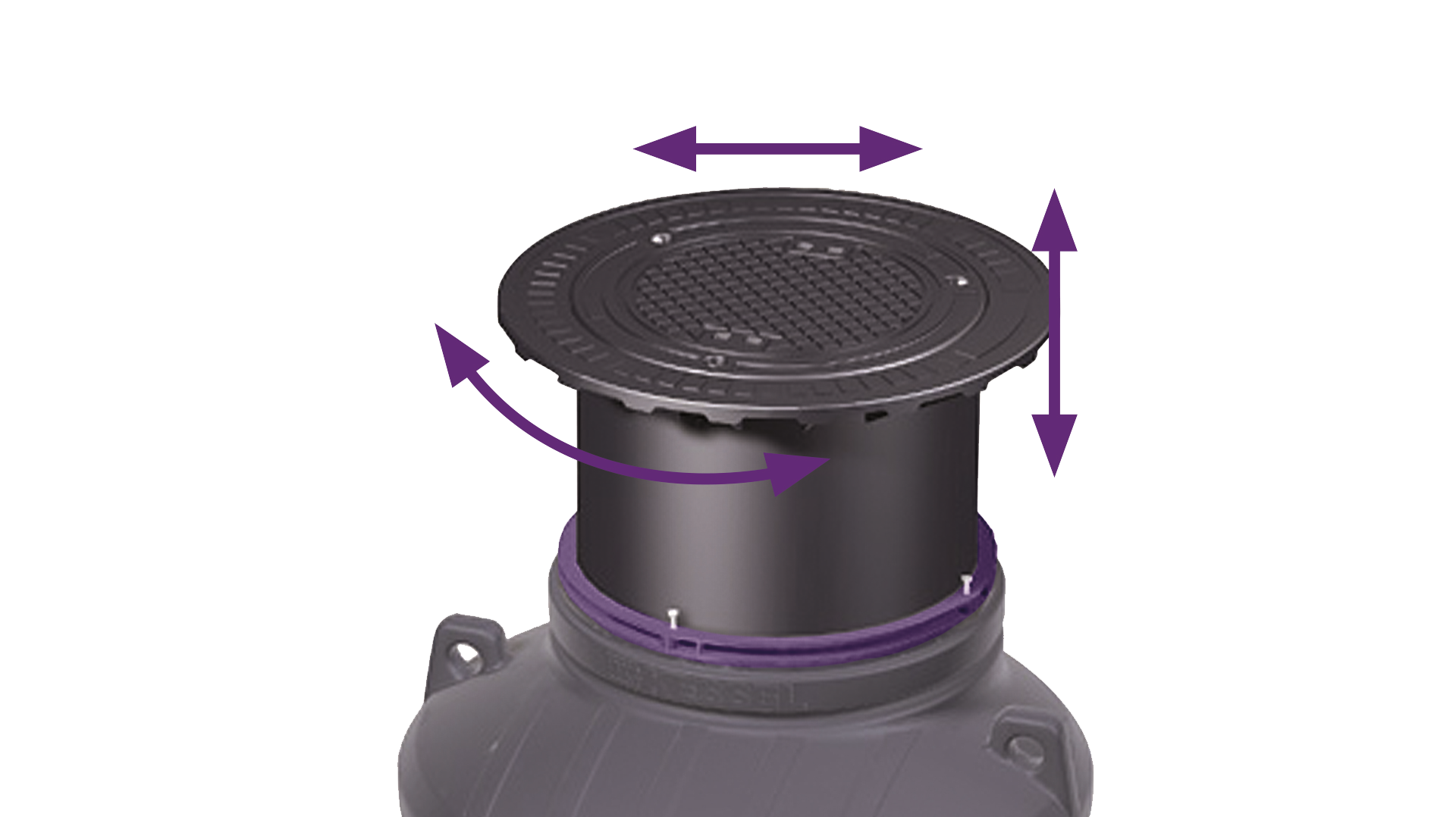

Vertically adjustable upper section

The vertically adjustable upper section of the EasyOil is continuously height-adjustable and tiltable by 5° – for optimum adaptation to the ground level and to compensate for settling of the flooring.

Material

EasyOil is the first series of polymer coalescence and oil/fuel separator systems with national technical approval on the German market. The polyethylene material used is also resistant to bioethanol (E10) and biodiesel – and therefore particularly durable. In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural safety of tanks and upper sections.

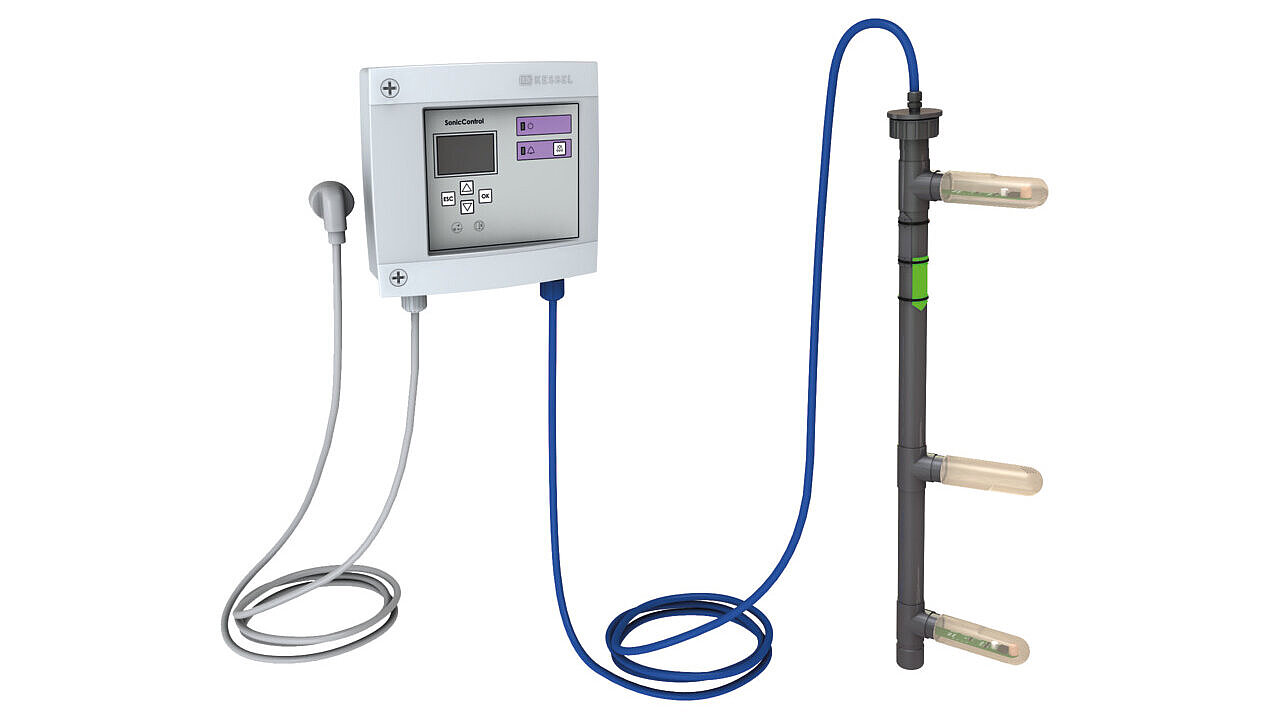

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasonic sensor undertakes the precise monitoring and reporting of the oil and sludge layer thickness in coalescence and oil/fuel separators. Owners/operating companies can verify their actual volumes of light liquids to the relevant authorities and optimise the necessary disposal cycles outside the standard requirements if necessary.

EasyOil System A (formerly class I)

Load class B 125 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99503.10BEX99503.10BEX B 125 (EN 124) 840  mm 3 99503.10BEX
Show
99706.30BEX99706.30BEX B 125 (EN 124) 850  mm 6 99706.30BEX
Show
99706.80BEX99706.80BEX B 125 (EN 124) 870  mm 6 99706.80BEX
Show
99710.15BEX99710.15BEX B 125 (EN 124) 840  mm 10 99710.15BEX
Show
99710.30BEX99710.30BEX B 125 (EN 124) 850  mm 10 99710.30BEX
Show
99710.80BEX99710.80BEX B 125 (EN 124) 870  mm 10 99710.80BEX
Show
99715.80BEX99715.80BEX B 125 (EN 124) 870  mm 15 99715.80BEX
Show

Load class D 400 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99503.10D99503.10D D 400 (EN 124) 840  mm 3 99503.10D
Show
99503.10DEX99503.10DEX D 400 (EN 124) 840  mm 3 99503.10DEX
Show
99706.30DEX99706.30DEX D 400 (EN 124) 850  mm 6 99706.30DEX
Show
99706.80DEX99706.80DEX D 400 (EN 124) 870  mm 6 99706.80DEX
Show
99710.15DEX99710.15DEX D 400 (EN 124) 840  mm 10 99710.15DEX
Show
99710.30DEX99710.30DEX D 400 (EN 124) 850  mm 10 99710.30DEX
Show
99715.80DEX99715.80DEX D 400 (EN 124) 870  mm 15 99715.80DEX
Show

EasyOil Class I

Load class B 125 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99703.04B99703.04B B 125 (EN 124) 545  mm 3 99703.04B
Show
99703.10B99703.10B B 125 (EN 124) 545  mm 3 99703.10B
Show
99706.02B99706.02B B 125 (EN 124) 560  mm 6 99706.02B
Show
99706.06B
B 125 (EN 124) 560  mm 6 99706.06B
Show
99706.10B99706.10B B 125 (EN 124) 560  mm 6 99706.10B
Show
99706.18B
B 125 (EN 124) 560  mm 6 99706.18B
Show

Load class D 400 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99703.04D99703.04D D 400 (EN 124) 545  mm 3 99703.04D
Show
99703.10D99703.10D D 400 (EN 124) 545  mm 3 99703.10D
Show
99706.02D99706.02D D 400 (EN 124) 560  mm 6 99706.02D
Show
99706.06D
D 400 (EN 124) 560  mm 6 99706.06D
Show
99706.18D
D 400 (EN 124) 560  mm 6 99706.18D
Show

Not found the right product?

In addition to our standard light liquid separators, at the customer’s request we develop individual solutions for special form, function and dimensioning requirements.

Individual solutions
