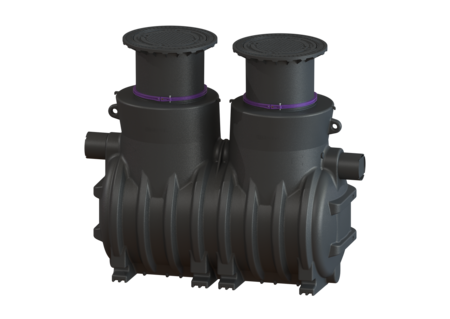

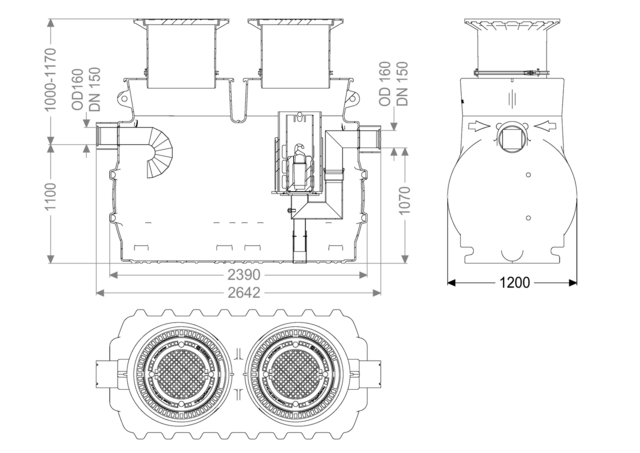

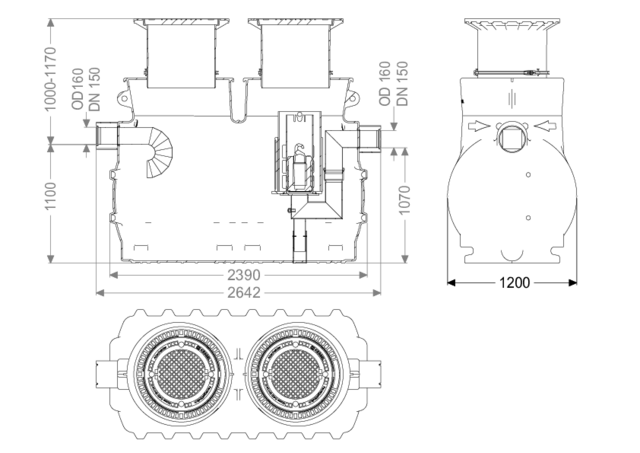

EasyOil coalescence separator

ground, NS 3, Sys. A, 1800 l, class D

PDF product data sheet

The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. Two surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS on factory stainless steel pipe sockets possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty.

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
  • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
Item no. 99503.10D
GTIN 4026092027295
Price group 60

    EasyOil coalescence separator ground, NS 3, Sys. A, 1800 l, class D
    The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. Two surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS on factory stainless steel pipe sockets possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty. Variant Nominal size (NS): 3 Type of disposal: manual with suction hose Coalescence insert: yes Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Inlet max. scoring (DN): Z-83.8-54 Separator class: System A (formerly class I) Range of applications for light liquids: from 0.85 to 0.95 g/cm3 Dimensions Net weight: 651 kg Gross weight: 651 kg Groundwater resistant from lower edge of base section: 1320 mm Excess depth: 90 mm Load-bearing capacity (DIN 19901): 700 - 1.500 4MS common composition list: 155 Max. length: 2642 mm Installation depth: 840 - 1240 mm Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Required access area, width: 1200 mm Required access area, length: 2390 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2300 mm Packaging dimension: length: 2080 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1070 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 Inlet nominal size (DN): 160 mm Inlet nominal size (DN): 150 Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Cover locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Total volume: 1800 l Hose: 1000 l Sealing water height: 215 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
    TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
    Sampling chamber LW 1000, DN 150, Class D 9151015D Show
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    Sampling chamber LW 400, DN 100/150, Class D 915880D Show
    Sampling chamber DN 150, Class D 915882D Show
    		Access panel for mounting on-wall 917413 Show
    		Access panel for in-wall installation 917414 Show
    Extension section d: 600 mm, Extension 500 mm 917460 Show
    Oil suction disposal connection DN 150 917803 Show
    Sludge extraction system DN 150 917804 Show
    Layer thickness measuring device SonicControl, Type OA 917826 Show
    Layer thickness measuring device SonicControl, Type O 917828 Show
    Measuring device SonicControl, Type A 917830 Show
    		Cable extension 10 m, for SonicControl LFA 917861 Show
    		Cable extension 20 m, for SonicControl LFA 917862 Show
    		Cable extension 30 m, for SonicControl LFA 917863 Show
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Removal key for cover plates 680278 Show
    Float switch with density 0.97 g/cm3 680299 Show
    Float switch with density 0.92 g/cm3 680300 Show
    Float switch with density 0.87 g/cm3 680301 Show
    Cover plate Class D, grey iron, unlocked 680322 Show
    Gasket 630 mm rotated tank 860104 Show
    LÖVM Upper section 860141 Show
    Removal tool for 'Goliath' chamber cover 917112 Show
    Coalescence filter insert 917805 Show
    • Material (material): PE
    • Adapter (DN) (uebereinstimmungsnachweis): Z-83.8-54
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 3
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 840  mm
