Engineering system chambers

Robust yet lightweight.

Our standard-compliant engineering chambers are made entirely of durable polymer and are suitable both for underground installation or installation in concrete. They are resistant to groundwater up to 3 metres and can be built up to a height of five metres with a modular design. The light weight of the polymer chamber makes them particularly easy to install.

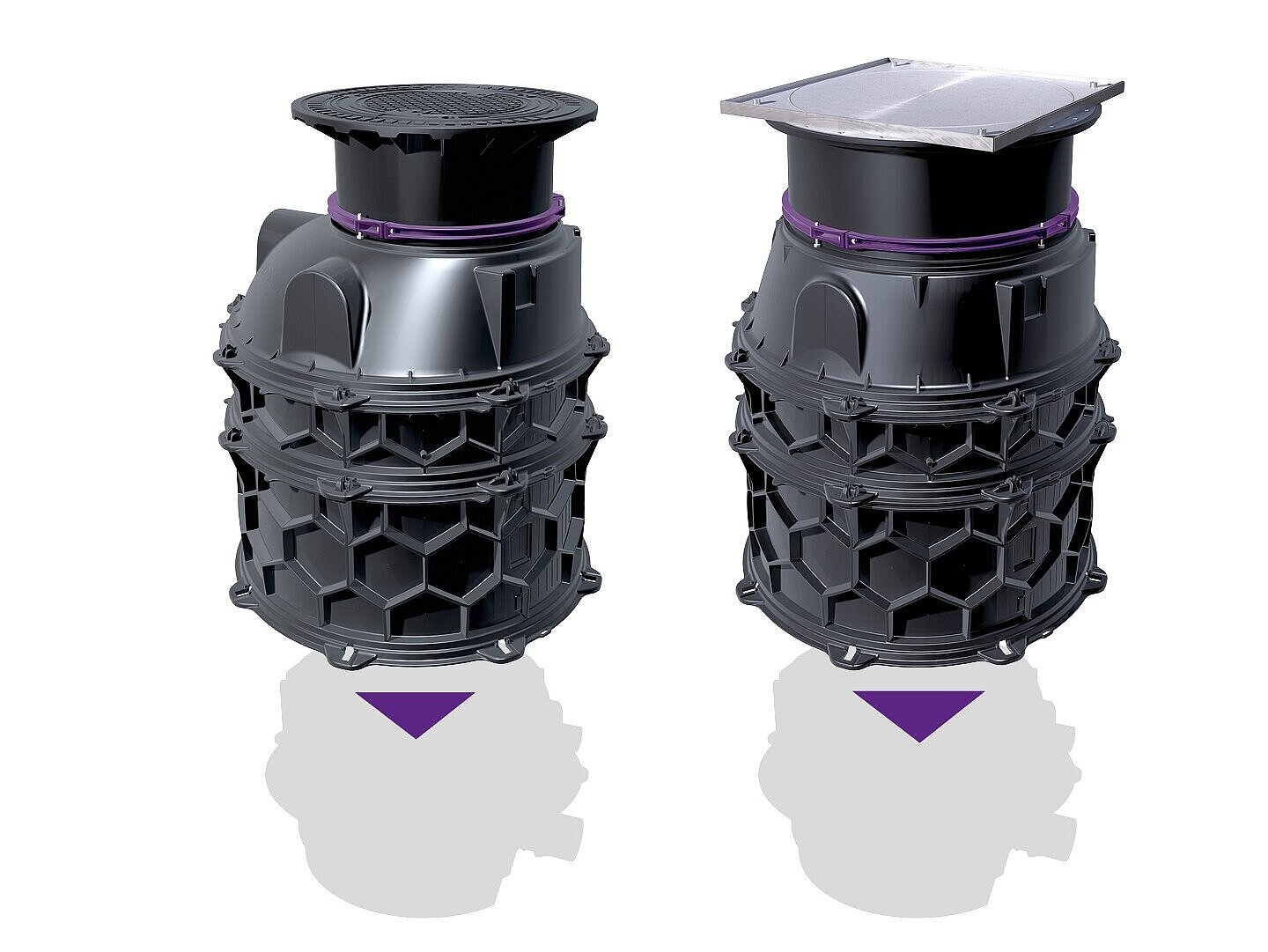

Our engineering chambers are available with an access opening of 600 or 800 millimetres in diameter. In addition, numerous upper sections are available for various applications. They can be adjusted infinitely in terms of height and are rotatable and tiltable, which makes them ideal for adaptation to the ground level.

Advantages

Safety

Our engineering chambers are made of unbreakable, impact-resistant polymer. In addition, they are permanently leak-proof and root-resistant. In addition to the statutory provision, we provide a 20-year warranty with regard to tightness, fitness for purpose and the structural safety of tanks and upper sections.

Installation

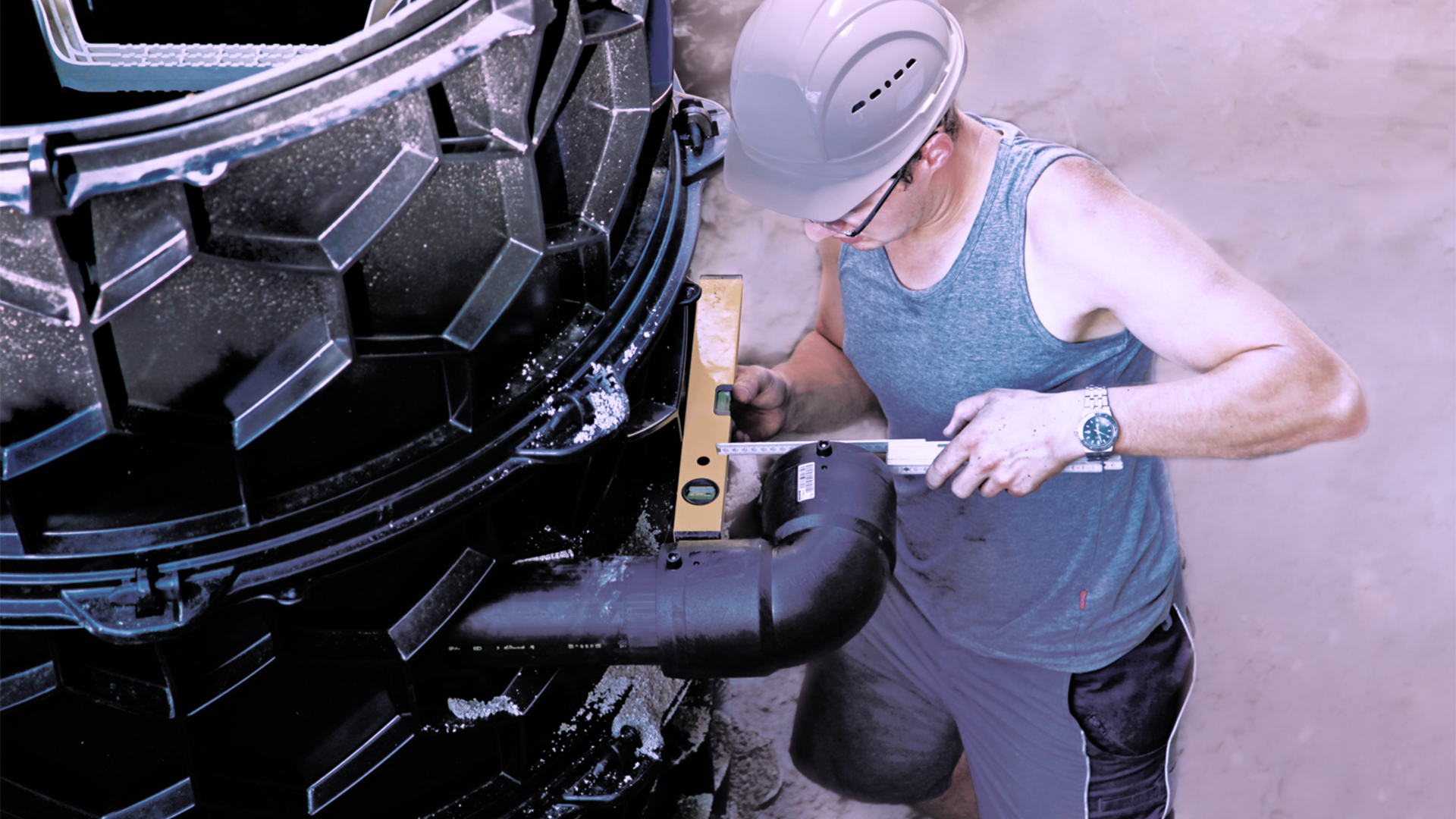

Easy installation thanks to the low weight of the chamber parts and variable upper sections for adaptation to the ground level.

Chamber modules

  Title Item no.
8740000 Chamber module LW 1000 ground Access LW 600, 380-629 mm, Class A/B 8740000
8740001 Chamber module LW 1000 ground Access LW 600, 380-629 mm, Class D 8740001
8740002 Chamber module LW 1000 ground Access LW 800, 411-660 mm, Class K 3 8740002
8740003 Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003
8740004 Chamber module LW 1000 ground Access LW 800, 396-645 mm, Class A 15 8740004
8740005 Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005
8740006 Chamber module LW 1000 ground Access LW 600, 630-879 mm, Class A/B 8740006
8740007 Chamber module LW 1000 ground Access LW 600, 630-879 mm, Class D 8740007
8740008 Chamber module LW 1000 ground Access LW 800, 661-910 mm, Class K 3 8740008
8740009 Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009
8740010 Chamber module LW 1000 ground Access LW 800, 646-895 mm, Class A 15 8740010
8740011 Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011
8740012 Chamber module LW 1000 ground Access LW 600, 880-1129 mm, Class A/B 8740012
8740013 Chamber module LW 1000 ground Access LW 600, 880-1129 mm, Class D 8740013
8740014 Chamber module LW 1000 ground Access LW 800, 911-1160 mm, Class K 3 8740014
8740015 Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015
8740016 Chamber module LW 1000 ground Access LW 800, 896-1145 mm, Class A 15 8740016
8740017 Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017
8740018 Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class A/B 8740018
8740019 Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class D 8740019
8740020 Chamber module LW 1000 ground Access LW 800, 1161-1410 mm, Class K 3 8740020
8740021 Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021
8740022 Chamber module LW 1000 ground Access LW 800, 1146-1395 mm, Class A 15 8740022
8740023 Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023
8740024 Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class A/B 8740024
8740025 Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class D 8740025
8740026 Chamber module LW 1000 ground Access LW 800, 1411-1660 mm, Class K 3 8740026
8740027 Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027
8740028 Chamber module LW 1000 ground Access LW 800, 1396-1645 mm, Class A 15 8740028
8740029 Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029
8740030 Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class A/B 8740030
8740031 Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class D 8740031
8740032 Chamber module LW 1000 ground Access LW 800, 1661-1910 mm, Class K 3 8740032
8740034 Chamber module LW 1000 ground Access LW 800, 1646-1895 mm, Class A 15 8740034
8740036 Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class A/B 8740036
8740037 Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class D 8740037
8740038 Chamber module LW 1000 ground Access LW 800, 1911-2160 mm, Class K 3 8740038
8740040 Chamber module LW 1000 ground Access LW 800, 1896-2145 mm, Class A 15 8740040
8740042 Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class A/B 8740042
8740043 Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class D 8740043
8740044 Chamber module LW 1000 ground Access LW 800, 2161-2410 mm, Class K 3 8740044
8740046 Chamber module LW 1000 ground Access LW 800, 2146-2395 mm, Class A 15 8740046
8740048 Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class A/B 8740048
8740049 Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class D 8740049
8740050 Chamber module LW 1000 ground Access LW 800, 2411-2660 mm, Class K 3 8740050
8740052 Chamber module LW 1000 ground Access LW 800, 2396-2645 mm, Class A 15 8740052
8740054 Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class A/B 8740054
8740055 Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class D 8740055
8740056 Chamber module LW 1000 ground Access LW 800, 2661-2910 mm, Class K 3 8740056
8740058 Chamber module LW 1000 ground Access LW 800, 2646-2895 mm, Class A 15 8740058
8740060 Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class A/B 8740060
8740061 Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class D 8740061
8740062 Chamber module LW 1000 ground Access LW 800, 2911-3160 mm, Class K 3 8740062
8740064 Chamber module LW 1000 ground Access LW 800, 2896-3145 mm, Class A 15 8740064
8740066 Chamber module LW 1000 ground Access LW 600, 3130-3379 mm, Class A/B 8740066
8740067 Chamber module LW 1000 ground Access LW 600, 3130-3379 mm, Class D 8740067
8740068 Chamber module LW 1000 ground Access LW 800, 3161-3410 mm, Class K 3 8740068
8740070 Chamber module LW 1000 ground Access LW 800, 3146-3395 mm, Class A 15 8740070
8740072 Chamber module LW 1000 ground Access LW 600, 3380-3629 mm, Class A/B 8740072
8740073 Chamber module LW 1000 ground Access LW 600, 3380-3629 mm, Class D 8740073
8740074 Chamber module LW 1000 ground Access LW 800, 3411-3660 mm, Class K 3 8740074
8740076 Chamber module LW 1000 ground Access LW 800, 3396-3645 mm, Class A 15 8740076
8740078 Chamber module LW 1000 ground Access LW 600, 3630-3879 mm, Class A/B 8740078
8740079 Chamber module LW 1000 ground Access LW 600, 3630-3879 mm, Class D 8740079
8740080 Chamber module LW 1000 ground Access LW 800, 3661-3910 mm, Class K 3 8740080
8740082 Chamber module LW 1000 ground Access LW 800, 3646-3895 mm, Class A 15 8740082
8740084 Chamber module LW 1000 ground Access LW 600, 3880-4129 mm, Class A/B 8740084
8740085 Chamber module LW 1000 ground Access LW 600, 3880-4129 mm, Class D 8740085
8740086 Chamber module LW 1000 ground Access LW 800, 3911-4160 mm, Class K 3 8740086
8740088 Chamber module LW 1000 ground Access LW 800, 3896-4145 mm, Class A 15 8740088
8740122 Chamber module LW 1000 ground Access LW 800, 375-624 mm, Class K 3 8740122
8740123 Chamber module LW 1000 ground Access LW 800, 625-874 mm, Class K 3 8740123
8740124 Chamber module LW 1000 ground Access LW 800, 875-1124 mm, Class K 3 8740124
8740125 Chamber module LW 1000 ground Access LW 800, 1125-1374 mm, Class K 3 8740125
8740126 Chamber module LW 1000 ground Access LW 800, 1375-1624 mm, Class K 3 8740126
8740127 Chamber module LW 1000 ground Access LW 800, 1625-1874 mm, Class K 3 8740127
8740128 Chamber module LW 1000 ground Access LW 800, 1875-2124 mm, Class K 3 8740128
8740129 Chamber module LW 1000 ground Access LW 800, 2125-2374 mm, Class K 3 8740129
8740130 Chamber module LW 1000 ground Access LW 800, 2375-2624 mm, Class K 3 8740130
8740131 Chamber module LW 1000 ground Access LW 800, 2625-2874 mm, Class K 3 8740131
8740132 Chamber module LW 1000 ground Access LW 800, 2875-3124 mm, Class K 3 8740132
8740133 Chamber module LW 1000 ground Access LW 800, 3125-3374 mm, Class K 3 8740133
8740134 Chamber module LW 1000 ground Access LW 800, 3375-3624 mm, Class K 3 8740134
8740135 Chamber module LW 1000 ground Access LW 800, 3625-3874 mm, Class K 3 8740135
8740136 Chamber module LW 1000 ground Access LW 800, 3875-4124 mm, Class K 3 8740136
8740141 Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class B 8740141
8740142 Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class B 8740142
8740143 Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class B 8740143
8740158 Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class D 8740158
8740159 Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class D 8740159
8740160 Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class D 8740160
8740222 Chamber module LW 1000 floor slab Access LW 800, 638-887 mm, K 3, wa.co. 8740222
8740223 Chamber module LW 1000 floor slab Access LW 800, 888-1137 mm, K 3, wa.co. 8740223
8740224 Chamber module LW 1000 floor slab Access LW 800, 1138-1387 mm, K 3, wa.co. 8740224
8740225 Chamber module LW 1000 floor slab Access LW 800, 1388-1637 mm, K 3, wa.co. 8740225
8740226 Chamber module LW 1000 floor slab Access LW 800,1638-1887 mm, K 3, wa.co. 8740226
