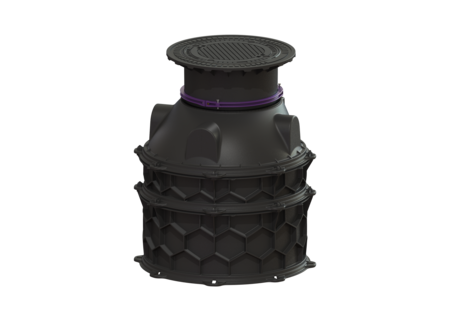

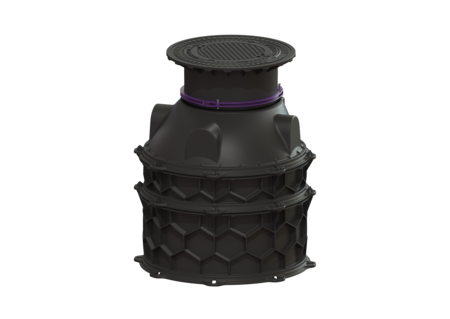

Chamber module LW 1000 floor slab

Access LW 600, 880-1129 mm, Class A/B

The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover.

  • For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
  • Innovative honeycomb structure
  • Installation in groundwater up to 3000 mm
Item no. 8740012
GTIN 4026092065273
Price group 60

    Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class A/B
    The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. General characteristics Colour: black Material: PE-HD Standard: EN 13598-2 Installation situation: underground installation Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) Inlet max. scoring (DN): Z-42.1-527 Dimensions Net weight: 89,5 kg Gross weight: 106 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 880 - 1129 mm Vertical adjustment: vertically adjustable upper section Width: 1200 mm Length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Packaging dimension: length: 1200 mm Tank/drain body Number of inlets: 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron Colour of cover: black Width of cover: 648 mm Height of cover: 95 mm Length of cover: 648 mm Surface: Grey iron Cover locking: unlocked Load class: B 125 (EN 124) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Seal for intermediate section 680125 Show
    Clamping ring for upper sections d: 600 mm 680276 Show
    Seal for cover plate, locked 680323 Show
    Intermediate section 250 mm, for chamber module LW 1000 680370 Show
    Intermediate section 500 mm, for chamber module LW 1000 680371 Show
    Connecting bolt set Set of 10 680373 Show
    Seal for chamber module 680374 Show
    Access steps for chamber module 680376 Show
    Chamber taper LW 600 chamber module access 680431 Show
    Upper section d: 600 mm 680569 Show
    Seal for channel passage 75 mm 850116 Show
    Seal for channel passage 110 mm 850117 Show
    Chamber cover Cl. B watertight 860118 Show
    • Installation situation (einbausituation): underground installation
    • External monitoring (fremdueberwachung): SKZ
    • Type of cover (abdeckungsart): Round cover plate
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 880  mm
    • Gross weight (gewicht_brutto): 106  kg
    • Surface (oberflaeche): Grey iron
