Practicus floor drain

The robust solution for practitioners.

Our Practicus project drain made of the high-quality polymer polypropylene (PP) is an easy to install alternative to drains made of metal. It also offers other advantages: For example, its rust-resistant and smooth surface prevents deposits and therefore ensures a strong self-cleaning effect. And thanks to its drainage capacity of 1.8 l/s, it is also suitable for showers with particularly high water use. All this makes the Practicus a thoroughly robust solution with diverse possible uses in project drainage.

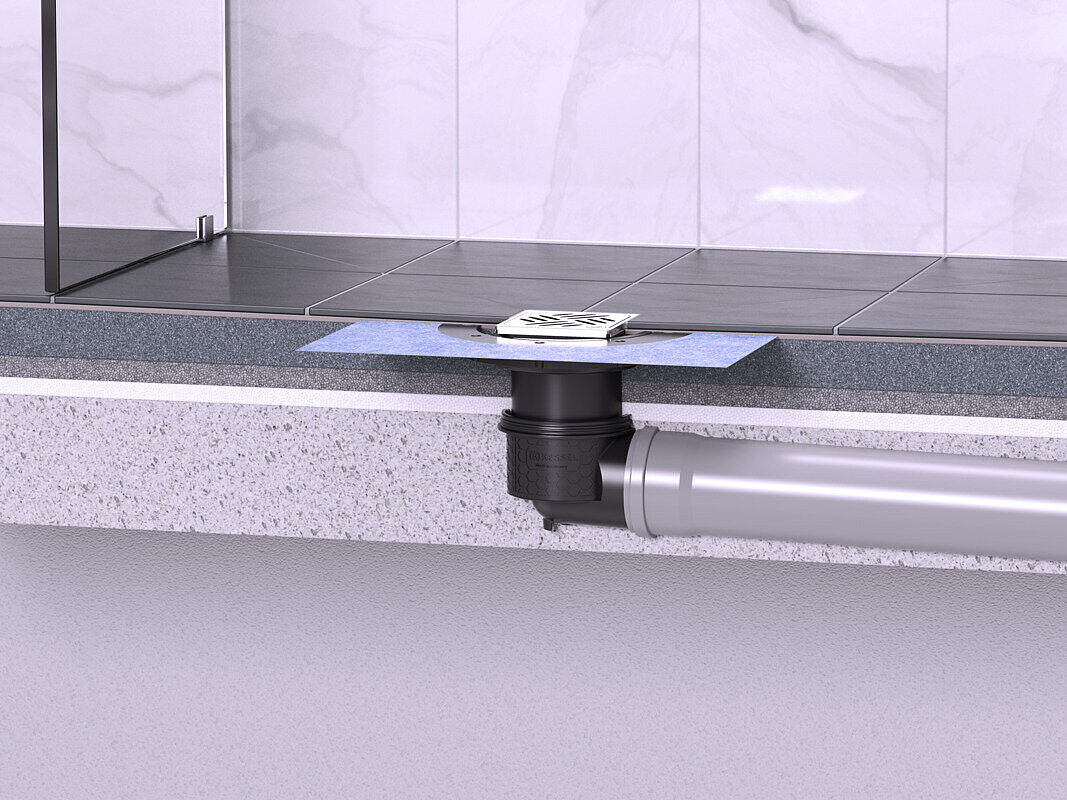

The Practicus floor drain is optionally available with a horizontal or vertical outlet and in different nominal sizes ranging from DN 50 to DN 100.

Advantages  Article overview

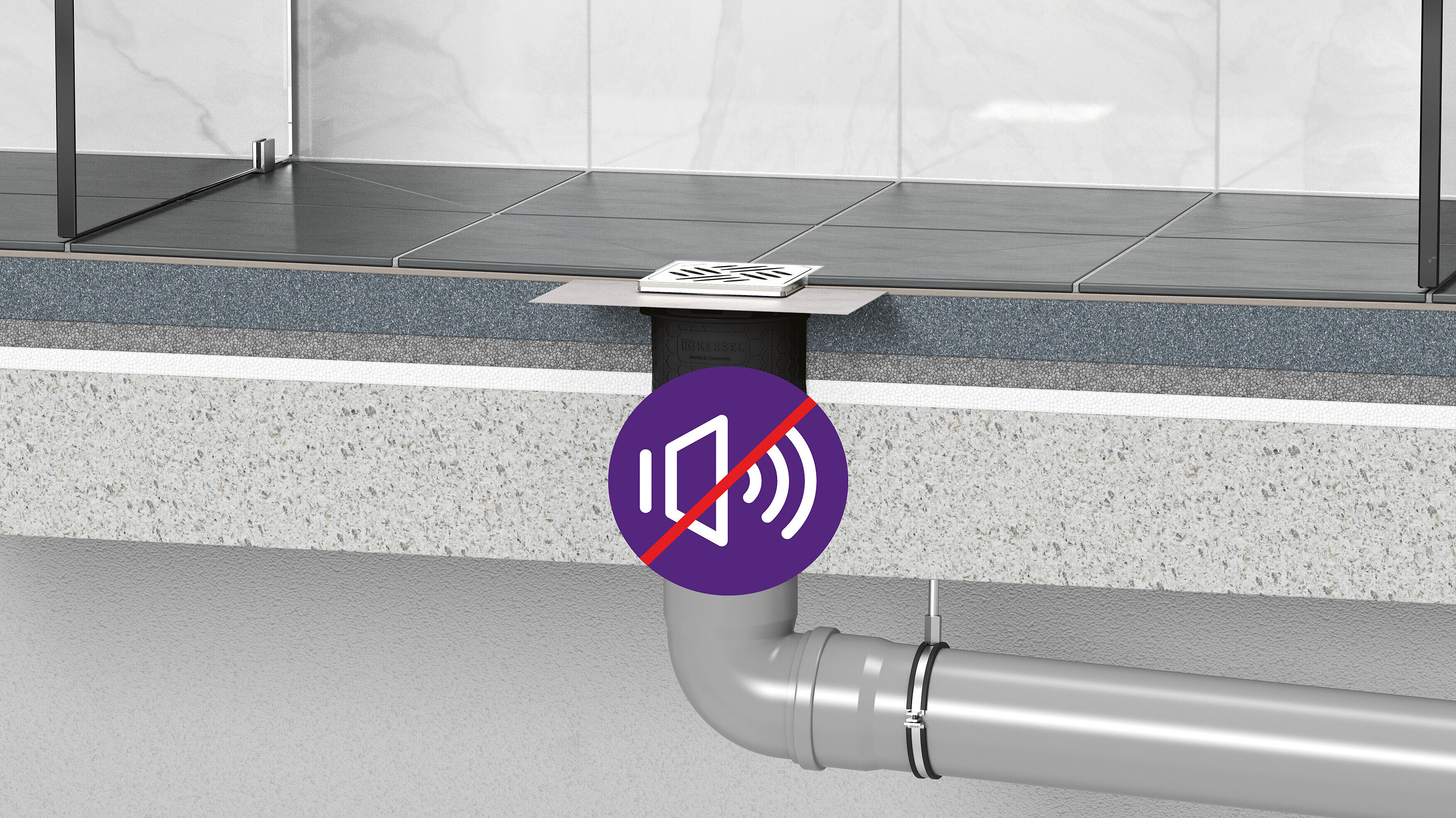

Scientifically confirmed sound insulation effect

The Practicus was tested by the Fraunhofer Institute for its sound-proofing effect. The measurements resulted in values of ≥ 18 dB(A) according to DIN 4109 as well as ≥ 15 dB(A) according to VDI 4100 SST III. The Practicus therefore has a proven sound-inhibiting effect against noise from the pipe system.

Highest fire protection standards

In case of fire, water outlets constitute a risk, as the fire can pass through the discharge pipes and spread to other parts of the building. For protection purposes, our drains can be equipped with the Fire-Kit fire and smoke protection insert or the Quick-Fit pipe penetration seal with integrated fire protection. As soon as fire penetrates the drain body, the fire protection compound inside it swells automatically and seals the pipe socket against flames and smoke. Both the Fire-Kit and the Quick-Fit fulfil the highest fire resistance class R 120.

Floor drains Practicus

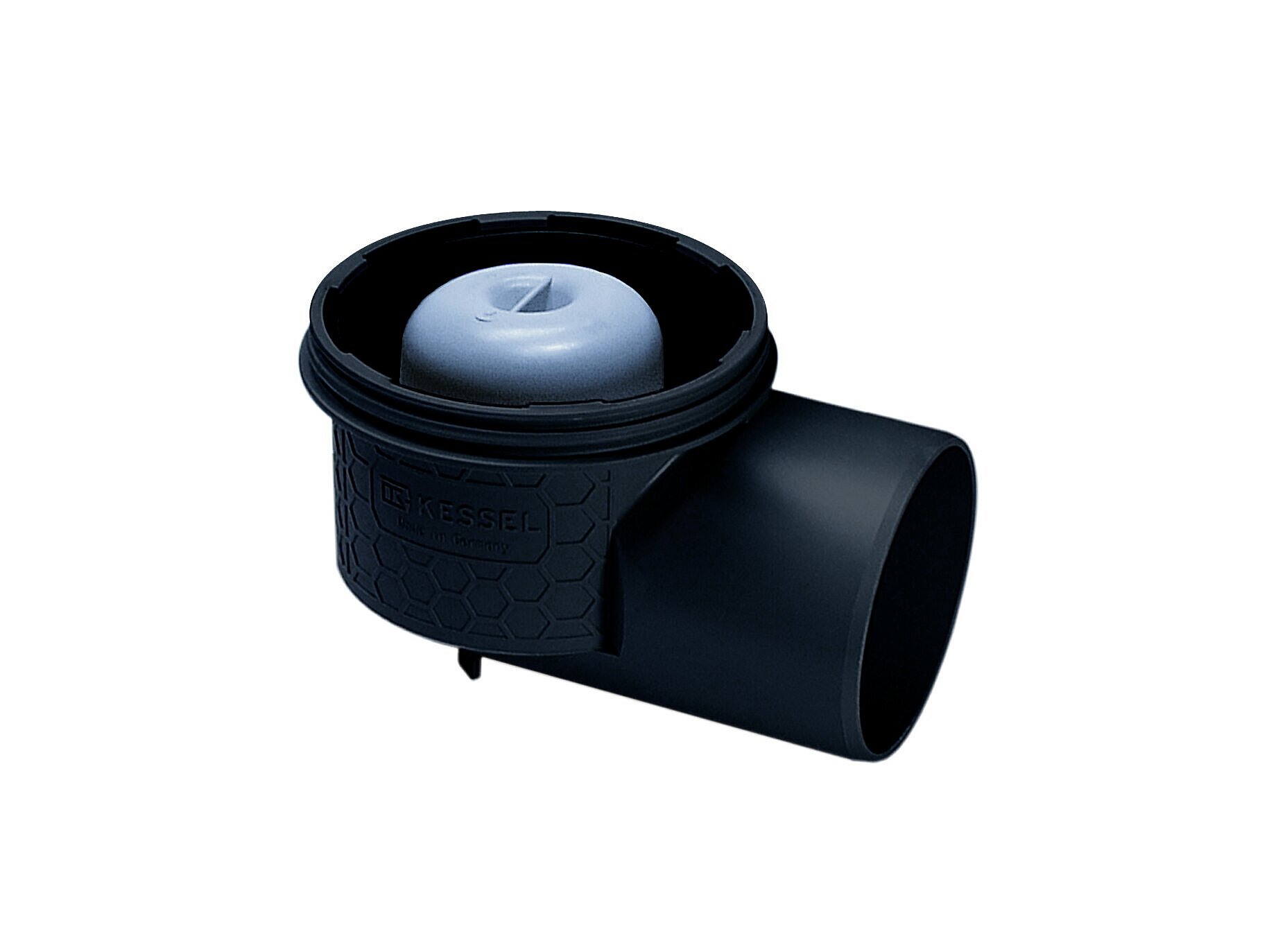

Socket version: lateral

Waterproofing layer on the drain body: Connection flange

Nominal size (DN) Grating design Waterproofing layer on the upper section Item no.
45110 100 - - 45110
45110.11 100 - Connection flange 45110.11
45110.51 100 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45110.51
45110.53 100 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45110.53
45110.63 100 Kessel Connection flange 45110.63
45150 50 - - 45150
45150.11 50 - Connection flange 45150.11
45150.51 50 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45150.51
45150.53 50 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45150.53
45150.63 50 Kessel Connection flange 45150.63
45170 70 - - 45170
45170.11 70 - Connection flange 45170.11
45170.51 70 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45170.51
45170.53 70 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45170.53
45170.63 70 Kessel Connection flange 45170.63

Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals)

Nominal size (DN) Grating design Waterproofing layer on the upper section Item no.
45119 100 - - 45119
45119.11 100 - Connection flange 45119.11
45119.51 100 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45119.51
45119.53 100 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45119.53
45119.63 100 Kessel Connection flange 45119.63
45159 50 - - 45159
45159.11 50 - Connection flange 45159.11
45159.51 50 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45159.51
45159.53 50 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45159.53
45159.63 50 Kessel Connection flange 45159.63
45179 70 - - 45179
45179.11 70 - Connection flange 45179.11
45179.51 70 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45179.51
45179.53 70 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45179.53
45179.63 70 Kessel Connection flange 45179.63

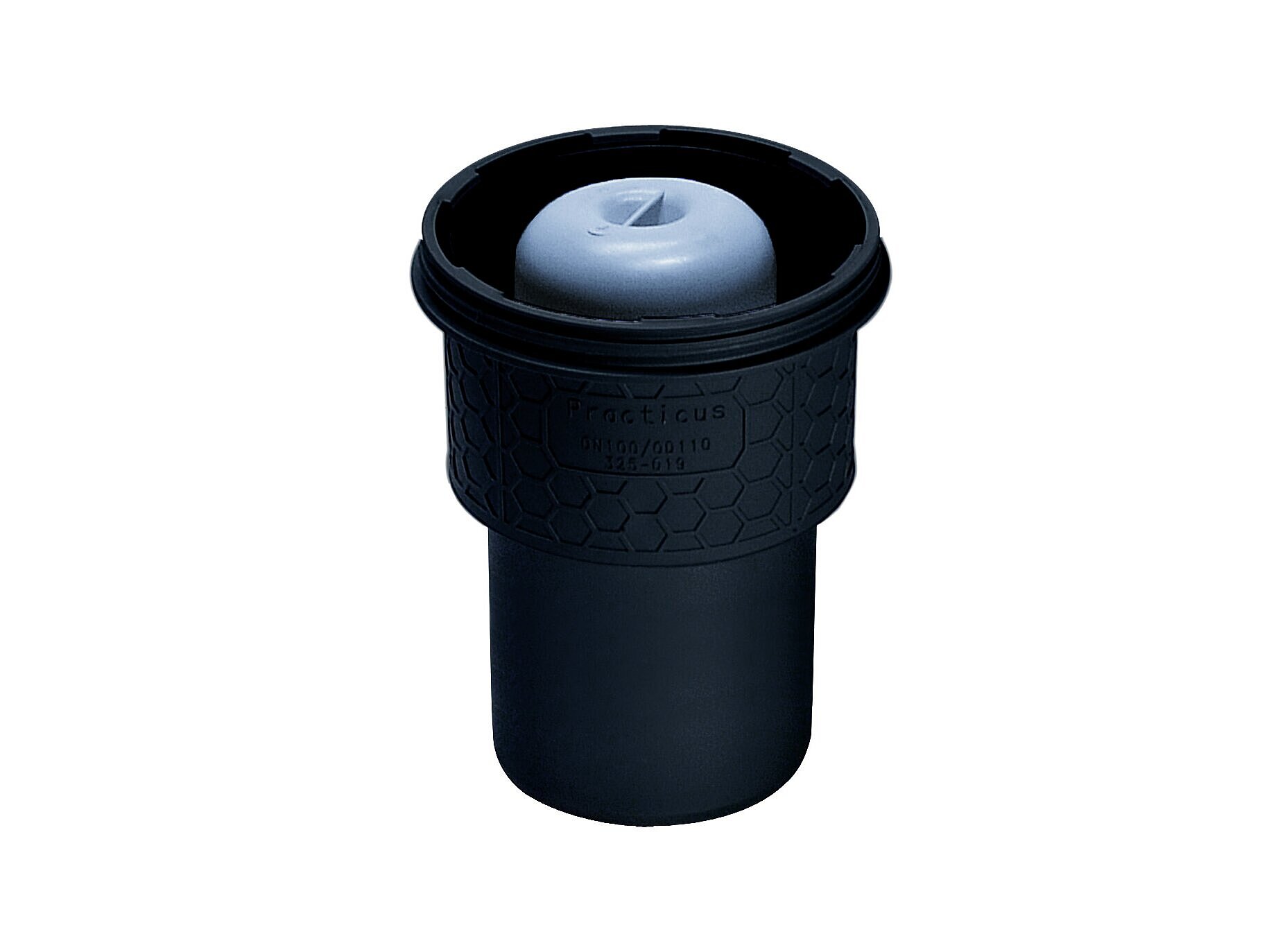

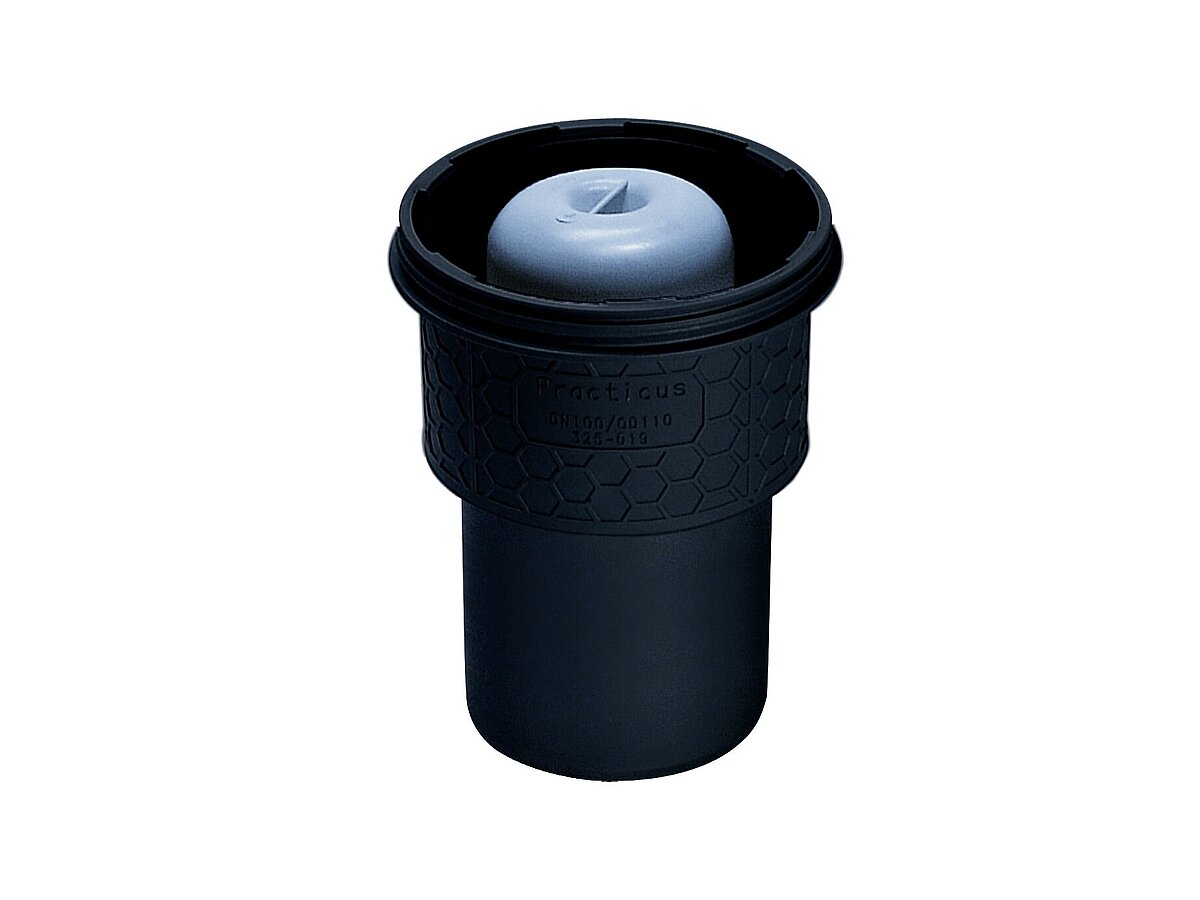

Socket version: vertical

Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers)

Nominal size (DN) Grating design Waterproofing layer on the upper section Item no.
45218.11 100 - Connection flange 45218.11

Waterproofing layer on the drain body: Connection flange

Nominal size (DN) Grating design Waterproofing layer on the upper section Item no.
45210 100 - - 45210
45210.11 100 - Connection flange 45210.11
45210.20 100 - Connection flange 45210.20
45210.51 100 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45210.51
45210.53 100 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45210.53
45210.63 100 Kessel Connection flange 45210.63
45250 50 - - 45250
45250.11 50 - Connection flange 45250.11
45250.20 50 - Connection flange 45250.20
45250.51 50 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45250.51
45250.53 50 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45250.53
45250.63 50 Kessel Connection flange 45250.63
45270 70 - - 45270
45270.11 70 - Connection flange 45270.11
45270.20 70 - Connection flange 45270.20
45270.51 70 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45270.51
45270.53 70 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45270.53
45270.63 70 Kessel Connection flange 45270.63

Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals)

Nominal size (DN) Grating design Waterproofing layer on the upper section Item no.
45219 100 - - 45219
45219.11 100 - Connection flange 45219.11
45219.51 100 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45219.51
45219.53 100 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45219.53
45219.63 100 Kessel Connection flange 45219.63
45259 50 - - 45259
45259.11 50 - Connection flange 45259.11
45259.51 50 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45259.51
45259.53 50 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45259.53
45259.63 50 Kessel Connection flange 45259.63
45279 70 - - 45279
45279.11 70 - Connection flange 45279.11
45279.51 70 - Enclosed sealing collar to be glued (bd) according to DIN 18534 45279.51
45279.53 70 Kessel Enclosed sealing collar to be glued (bd) according to DIN 18534 45279.53
45279.63 70 Kessel Connection flange 45279.63

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Individual solutions
