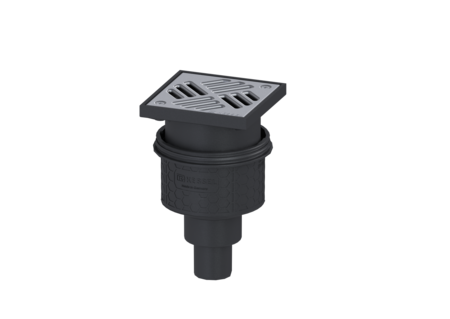

Practicus floor/roof drain

DN 50, vertical, Slotted grating screwed

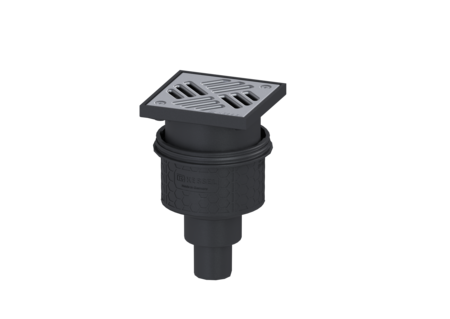

45250.11
45250.11

KESSEL Practicus floor/roof drain, cover length 138 mm, type of waterproofing, socket vertical, nominal size (DN) 50, odour trap included, drainage by Point drain, type of cover Slotted cover, design cover Kessel

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
  • Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. 45250.11
GTIN 4026092033760
Price group 10

    Practicus floor/roof drain DN 50, vertical, Slotted grating screwed
    The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Net weight: 1,27 kg Gross weight: 1,64 kg Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Type of height adjustability: vertically adjustable upper section Length: 135 mm Width: 135 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Height of cover: 16 mm Length of cover: 138 mm Surface: Polished SST Frame material: ABS Locking: screwed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    45250 Practicus drain body DN 50, Vertical outlet 45250 Show
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
