Extension section

H: 136 mm, with side inlet DN 50

PDF product data sheet

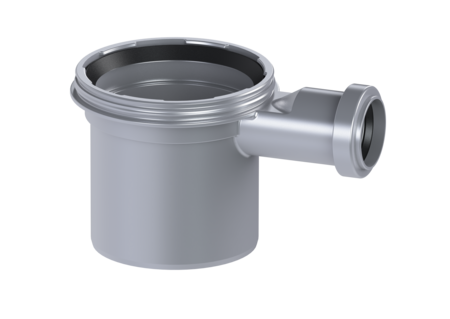

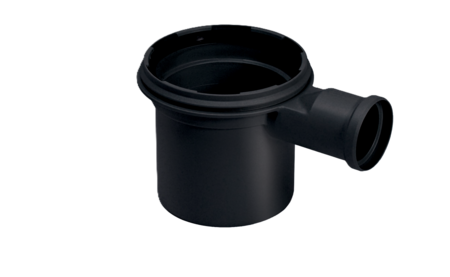

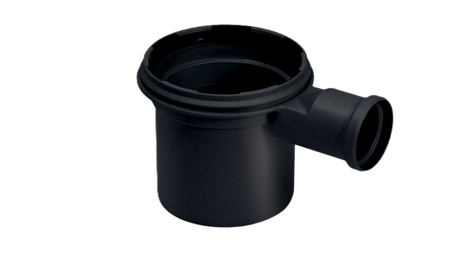

Extension section suitable for floor drains, with side inlet DN 50, including temporary protective cover DN 70

Item no. 48989
GTIN 4026092033234
Discount group 1

Extension section H: 136 mm, with side inlet DN 50
Extension section suitable for floor drains, with side inlet DN 50, including temporary protective cover DN 70 Version: Seal: Lip seal General characteristics: Material: PP Colour: grey Dimensions: Diameter: 150 mm Clear width (LW): 125 Tank: Inlet nominal size (DN): 50
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Seal (ATTR-114): Lip seal
  • Inlet nominal size (DN) (ATTR-B1CA): 50
  • Material (ATTR-101): PP
  • Brand (M-ATTR-001): KESSEL
  • Colour (ATTR-102): grey
  • Clear width (LW) (ATTR-167): 125
  • Country of origin (ATTR-322): DE
  • Advantages text (M-ATTR-007): For extending the upper section for high floor build-up
  • Net weight (ATTR-A3A): 0.4  KGM
  • Gross weight (ATTR-A3B): 0.6  KGM
  • Diameter (ATTR-107): 150  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 247  MMT
  • Packaging dimension: width (ATTR-326): 247  MMT
  • Packaging dimension: height (ATTR-327): 180  MMT
  • Dimensions (ATTR-323): 250X250X200MM
  • Number of packages (ATTR-321): 0
