The Ultraflat bathroom drain

The flat drain for renovation.

Here the name speaks for itself: the Ultraflat is our flattest bathroom drain and is therefore predestined for renovation work in existing buildings. The Ultraflat can be combined with different design covers and provides a flow rate of 0.6 to 1.0 l/s despite its compact size.

The Ultraflat is available in two or three versions: with a minimum installation depth of 63 mm (54 mm up to top of the flange) in the nominal drain sizes DN 40 and DN 50, or with a minimum installation depth of 88 mm (79 mm up to top of the flange) in the nominal drain size DN 50.

Advantages  Article overview

Low installation depth

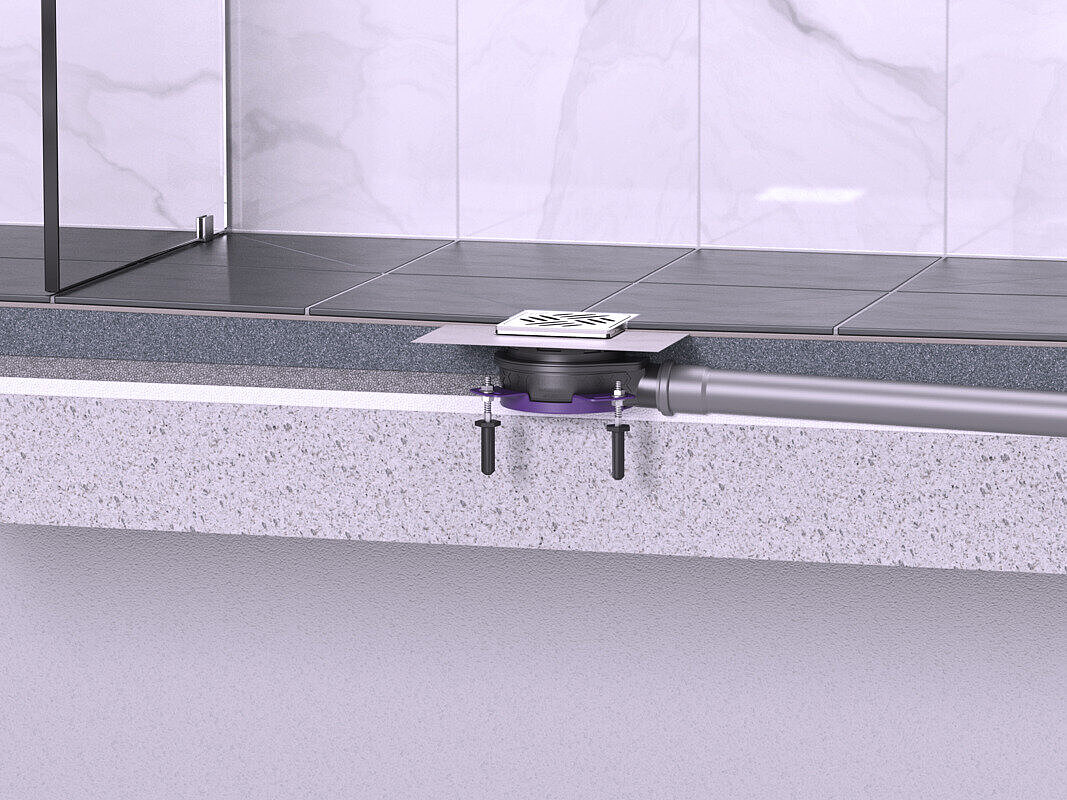

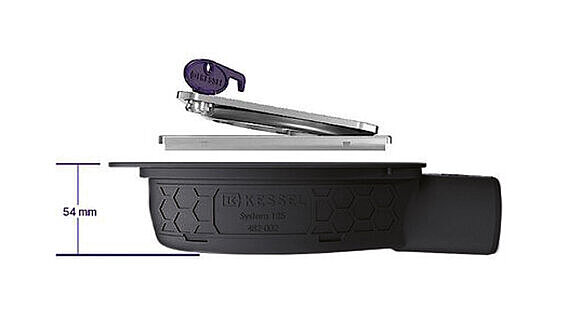

Thanks to its low minimum installation depth of 69 mm – just 54 mm up to the top edge of the flange – the Ultraflat 54 is particularly suitable for barrier-free construction within the scope of renovation projects. But it can of course also be used for new buildings without any problems.

The Ultraflat 79 has an odour trap with a 50 mm sealing water height and is an ultraflat and standard-compliant floor drain with its minimum installation depth of 95 mm – and just 79 mm up to the top of the flange.

A secure waterproofing layer with various waterproofing membranes

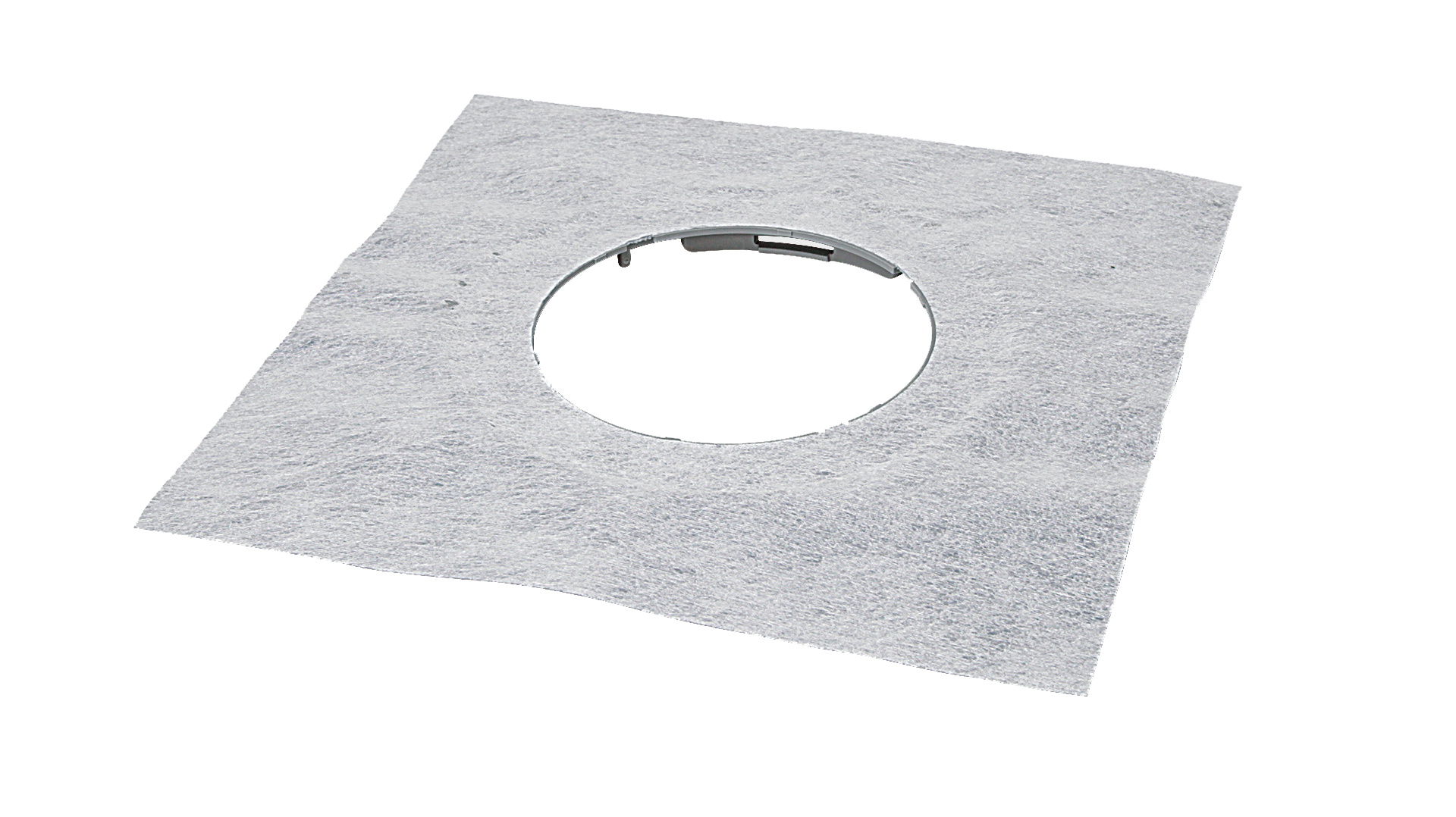

Depending on the requirements, the Ultraflat is supplied with either a factory-fitted or loosely packed waterproofing membrane or with a clip flange.

Odour trap

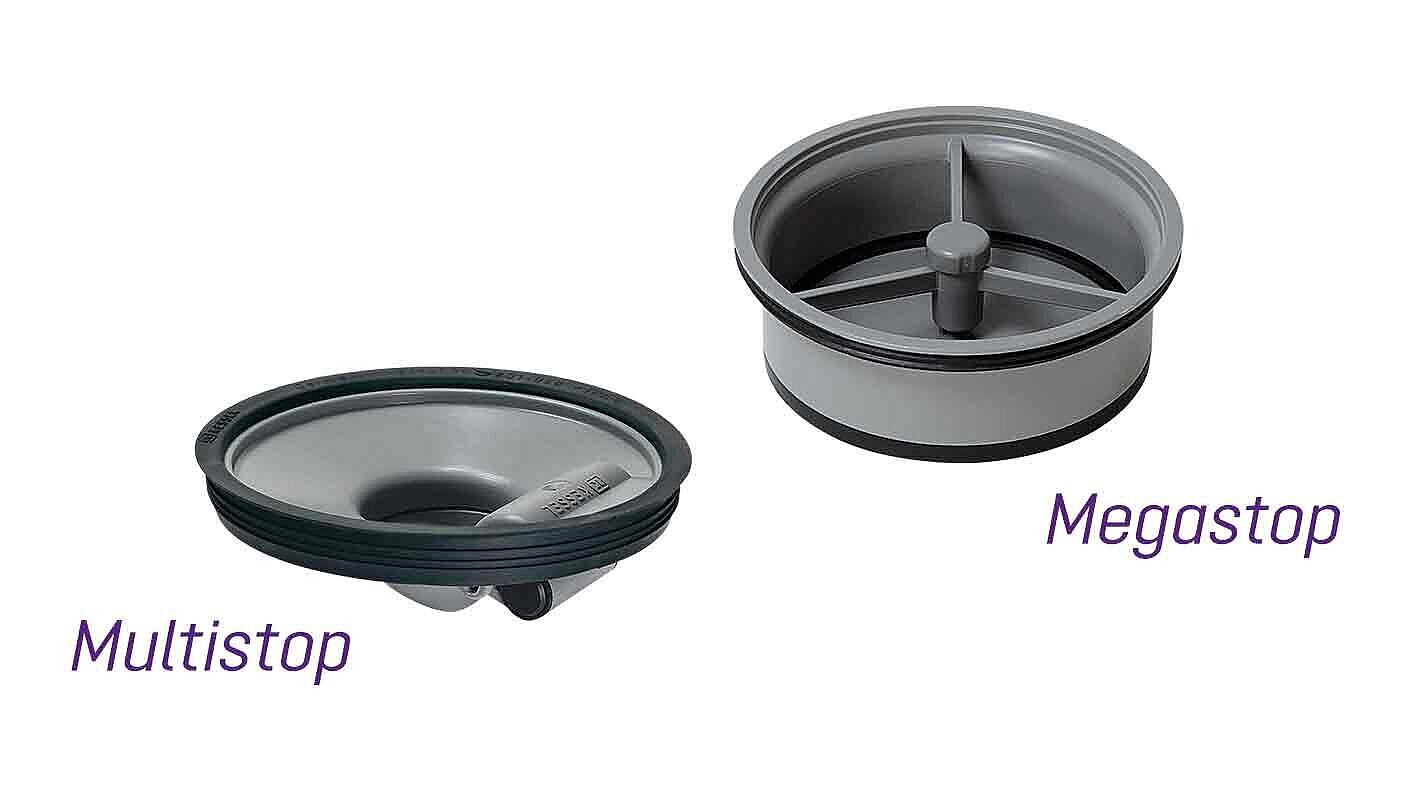

The Ultraflat has a removable odour trap to protect against unpleasant odours from the sewer system. Certain versions can also be optionally equipped with the waterless Multistop odour, foam and rodent stop or the Megastop mechanical odour trap with a water seal. Combined with the Lock & Lift locking and removal device, the Megastop mechanical odour trap can be used as backwater protection up to 0.1 bar.

The Ultraflat drain body

The Ultraflat 79

  Nominal size (DN)Odour trap Item no.
44700 50 included 44700
Show
44701 50 included 44701
Show

The Ultraflat 54

  Nominal size (DN)Odour trap Item no.
44740 40 included 44740
Show
44740M 40 included 44740M
Show
44750
50 included 44750
Show
44750M 50 included 44750M
Show

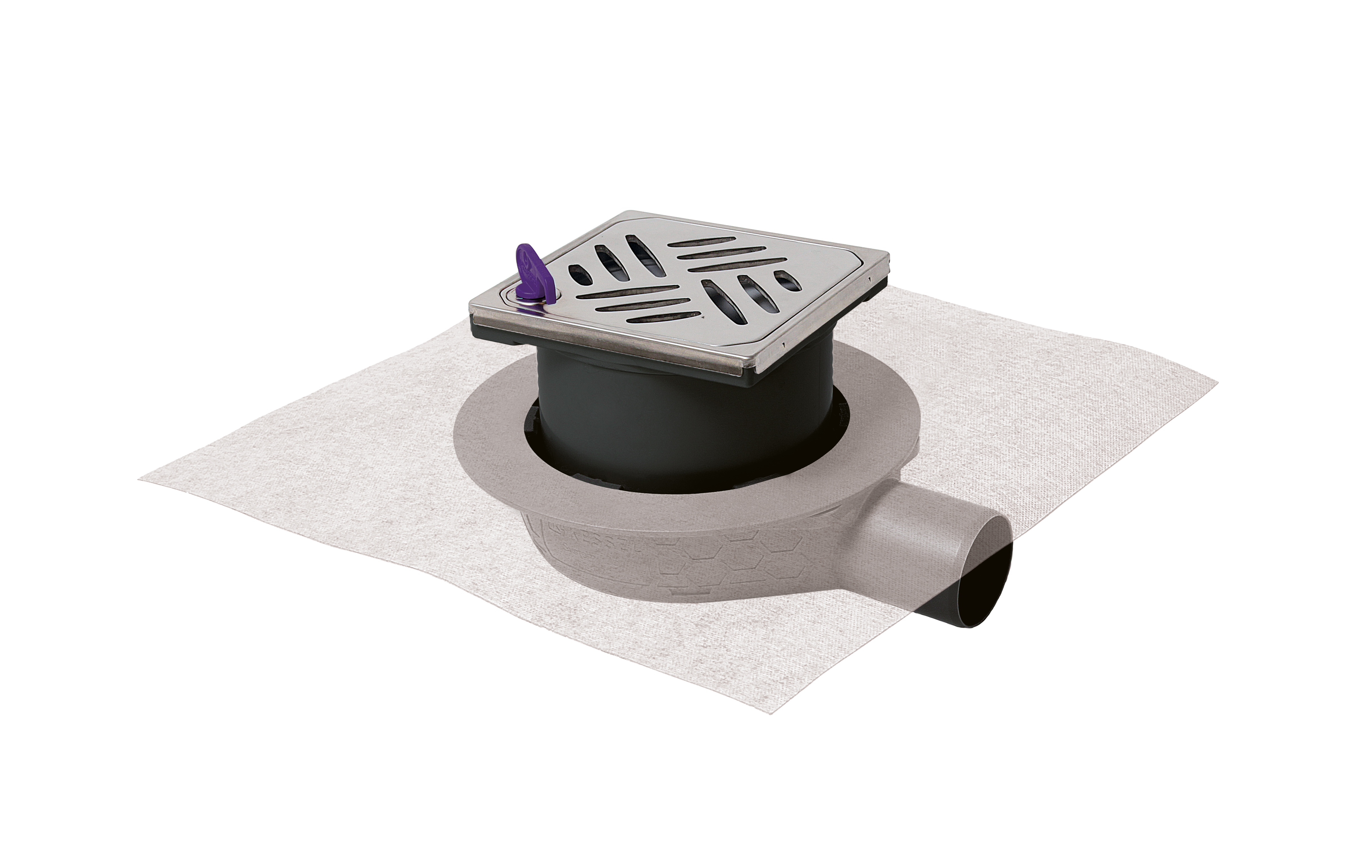

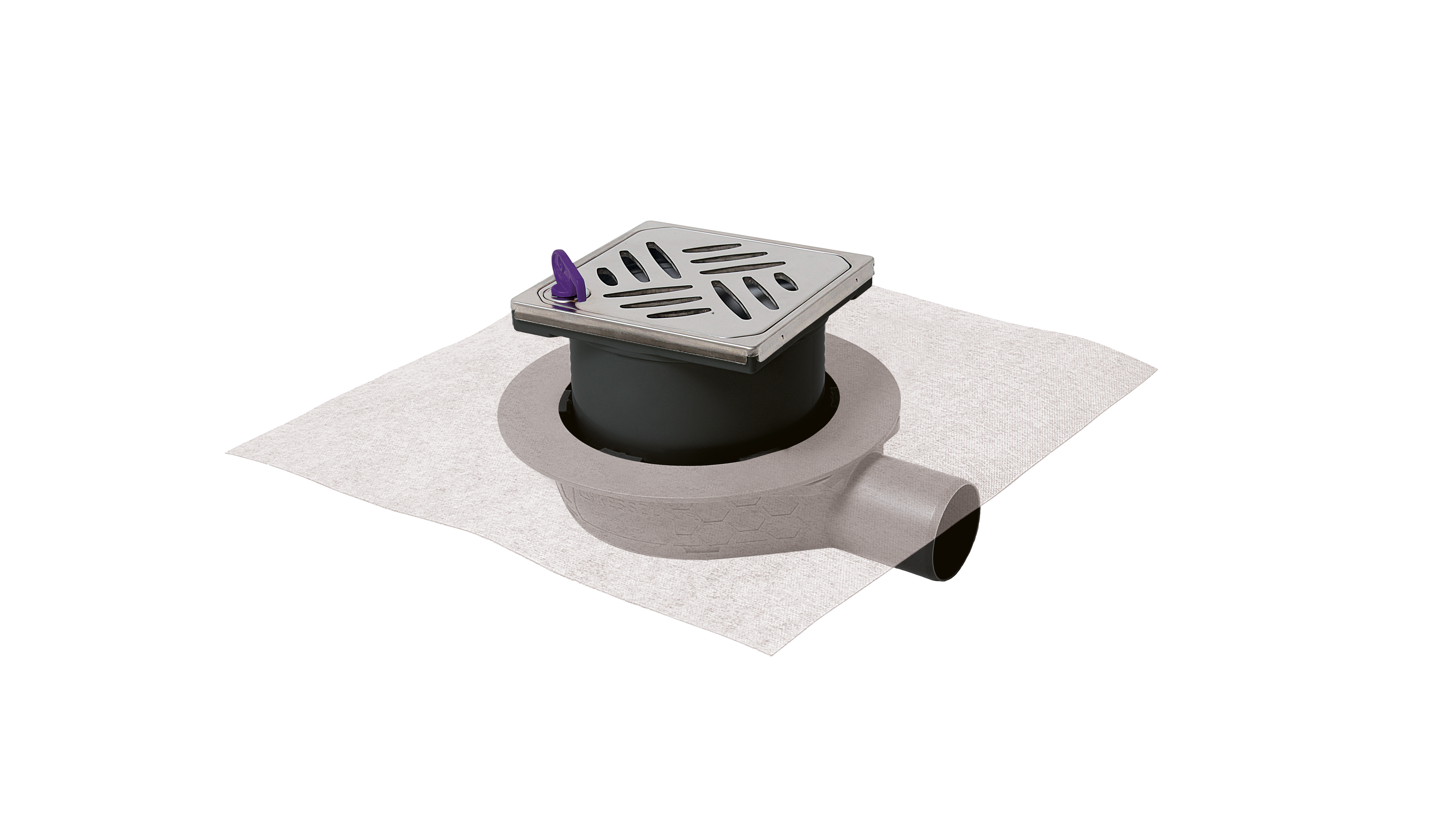

The Ultraflat 54 floor drain

Waterproofing layer on the drain body

  Load classType of coverNominal size (DN)Odour trapCover locking Item no.
44740.20 K 3 (EN 1253-1) Slotted cover 40 included unlocked 44740.20
Show
44740.20M K 3 (EN 1253-1) Slotted cover 40 included unlocked 44740.20M
Show
44740.62 L 15 (EN 1253-1) Design cover 40 included unlocked 44740.62
Show
44740.62M L 15 (EN 1253-1) Design cover 40 included unlocked 44740.62M
Show
44740.63 L 15 (EN 1253-1) Design cover 40 included Lock & Lift 44740.63
Show
44740.63M L 15 (EN 1253-1) Design cover 40 included Lock & Lift 44740.63M
Show
44740.66M L 15 (EN 1253-1) Design cover 40 Megastop Lock & Lift 44740.66M
Show
44750.20 K 3 (EN 1253-1) Slotted cover 50 included unlocked 44750.20
Show
44750.20M K 3 (EN 1253-1) Slotted cover 50 included unlocked 44750.20M
Show
44750.62 L 15 (EN 1253-1) Design cover 50 included unlocked 44750.62
Show
44750.62M L 15 (EN 1253-1) Design cover 50 included unlocked 44750.62M
Show
44750.63 L 15 (EN 1253-1) Design cover 50 included Lock & Lift 44750.63
Show
44750.63M L 15 (EN 1253-1) Design cover 50 included Lock & Lift 44750.63M
Show

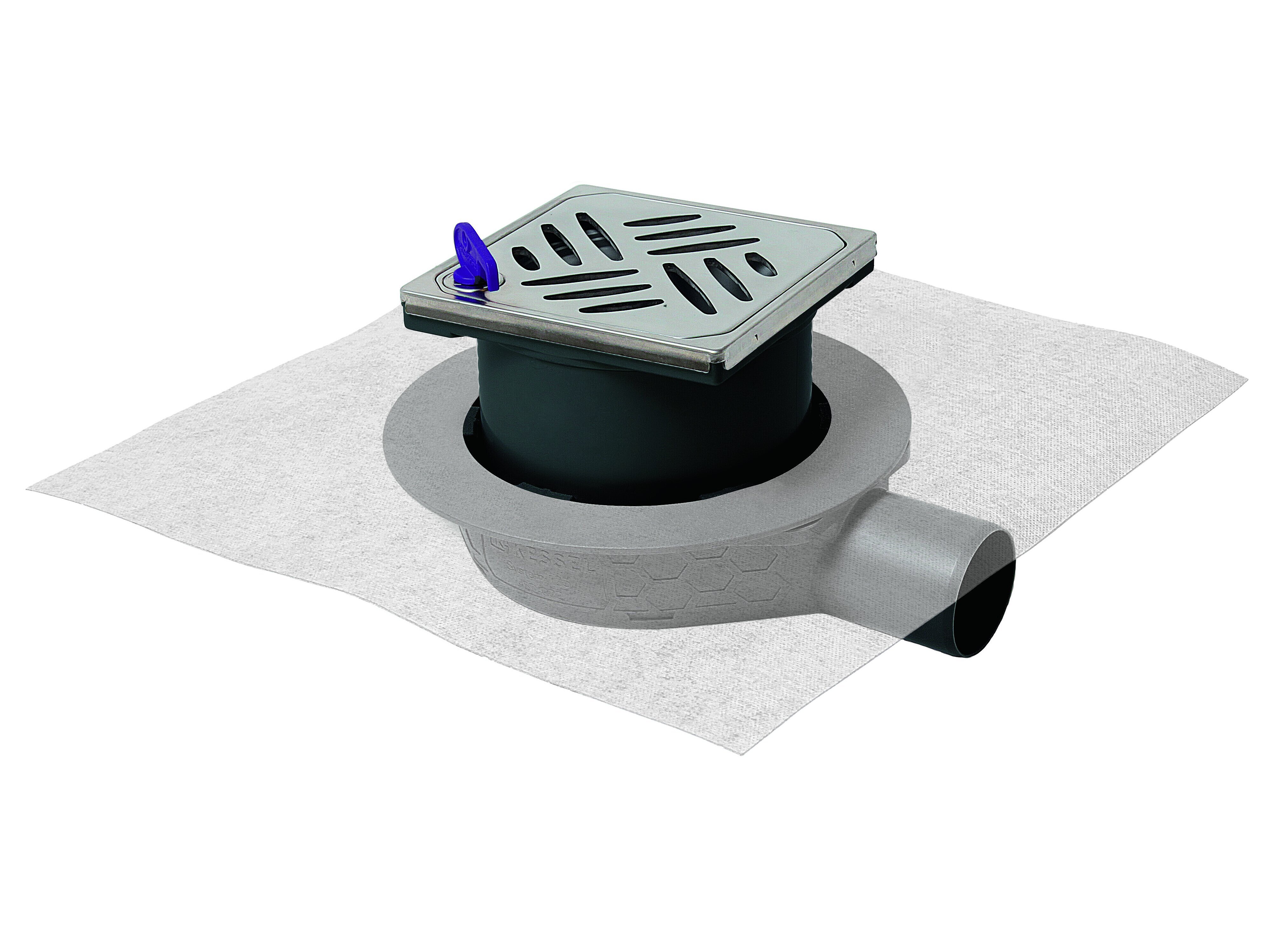

44750.66M L 15 (EN 1253-1) Design cover 50 Megastop Lock & Lift 44750.66M
Show

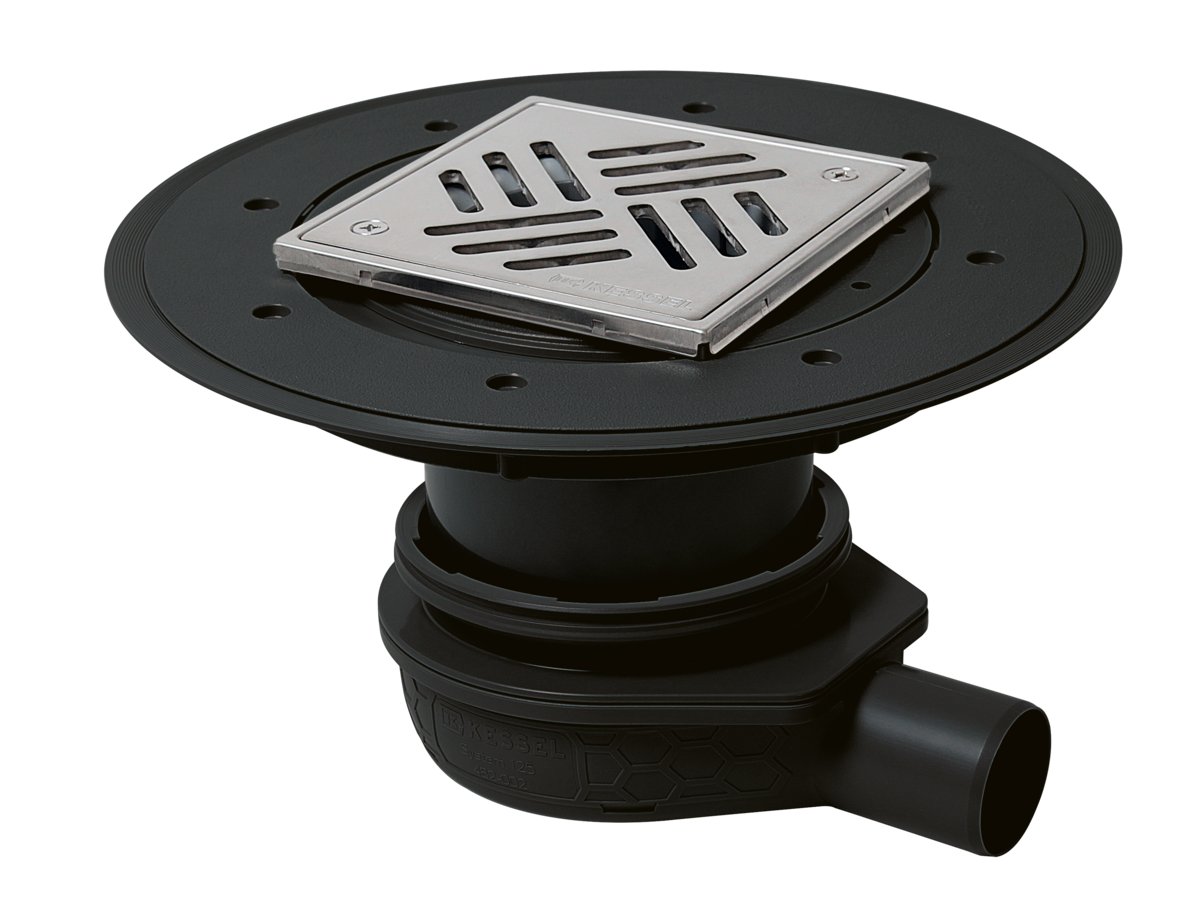

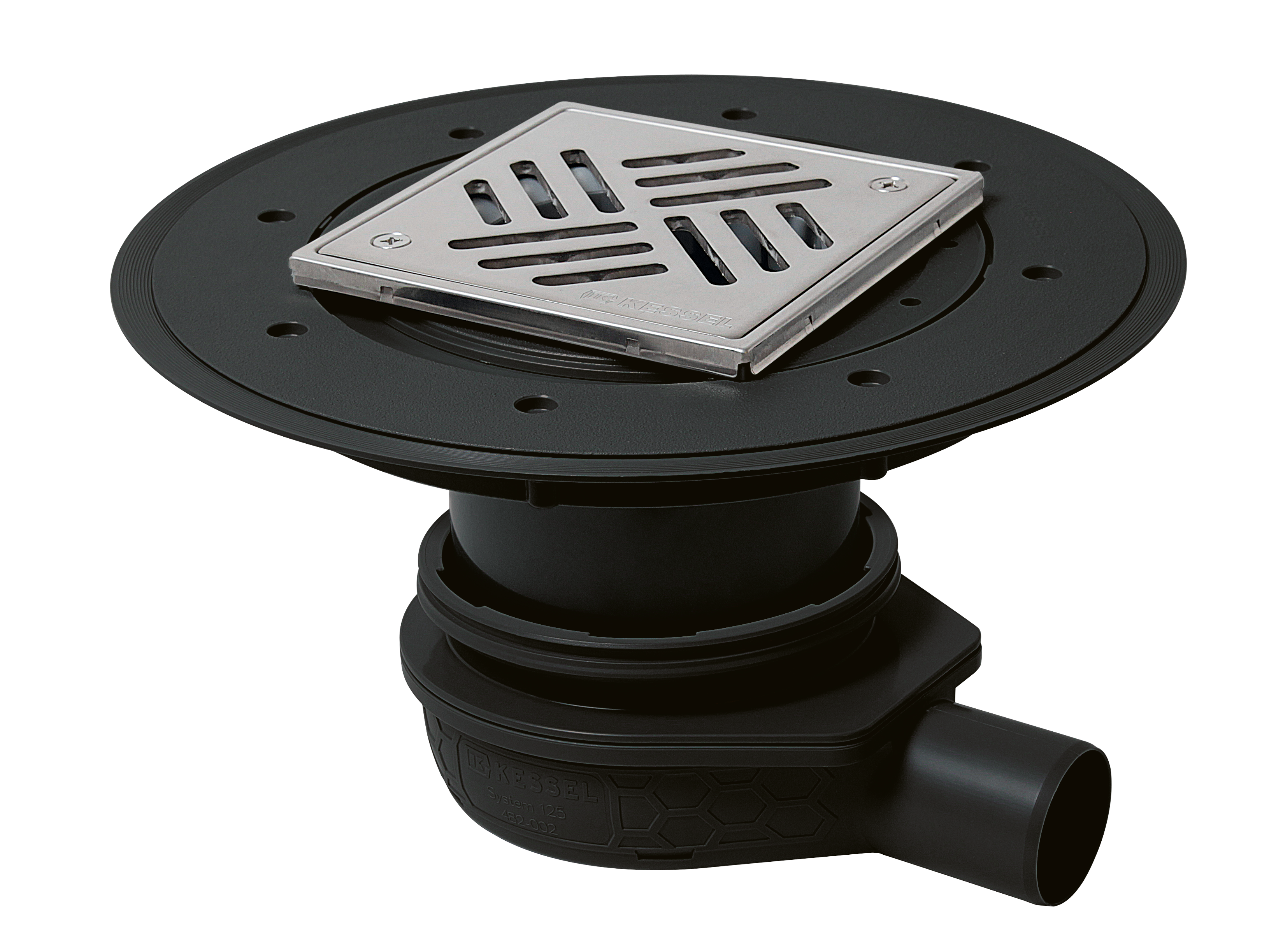

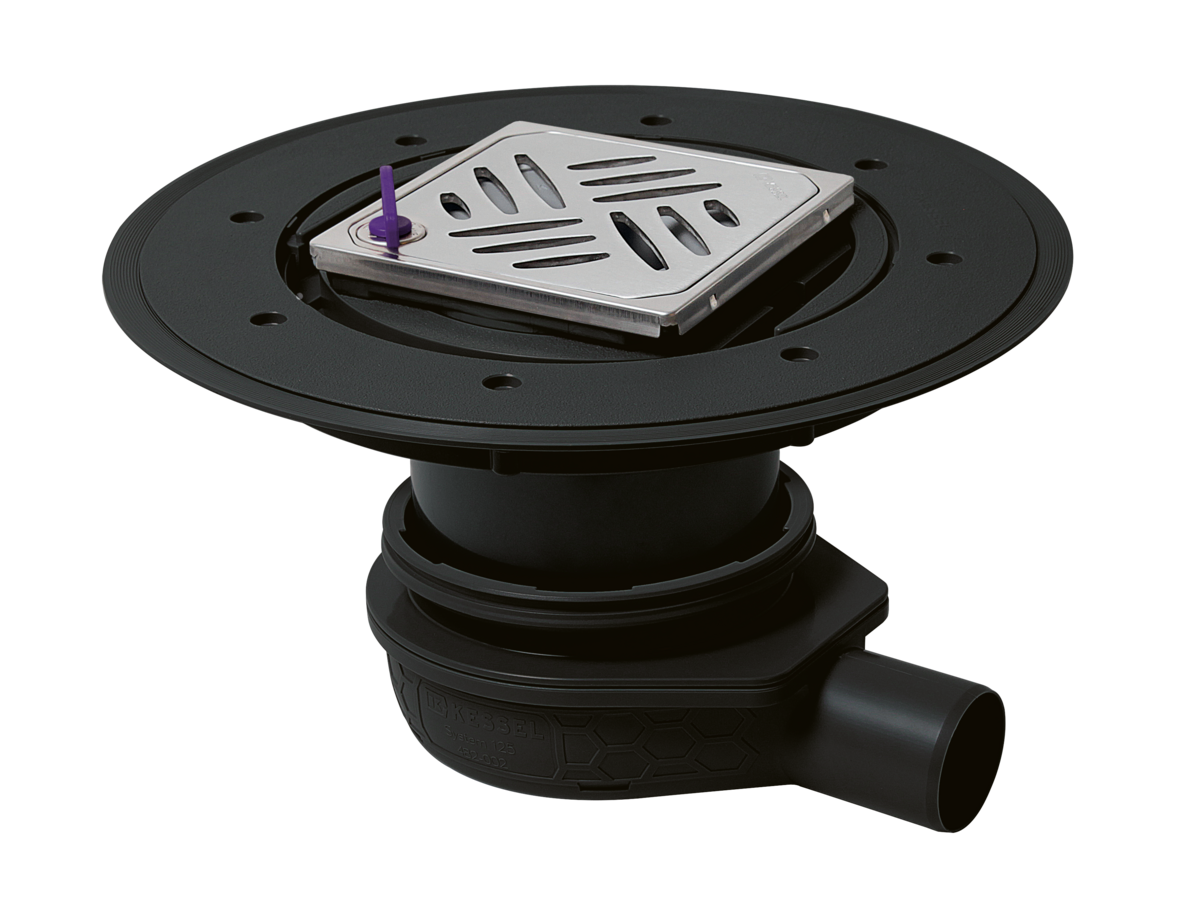

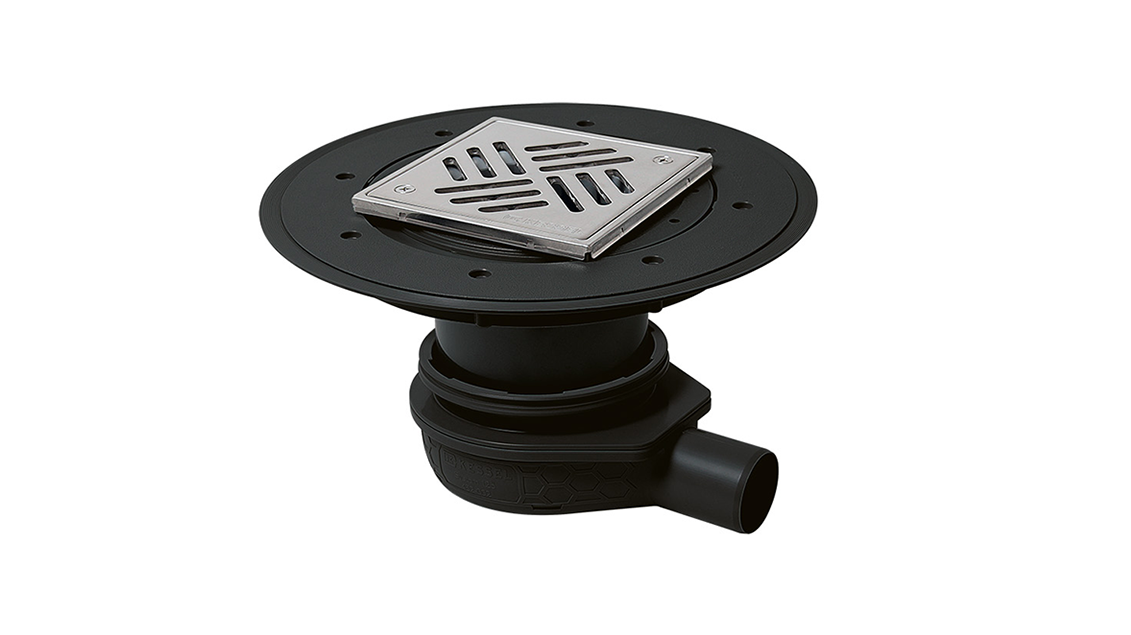

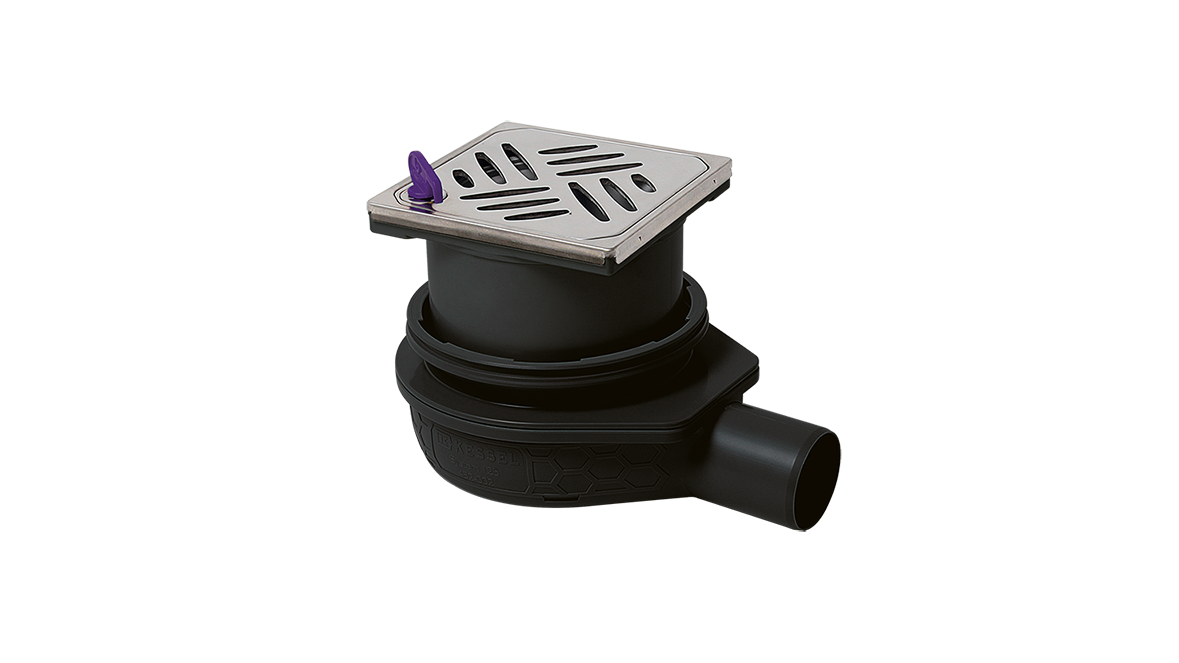

The Ultraflat 79 floor drain

Waterproofing layer on the drain body: Clip flange with factory-mounted waterproofing membrane

  Load classType of coverNominal size (DN)Odour trapCover locking Item no.
44700.51 K 3 (EN 1253-1) Slotted cover 50 included screwed 44700.51
Show
44700.52 L 15 (EN 1253-1) Design cover 50 included unlocked 44700.52
Show

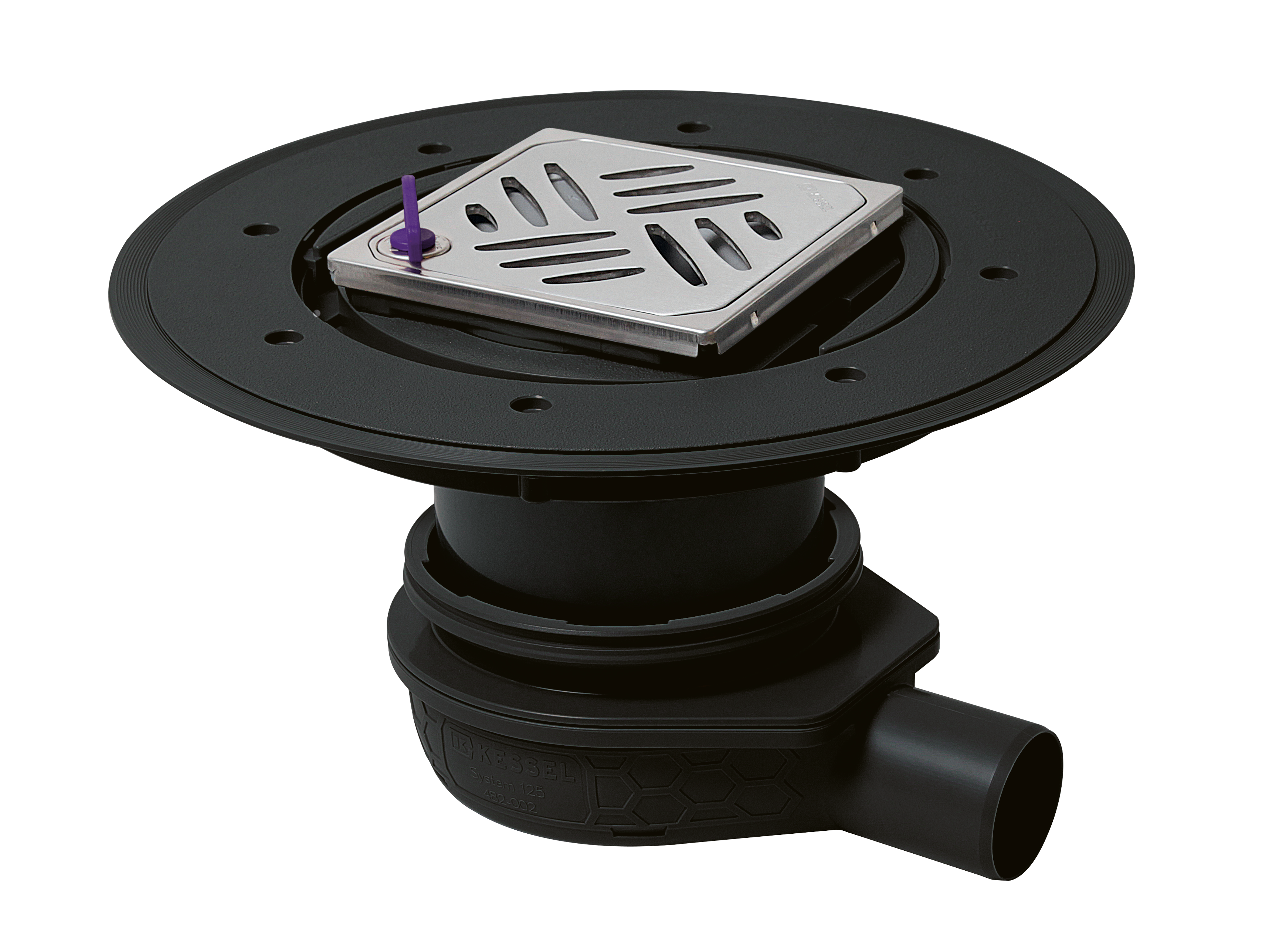

44700.53 L 15 (EN 1253-1) Design cover 50 included Lock & Lift 44700.53
Show

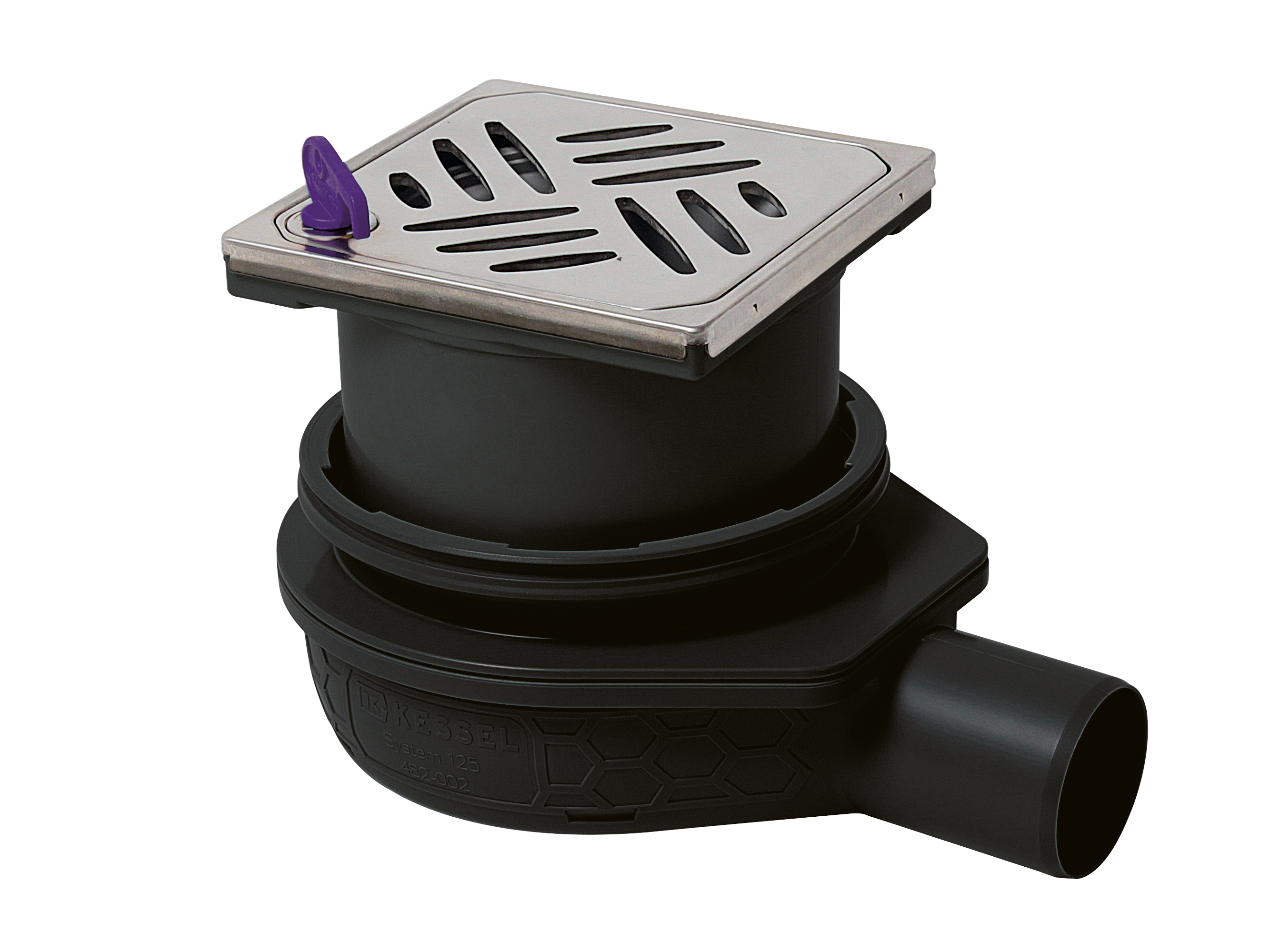

Without waterproofing layer

  Load classType of coverNominal size (DN)Odour trapCover locking Item no.
44700.20 K 3 (EN 1253-1) Slotted cover 50 included unlocked 44700.20
Show
44700.20M K 3 (EN 1253-1) Slotted cover 50 included unlocked 44700.20M
Show
44700.62 L 15 (EN 1253-1) Design cover 50 included unlocked 44700.62
Show
44700.63 L 15 (EN 1253-1) Design cover 50 included Lock & Lift 44700.63
Show

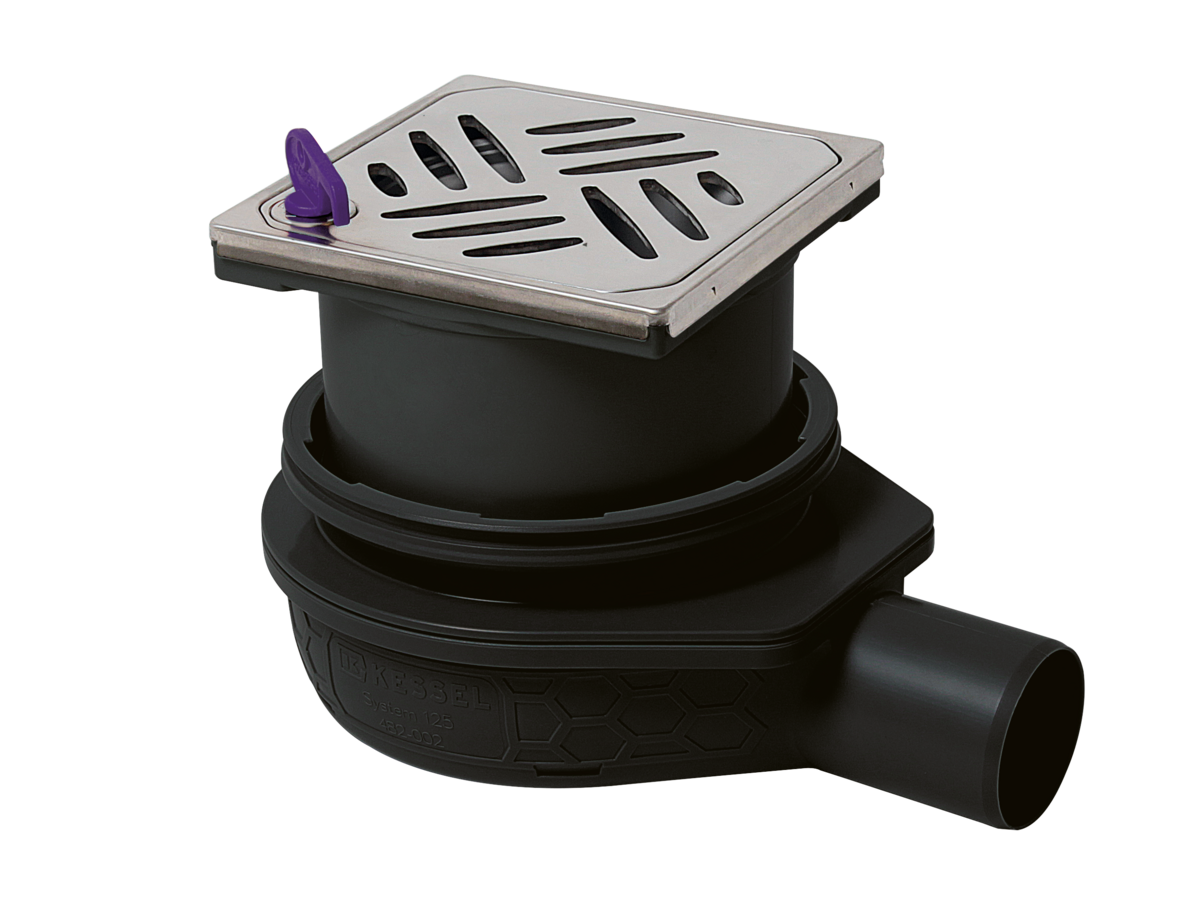

44700.66 L 15 (EN 1253-1) Design cover 50 Megastop Lock & Lift 44700.66
Show

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Individual solutions
