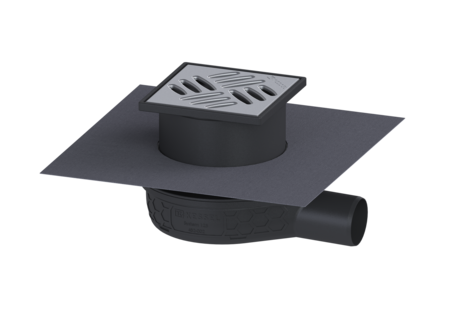

The Ultraflat 79 floor drain

DN 50, Clip flange, Slotted grating

KESSEL The Ultraflat 79 floor drain, cover length 120 mm, socket lateral, nominal size (DN) 50, volume 6,51 dm³, type of cover Slotted cover, locking unlocked, design cover, Sealing water height 50 mm

  • Low installation depth
  • Scientifically confirmed sound insulation effect
  • different design covers
Item no. 44700.20M
GTIN 4026092082782
Price group 10

    The Ultraflat 79 floor drain DN 50, Clip flange, Slotted grating
    The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 SonicControl: optional Waterproofing layer on the drain body: Clip flange with factory-mounted waterproofing membrane Water supply: W3-I Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Vertical adjustment: 88 - 139 mm Net weight: 0,76 kg Gross weight: 0,76 kg Vertical adjustment: vertically adjustable upper section Length: 227 mm Width: 163 mm Height: 82 mm Packaging dimension: length: 220 mm Packaging dimension: width: 160 mm Packaging dimension: height: 185 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel Colour of cover: silver Width of cover: 120 mm Height of cover: 9 mm Length of cover: 120 mm Surface: Polished SST Frame material: Polymer Cover locking: unlocked Load class: K 3 (EN 1253-1) Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
    Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    Slotted cover 120x120 mm, stainless steel 680243 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Slotted cover
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Cover locking (verriegelung): unlocked
    • Odour trap (geruchsverschluss): included
