Hybrid lifting station

Ecolift XL

The powerful version for commercial applications and multi-family homes

The Ecolift XL is a larger and more powerful version of the Ecolift. The hybrid lifting station is, therefore, ideal for commercial buildings and multi-family homes.

With a power rating of up to 4.5 kW, the Ecolift XL can reliably pump the wastewater away even working against the backwater pressure. Up to two motor-driven closure systems provide the closure to the sewer. However, this is only necessary in the event of backwater. In normal operation, it does not pump and instead makes use of the natural gradient.

The Ecolift XL is installed exposed or in an underground engineering chamber. It is available with various pump performance classes, some for a 230 V connection, some for 400 V. The variants with one motor-driven closure system are suitable for grey water and those with two for black water.

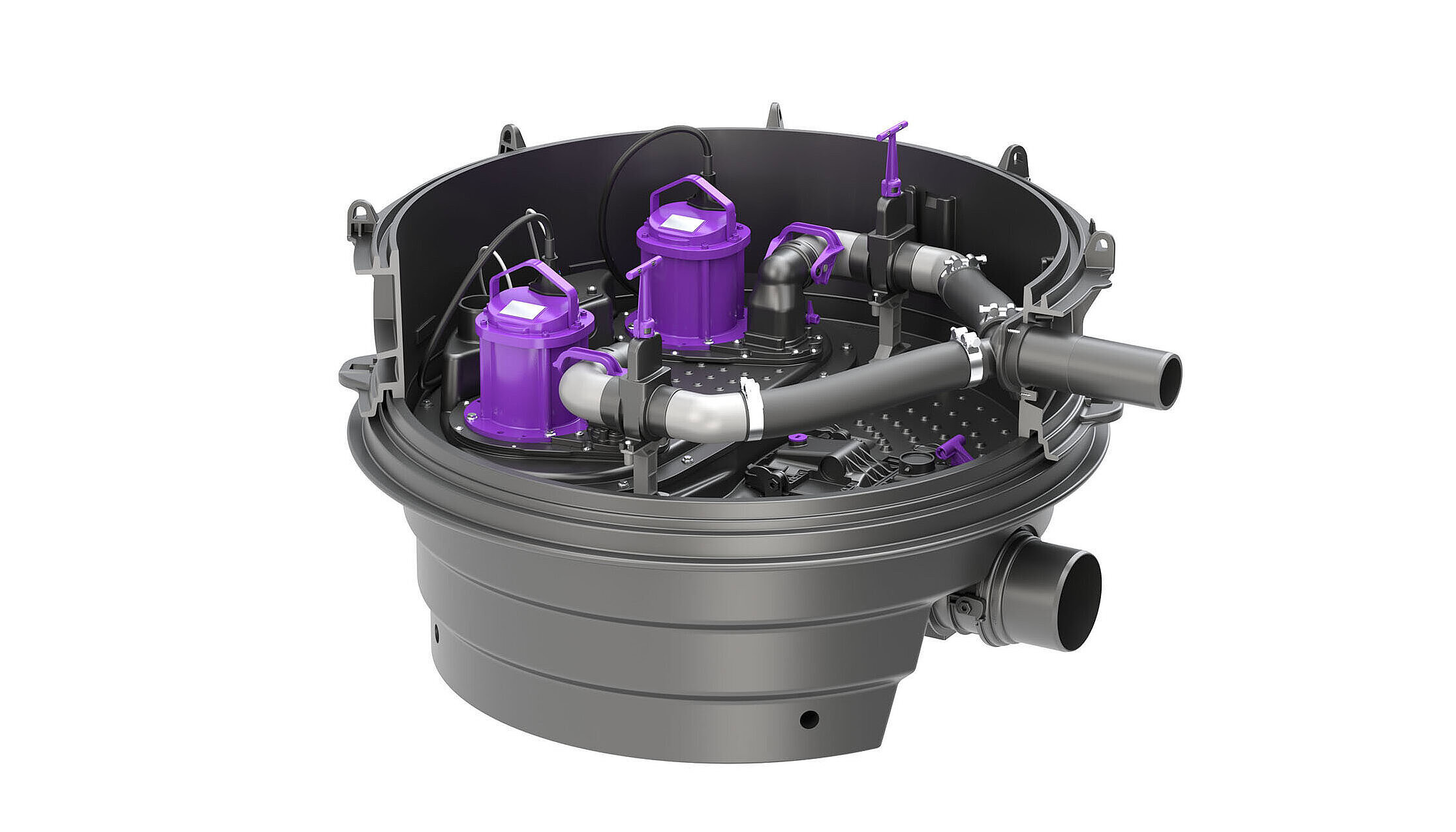

Hybrid lifting station Ecolift XL, dry installation

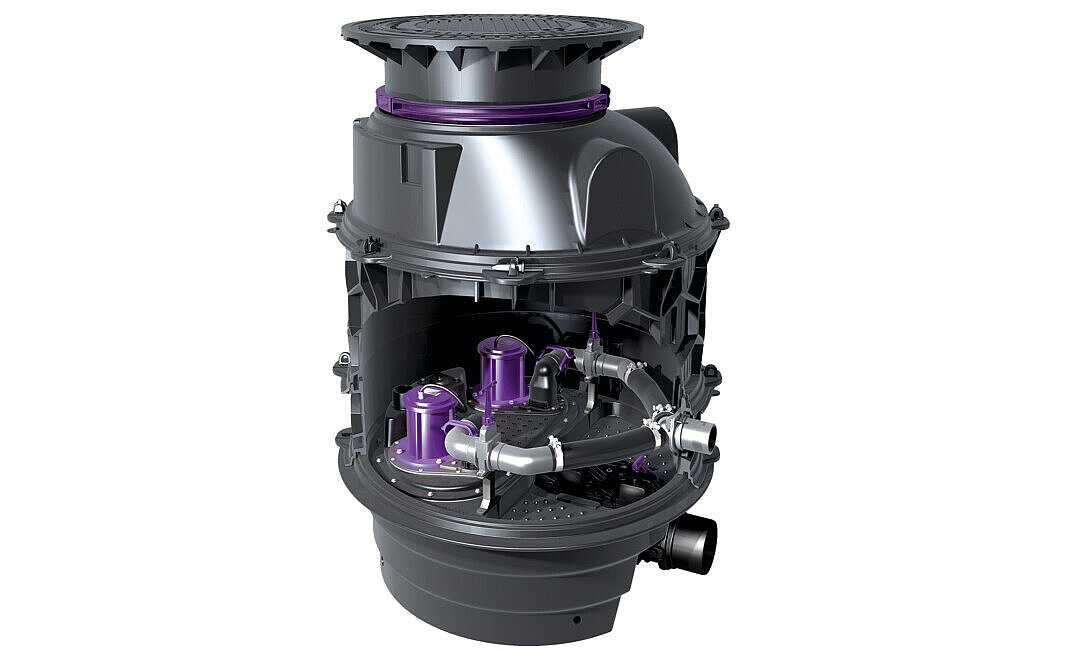

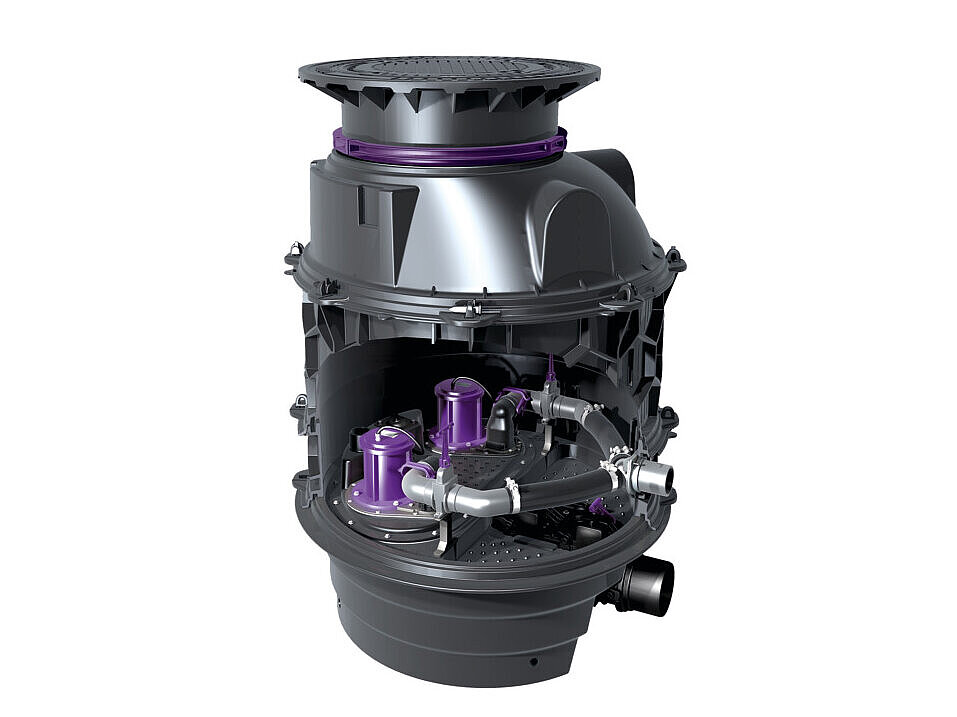

Hybrid lifting station Ecolift XL, dry installation, in a chamber

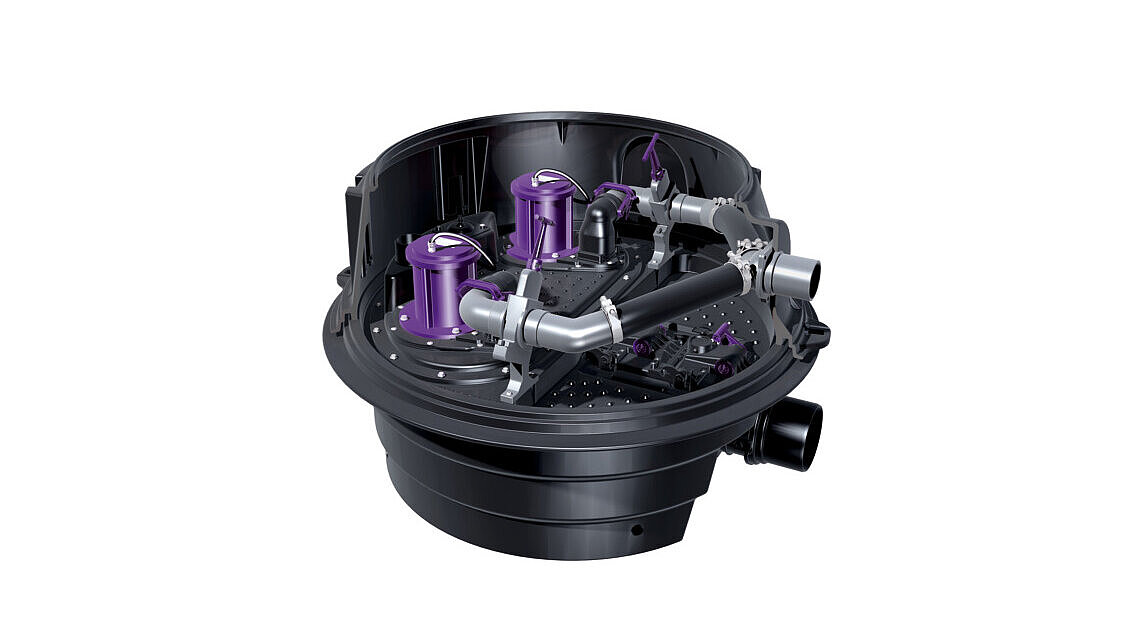

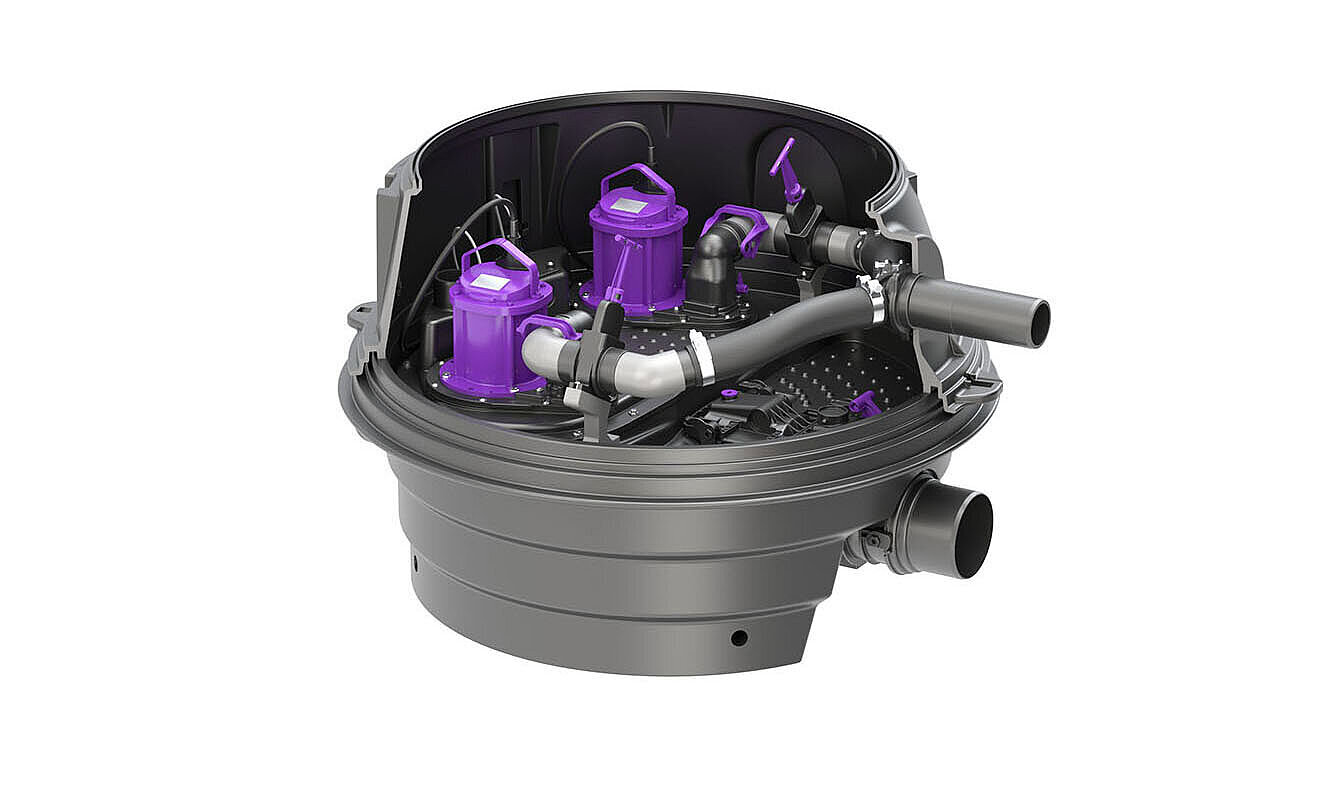

Hybrid lifting station Ecolift XL, for very low installation, dry installation
Hybrid lifting station Ecolift XL, for very low installation, dry installation, in a chamber

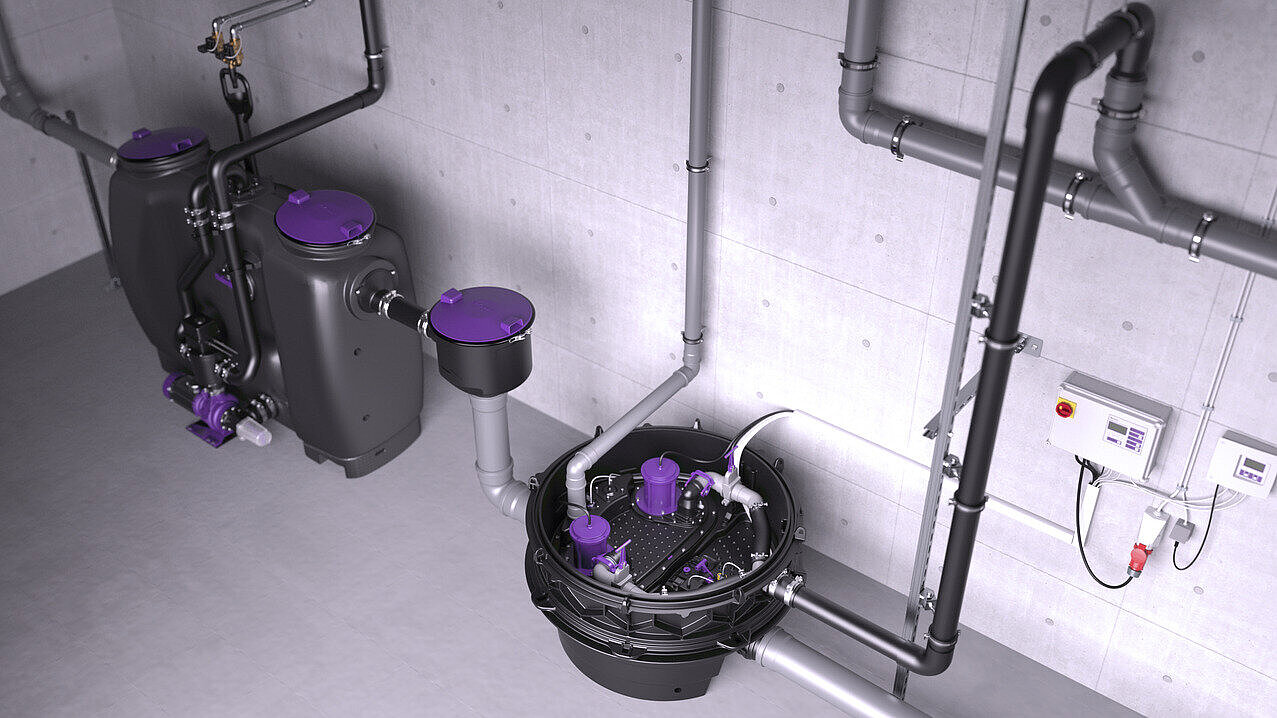

Ecolift XL hybrid lifting system for free-standing installation downstream of a grease separator inside the building.

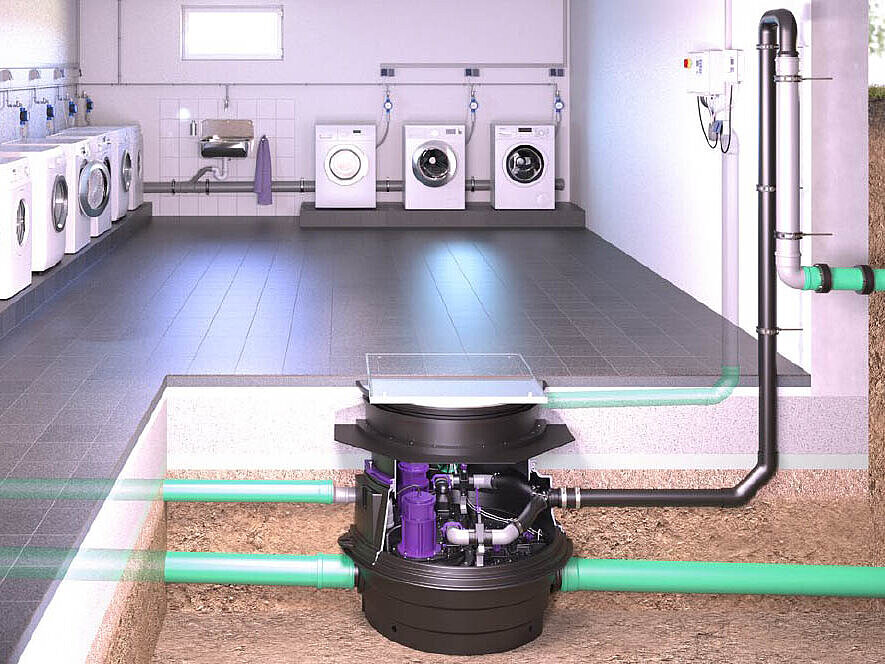

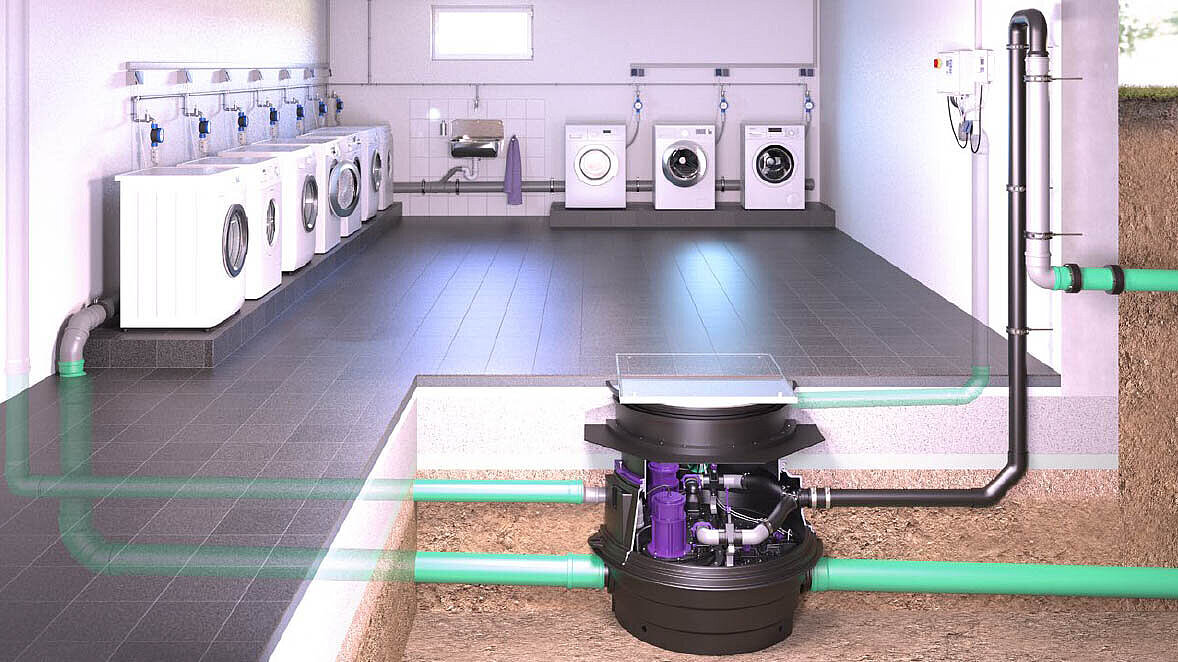

Installation in the floor slab in an apartment block.

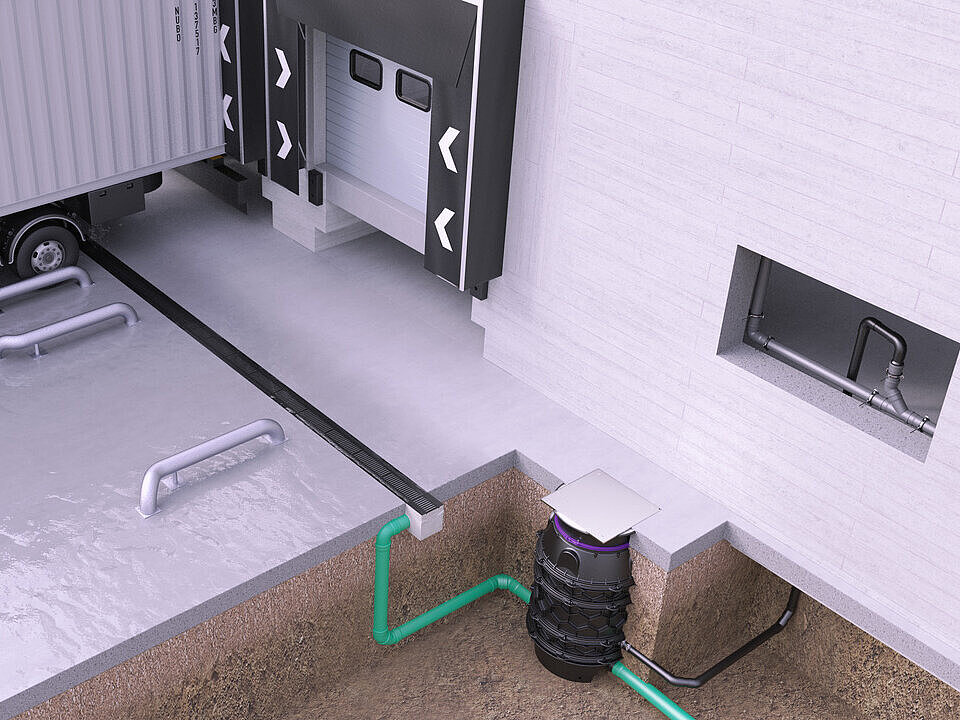

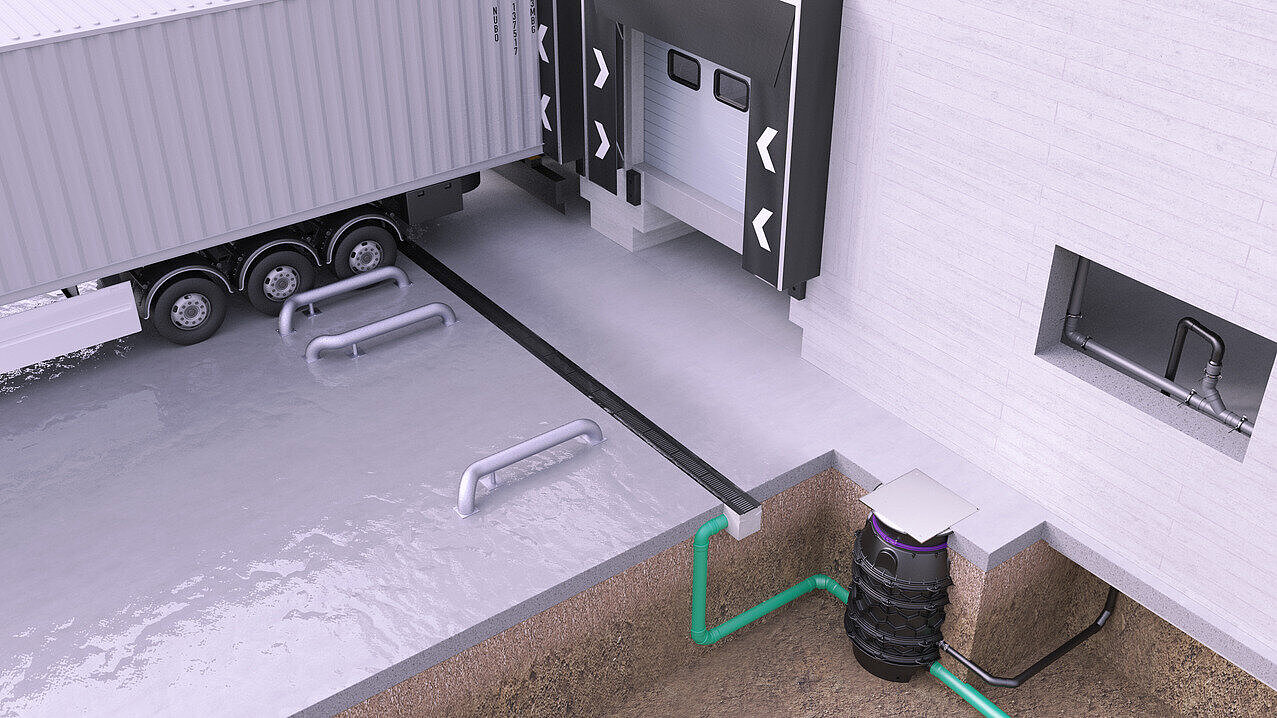

Ecolift XL hybrid lifting system for underground installation with technology shaft module, next to a loading ramp.

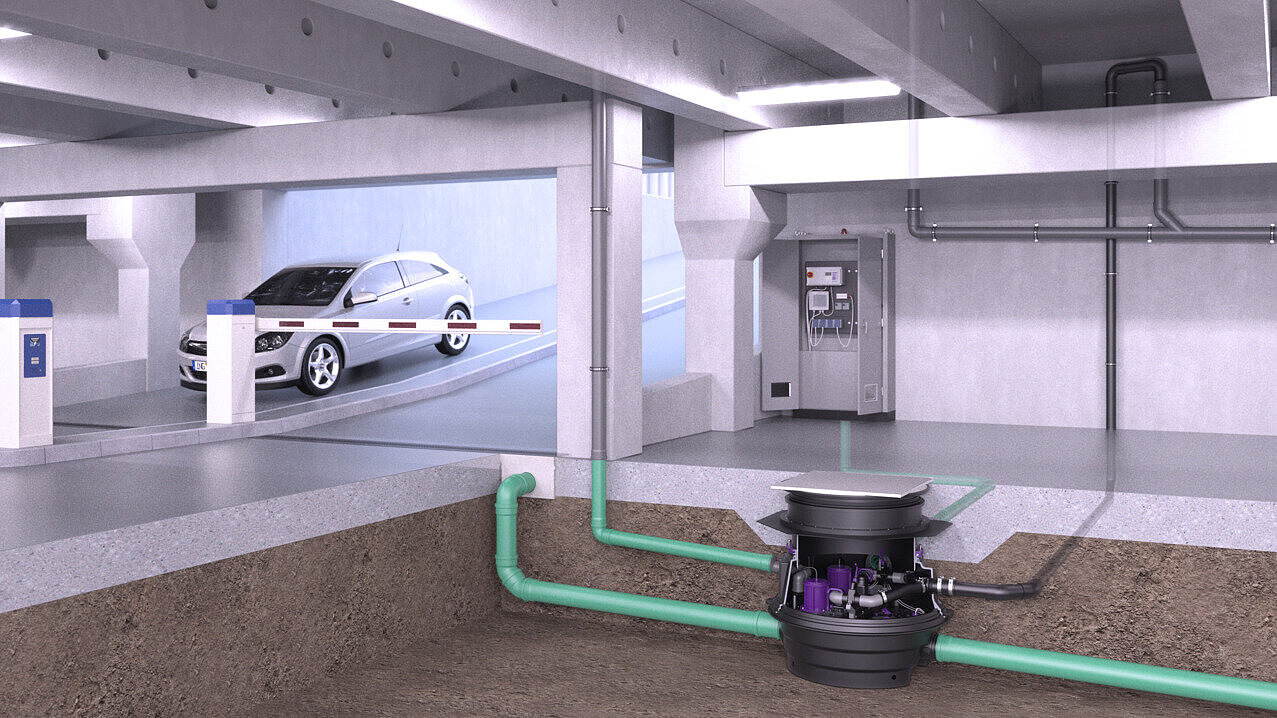

Ecolift XL hybrid lifting system for installation in the floor slab in an underground car park.

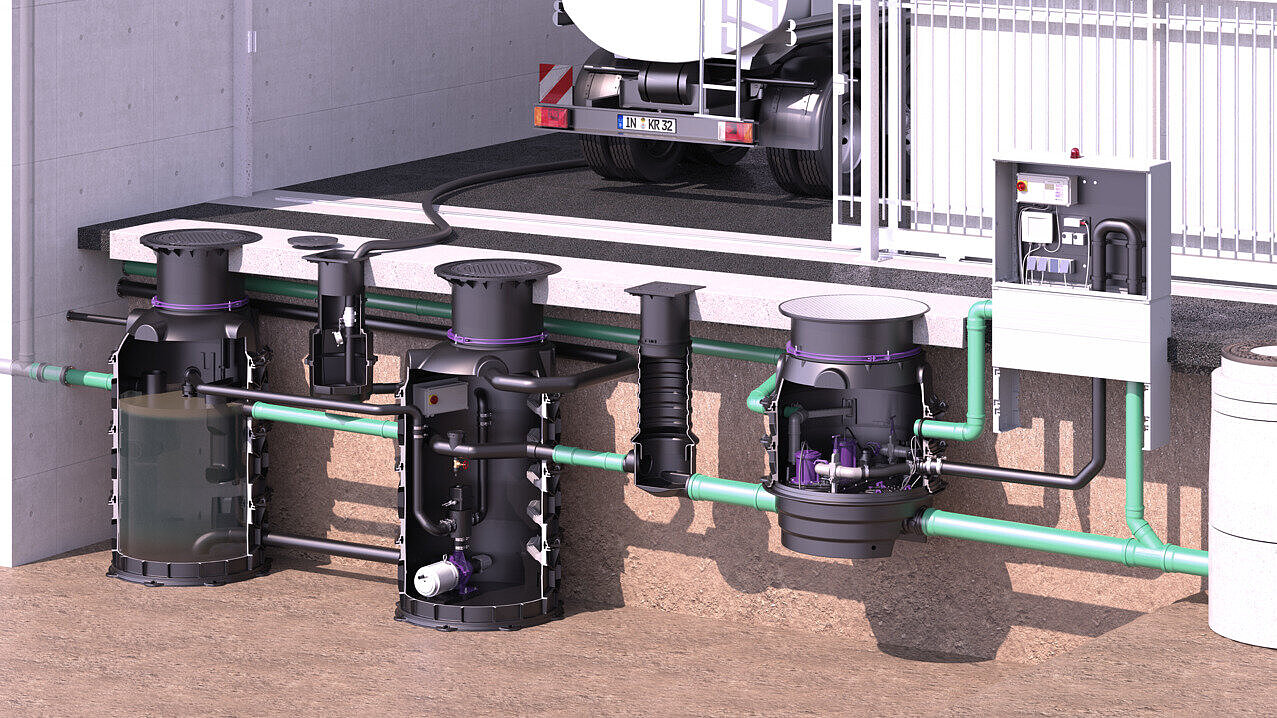

Ecolift XL hybrid lifting system downstream of a grease separator, installed in the ground.

Application possibilities

The Ecolift XL can be used very flexibly. Whether free-standing inside the building or in the service shaft outside the building, with low or normal installation height. Combined with our technical shaft modules, you will find the right combination for your project.

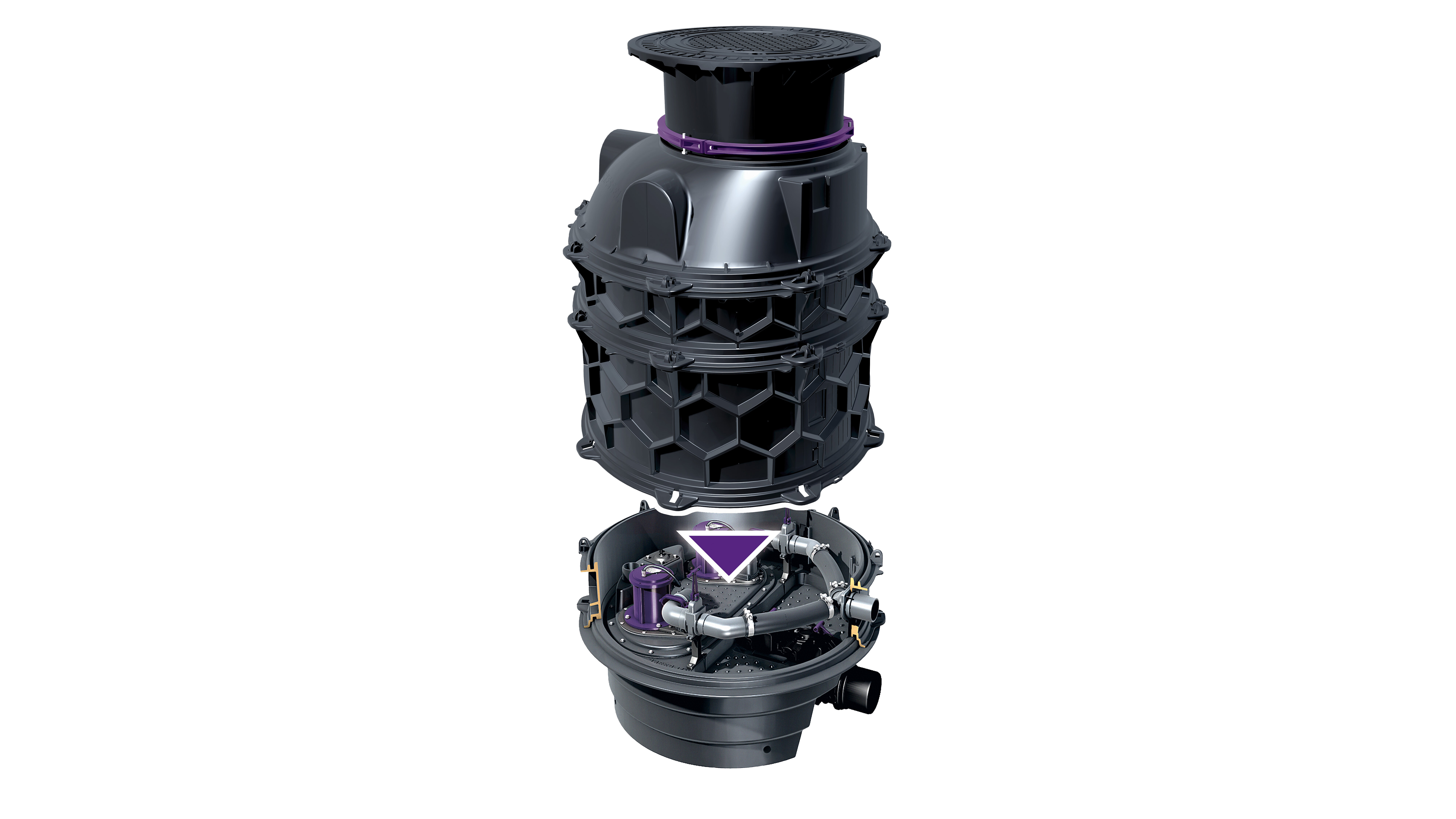

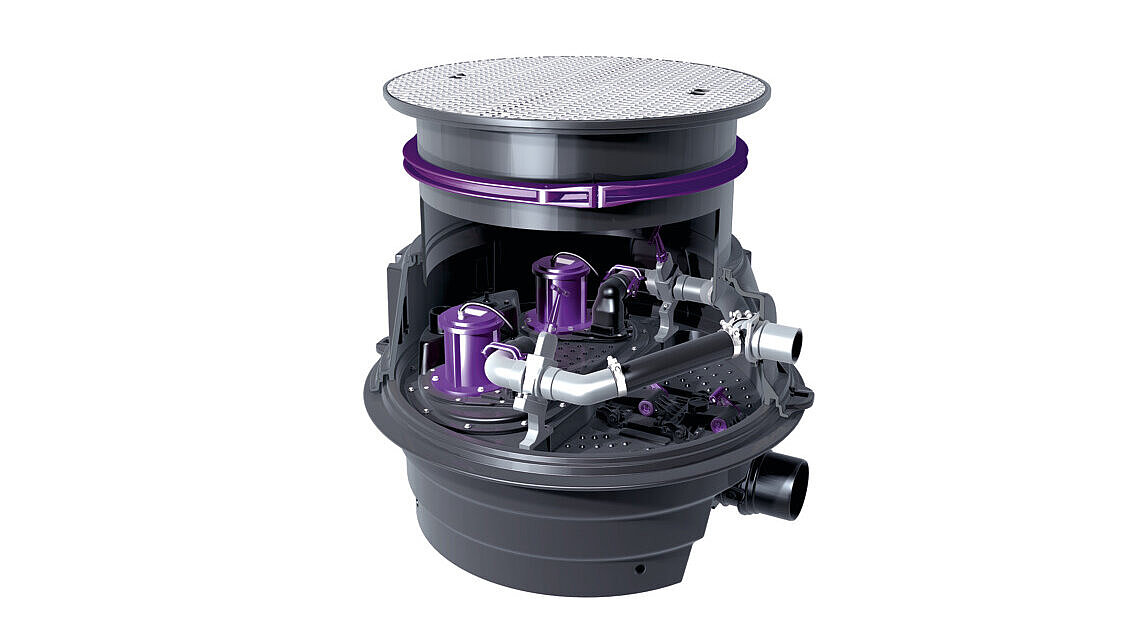

Hybrid lifting station Ecolift XL with an engineering chamber upper section

Flexible installation

Thanks to the modular construction and the large selection of chamber modules and upper sections, the Ecolift XL can be installed exposed, underground or also in concrete. The modules are groundwater-resistant to a depth of 3,000 mm.

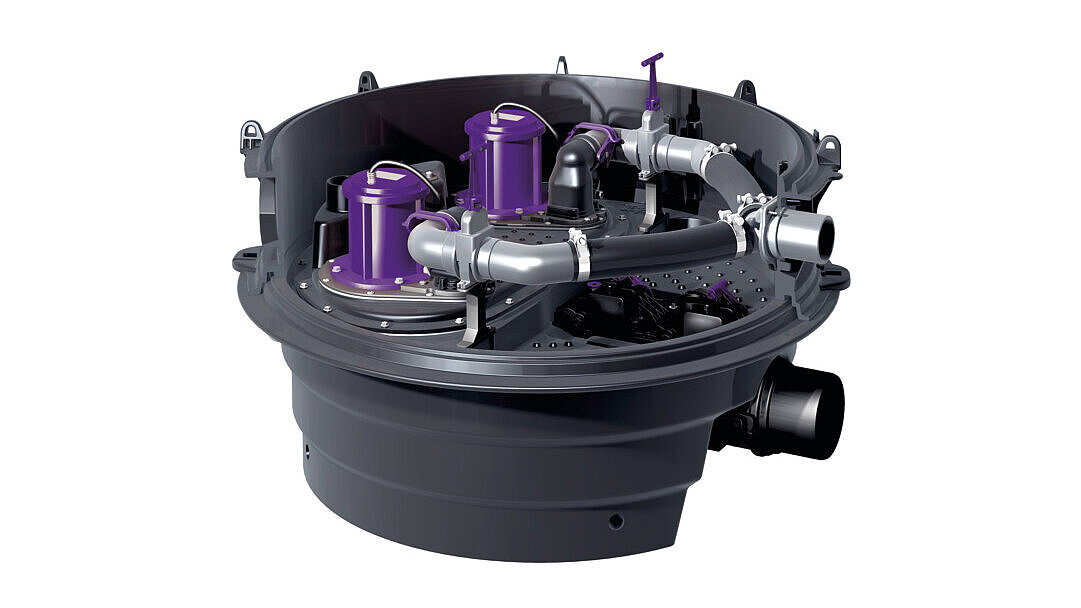

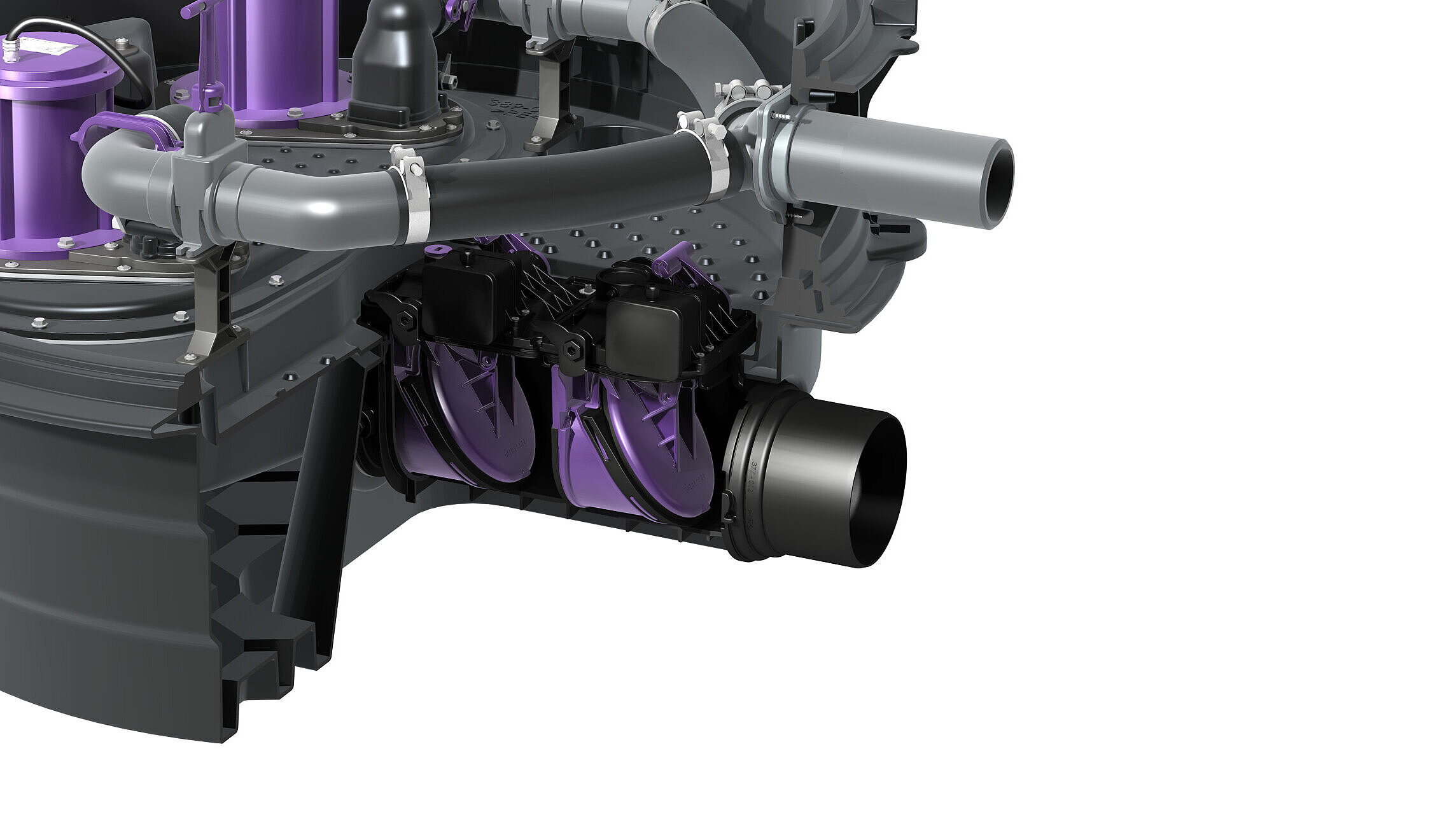

hybrid lifting station with two motorized flaps

Safety

The Ecolift XL not only has particularly powerful pumps but also has up to two motor-driven closure systems, which ensure a reliable separation between the sewer and the building in the event of backwater. The pneumatic level measurement and an alarm sensor guarantees additional safety.

DGNB logo

Sustainability confirmed by experts

The Ecolift's energy consumption is 90% lower compared to conventional lifting stations and at the same time higher operational reliability is also convincing for sustainability experts: At the DGNB Sustainability Challenge, the annual prize competition run by the German Society for Sustainable Building, our hybrid lifting station was ranked among the top 3 product and service innovations of the year. This confirms to us that the “direct route” is the right one!

SmartSelect design tool on a laptop

Find the right hybrid lifting station with SmartSelect

Make it easier to choose the right product! Use our handy SmartSelect planning tool, answer step-by-step questions about the type of wastewater, delivery head, resistance, etc., and find the perfect product.



Go to SmartSelect

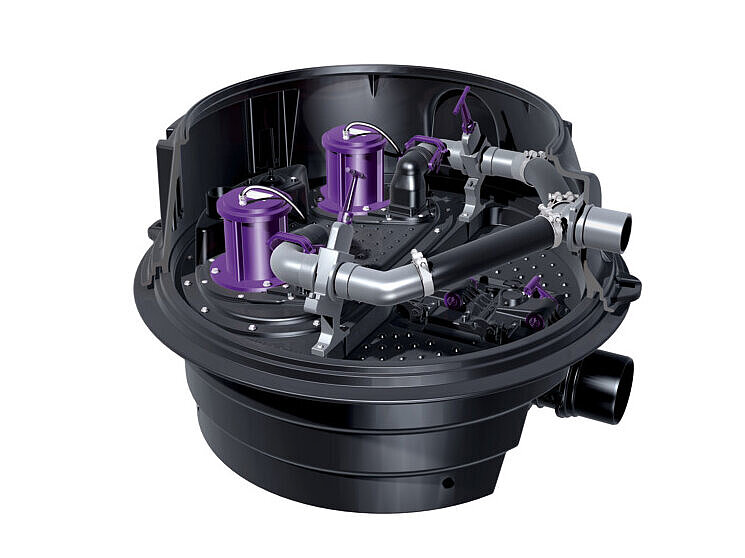

Backwater lifting station Ecolift XL - Version with lowest installation height


Single station

  PumpType of wastewaterControl unitAlarm sensorType of level measurement Item no.
87410408741040 SPF 1400-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741040
Show
87410418741041 SPF 1500-S1 without sewage Comfort Plus optical probe pneumatic 8741041
Show
87410428741042 SPF 3000-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741042
Show
87410438741043 SPF 4500-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741043
Show

  PumpOperating voltage Item no.
87410448741044 SPF 1400-S3 EcoXL 230  V 8741044
Show
87410458741045 SPF 1500-S1 400  V 8741045
Show
87410468741046 SPF 3000-S3 EcoXL 400  V 8741046
Show
87410478741047 SPF 4500-S3 EcoXL 400  V 8741047
Show

  PumpOperating voltage Item no.
87410488741048 SPF 1400-S3 EcoXL 230  V 8741048
Show
87410498741049 SPF 1500-S1 400  V 8741049
Show
87410508741050 SPF 3000-S3 EcoXL 400  V 8741050
Show
87410518741051 SPF 4500-S3 EcoXL 400  V 8741051
Show

Twin pump station

  PumpType of wastewaterControl unitAlarm sensorType of level measurement Item no.
87410528741052 SPF 1400-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741052
Show
87410538741053 SPF 1500-S3 without sewage Comfort Plus optical probe pneumatic 8741053
Show
87410548741054 SPF 3000-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741054
Show
87410558741055 SPF 4500-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741055
Show
87410568741056 SPF 1400-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741056
Show
87410578741057 SPF 1500-S1 without sewage Comfort Plus optical probe pneumatic 8741057
Show
87410588741058 SPF 3000-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741058
Show
87410598741059 SPF 4500-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741059
Show

  PumpOperating voltage Item no.
87410608741060 SPF 1400-S3 EcoXL 230  V 8741060
Show
87410618741061 SPF 1500-S3 400  V 8741061
Show
87410628741062 SPF 3000-S3 EcoXL 400  V 8741062
Show
87410638741063 SPF 4500-S3 EcoXL 400  V 8741063
Show
87410648741064 SPF 1400-S1 EcoXL 230  V 8741064
Show
87410658741065 SPF 1500-S1 400  V 8741065
Show
87410668741066 SPF 3000-S1 EcoXL 400  V 8741066
Show
87410678741067 SPF 4500-S1 EcoXL 400  V 8741067
Show

  PumpOperating voltage Item no.
87410688741068 SPF 1400-S3 EcoXL 230  V 8741068
Show
87410698741069 SPF 1500-S3 400  V 8741069
Show
87410708741070 SPF 3000-S3 EcoXL 400  V 8741070
Show
87410718741071 SPF 4500-S3 EcoXL 400  V 8741071
Show
87410728741072 SPF 1400-S1 EcoXL 230  V 8741072
Show
87410738741073 SPF 1500-S1 400  V 8741073
Show
87410748741074 SPF 3000-S1 EcoXL 400  V 8741074
Show
87410758741075 SPF 4500-S1 EcoXL 400  V 8741075
Show

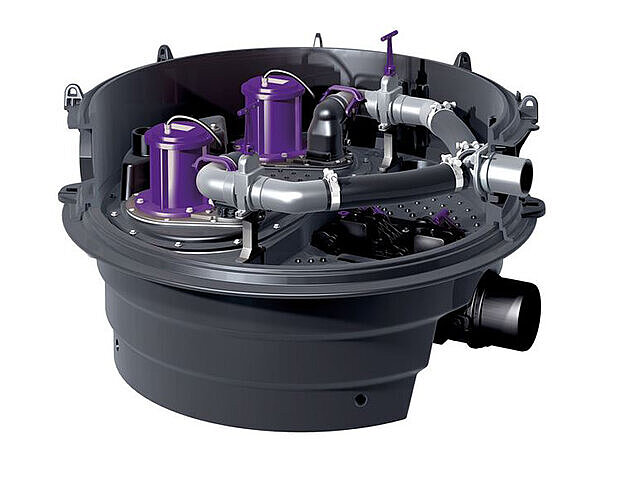

Ecolift XL backwater lifting station, Mono mot. flaps


Single station

  PumpType of wastewaterControl unitAlarm sensorType of level measurement Item no.
87410028741002 SPF 1400-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741002
Show
87410038741003 SPF 1500-S1 without sewage Comfort Plus optical probe pneumatic 8741003
Show
87410048741004 SPF 3000-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741004
Show
87410058741005 SPF 4500-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741005
Show

  PumpOperating voltage Item no.
87410068741006 SPF 1400-S3 EcoXL 230  V 8741006
Show
87410078741007 SPF 1500-S1 400  V 8741007
Show
87410088741008 SPF 3000-S3 EcoXL 400  V 8741008
Show
87410098741009 SPF 4500-S3 EcoXL 400  V 8741009
Show

  PumpOperating voltage Item no.
87410108741010 SPF 1400-S3 EcoXL 230  V 8741010
Show
87410118741011 SPF 1500-S1 400  V 8741011
Show
87410128741012 SPF 3000-S3 EcoXL 400  V 8741012
Show
87410138741013 SPF 4500-S3 EcoXL 400  V 8741013
Show

Twin pump station

  PumpType of wastewaterControl unitAlarm sensorType of level measurement Item no.
87410148741014 SPF 1400-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741014
Show
87410158741015 SPF 1500-S3 without sewage Comfort Plus optical probe pneumatic 8741015
Show
87410168741016 SPF 3000-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741016
Show
87410178741017 SPF 4500-S3 EcoXL without sewage Comfort Plus optical probe pneumatic 8741017
Show
87410188741018 SPF 1400-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741018
Show
87410198741019 SPF 1500-S1 without sewage Comfort Plus optical probe pneumatic 8741019
Show
87410208741020 SPF 3000-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741020
Show
87410218741021 SPF 4500-S1 EcoXL without sewage Comfort Plus optical probe pneumatic 8741021
Show

  PumpOperating voltage Item no.
87410228741022 SPF 1400-S3 EcoXL 230  V 8741022
Show
87410238741023 SPF 1500-S3 400  V 8741023
Show
87410248741024 SPF 3000-S3 EcoXL 400  V 8741024
Show
87410258741025 SPF 4500-S3 EcoXL 400  V 8741025
Show
87410268741026 SPF 1400-S1 EcoXL 230  V 8741026
Show
87410278741027 SPF 1500-S1 400  V 8741027
Show
87410288741028 SPF 3000-S1 EcoXL 400  V 8741028
Show
87410298741029 SPF 4500-S1 EcoXL 400  V 8741029
Show

  PumpOperating voltage Item no.
87410308741030 SPF 1400-S3 EcoXL 230  V 8741030
Show
87410318741031 SPF 1500-S3 400  V 8741031
Show
87410328741032 SPF 3000-S3 EcoXL 400  V 8741032
Show
87410338741033 SPF 4500-S3 EcoXL 400  V 8741033
Show
87410348741034 SPF 1400-S1 EcoXL 230  V 8741034
Show
87410358741035 SPF 1500-S1 400  V 8741035
Show
87410368741036 SPF 3000-S1 EcoXL 400  V 8741036
Show
87410378741037 SPF 4500-S1 EcoXL 400  V 8741037
Show

Not found the right product?

In addition to our standard hybrid lifting stations, we develop individual solutions for special requirements in terms of form, function and dimensioning at the customer's request.
