Lifting station Aqualift F

The classic version for domestic wastewater.

The Aqualift F is the classic solution for disposing of domestic wastewater. The lifting station transports black water in addition to grey water. Depending on the version, the Aqualift F has one or two automatic pumps that switch on as soon as a certain water level has been reached in the tank and transports the wastewater through the pressure pipe into the sewer.

The Mono system is equipped with one pump and the Duo system has two pumps that operate alternately. Duo systems are used where no operational interruptions can occur due to the failure of a pump. Both system types are available with and without a shut-off valve and with pumps of different performance classes.

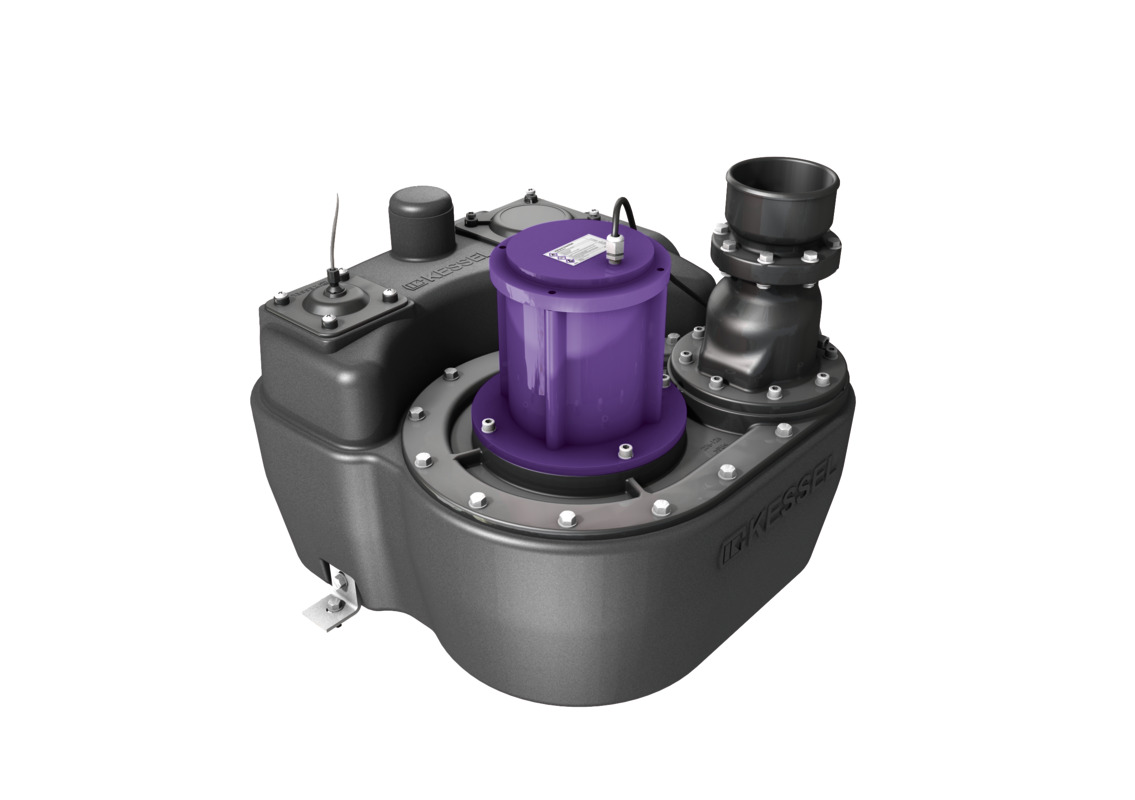

Lifting station Aqualift F Mono

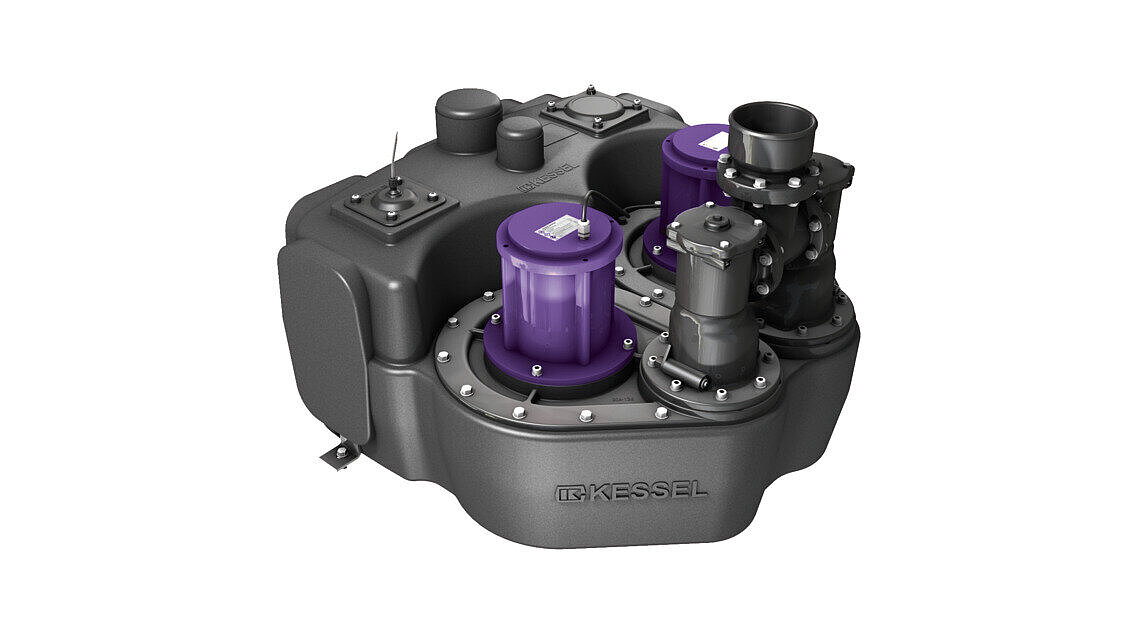

Lifting station Aqualift F Duo

Application possibilities

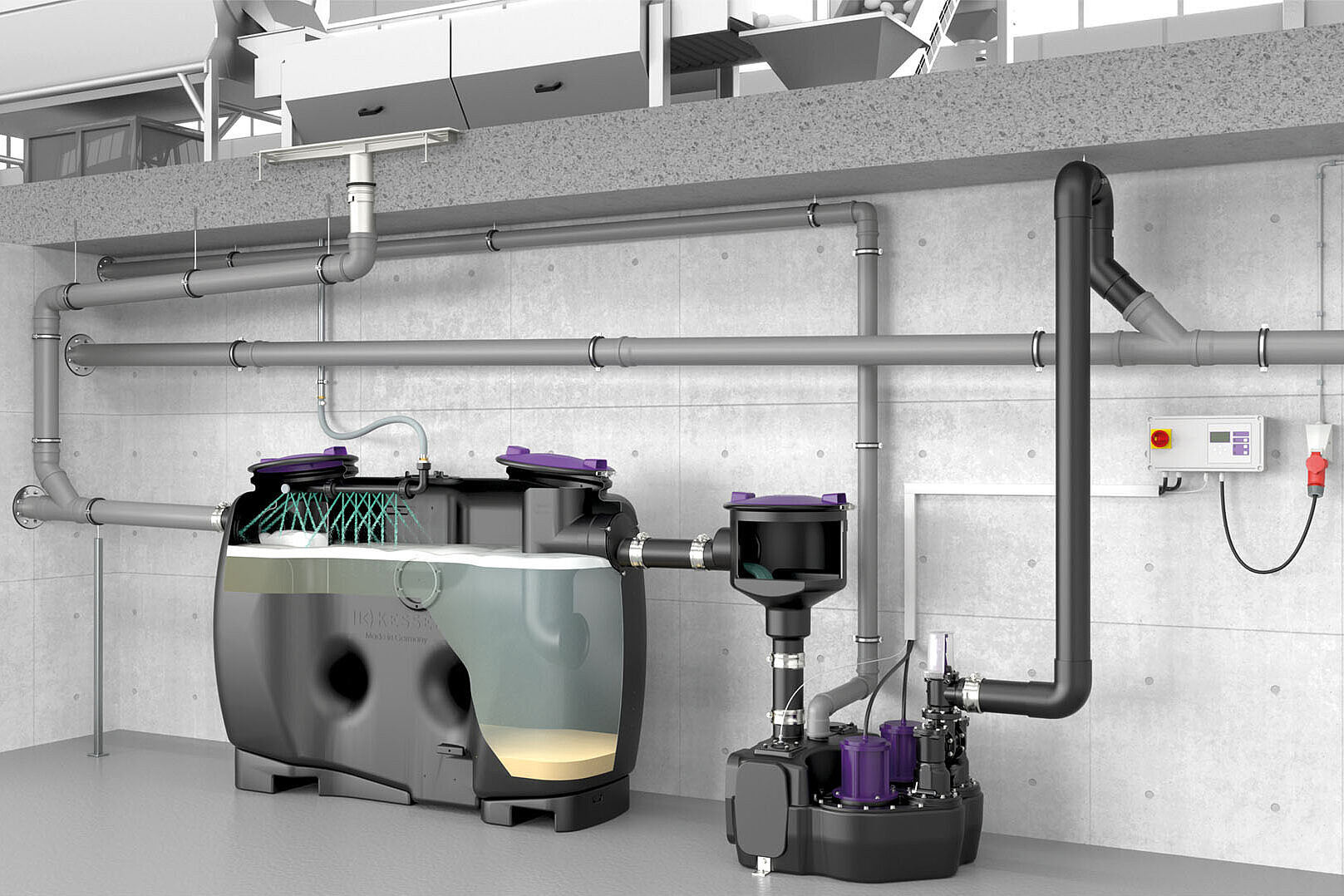

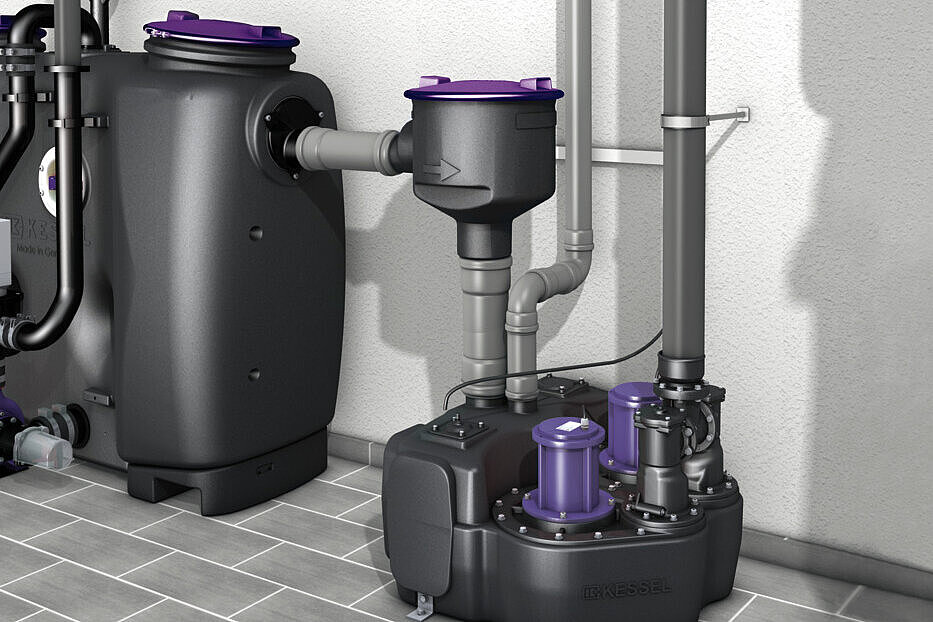

The Aqualift F is designed for above-ground installation and can be equipped with various pumps with a power range from 1,400 W to 3,000 W. The Mono version is ideal for sanitary connections. A Duo system is recommended for use downstream of a grease separator in the commercial sector where there must be no business interruptions. You can see how concrete installation situations can look here:


Power and control unit

The Aqualift F is available as a Mono or Duo system. Both systems have powerful pumps in the versions S1 and/or S3 with a wide range of applications from an input power of 1,400 W to 3,000 W, a sensor control and plug-in ready control units with the self-diagnosis system SDS

Pressure sensor

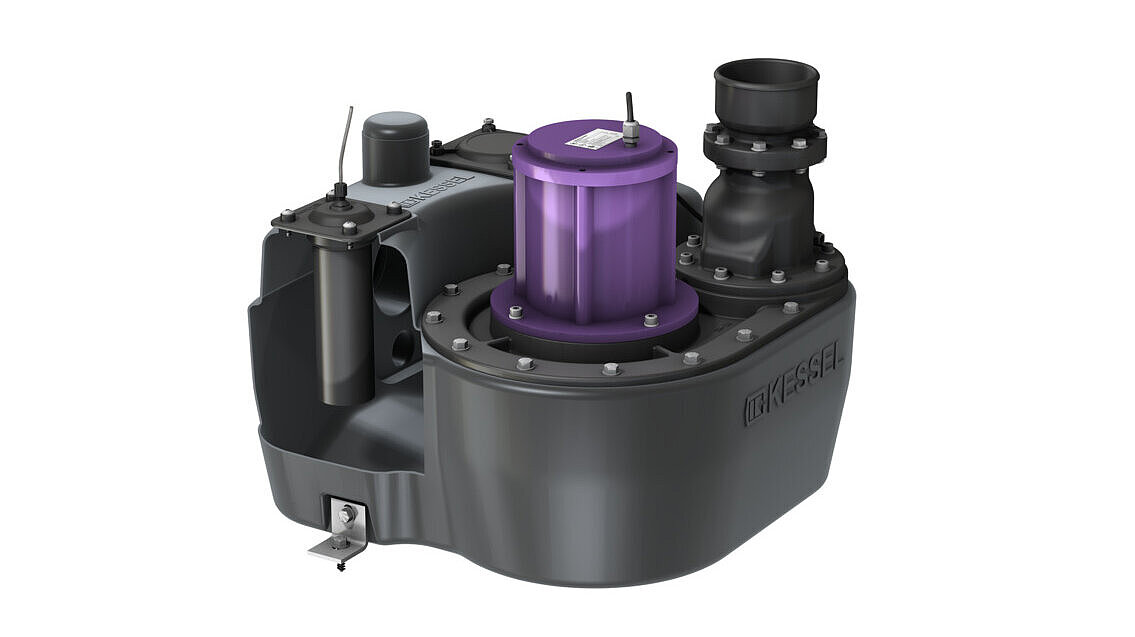

The Aqualift F has an immersion pipe for safe pneumatic level measurement. An optionally available alarm sensor guarantees additional safety.

Aqualift F Mono lifting station

With Comfort control unit

  PumpType of wastewaterImpeller typeShut-off valve Item no.
28646-C28646-C SPF 1400-S3 with sewage Multi-vane impeller without shut-off valve 28646-C
Show
28648-C28648-C SPF 1400-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28648-C
Show
2875128751 SPF 1500-S3 with sewage Multi-vane impeller without shut-off valve 28751
Show
2875228752 SPF 3000-S3 with sewage Multi-vane impeller without shut-off valve 28752
Show
2875328753 SPF 1500-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28753
Show
2875428754 SPF 3000-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28754
Show

With Standard control unit

  PumpType of wastewaterImpeller typeShut-off valve Item no.
2864428644 SPF 1500-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28644
Show
2864528645 SPF 1500-S3 with sewage Multi-vane impeller without shut-off valve 28645
Show
2864728647 SPF 3000-S3 with sewage Multi-vane impeller without shut-off valve 28647
Show
2864928649 SPF 3000-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28649
Show

Aqualift F Duo lifting station

With Comfort control unit

  PumpType of wastewaterImpeller typeShut-off valve Item no.
1160411604 SPF 1500-S1 with sewage Multi-vane impeller without shut-off valve 11604
Show
1160511605 SPF 1400-S1 with sewage Multi-vane impeller without shut-off valve 11605
Show
1160611606 SPF 3000-S1 with sewage Multi-vane impeller without shut-off valve 11606
Show
1160711607 SPF 1500-S1 with sewage Multi-vane impeller Shut-off valve made of polymer 11607
Show
1160811608 SPF 1400-S1 with sewage Multi-vane impeller Shut-off valve made of polymer 11608
Show
1160911609 SPF 3000-S1 with sewage Multi-vane impeller Shut-off valve made of polymer 11609
Show
28628-C28628-C SPF 1400-S3 with sewage Multi-vane impeller without shut-off valve 28628-C
Show
28629-C28629-C SPF 1400-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28629-C
Show
2876428764 SPF 1500-S3 with sewage Multi-vane impeller without shut-off valve 28764
Show
2876528765 SPF 3000-S3 with sewage Multi-vane impeller without shut-off valve 28765
Show
2876628766 SPF 1500-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28766
Show
2876728767 SPF 3000-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28767
Show

With Standard control unit

  PumpType of wastewaterImpeller typeShut-off valve Item no.
1160011600 SPF 1500-S1 with sewage Multi-vane impeller without shut-off valve 11600
Show
1160111601 SPF 3000-S1 with sewage Multi-vane impeller without shut-off valve 11601
Show
1160211602 SPF 1500-S1 with sewage Multi-vane impeller Shut-off valve made of polymer 11602
Show
1160311603 SPF 3000-S1 with sewage Multi-vane impeller Shut-off valve made of polymer 11603
Show
2863128631 SPF 3000-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28631
Show
2863428634 SPF 3000-S3 with sewage Multi-vane impeller without shut-off valve 28634
Show
2865228652 SPF 1500-S3 with sewage Multi-vane impeller without shut-off valve 28652
Show
2865928659 SPF 1500-S3 with sewage Multi-vane impeller Shut-off valve made of polymer 28659
Show

Not found the right product?

In addition to our standard lifting stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.

Customised solutions
