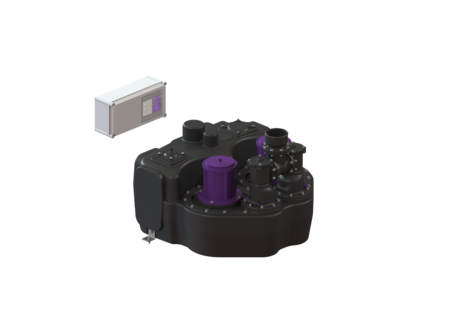

Lifting station Aqualift F Duo

Standard, SPF 1500-S1

11600
11600

KESSEL Lifting station Aqualift F Duo, wastewater with sewage, operating mode S1, pumping height 8 m, control unit Standard, height 539 mm, with 2 submersible SPF 1500 pumps, pressure pipe connection vertical, shut-off valve without shut-off valve

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Control unit with self-diagnosis system
Item no. 11600
GTIN 4026092070987
Price group 20

Lifting station Aqualift F Duo Standard, SPF 1500-S1
The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) ATEX: no Dimensions Net weight: 58,83 kg Gross weight: 84 kg Length: 773 mm Width: 780 mm Height: 539 mm Packaging dimension: length: 773 mm Packaging dimension: width: 780 mm Packaging dimension: height: 539 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of inlet pipe to tank bottom: 300 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 2 Pumping volume: 50 l Tank volume: 120 l Pumping device Pump: SPF 1500 Number of pumps: 2 Weight, pump: 27 kg Connection type: Direct connection Rated current: 2,7 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Standard Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe with pressure monitor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes Log book function: yes Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28015 Retrofit kit Alarm float switch, Aqualift F and F Duo 28015 Show
28048 Compressor set for air bubbling 28048 Show
28662 Flexible coupling DN 80, L: 200 mm 28662 Show
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
28682 Shut-off valve DN 80, Polymer, horizontal 28682 Show
28683 Shut-off valve DN 100, Polymer, horizontal 28683 Show
28698 Shut-off valve DN 100, Polymer 28698 Show
28699 Shut-off valve DN 150, Polymer 28699 Show
28712 Flange joint DN 100, for polymer fittings 28712 Show
28713 Flange joint DN 80, for polymer fittings 28713 Show
28714 Flange adapter DN 80, for polymer fitting 28714 Show
28715 Shut-off valve DN 80, Polymer, vertical 28715 Show
28716 Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
28046 Pressure monitor Duo, with seal, up to 12/2009 28046 Show
28051 Replacement set pump flange with screw set, flange gasket 28051 Show
28065 Pump drive SPF 1500 400 V, S1, 5 m cable 28065 Show
28608 Seal set DN 70, DN 100 28608 Show
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
28677 Flap housing with pressure hose, DN 100 28677 Show
680034 Battery 9 V block 680034 Show
680044 Cleaning cover screwed, 160x140 mm 680044 Show
680045 Seal Pump flange 680045 Show
680046 Attachment bracket with screws (2 ea.) 680046 Show
680047 Screw set galvanised, 14 each 680047 Show
680049 Immersion pipe pressure monitor, Duo, 10m,up to 12/2009 680049 Show
680050 Pump flange SPF 1400 - SPF 4500 680050 Show
680052 Seal for SPF 1400 - SPF 4500 680052 Show
680053 Flap set Rolling ring, flap, flap holder 680053 Show
680056 Immersion pipe Duo, 5 m, from 01/2010 680056 Show
680061 Flap housing for Duo systems, without shut-off valve 680061 Show
680643 Impeller SPF 1400/1500, Aqualift lifting stations 680643 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 1500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
