Classic bathroom drain

The timeless solution for every bathroom.

Classic bathroom drain with a horizontal outlet

For point drainage in wet rooms and showers with the same floor level, the low-cost Classic bathroom drain is the complete practical package: a safe to install sealing system, easy to install thanks to a variable upper section and easy to maintain.

The Classic is available in the nominal sizes of DN 50 and DN 70, both with a de and vertical outlet. However, this model of the System 100 is not only powerful and compact: It also impresses in terms of modern bathroom design with a customisable look – with design covers made of solid stainless steel or a tileable cover.

Advantages  Article overview

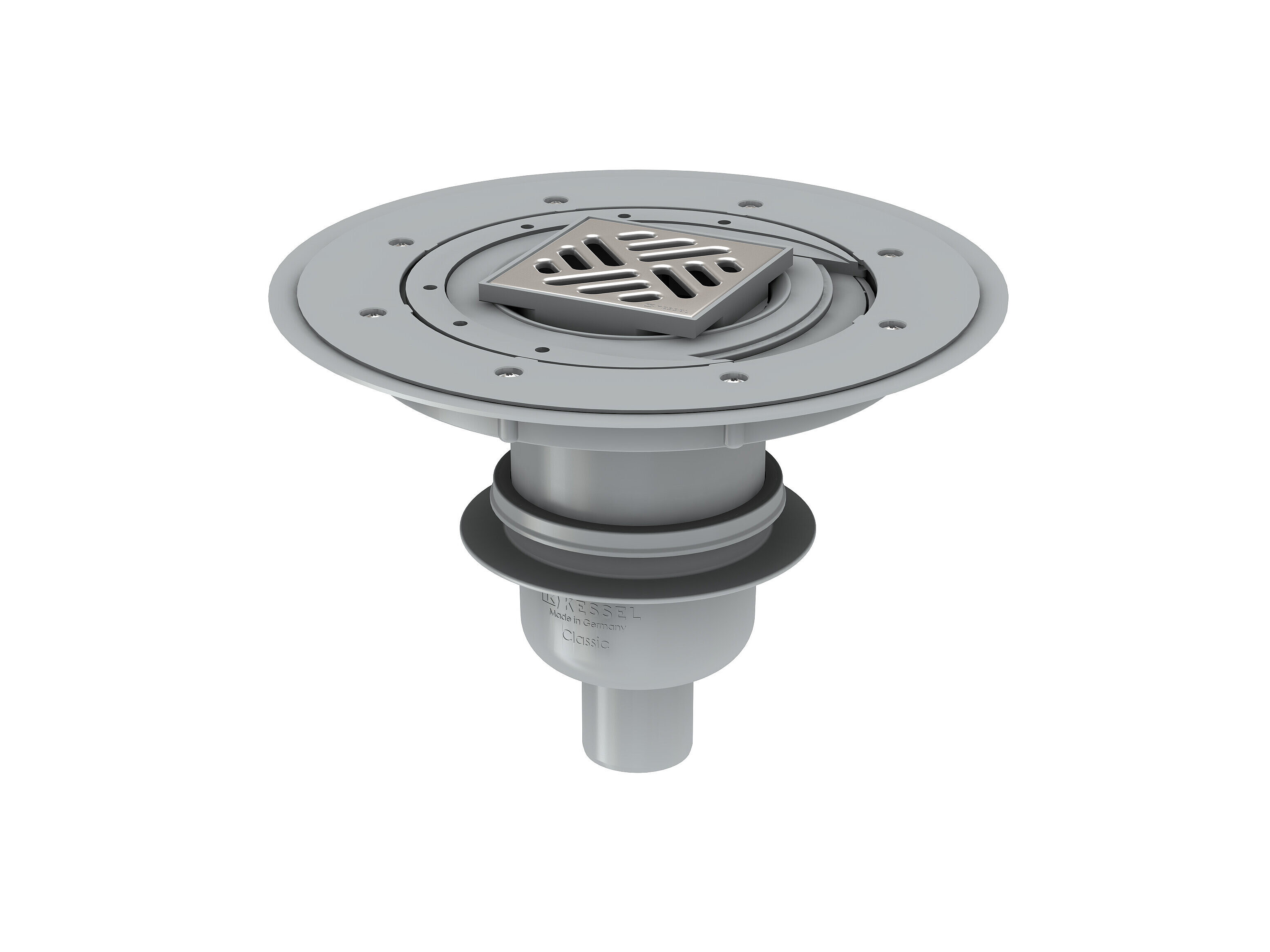

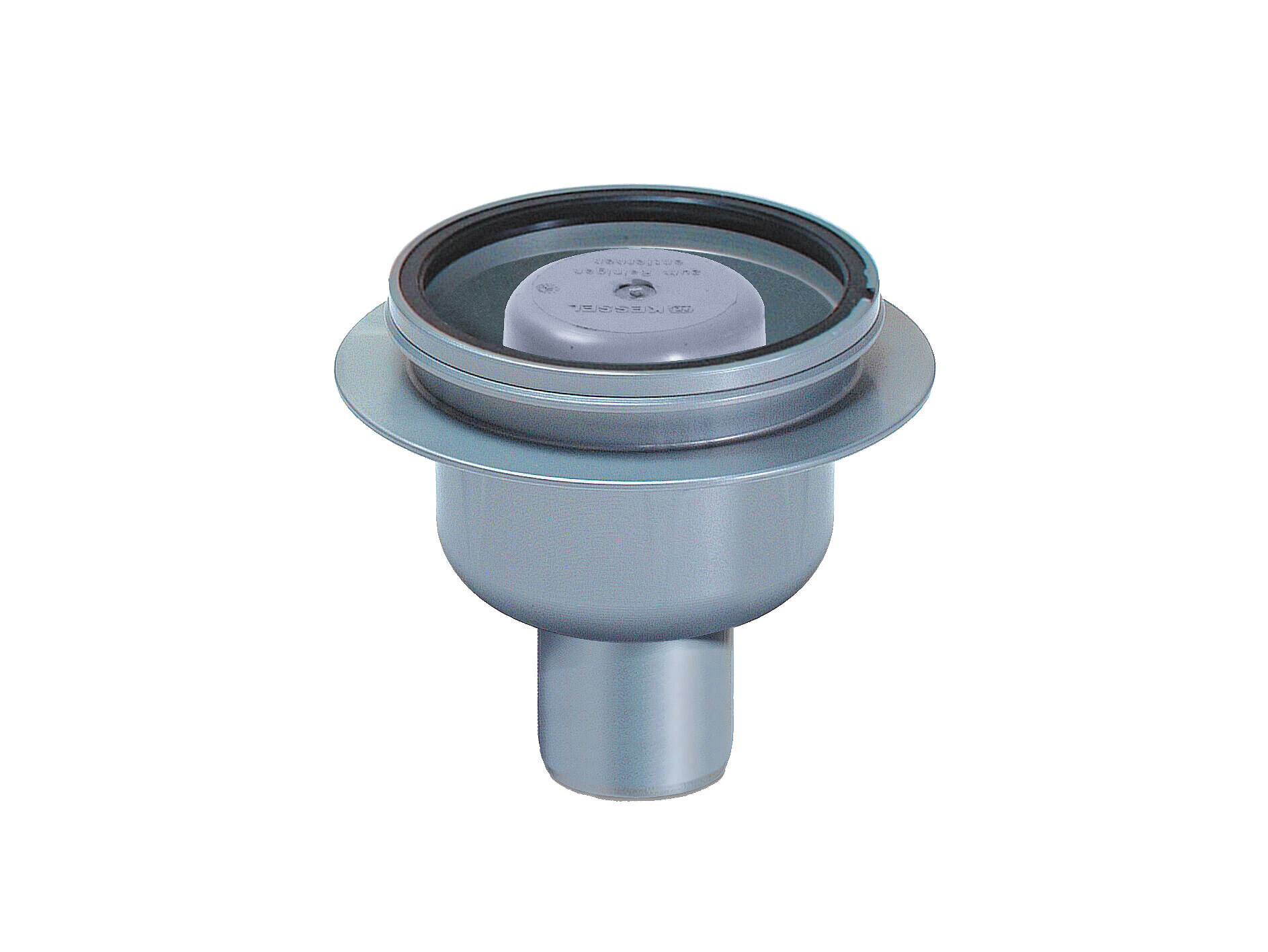

Classic bathroom drain with a vertical outlet

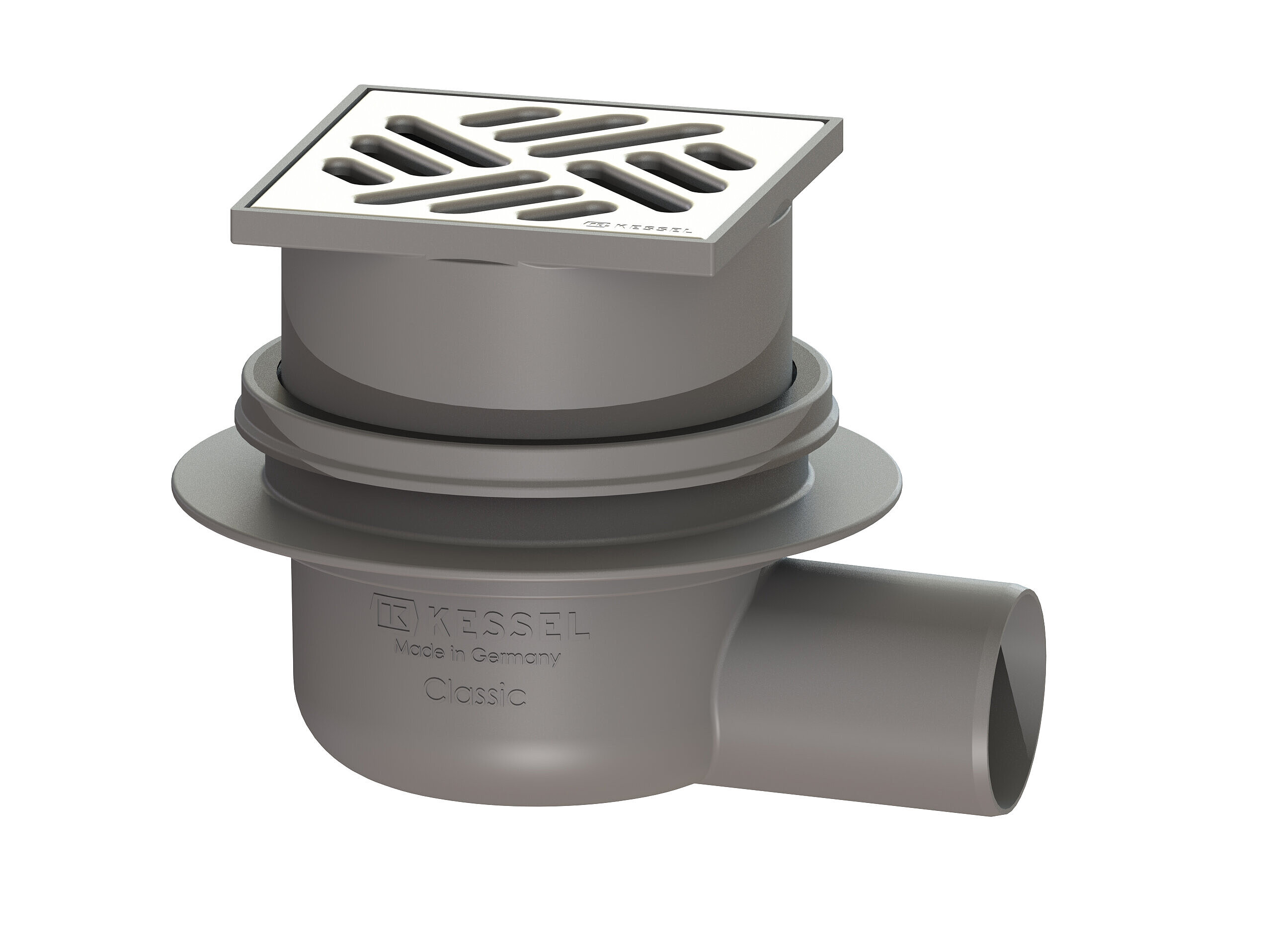

Classic bathroom drain with a horizontal outlet and an upper section with a slotted cover
Installation diagram for the Classic vertical bathroom drain with a Variofix upper section for combined waterproofing and a slotted cover

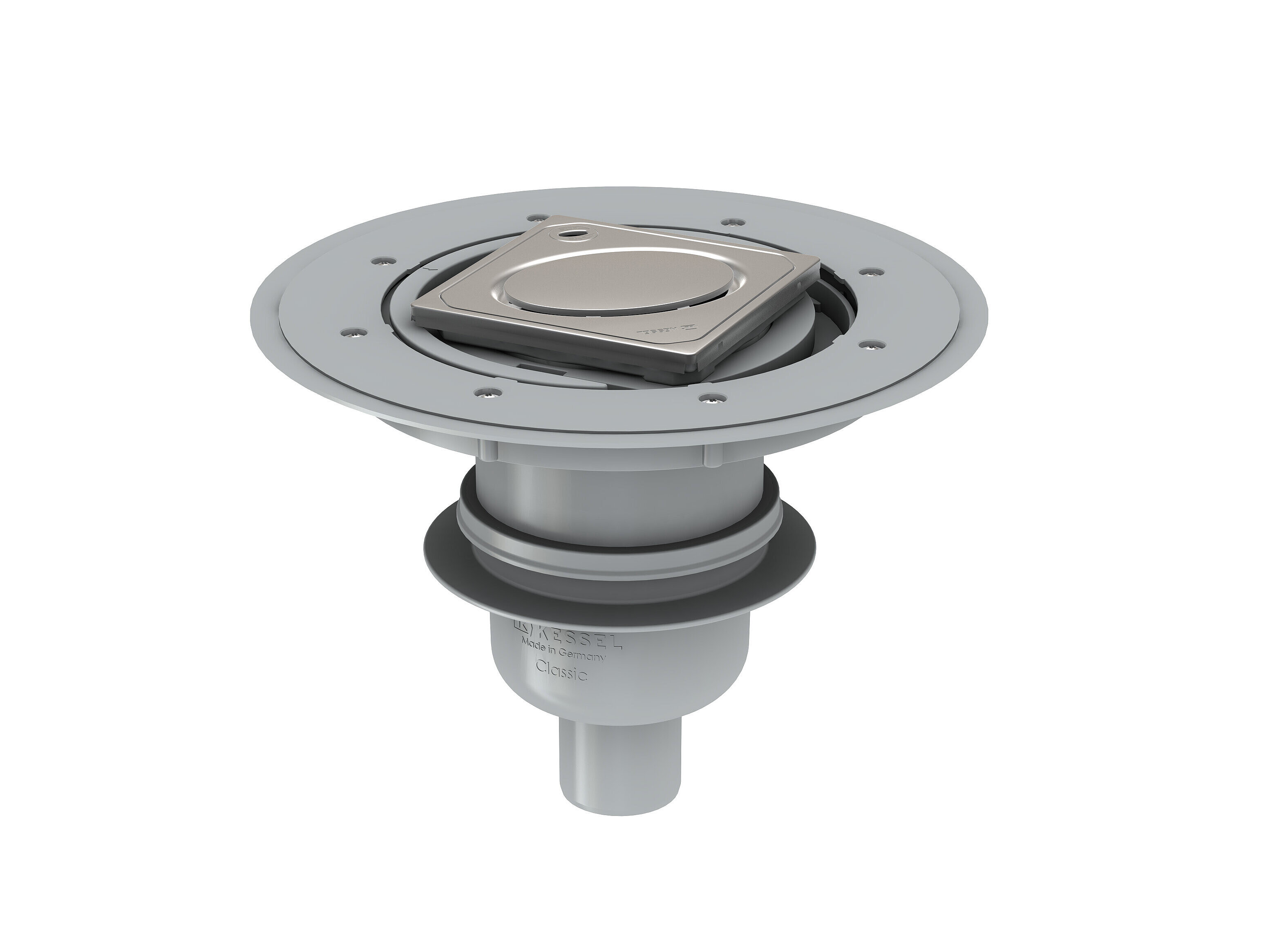

Classic bathroom drain with a vertical outlet and Variofix upper section with an Oval design cover

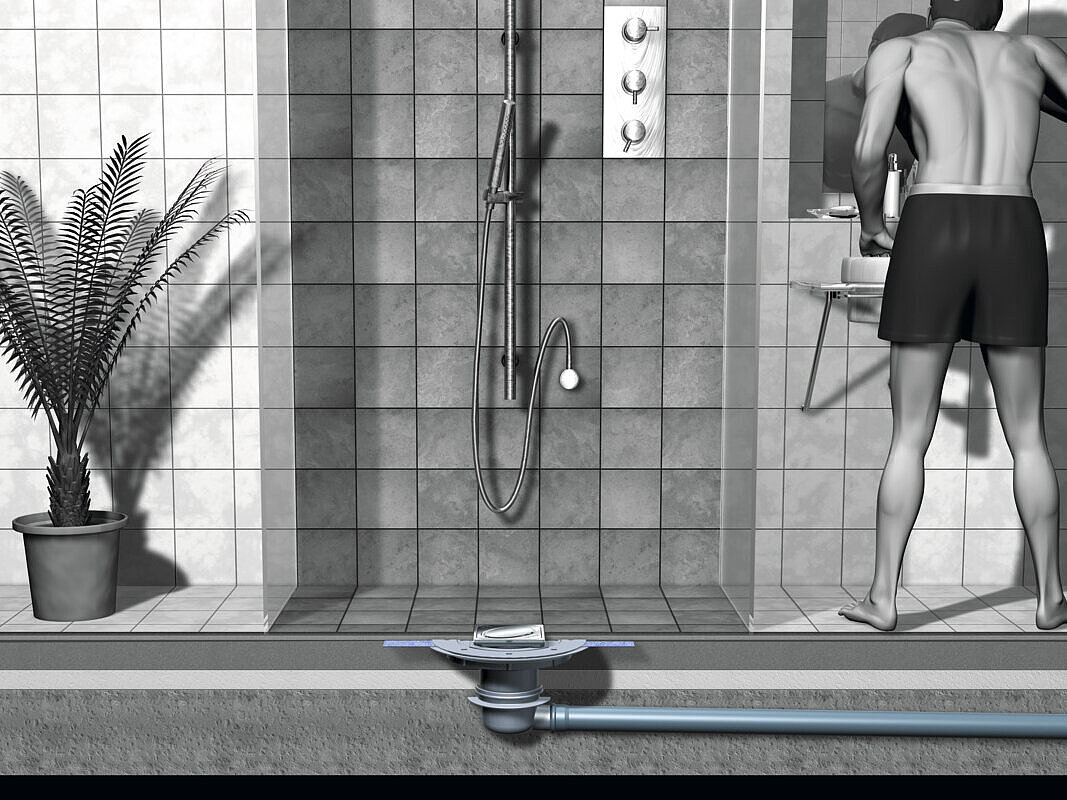

Installation diagram for the Classic bathroom drain

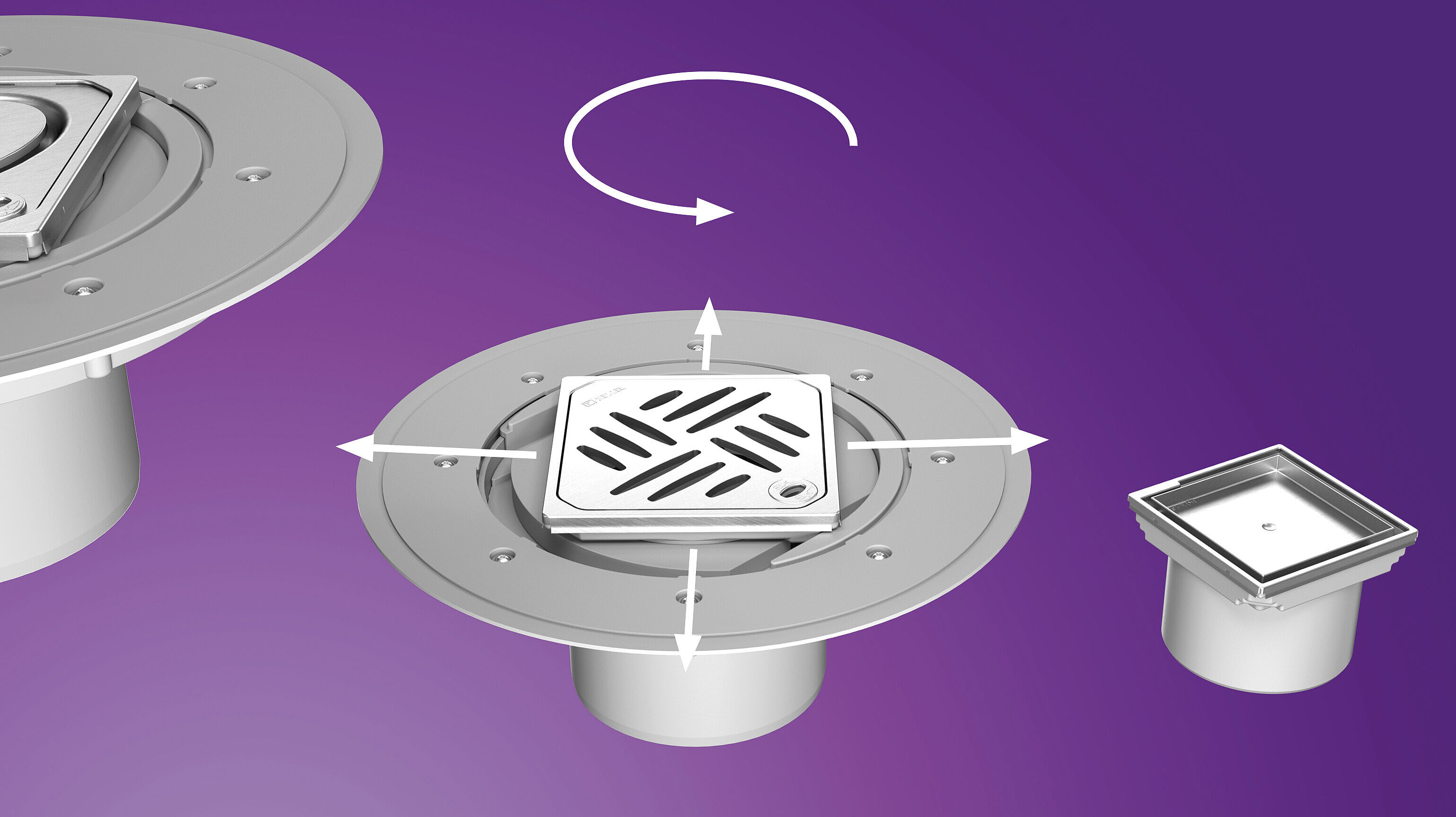

Variofix - for flexible installation

Variofix: the variable upper section

Rotatable, tiltable and height-adjustable: Regardless of the installation conditions on site, the Classic bathroom drain can be mounted very easily thanks to its variable Variofix upper section.

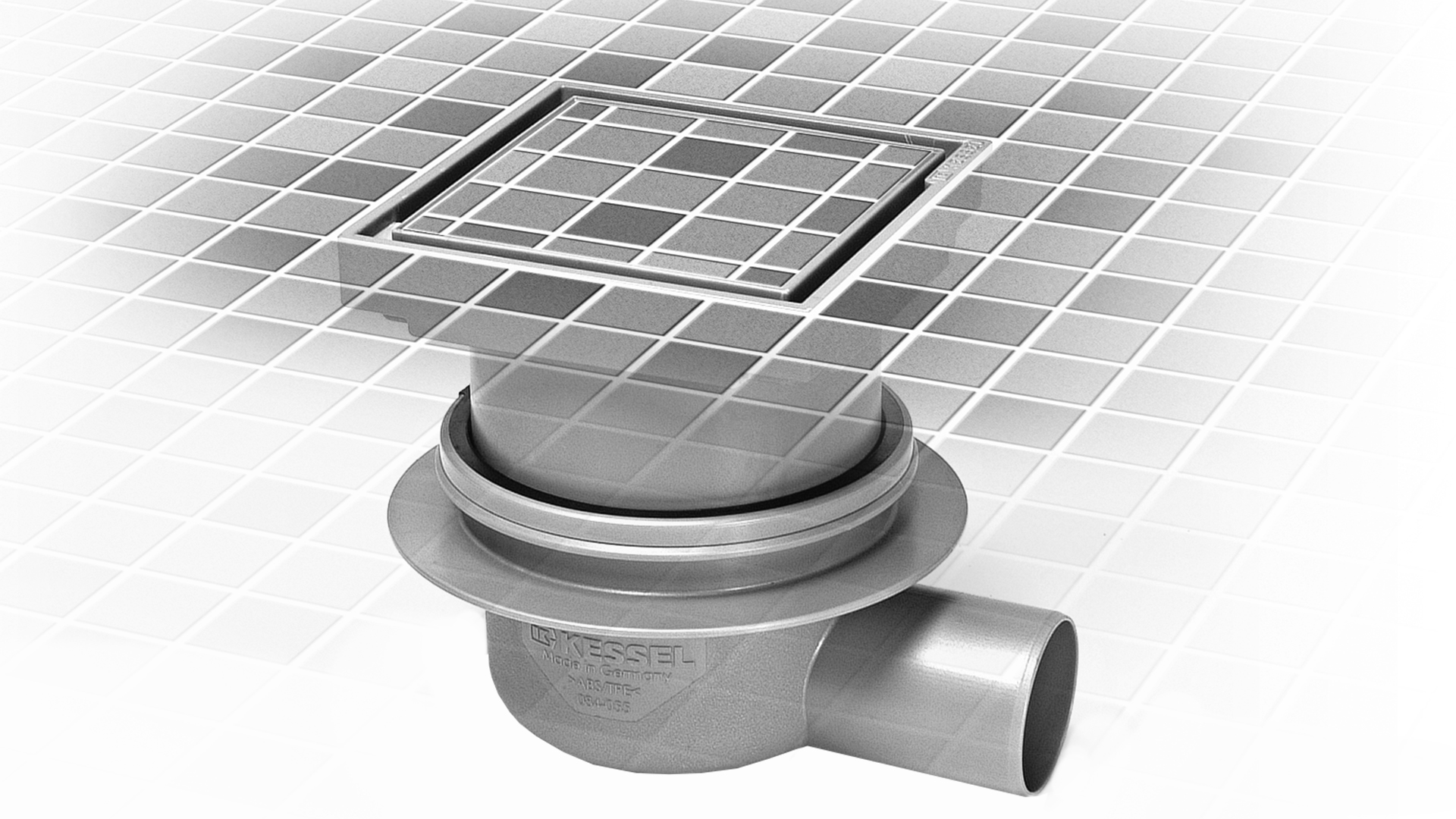

The bathroom drain becomes virtually invisible with the tileable cover

Free choice of cover

A simple slotted cover, elegant design cover with an oval or tileable cover: The Classic blends in stylishly with any modern bathroom design due to its different design options.

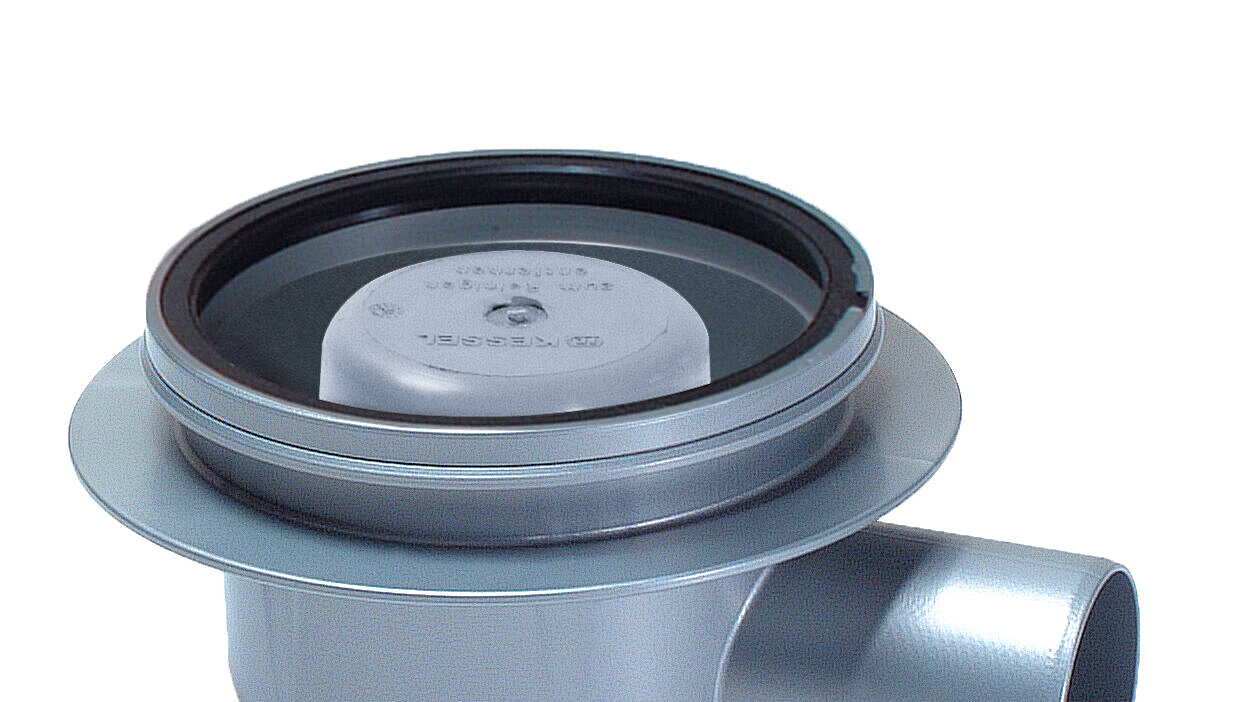

The lip seal is firmly connected to the drain body with the Classic bathroom drain

Safe to install sealing system

No forgetting, no slipping: The sealing system is safe to install because the lip seal is firmly connected to the drain body.

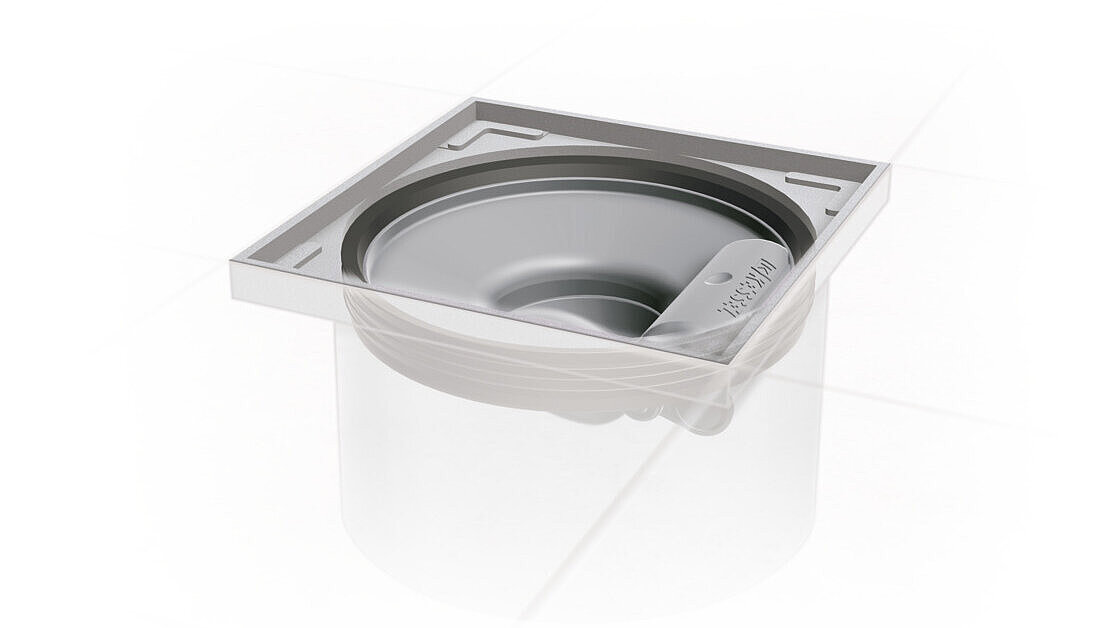

Multistop rodent foam and odour stop in the upper section

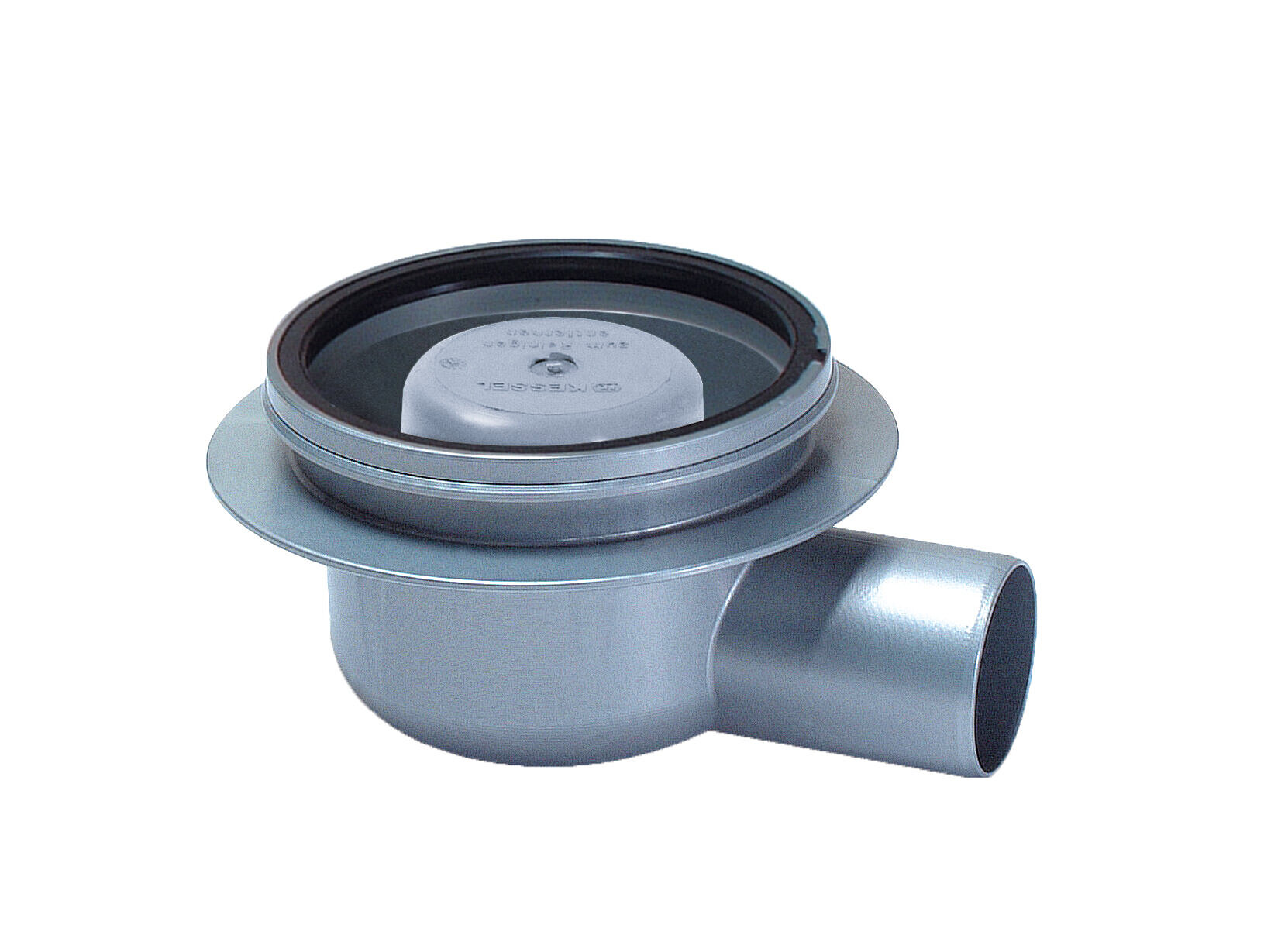

Removable odour trap

The Classic bathroom drain has a removable odour trap to protect against unpleasant odours from the sewer system. This makes it easy and convenient to maintain. The practical Lock & Lift system serves simultaneously as a locking and removal device. Certain versions can also be optionally equipped with the waterless Multistop rodent, foam and odour stop.

Classic

Socket version: lateral

Nominal size (DN): 50

Type of coverWaterproofing layer on the drain bodyShape of upper section Item no.
40150---40150
Show
40150.20 Slotted cover - square 40150.20
Show
40150.30 Round slotted cover --40150.30
Show
40150.50 Slotted cover Adhesive flange (suitable for moisture barriers) square 40150.50
Show
40150.51 Slotted cover --40150.51
Show
40150.66 tileable cover plate - square 40150.66
Show
40150.90 Slotted cover Adhesive flange (suitable for moisture barriers) square 40150.90
Show
40151---40151
Show
40159.50 Slotted cover Adhesive flange (suitable for moisture barriers) square 40159.50
Show

Nominal size (DN): 70

Type of coverWaterproofing layer on the drain bodyShape of upper section Item no.
40170---40170
Show
40170.20 Slotted cover --40170.20
Show
40170.30 Round slotted cover --40170.30
Show
40170.50 Slotted cover Adhesive flange (suitable for moisture barriers) square 40170.50
Show
40170.54 Design cover --40170.54
Show
40170.66 tileable cover plate --40170.66
Show
40170.90 Slotted cover Adhesive flange (suitable for moisture barriers) -40170.90
Show
40171---40171
Show
40179.50 Slotted cover Adhesive flange (suitable for moisture barriers) -40179.50
Show

Socket version: vertical

Nominal size (DN): 50

Type of coverWaterproofing layer on the drain bodyShape of upper section Item no.
40250---40250
Show
40250.20 Slotted cover - square 40250.20
Show
40250.30 Round slotted cover --40250.30
Show
40250.50 Slotted cover - square 40250.50
Show
40250.51 Slotted cover - square 40250.51
Show
40250.54 Design cover --40250.54
Show
40250.66 tileable cover plate --40250.66
Show
40250.90 Slotted cover Adhesive flange (suitable for moisture barriers) square 40250.90
Show
40251---40251
Show
40259.50 Slotted cover Adhesive flange (suitable for moisture barriers) square 40259.50
Show

Nominal size (DN): 70

Type of coverWaterproofing layer on the drain bodyShape of upper section Item no.
40270---40270
Show
40270.20 Slotted cover - square 40270.20
Show
40270.30 Round slotted cover --40270.30
Show
40270.50 Slotted cover - square 40270.50
Show
40270.51 Slotted cover --40270.51
Show
40270.54 Design cover --40270.54
Show
40270.66 tileable cover plate --40270.66
Show
40270.90 Slotted cover Adhesive flange (suitable for moisture barriers) -40270.90
Show
40271---40271
Show
40279.50 Slotted cover Adhesive flange (suitable for moisture barriers) -40279.50
Show
