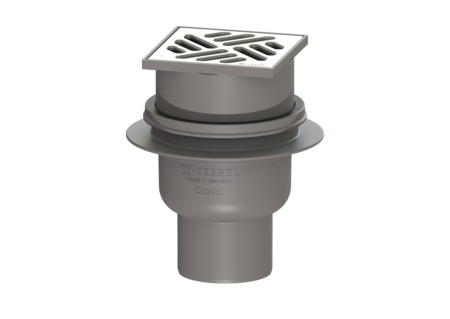

Variofix Classic bathroom drain

DN 70, vertical, Slotted grating, K 3

The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including upper section for combined waterproofing for alternative WP layer.

  • Odour trap height: 50 mm
  • Lip seal fixed on the drain body
  • Side adjustable cover
Item no. 40270.20
GTIN 4026092028520
Price group 10

Variofix Classic bathroom drain DN 70, vertical, Slotted grating, K 3
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Dimensions Vertical adjustment: 25 - 90 mm Net weight: 0,42 kg Gross weight: 0,47 kg Cutout dimension, width: 180 mm Cutout dimension, length: 220 mm Vertical adjustment: vertically adjustable upper section Width: 185 mm Length: 185 mm Packaging dimension: width: 148 mm Packaging dimension: height: 180 mm Packaging dimension: length: 148 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS System: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 100 mm Length of cover: 100 mm Surface: Polished SST Frame material: ABS Cover locking: placed Load class: K 3 (EN 1253-1) Rim length: 107 mm Rim material: 107 mm Shape of upper section: square Upper section material: ABS Odour trap: included
  Title Item no.
  Title Item no.
  Title Item no.
Extension section System 100, H: 161 mm 27146 Show
Sludge bucket d: 110 mm 27168 Show
Extension section System 100, with pressure sealing flange 27198 Show
Extension section System 100, with glued flange 27199 Show
Odour trap Multistop, System 100 43500 Show
Hair filter Polymer, for System 100 bathroom drains 43700 Show
KESSEL System 100 glue flange 47900 Show
  Title Item no.
Slotted cover 100x100 mm, SST 27150 Show
Odour trap Sealing water height 50 mm 47200 Show
  • Nominal size (DN) (nennweite): 70
  • Material of drain body (material_grundkoerper): ABS
  • Cover material (abdeckung_material): Stainless steel 14301
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Frame material (rahmen_material): ABS
  • Upper section material (material_aufsatzstueck): ABS
  • System (stutzen_ausfuehrung): vertical
  • Type of cover (abdeckungsart): Slotted cover
  • (abdichtung_am_Grundkoerper):
  • (form_Aufsatzstueck):
