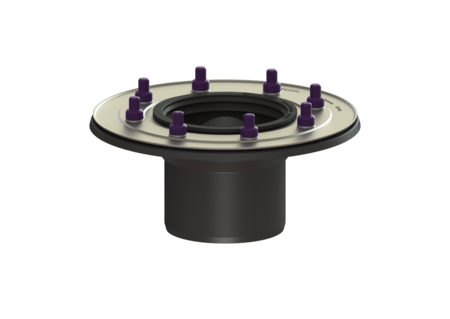

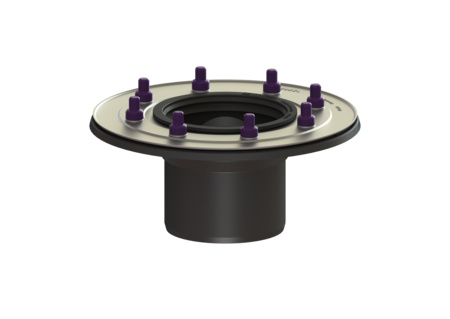

Extension section
System 100, with pressure sealing flange
System 100 extension section continuously height-adjustable, with pressure sealing flange made of PP and mating flange made of stainless steel, with lip seal and water seepage ring. Flange width: 63 mm
| Item no. | 27198 |
|---|---|
| GTIN | 4026092000410 |
| Price group | 10 |
Extension section System 100, with pressure sealing flange
System 100 extension section continuously height-adjustable, with pressure sealing flange made of PP and mating flange made of stainless steel, with lip seal and water seepage ring. Flange width: 63 mm Variant System: 100 General characteristics Material: PP Dimensions Net weight: 0,88 kg Gross weight: 1,09 kg Diameter: 246 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data |
- Material (material):
PP
