Lifting station Aqualift L Pro

The classic version for domestic wastewater.

The Aqualift L Pro is the classic solution for disposing of domestic wastewater. The lifting station transports black water in addition to grey water. Depending on the version, the Aqualift L Pro has one or two automatic pumps that switch on as soon as a certain water level has been reached in the tank and transports the wastewater through the pressure pipe into the sewer.

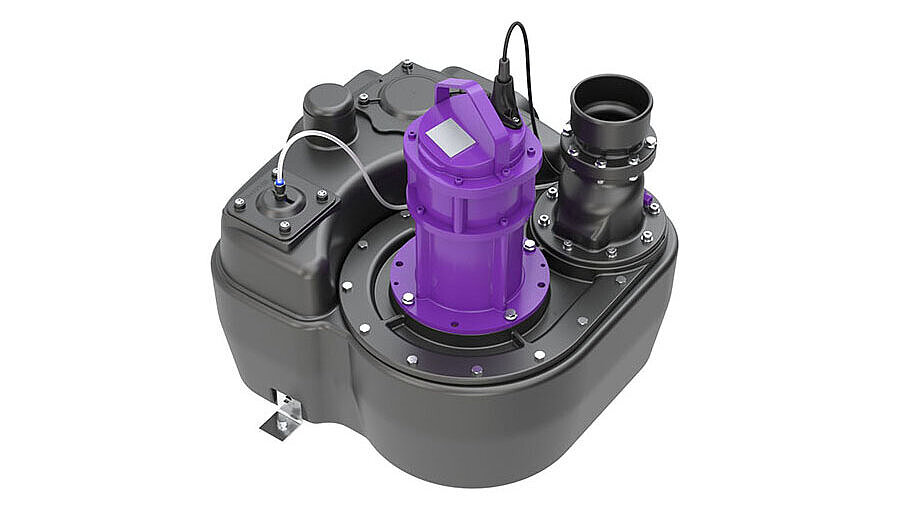

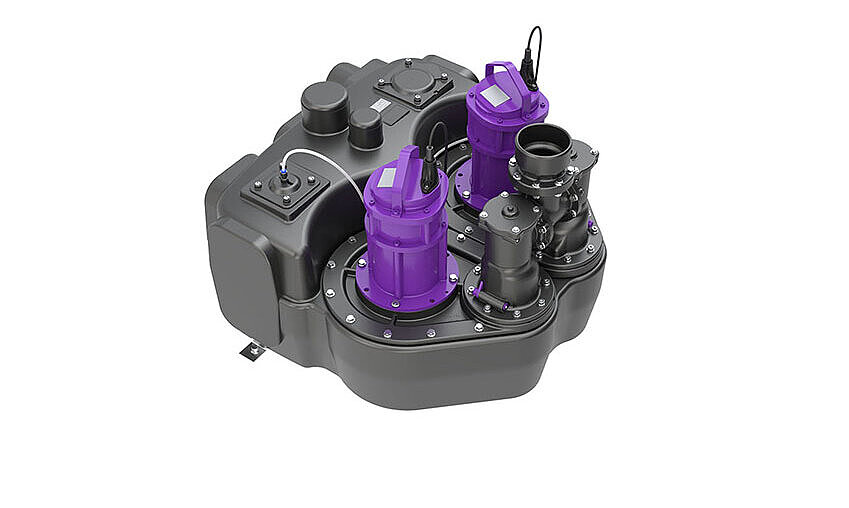

The Mono system is equipped with one pump and the Duo system has two pumps that operate alternately. Duo systems are used where no operational interruptions can occur due to the failure of a pump. Both system types are available with and without a shut-off valve and with pumps of different performance classes.

Application possibilities
Advantages
Article overview

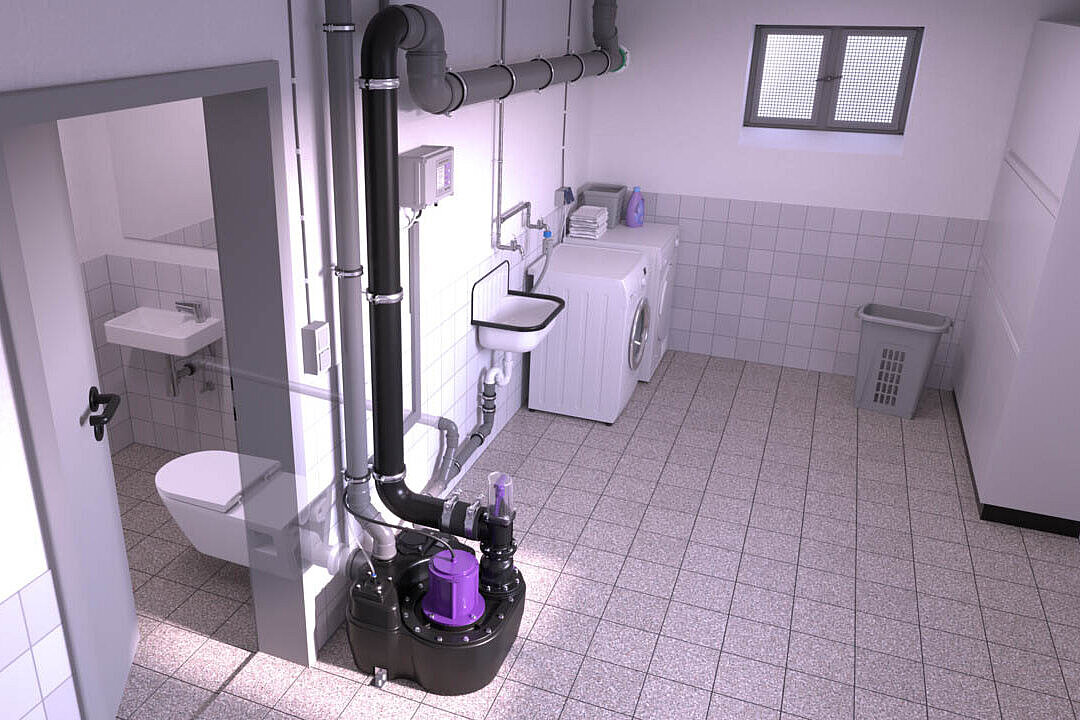

A guest toilet in the basement? No problem! The Aqualift L Pro is the perfect choice for the disposal of domestic wastewater.

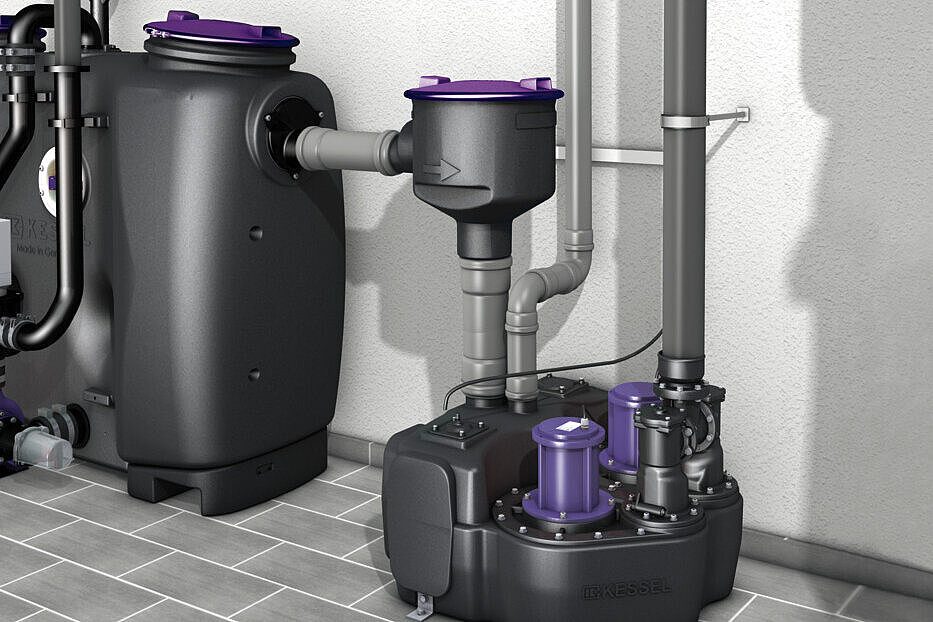

Grease separators are mandatory in commercial kitchens. In this case, the Aqualift L Pro can easily be combined with an grease separator.

Is a starch separator required in a food processing plant? The Aqualift L Pro Duo can easily be installed downstream of the starch separator.

Application possibilities

The Aqualift L Pro is designed for above-ground installation and can be equipped with various pumps with a power range from 1,400 W to 3,000 W. The Mono version is ideal for sanitary connections. A Duo system is recommended for use downstream of a grease separator in the commercial sector where there must be no business interruptions. You can see how concrete installation situations can look here:

Power and control unit

The Aqualift L Pro is available as a Mono or Duo system. Both systems have powerful pumps in the versions S1 and/or S3 with a wide range of applications from an input power of 1,400 W to 3,000 W, a sensor control and plug-in ready control units with the self-diagnosis system SDS.

Pressure sensor

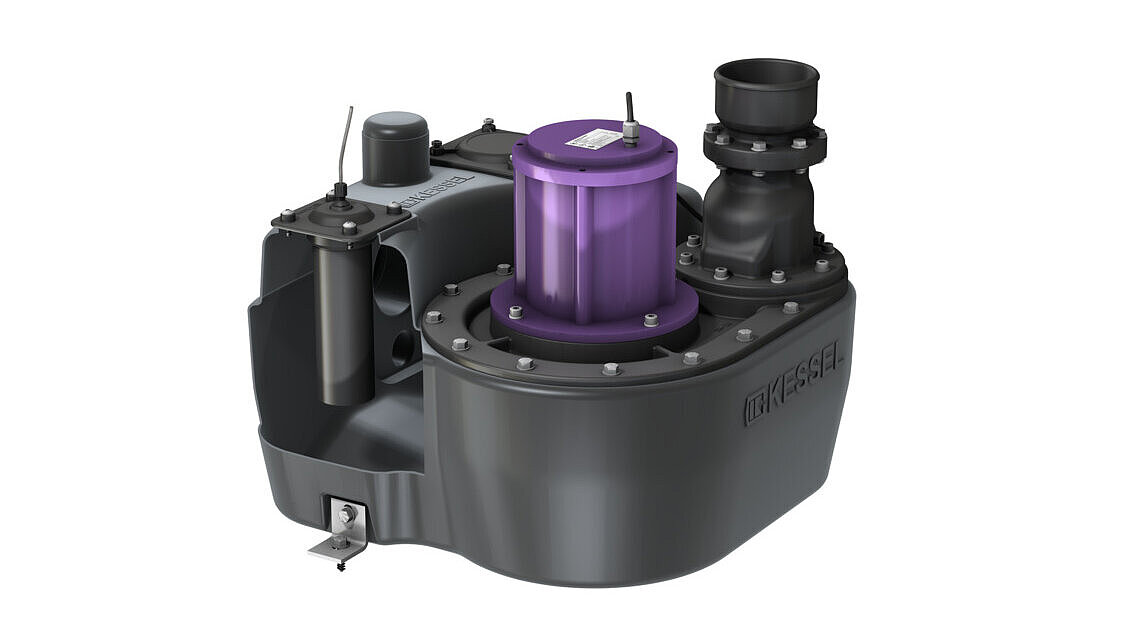

The Aqualift L Pro has an immersion pipe for safe pneumatic level measurement. An optionally available alarm sensor guarantees additional safety.

No need to get worked up!

Installation of lifting stations

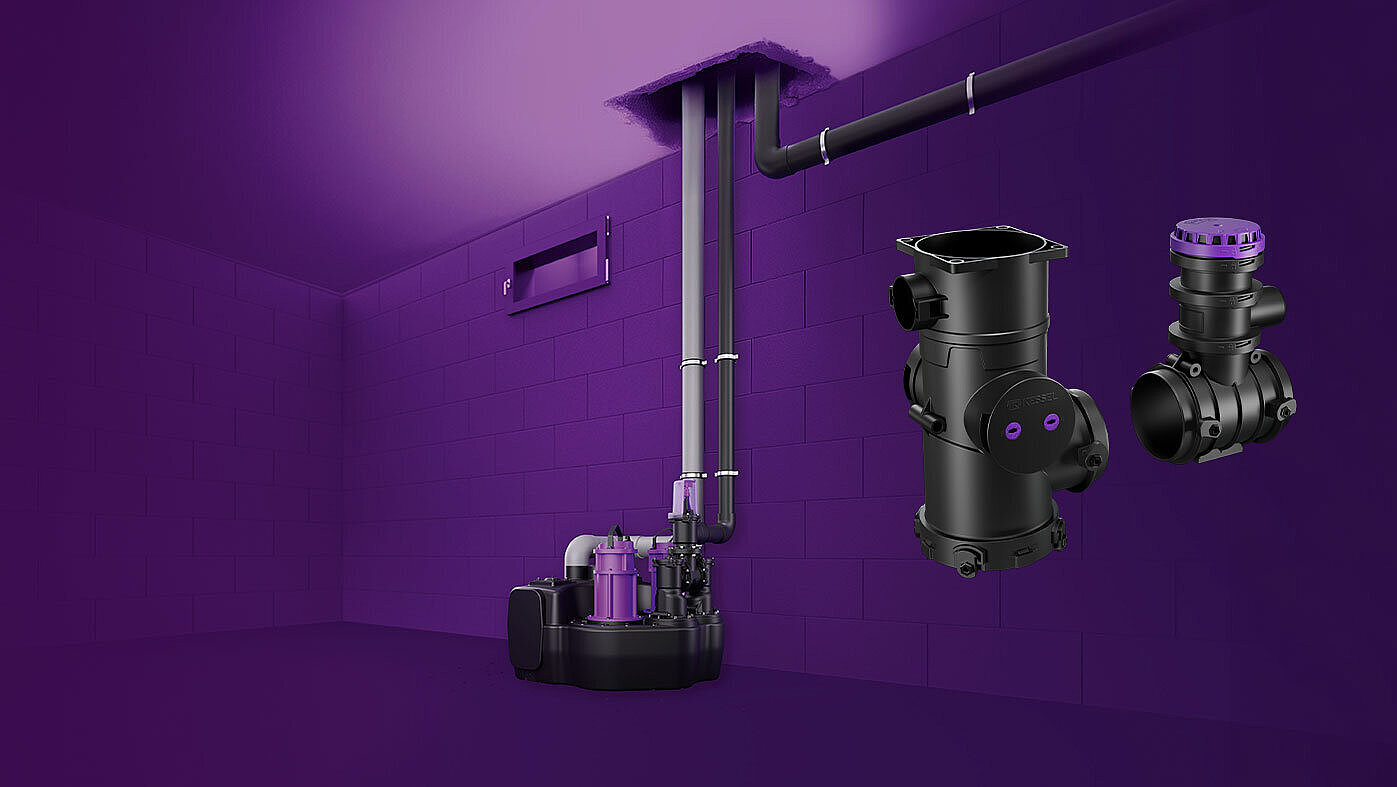

The solution without drilling through the ceiling: the CleverLoop system isolator and CleverVent ventilation valve. Quick, safe and affordable.

CleverLoop system isolator

CleverVent ventilation valve

Find the right lifting station with SmartSelect

Make it easier to decide on the right product now! Use our handy SmartSelect planning tool, answer step-by-step questions about the type of wastewater, delivery head, resistance, etc., and find the perfect product with matching accessories for you.

About SmartSelect
