When it comes to the disposal of wastewater outdoors, the Aquapump Small pumping station is the economical solution for detached and semi-detached houses. It offers modern “made in Germany” technology in a compact tank at an unbeatable price.

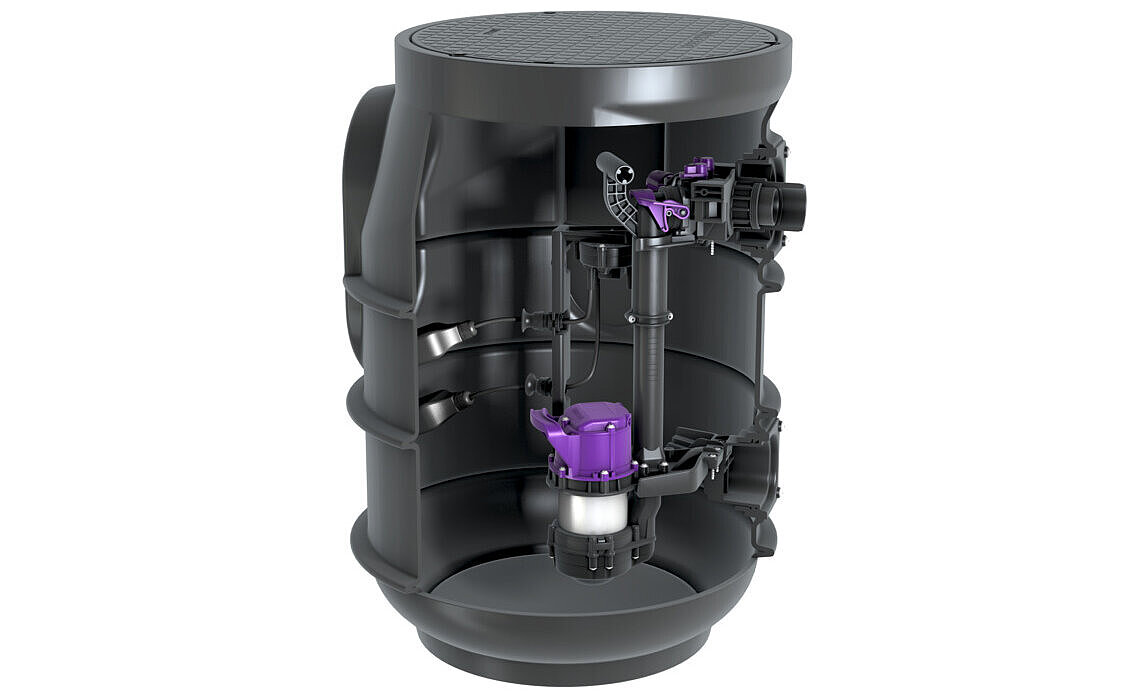

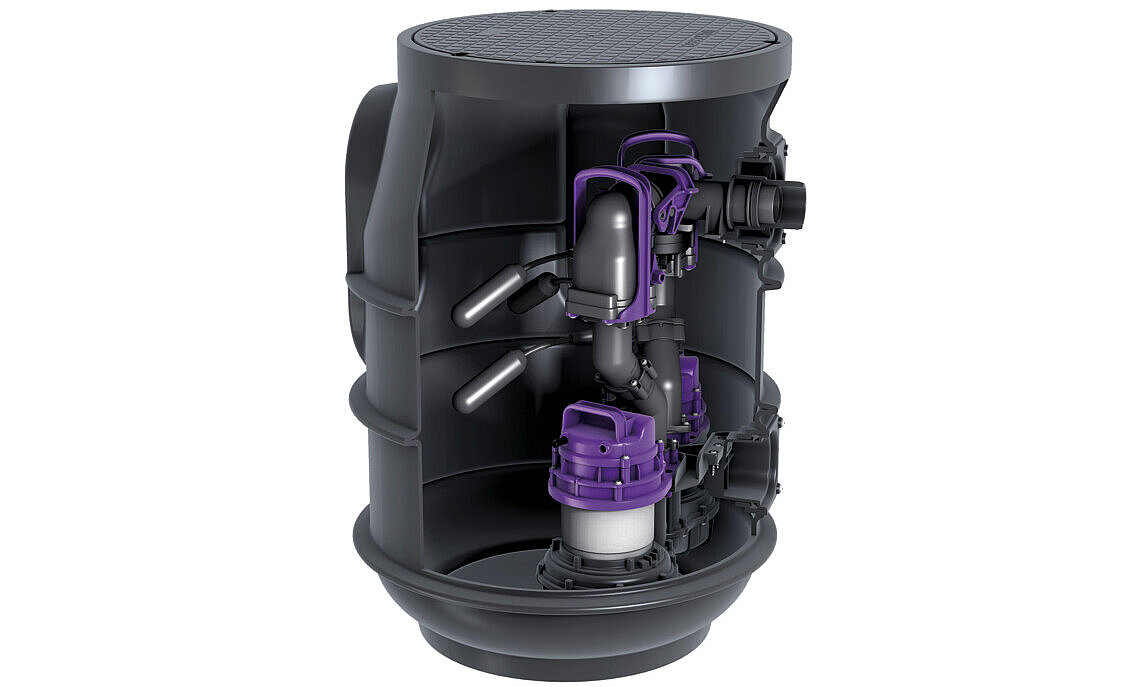

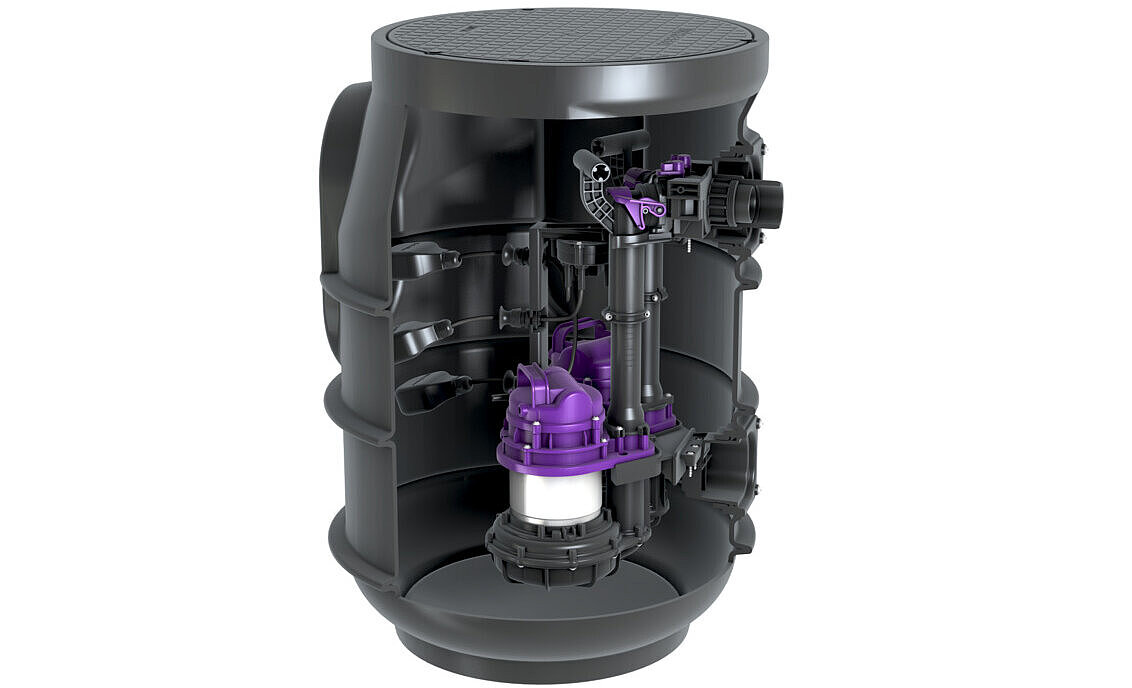

The Aquapump Small pumping station is available either as a Mono or Duo system with or without a control unit. An optional upper section makes it particularly flexible for underground installation.

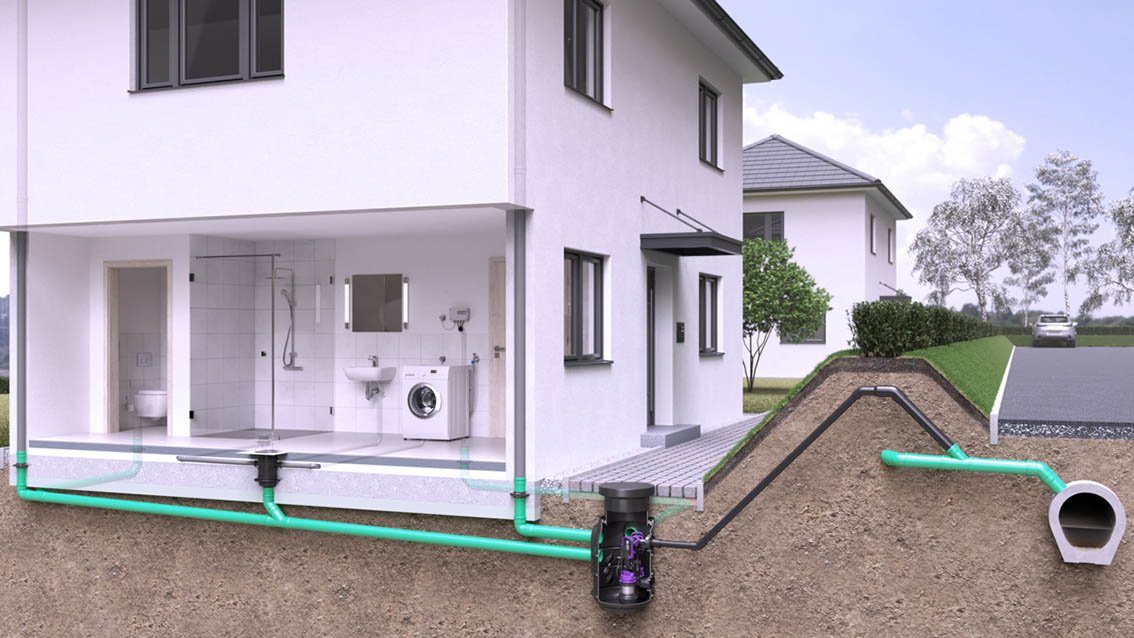

If a toilet is located in the basement of a detached house, the Aquapump Small pumping station is the perfect choice for faecal wastewater.

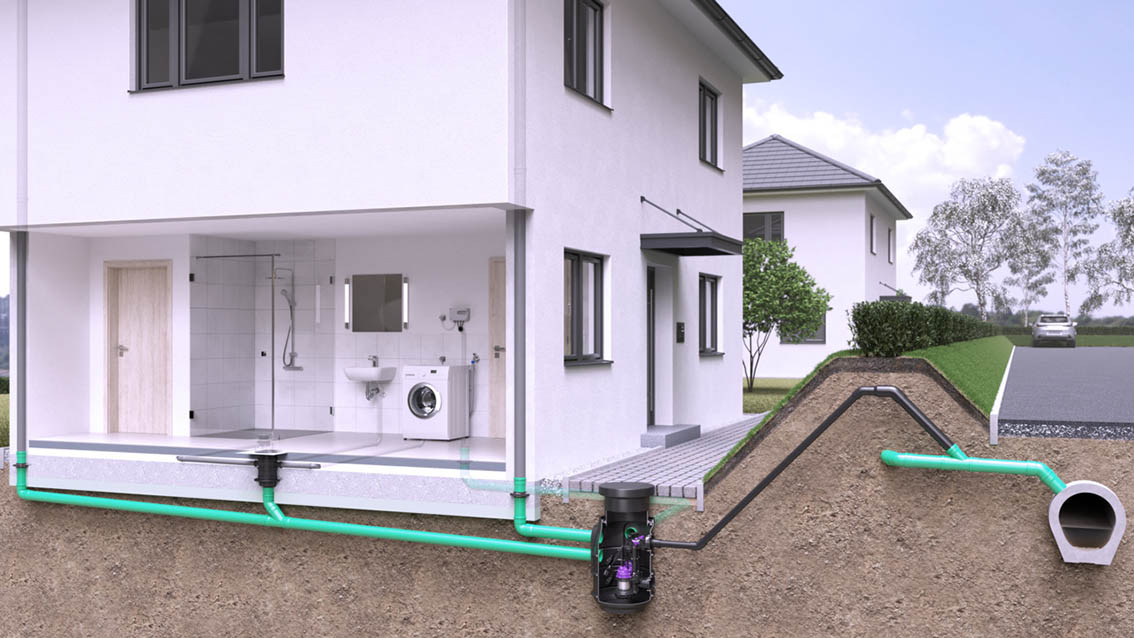

If there is a laundry room or a shower in the basement, the Aquapump Small is recommended for faecal-free wastewater.
Application possibility
Whether in a detached or semi-detached house, for faecal-free or faecal wastewater and equipped with one or two pumps: The Aquapump Small pumping station is an all-rounder for the private sector. It is designed for underground installation – invisible to the eye and highly effective. The Aquapump Small offers convincing advantages in the following exemplary situations:

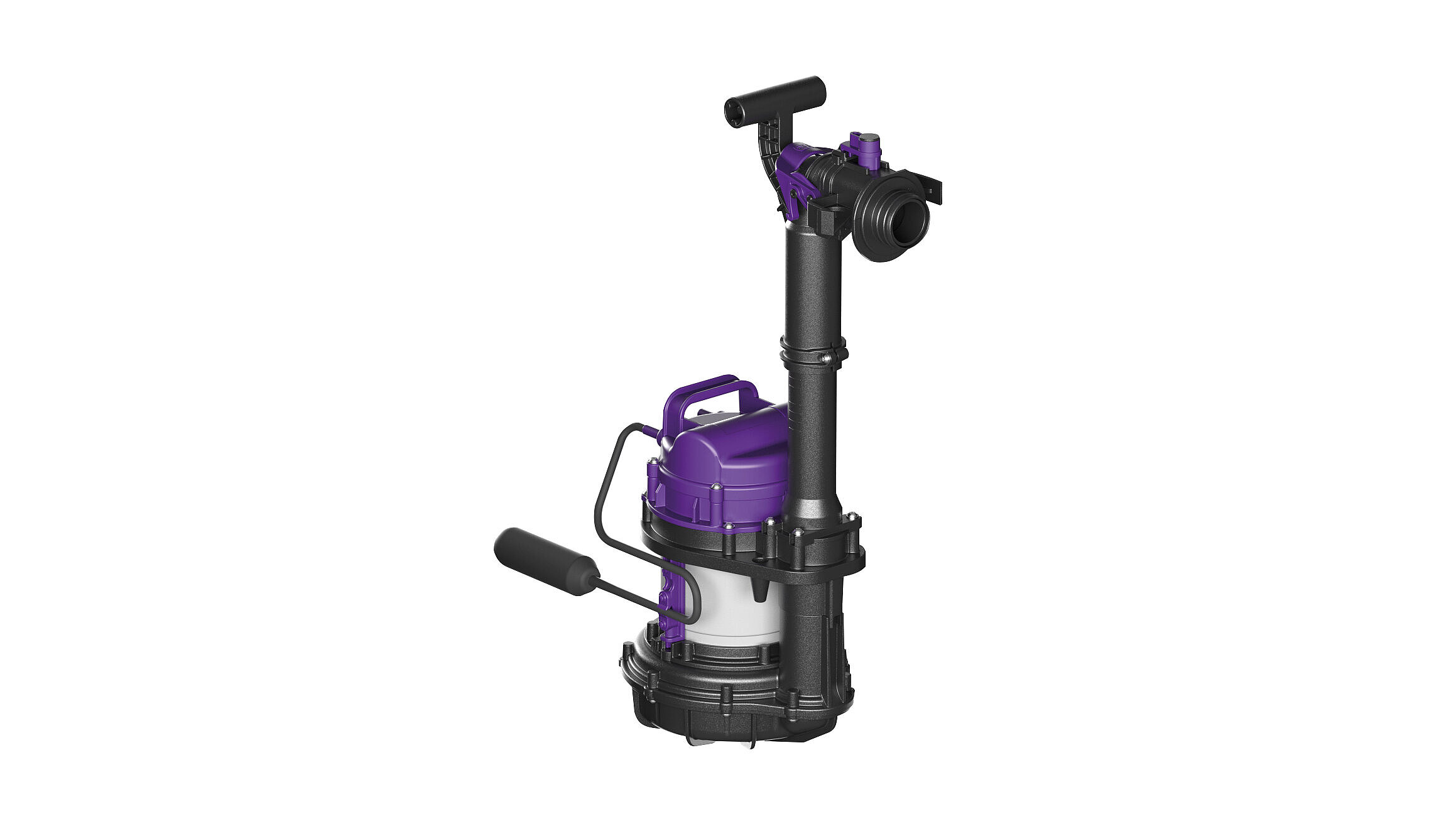

Suspended pump bearings
The version for faecal-free wastewater has either one or two GTF 600 or GTF 1250 type suspended pumps. The sound decoupling of the tank reduces the noise level during operation. The non-clogging multi-vane vortex impeller with a 30 mm free ball passage provides for added safety.
The version for faecal wastewater works with either one or two STF 1300 type suspended pumps. The diameter of the ball passage is 40 mm.
Find the right pumping station with SmartSelect
Make it easier to choose the right product! Use our handy SmartSelect planning tool, answer step-by-step questions about the type of wastewater, delivery head, resistance, etc., and find the perfect product.
Aquapump Small pumping station (non-faecal)
Single station
| Load class | Pump | Type of wastewater | Impeller type | Control unit | Item no. | ||
|---|---|---|---|---|---|---|---|
829810
|
K 3 (EN 1253-1) | GTF 600 | without sewage | Multi-vane impeller | 829810 | Show |
|
829811
|
K 3 (EN 1253-1) | GTF 600 | without sewage | Multi-vane impeller | Basic | 829811 | Show |
829850
|
K 3 (EN 1253-1) | GTF 1250 | without sewage | Multi-vane impeller | 829850 | Show |
|
829851
|
K 3 (EN 1253-1) | GTF 1250 | without sewage | Multi-vane impeller | Basic | 829851 | Show |
