Pumping station Aquapump Small

Mono, Basic, GTF 1250

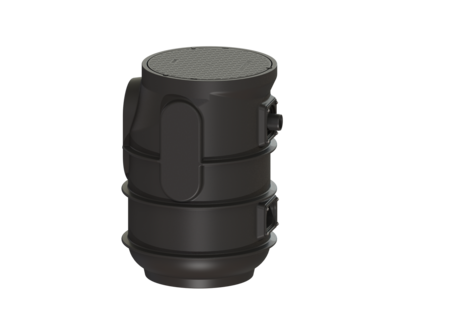

KESSEL Pumping station Aquapump Small, Mono, wastewater without sewage, height 830 mm, with a submersible GTF 1250 pump, level measurement Float switch

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 829850
GTIN 4026092092989
Price group 20

Pumping station Aquapump Small Mono, Basic, GTF 1250
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono ATEX: no Dimensions Net weight: 26 kg Gross weight: 32 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 950 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 25 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 1250 Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,4 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Length of mains cable for pump: 10 m Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Rated current: 5,4 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
One-handed closure for backflow preventer 680018 Show
Seal for pressure pipe connection 680067 Show
Seal for upper section, from 07/2014 680150 Show
Pump connection with seal and flap 680475 Show
Pump connection Minilift, Aqualift S 680760 Show
Flap housing Mono, with pump connector 680761 Show
Turn fastener for pump connection lock 680762 Show
Cover plate round, incl. screws and seal 680801 Show
Pressure pipe DN 32, GTF 1250 680962 Show
Replacement pump GTF 1250 with float switch, 10 m 680965 Show
Pump hanger GTF 1250, Mono 680968 Show
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Load class (belastungsklasse): up to 300 kg
  • Pump (pumpe): GTF 1250
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (schaltgeraet):
