Staufix backwater valve

The original solution for wastewater.

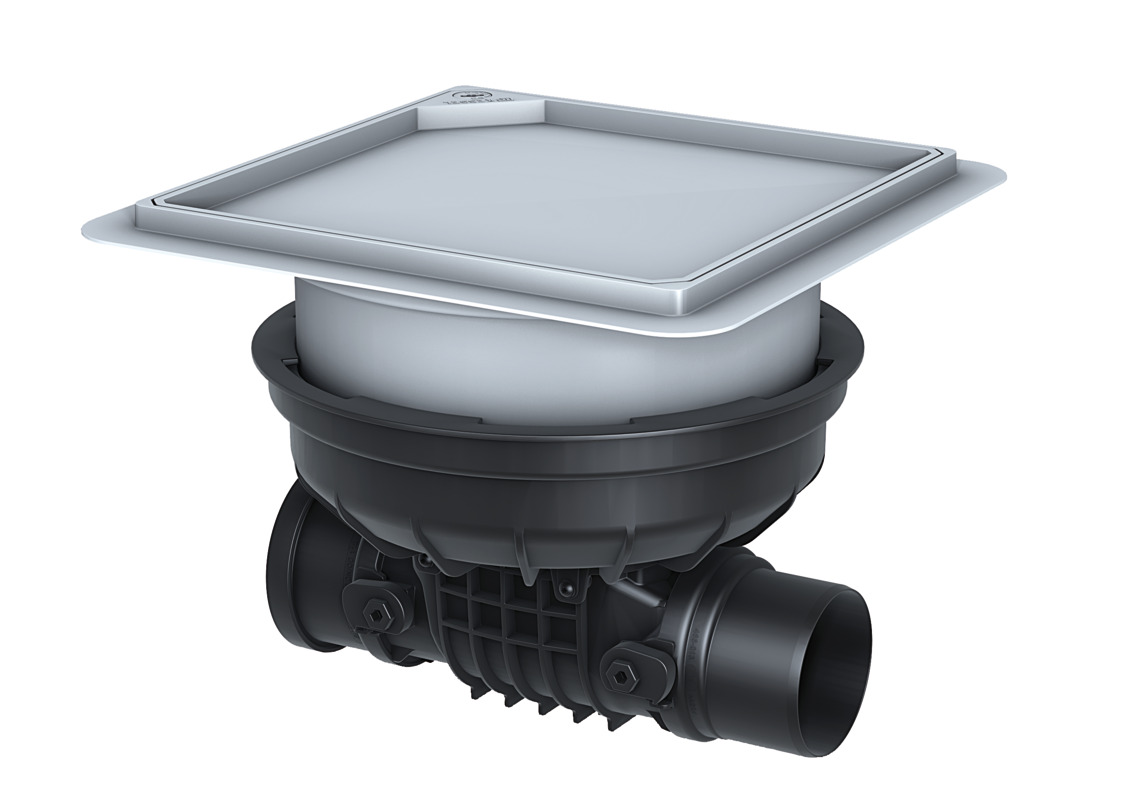

Staufix backwater valve for floor slab installation

You can't improve on an original. But we can. The new Staufix backwater valve is the result of decades of product development and optimisation. It is just as safe as the original Staufix, but now even more compact, allowing a simpler installation and more flexible mounting.

The Staufix backwater valve is available in two versions – for installation in an exposed drainage pipe and for floor slab installation, where you can choose between a black cover or tileable cover.

Advantages  Article overview

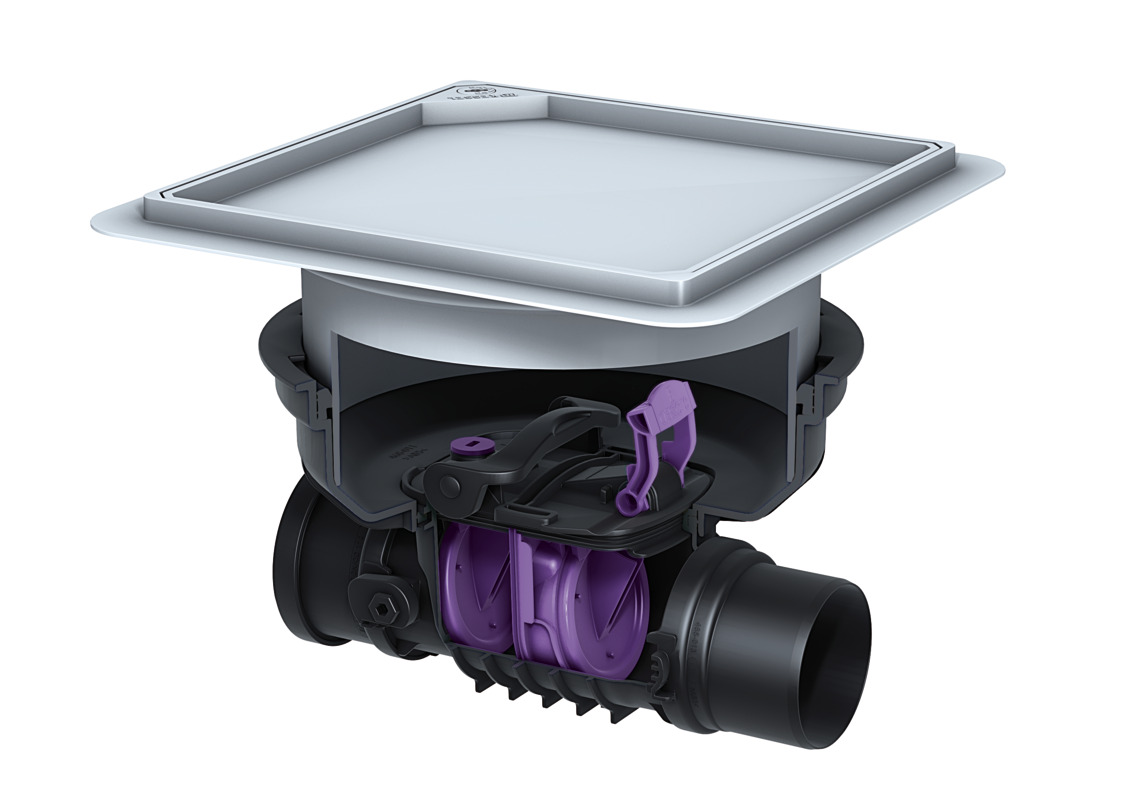

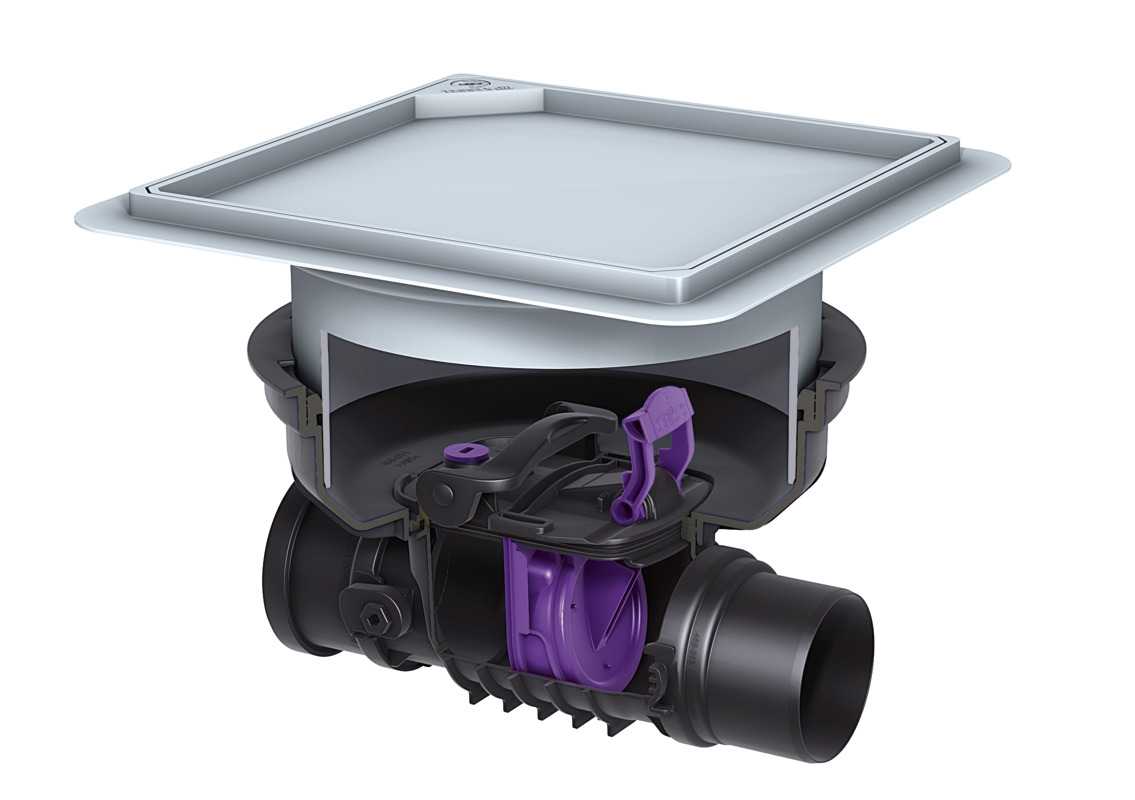

Staufix backwater valve for floor slab installation, with one flap

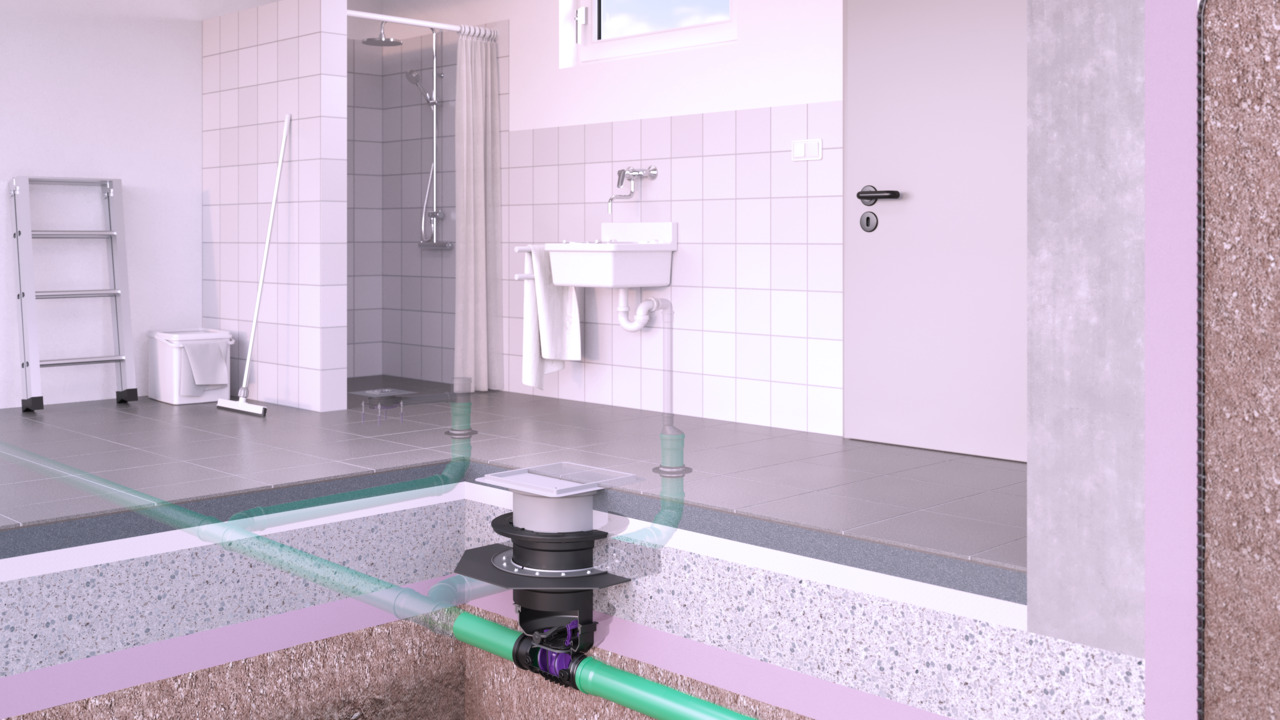

Installation diagram for the Staufix backwater valve for floor slab installation

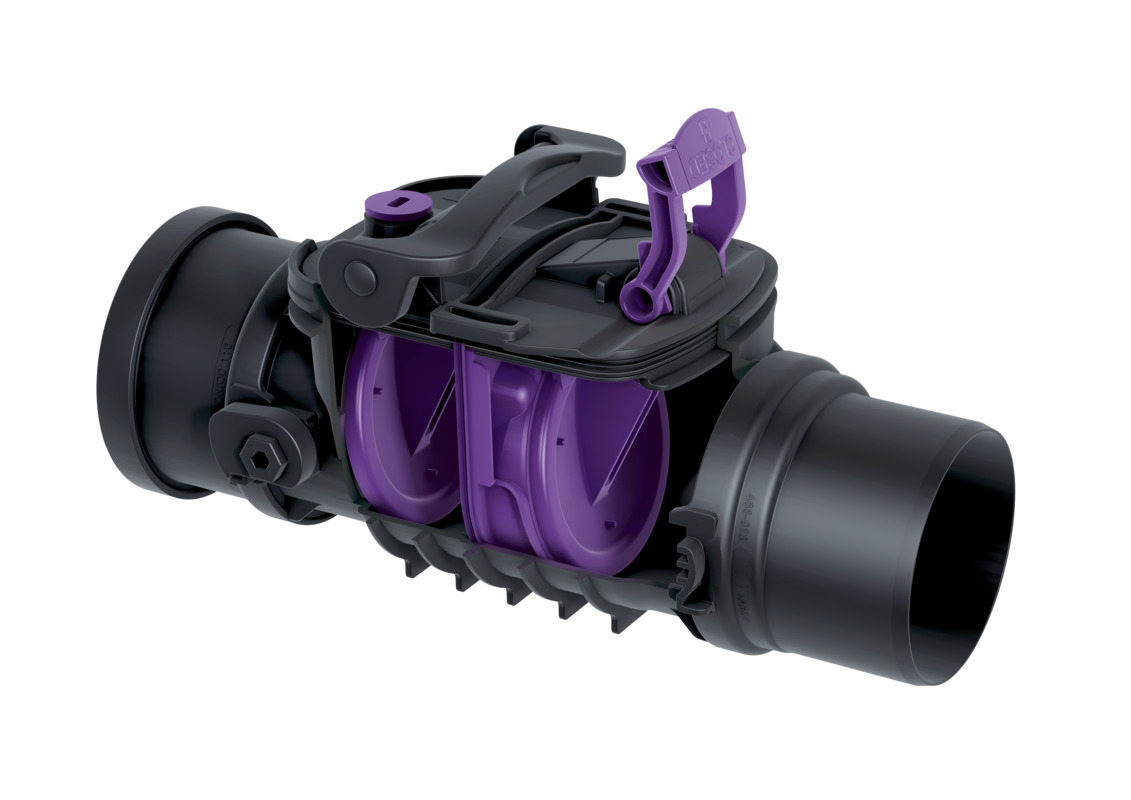

Staufix backwater valve for installation in an exposed drainage pipe, with two flaps

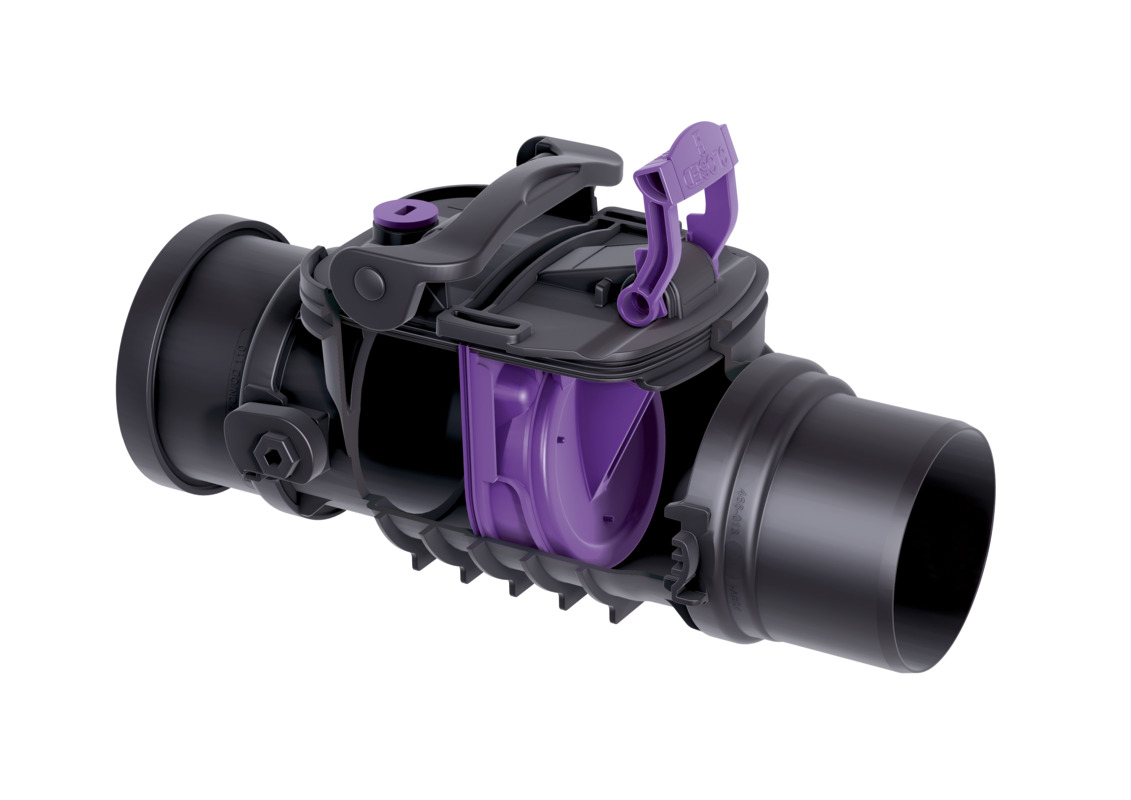

Staufix backwater valve for installation in an exposed drainage pipe, with one flap

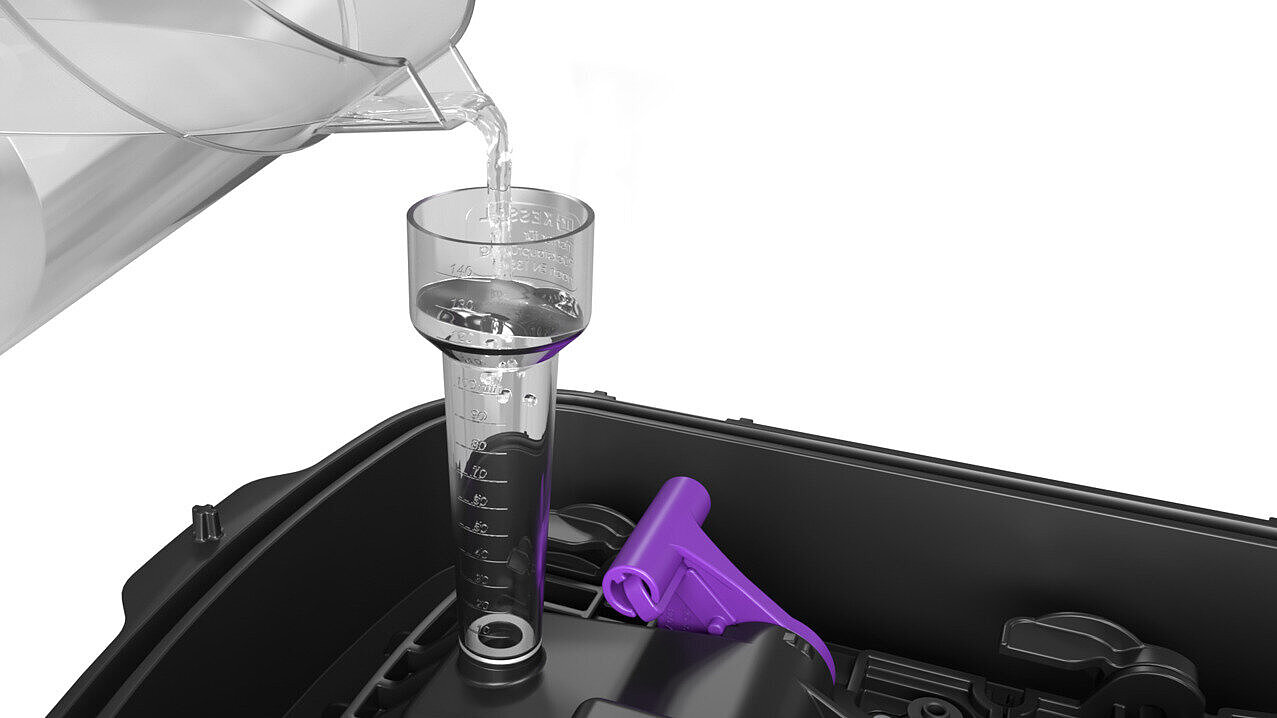

Functional test for the Staufix backwater valve

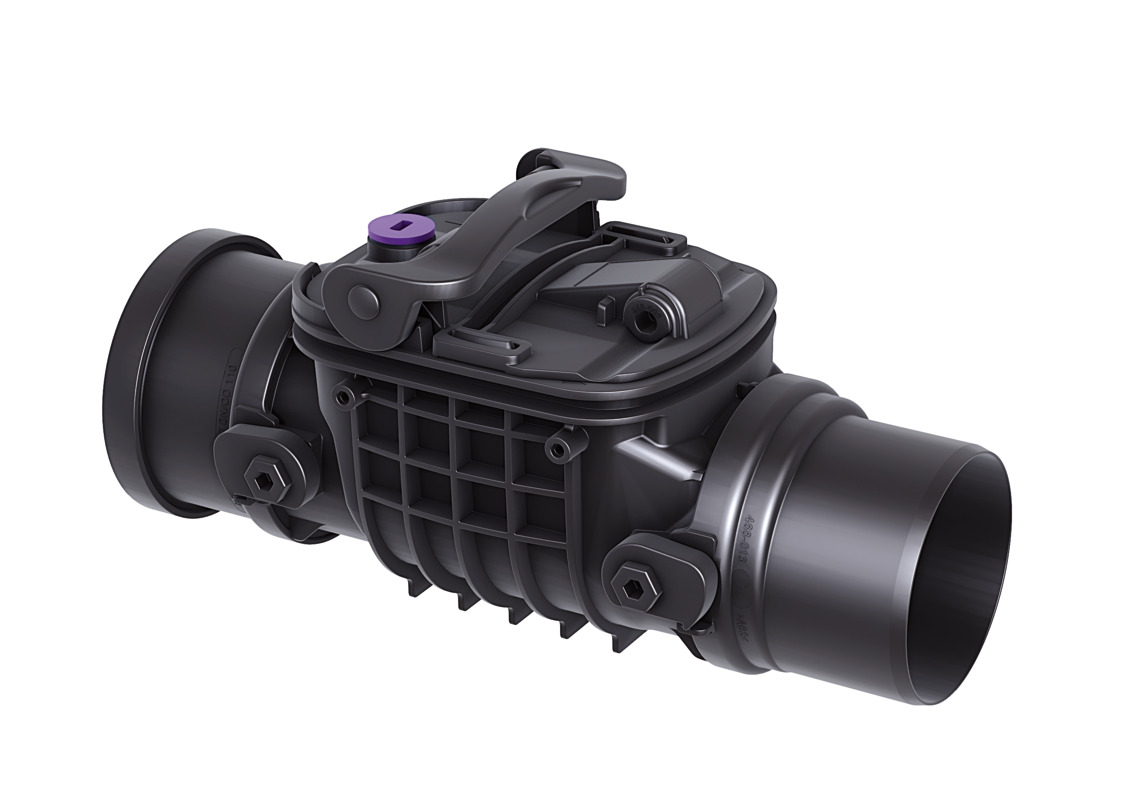

Staufix backwater valve

At KESSEL, we are also constantly putting our products to the test. In addition to product quality, the focus is also on functionality and simple installation. For example, we have made the well-known Staufix backwater valve even more compact and easy-to-install.

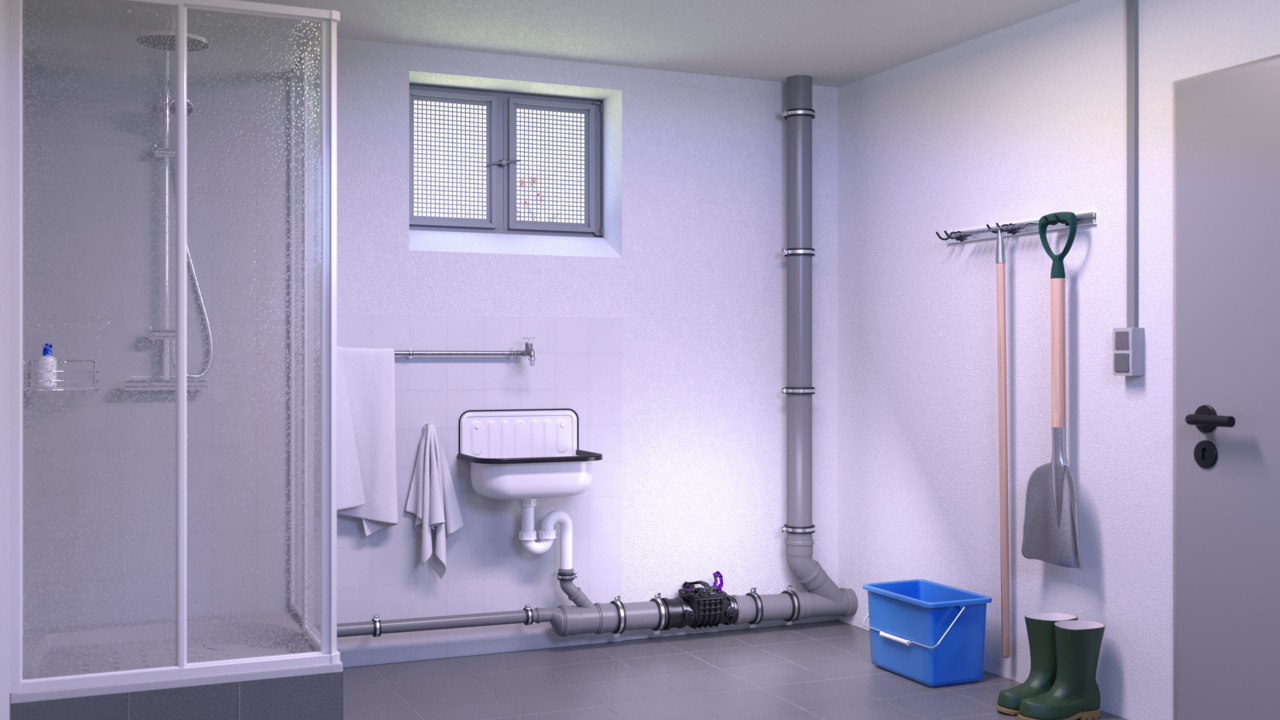

Staufix backwater valve installation situation

Installation situation

The Staufix and StaufixControl backwater valves can be installed either in an exposed drainage pipe or in the floor slab – convenient and tidy thanks to the installation kit with a vertically adjustable upper section. Even installation in waterproof concrete is possible by means of an extension piece with flange and an elastomer waterproofing membrane.

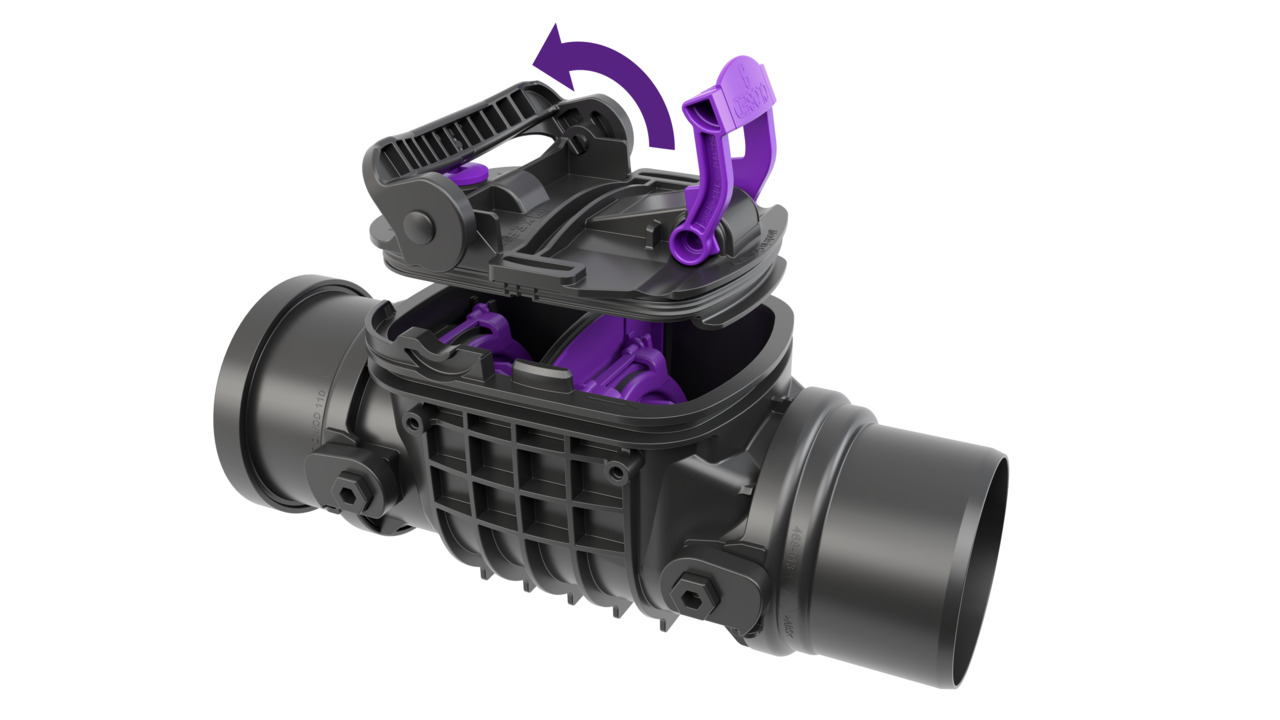

The one-handed closure allows convenient maintenance without tools.

Tool-free maintenance

With the one-handed closure, the cover is particularly easy to open and close ­– for convenient maintenance, with absolutely no tools required.

Staufix type 1

Installation situation: exposed drainage pipe

Backwater protection Nominal size (DN) Type of cover Item no.
720090 Type 1 90 Lockable cover 720090
720100 Type 1 100 Lockable cover 720100
720125 Type 1 125 Lockable cover 720125
720150 Type 1 150 Lockable cover 720150
720200 Type 1 200 Lockable cover 720200

Installation situation: floor slab installation

Backwater protection Nominal size (DN) Type of cover Item no.
720090.10S Type 1 90 Cover plate 720090.10S
720090.10X Type 1 90 tileable cover plate 720090.10X
720100.10S Type 1 100 Cover plate 720100.10S
720100.10X Type 1 100 tileable cover plate 720100.10X
720125.10S Type 1 125 Cover plate 720125.10S
720125.10X Type 1 125 tileable cover plate 720125.10X
720150.10S Type 1 150 Cover plate 720150.10S
720150.10X Type 1 150 tileable cover plate 720150.10X
720200.10S Type 1 200 Cover plate 720200.10S
720200.10X Type 1 200 tileable cover plate 720200.10X

Staufix type 1

Installation situation: exposed drainage pipe

Stainless steel flap as rat protection: no

Backwater protection Nominal size (DN) Type of cover Item no.
730090 Type 2 90 Lockable cover 730090
730100 Type 2 100 Lockable cover 730100
730125 Type 2 125 Lockable cover 730125
730150 Type 2 150 Lockable cover 730150
730200 Type 2 200 Lockable cover 730200

Stainless steel flap as rat protection: yes

Backwater protection Nominal size (DN) Type of cover Item no.
730090R Type 2 90 Lockable cover 730090R
730100R Type 2 100 Lockable cover 730100R
730125R Type 2 125 Lockable cover 730125R
730150R Type 2 150 Lockable cover 730150R
730200R Type 2 200 Lockable cover 730200R

Installation situation: floor slab installation

Stainless steel flap as rat protection: no

Backwater protection Nominal size (DN) Type of cover Item no.
730090.10S Type 2 90 Cover plate 730090.10S
730090.10X Type 2 90 tileable cover plate 730090.10X
730100.10S Type 2 100 Cover plate 730100.10S
730100.10X Type 2 100 tileable cover plate 730100.10X
730125.10S Type 2 125 Cover plate 730125.10S
730125.10X Type 2 125 tileable cover plate 730125.10X
730150.10S Type 2 150 Cover plate 730150.10S
730150.10X Type 2 150 tileable cover plate 730150.10X
730200.10S Type 2 200 Cover plate 730200.10S
730200.10X Type 2 200 tileable cover plate 730200.10X

Stainless steel flap as rat protection: yes

Backwater protection Nominal size (DN) Type of cover Item no.
730090.10SR Type 2 90 Cover plate 730090.10SR
730090.10XR Type 2 90 tileable cover plate 730090.10XR
730100.10SR Type 2 100 Cover plate 730100.10SR
730100.10XR Type 2 100 tileable cover plate 730100.10XR
730125.10SR Type 2 125 Cover plate 730125.10SR
730125.10XR Type 2 125 tileable cover plate 730125.10XR
730150.10SR Type 2 150 Cover plate 730150.10SR
730150.10XR Type 2 150 tileable cover plate 730150.10XR
730200.10SR Type 2 200 Cover plate 730200.10SR
730200.10XR Type 2 200 tileable cover plate 730200.10XR
Individual backwater solutions for customers

Not found the right product?

In addition to our standardbackwater valves, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request..

Individual solutions

Our range of services

For planners, installers and operators

SmartSelect

With our design assistant for backwater valves, you can quickly and easily find the right backwater protection for your project.

SmartSelect verwenden
Technical advice at KESSEL

Technical advice

Would you like to commission a professional assessment of your project, or do you require individual support for your drainage with KESSEL? Our qualified specialists will be happy to advise you.
