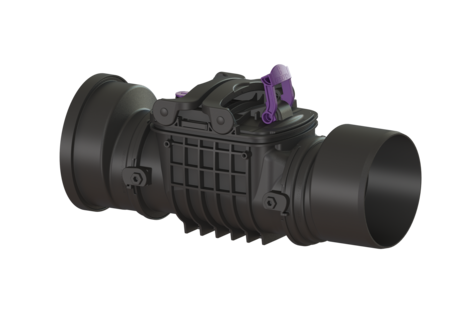

Backwater valve Staufix

DN 200, exposed, Type 1

720200

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 200, exposed drainage pipe, type of cover Lockable cover, a mechanical backwater flap, outside diameter (OD) 200 mm

  • Simple conversion to Staufix Type 2 or StaufixControl
  • Flexible installation, various covers available for floor slab installation
  • Simple, toolless maintenance and cleaning
Item no. 720200
GTIN 4026092076118
Price group 10

Backwater valve Staufix DN 200, exposed, Type 1
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Variant Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 1 Dimensions Net weight: 3,7 kg Gross weight: 6,3 kg Vertical drop between inlet and outlet: 8 mm Length: 586 mm Width: 233 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686113 Seal Cover seal for Staufix, DN 125-200 686113 Show
70214 Testing funnel with seal 70214 Show
70232 Backwater flap DN 125/150 70232 Show
70242 Slide-in flap housing DN 125/150, with seal 70242 Show
72230 Lockable cover DN125-200, with emergency closure 72230 Show
83084 Spigot DN 200, with seal 83084 Show
83088 Socket DN 200, with seal 83088 Show
  • Nominal size (DN) (nennweite): 200
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Length (laenge): 586  mm
  • Width (breite): 233  mm
  • Backwater protection (rueckstauschutz): Type 1
